Dymo LabelWriter DUO Manuel utilisateur

Quick Start Guide

Guide de démarrage rapide

Guía para Comenzar Rápidamente

Guia de Início Rápido

English

Quick Start Guide

Follow these steps to install the LabelWriter printer and print your first label.

1. Unpacking your LabelWriter Printer

NOTE Do not plug the printer into your computer until asked to do so during the

software installation.

1Unpack your printer and save the packing materials.

2Make sure you have all the items shown in Figure 1. (Labels included in the

package may vary.)

SwitchingAdapter

SHOCKHAZA

RISKOF

ELECTRIC

SHOCK

DRYL

OCA

TIONUSEON

LY.

NON-SERVICEABLEP

ART

SINSIDE.

FORUSE

WITHITEONLY

ENDASTFORK

ONTORSM

ASKINER.

CAU

TION

Testedtocomply

withFCC

standa

rds

FORHOMEOR

OFFICEUSE

I.T.E

.POWERSUP

PLY

ModelNo.:TESA2-2

401000

U.S

.P/N:90819

EuropeP/N:924883

INPUT:100-240V

-50/60HzM

ax0.64A

OUTPUT

:24V---0-1.0A

MADEINCHINA

LISTED

15WM

E198850

ULUL

N10926

LabelWriter

QuickStart

Figure 1

Power adapter

LabelWriter printer

CD-ROM

Roll of Address labels

Power cable

Quick Start Guide

USB cable

D1 label

cassette

Become familiar with the printer’s major components. See Figure 2.

LabelWriter Printer Features

Your LabelWriter printer is a direct thermal printer and does not use ink or toner.

Instead, the printer uses heat from a thermal print head to print on specially

treated labels. Labels are the only supplies you will ever need to buy.

The form-feed button on the front of the printer is used to advance a single label.

The label eject button is used to remove labels from the printer when changing

rolls. The tape tray release button opens the tape tray to insert or remove a label

cassette.

The LED status light allows you to visually determine the current state of the

printer:

•Solid blue - power is on and the printer is ready.

•Flashing blue - labels are not loaded properly or label spool is empty.

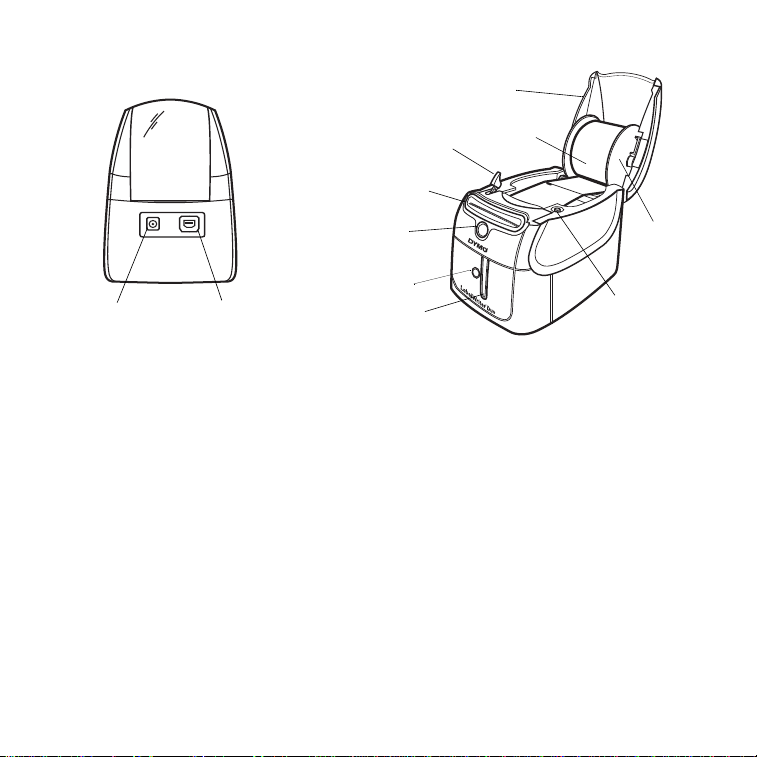

Figure 2

Form-feed

Label feed path

and tear bar

USB

connector

DC power

connector

button and LED

Tape tray

cover

Label roll

Top

Platen

release

Label eject

button

release button

Label exit

slot

Label

spool

2. Installing the Software

NOTE Do not connect the printer to your computer until instructed to do so during

the software installation.

To install the software on a Windows system

1Insert the LabelWriter CD into your CD-ROM drive. After a few seconds, the

installation screen appears.

If the installation screen does not appear:

a. Click Start, then Run on the Windows taskbar. The Run dialog box

appears.

b. Enter D:\install.exe (where D is the letter assigned to the CD-ROM drive)

and click OK.

2Select the language version you wish to install and follow the instructions.

To install the software on a Mac OS system

1Insert the DYMO LabelWriter CD into the CD-ROM drive.

After a few seconds, the DYMO Label Software Installer

icon appears. See Figure 3.

2Double-click the Installer icon and follow the instructions.

If you do not see your printer in the printer list when the installation is

complete, refer to the ReadMe file for instructions on how to add the printer.

Figure 3

3. Connecting your LabelWriter Printer

NOTE Do not connect the printer to your computer

until instructed to do so during the software

installation.

To connect the power

1Plug the power cord into the power adapter.

See Figure 4.

2Plug the power adapter into the power

connector on the back of the printer. See

Figure 5.

3Plug the other end of the power cord into a

power outlet.

4Plug the USB cable into the USB port on the

back of the printer. See Figure 5.

NOTE DO NOT CONNECT the other end of the USB cable to

your computer until asked to do so during the software

installation.

5When prompted by the software installer, plug the USB

cable into a USB port.

SwitchingAdapter

SHOCKHAZARD

RISKOFELECTRICSHOCK

DRYLOCATIONUSE ONLY.

NON-SERVICEABLEPARTSINSIDE.

FORUSEWITHITE ONLY.

ENDASTFORKONTORSMASKINER.

CAUTION

Testedtocomply

withFCCstandards

FORHOMEOR

OFFICEUSE

I.T.E.POWERSUPPLY

ModelNo.:TESA2-2401000

U.S.P/N:90819

EuropeP/N:924883

INPUT:100-240V-50/60HzMax0.64A

OUTPUT:24V---0-1.0A

MADEINCHINA

LISTED

15WM

E198850

ULUL

N10926

Power Adapter

Power Cord

Figure 4

Figure 5

Power

USB

Figure 6

USB

Port

4. Loading Labels

The LabelWriter Duo printer prints two types of labels: die-cut paper labels (such

as Address or Shipping labels) and D1 label cassettes.

To load die-cut labels

1Press the form-feed button to eject the labels that

protected the printer during shipment.

2Open the top cover and remove any packing

material inside the label compartment.

3Remove the label spool from inside the cover.

4Hold the spool spindle in your left hand and place the

label roll on the spindle so that the labels feed from

underneath and the left edge of the label roll is flush

against the side of the spool. See Figure 7.

5Place the spool guide onto the right side of the spool

and press the guide tightly against the side of the

label roll, leaving no gap between the roll and the spool. See Figure 8.

NOTE The label roll must fit snugly against both sides of the

label spool, with no gaps, to avoid drifting as the labels feed

through the printer.

6Insert the label spool into the slot in the printer cover with

the labels extending from underneath the roll. See Figure 9.

Figure 7

Spool

spindle

Spool

guide

Figure 8

Figure 9

7Align the left edge of the label with the left edge of the

label feed slot and insert the label into the slot. See

Figure 10.

The printer feeds the labels, stopping at the beginning

of the first label. If the printer does not feed the labels,

make sure the first label is fully inserted and then press

the form-feed button.

8Close the top cover.

To load the D1 label cassette

1Press the button on the front of the printer

to open the label cassette tray.

NOTE The first time you use the printer, remove

the protective cardboard insert from the label

exit slot. See Figure 11.

2Make sure the label and ribbon are taut

across the mouth of the cassette and that

the label passes between the guideposts. If

necessary, turn the spool clockwise to

tighten the ribbon.

Figure 10

Remove

Figure 11

cardboard insert

3Insert the cassette and press firmly until it clicks

into place. Make sure label and ribbon are

positioned correctly. See Figure 12.

4Press the button to close the label cassette tray.

You are now ready to print your first label.

5. Printing your First Label

To print an address label

1Start DYMO Label Software by doing one of the following:

•For Windows, click Start, then Programs>DYMO Label>DYMO Label.

•For Macintosh, double-click in the DYMO Label folder.

The first time you open the application, you are asked to register the

software. Registering the software ensures that you will be informed of any

software updates. You are also asked to enter your default return address.

2At the main window, click once on the address label and type an address.

3Select a font setting that you like from the Formatting toolbar.

4Click to print the label.

To print a D1 plastic label

1Click to display the Tape Editor.

2Make sure that the Tape Width selection matches the size of the tape

cassette loaded in the tape tray.

3Type some text on the label.

Push down gently

Figure 12

4Select a font and a style setting from the Formatting toolbar.

5Click to print the label.

Figure 13 highlights some of the major features available in DYMO Label

Software.

For complete details on using the software, refer to the DYMO Label Software User

Guide, located on the DYMO LabelWriter CD-ROM, and the online Help.

Insert text,

addresses, pictures,

rectangles, lines,

barcodes, dates, or

counters.

Insert text you’ve

copied to the

Clipboard.

Store your favorite

addresses in the

Address Book;

automatically insert

them on your label.

Switch easily between

the Label Editor and

Tape Editor (LabelWriter

Duo printer only).

Figure 13
