Dymo M1011 Manuel utilisateur

Rhino M1011

www.dymo.com

User Guide

Guide D’Utilisation

Bedienungsanleitung

Guida per l’utente

Guía del usuario

Guia do Usuário

ATape cassette door HCharacter selection window

BTape rollers ICutting handle

CTape advance knob JEmbossing adjustment screw

DStart line KCable tie slot entrance

ETape pawl LHole punch entrance

FEmbossing handle MTape exit

GEmbossing wheel NTrailer length guide

About Your New Label Maker

With your new DYMO M1011 label maker, you can create metal labels.

The label maker uses DYMO 12 mm (1/2") tape.

Metal tapes are available as follows:

• Aluminium with adhesive (35800)

• Aluminium without adhesive (31000)

• Stainless Steel (32500)

You can also use a Reverse Image Wheel with the DYMO M1011 label

maker. This wheel allows you to print mirror script labels that meet

special requirements in the industry. Mirror labels are used on moulds or

casts for metal or rubber injection, silicon casting, fiber glass

applications, and so on.

Visit www.dymo.comfor information on obtaining tapes for your

label maker.

Loading the Tape

The DYMO M1011 is set toemboss non-adhesive aluminium tape.

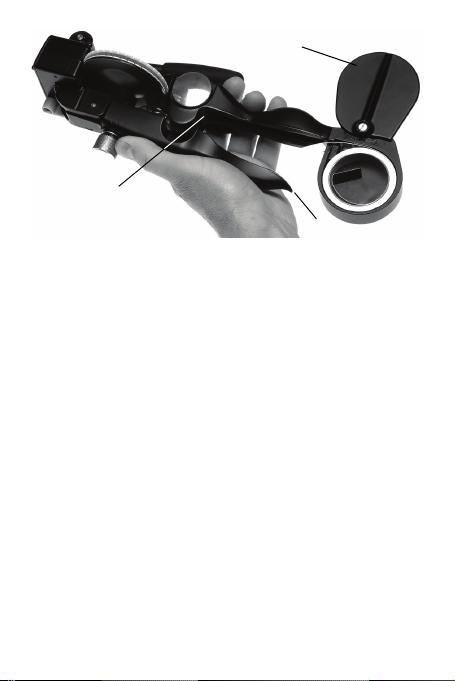

To load the tape roll

1. Hold the label maker in your left hand.

2. Open tape cassette door (A).

3. Insert roll of tape allowing the end to extend about 5 cm (2") through

the label slot.

4. Close the tape cassette door.

5. Feed the tape between the two rollers (B).

6. Squeeze the embossing handle (F) half-way (one click) several times

to ensure the tape is visible at the tape exit.

Cutting the Label

To cut the label

1. Squeeze the embossing handle half-way, several times until the tape

extends from the front of the tape exit (M) by at least 2,5 cm (1").

Before cutting the tape, make sure the end of the tape extends

beyond the edge of the cutting assembly so you can easily pull the

label out. Otherwise, a tape jam may occur.

2. Lift the cutting handle (I) gently until it is vertical to cut the label.

Embossing the Label

Avoid turning the embossing wheel at the same time you are

squeezing the embossing handle. This can damage the character wheel.

To emboss a label

1. Turn the character selection wheel (G) until the desired letter is

centered in the window (H).

2. Squeeze the embossing handle (F) firmly.

3. Release the embossing handle fully before selecting the

next character.

To add space between words

♦Squeeze embossing handle (F) half-way (one click) or turn the label

advance knob clockwise (one click per space).

Embossing on Stainless Steel Label

You may need to adjust the labelmaker to emboss properly when using

stainless steel tape.

To adjust for stainless steel label

1. Turn the adjustment screw (J) clockwise 3/4 to 1 turn.

2. Emboss the text as described in “Embossing the Label” on page 6.

When you return to using aluminum tape, you may need toreverse

this adjustment.

Retracting the Label

You may want to retract the tape, for example, if the tape advanced too

far or to center the text on the label.

To retract the label

1. Pull back the pawl (E).

2. Turn the tape advance knob (C) counter-clockwise.

Removing the Label

To remove the label

1. Retract the tape as described in “Retracting the Label” on page 8.

2. Open the tape cassette door (A) and remove the label.

Use caution when removing stainless steel tape that may have

sharp edges.

3. Reload the tape as described in “Loading the Tape” on page 4.

Centering the Text on the Label

The trailer length guide (N) has positioning marks for a short (S) or long

label (L). Use the marks on the guide to center the text on your label.

To center the text on a long label

1. After cutting the previous label,emboss the text on a new label.

2. Pull the trailer length guide (N) to the forward position.

3. Advance the tape until the last embossed letter is opposite the Lon the

guide. The label has a leader/trailer of approximately 5 cm (2") and the

text is centered.

4. Lift the cutting handle (I) to the vertical position to cut the label.

To center the text on a short label

1. Retract the tape until the tape edge is at start line (D).

2. Emboss the text on your label.

3. Advance the tape until the last embossed letter is opposite the Son the

guide. The label has a leader/trailer of approximately 3 cm (1.5") and

the text is centered.

4. Lift the cutting handle (I) to the vertical position to cut the label.
