DTS JACK Manuel utilisateur

D.T.S. Illuminazione srl

[email protected] http://www.dts-lighting.it

Via Fagnano Selve 10/12/14

47843 MisanoAdriatico (RN) ITALIATel +39 0541 611131 Fax +39 0541 611111

Made in Italy

Le informazioni contenute in questo documento sono state attentamente redatte e

controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze.

Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato,

riprodotto per intero o in parte senza previo consenso scritto della D.T.S .

D.T.S. si riserva il diritto di apportare senza preavviso cambiamenti e modifiche

estetiche , funzionali o di design a ciascun proprio prodotto. D.T.S non assume alcuna

responsabilità sull’uso o sull’applicazione dei prodotti o dei circuiti descritti.

The information contained in this publication has been carefully prepared and

checked. However, no responsibility will be taken for any errors. All rights are

reserved and this document cannot be copied, photocopied or reproduced, in part or

completely, without prior written consent from D.T.S.

D.T.S. reserves the right to make any aesthetic, functional or design modifications to

any of its products without prior notice. D.T.S. assumes no responsibility for the use or

application of the products or circuits described herein.

Les informations contenues dans le présent manuel ont été rédigées et contrôlées

avec le plus grand soin. Nous déclinons toutefois toute responsabilité en cas

photocopié ou reproduit, dans sa totalité ou partiellement, sans le consentement

préalable de D.T.S.

D.T.S. se réserve le droit d'apporter toutes modifications et améliorations esthétiques,

fonctionnelles ou de design, sans préavis, à chacun de ses produits. D.T.S. décline

toute responsabilité sur l'utilisation ou sur l'application des produits ou des circuits

décrits.

Las informaciones contenidas en este documento han sido cuidadosamente

redactadas y controladas. Con todo, no se asume ninguna responsabilidad por

eventuales inexactitudes. Todos los derechos han sido reservados y este documento

no puede ser copiado, fotocopiado o reproducido, total o parcialmente, sin previa

autorización escrita de D.T.S.

D.T.S. se reserva el derecho a aportar sin previo aviso cambios y modificaciones de

carácter estético, funcional o de diseño a cada producto suyo. D.T.S. no se asume

responsabilidad de ningún tipo sobre la utilización o sobre la aplicación de los

productos o de los circuitos descritos.

INDEX:

1- SYMBOLS 4

2- GENERAL WARNING 4

3- GENERAL WARRANTY CONDITION 4

4- TECHNICAL FEATURES 5

5- ACCESSORIES 7

6- IMPORTANT SAFETY INFORMATION 8

6.1 Fire prevention

6.2 Prevention of electric shock

6.3 Protection against ultraviolet radiation

6.4 Safety

6.5 Level of protection against the penetration of solid and liquid objects

7- MOUNTING / REPLACING THE LAMP AND LAMP ALIGNMENT 10

8- VOLTAGE AND FREQUENCY 11

9- INSTALLATION 11

9.1 Safety cable

9.2 Protection against liquids

9.3 Movement

9.4 Risk of fire

9.5 Forced ventilation

9.6 Ambient temperature

10- MAINS CONNECTION 13

10.1 Protection

11- DMX SIGNAL CONNECTION 14

11.1 DMX Addresses

11.2 Selecting the DMX address

12- FIRMWARE UPDATING 15

13- DISPLAY FUNCTIONS 16

14- ERROR MESSAGES 20

15- HIDDEN MENU 21

15.1 Calibration mode

16- PAN SPEED & TILT SPEED 22

17- BASE FANS SPEED AND BASE LAMP SPEED 22

18- OPENING THE PROJECTOR HOUSING 23

19- REPLACING GOBOS 23

20- PERIODIC CLEANING 24

20.1 Lenses and reflectors

20.2 Fans and air passages

21- PERIODIC CONTROLS 25

22- DMX PROTOCOL 26

23- 9 MOTORS CONTROL CARD 38

24- PAN & TILT CARD 39

25- DISPLAY CARD 40

26- LAMP ON-OFF CONTROL CARD 40

27- ROTATING GOBO WHEEL 41

28- ROTATING GOBO PROVIDED INTO THE UNIT BOX 41

29- FIXED GOBO WHEEL 42

30- COLOUR WHEEL 43

1- SYMBOLS

Graphic symbols used on this manual

THIS SYMBOL INDICATES A HOT SURFACE

THIS SYMBOL INDICATES ELECTRIC

SHOCK RISK

THIS SYMBOL INDICATES GENERAL RISK

THIS SYMBOL MEANS “DO NOT PLACE THE

UNIT ON INFLAMMABLE SURFACES”

THIS SYMBOL MEANS “RADIATION FROM

THIS LAMP CAN CAUSE DAMAGE TO EYES

AND SKIN”

THIS SYMBOL INDICATES THE MINIMUM

DISTANCE TO BE KEPT BETWEEN THE

DEVICE AND THE LIT OBJECT

2- GENERAL WARNING

Read the instruction contained in this user manual carefully, as they give important

information regarding safety during installation , use and maintenance.

The device is not for domestic use and must be installed by a qualified electrician or

experienced person.

Always disconnect the device from the mains before replacing the lamp.

The lamp must be replaced if it has been damaged or deformed by prolonged use or

overheating.

The device must always be equipped with an efficient ground connection.

3- GENERAL WARRANTY CONDITIONS

The unit is guaranteed for 36 months from the date of purchase against manufacturing

material defects.

4- TECHNICAL FEATURES

The JACK is a high-power, compact, lightweight moving head.

JACK features a wide excursion motorized zoom allowing any application from

long-throw projections to large wall washing.

Beam opening is:

1° - 2,5° 'Beam' projection;

2,5° - 37° 'Spot' projection;

38° - 46° 'Wash' projection.

JACK generates a huge luminosity and extremely uniform projection using only a

189 W lamp; power consumption is just 230W.

Also, JACK comes equipped with the 'FPR' ( 'Free Pan Rotation' - patent pending )

system, which allows limitless pan rotation, in either direction, never having to reverse

motion (Cod. 03.MS012.EBLFP).

JACK is the perfect moving head for rental companies –who want a quick and easy to

install unit –thanks to its compactness and light weight (only 11,9 Kg).

JACK is suitable for any professional applications.

JACK

(Cod. 03.MS012.EB.L)

• Electronic ballast 90-260V 50/60 Hz • Black finish

Also available with white finish (RAL 9003) on demand (03.MS012.EB.03.L)

(Cod. 03.MS012.EBLFP)

• Electronic ballast 90-260V 50/60 Hz • FPR (Free Pan Rotation) Black finish

Also available with white finish (RAL 9003) on demand (03.MS012.EB03LFP)

Lamp

MSD Platinum 5R (7.950 Lumens)

Colour temperature: 8.000°K

Type of connection: PINS 2,8x 0,8mm

Optical group

* 50,000 Lux at 5 m (2,5°)

* Improved optical group made with 11 coated lenses

combined with a dichroic glass reflector

* 16-bit motorized linear zoom (2,5°- 46°)

* Beam opening: 1°- 46°

* 16-bit motorized focus

* Motorized iris

* Linear dimmer / shutter / strobe (0,85 flash/sec to 10 flash/sec)

Colour generation

* 18-colour wheel with linear selection for perfect 2-colour beams

Dynamic effects

Overlapping wheels for multiple effects:

* Customizable rotating gobo wheel (9 gobos)

* Customizable fixed gobo wheel (10 gobos)

* 4-facet rotating prism

4- TECHNICAL FEATURES

Interface / Control / Programming

* LCD graphic display (control / management / monitoring of the main parameters)

* 4 soft-keys (control / management / monitoring of the main parameters)

* Controlled via DMX 512 standard digital communication protocol

* RDM

* ARTNET (available on request)

* Wireless ready

* Internal operating system updatable via D.T.S. RED BOX interface and

hyperterminal program on windows based PC

DMX

25 DMX channels (default) or 17 DMX channels

Pan & Tilt

Jack FPR (Cod. 03.MS012.EBLFP)

* 'FPR': limitless pan rotation, in either direction, never having to reverse motion

Tilt 270° (1,5 sec.)

Jack (Cod. 03.MS012.EB.L)

* Pan 540° (2,5 sec.); Tilt 270° (1,5 sec.)

* New Tri-phase stepper motor technology for ultra-fast and silent Pan &Tilt

movements

* 16-bit movement resolution

* Selectable speed ranges

Power supply

* Electronic ballast; 90-260 V 50/60 Hz

* Power consumption: 230 W with PFC

Energy saving

* Power saving mode (the lamp dims to 80% after shutter closure)

Connectors

* DMX: 4 XLR connectors (3-pole In and Out; 5-pole In and Out) by Neutrik;

* Power supply: POWERCONN connectors (Power In / Power Out) by Neutrik

Operating ambient temperature

-10° / 40°

Weight

11,9 Kg

Internal safety devices

* Overvoltage circuit protection and overtemperature circuit protection

International certifications

Safety: EN 60598-1: 1993

EN 60598-2-17: 1989

A1-A3: 1993

EMC: EN 55015

4- TECHNICAL FEATURES

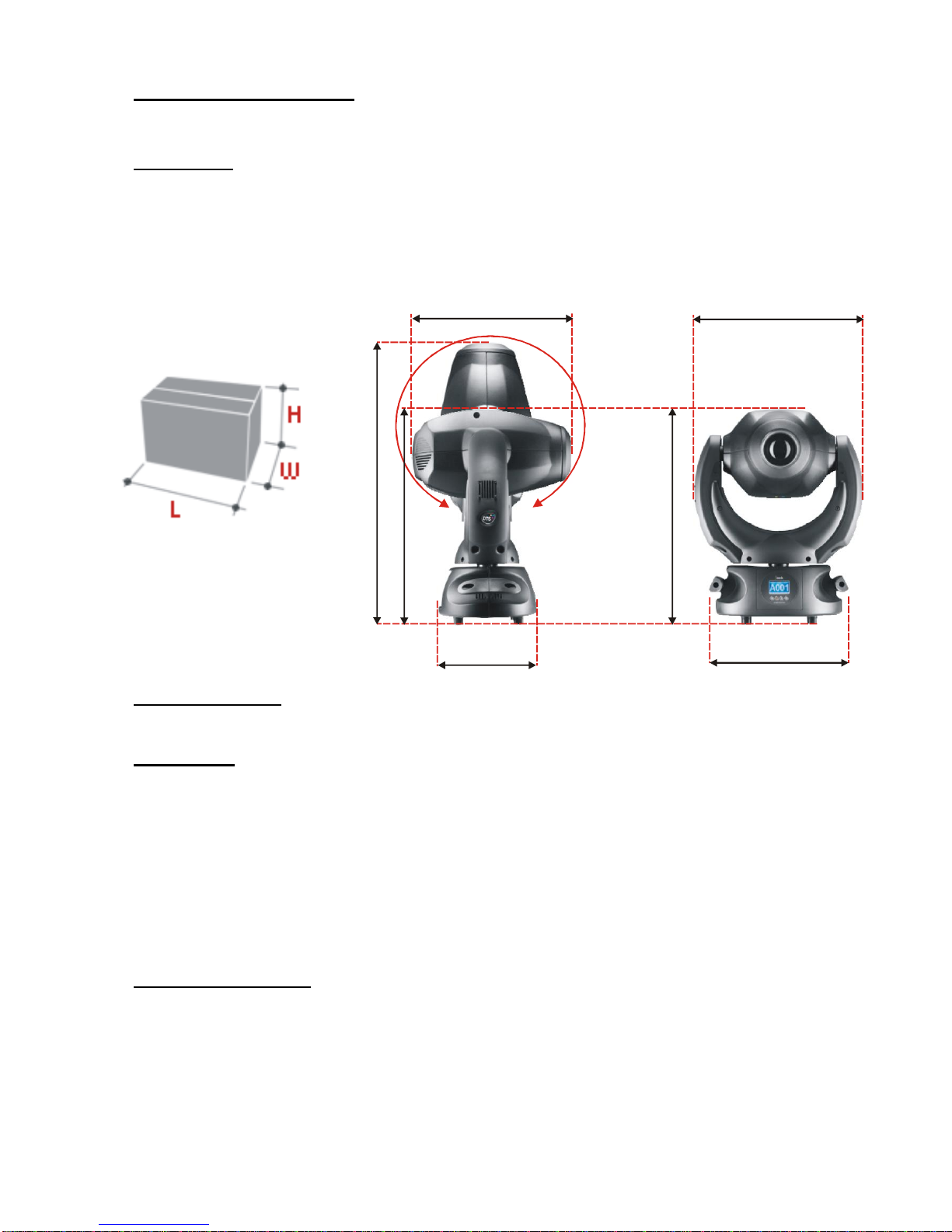

Dimensions

Packaging Dimensions (LxWxH) Unit Dimensions (LxWxH)

532 x 430 x 414 mm 350x370x560mm

Weight: 14,4 Kg Weight: 11,9 Kg

5- ACCESSORIES

As standard

* 1 x MSD Platinum 5R (cod. 0505S034)

* 1 x POWERCON male cable connector (cod. 0520P014)

* 1 x XLR 5 Pins male cable connector (cod. 0508B028)

* 1 x XLR 5 Pins female cable connector (cod. 0508B027)

* “C” Clamp G QUICK with “Fast Lock” connection 1/4 turn (one piece) (cod.

0521A014)

* Rotating Gobo Dicro (D.T.S. Code: 0516G063)

* User’s manual

Optional (on request)

• Wireless DMX Receiver Card with INDOOR IP20 omni. 2dBi antenna included

(cod.03.LA.126)

• “C” Clamp G60 black (max. load 50Kg) (cod. 0521A004)

• “C” Clamp G60 chrome (max. load. 50Kg) (cod. 0521A004.20)

• “C” Clamp GQUICK with “Fast Lock” connection 1/4 turn (max. load. 80Kg) (cod.

0521A014)

• “C” Clamp G100 black / professional (max. load. 200Kg) (cod. 0521A015)

• Omega clamp with “Fast Lock” connection 1⁄4 turn (cod. 02K00467)

• Safety wire (3mm x 60 cm), ring spring catch, max. capacity load 60Kg (cod.

0521A010)

300 mm

470mm

370 mm

217 mm

560mm

350 mm

270°

6- IMPORTANT SAFETY INFORMATION

6.1 Fire prevention:

JACK uses a MSD Platinum 5R lamp.

The use of any other alternative lamp is not recommended and will null and void the

fixture's warranty.

-Never locate the fixture on any flammable surface.

-Minimum distance from flammable materials: 1 MT.

-Minimum distance from the closest illuminable surface: 2 MT.

-Replace any blown or damaged fuses only with those of identical value.

Refer to the wiring diagram if there is any doubt.

-Connect the projector to mains power via a thermal magnetic circuit breaker.

6.2 Prevention of electric shock:

-High voltage is present inside the unit.

Unplug the unit prior to performing any function which involves touching the inside of

the moving head, including lamp replacement.

-The level of technology inherent in the JACK requires the assistance of specialised

personnel for all servicing. Please refer to an authorised D.T.S. service centre.

-A good earth connection is essential for proper functioning of the projector.

-Never connect the unit without proper earth connection.

-The fixture should be located in places with a good air ventilation.

6.3 Protection against ultraviolet radiation:

-Never turn on the lamp if any of the lenses, filters or ABS covering are damaged.

Their respective shielding functions will only operate efficiently if they are in perfect

working order.

-Never look directly the lamp when it is on.

6.4 Safety:

-The projector should always be installed with bolts, clamps and other tools that are

capable of supporting the weight of the unit.

-Always use a second safety cable to sustain the weight of the unit in case of the

failure of the main fixing point.

-The external surface of the unit, at various points, may exceed 70°C. Never handle

the unit until at least 10 minutes have elapsed since the lamp was turned off.

-Always replace the lamp if any physical damage is evident.

-Never install the fixture in an enclosed area lacking sufficient air flow.

The ambient temperature should not exceed 40°C.

-A hot lamp may explode, so always wait for at least 10 minutes prior to attempting to

replace the lamp.

-Always wear suitable hand protection when handling the lamp.

6.5 Level of protection against the penetration of solid and liquid objects:

-The projector is classified as an ordinary appliance and its protection level against the

penetration of solid and liquid objects is IP 20.

For outdoor use, D.T.S. reccomend the use of the dedicated raincovers.

7- MOUNTING / REPLACING THE LAMP AND LAMP ALIGNMENT

Warning: Switch off the unit before replacing the lamp.

MSD Platinum 5R

Power 189W

Luminous flux 7950 lm

Colour temperature 8.000°K

Type of connection: PINS 2,8 x 0,8 mm

Rated life 2000 hours

1) Loosen the 2 “¼ turn” screws which fix the head covers (photo 1) .

2) Once loosen the screws, simply lift the covers to access the internal components

(photo 2 and 3).

Photo 1 Photo 2 Photo 3

3) Using a Philips screwdriver, loose the 2 screws A, B, (photo 4), unplug the fan

connector (photo 5) and remove the lamp fan assembly (photo 6).

Photo 4 Photo 5

1/4 TURN

COUNTER

CLOCKWISE

Photo 6

4) Loose the four screws which fix the lamp (photo 7), unplug the two fast-on cable

connectors (photo 8) and remove the old lamp.

5) Put in place the new lamp and push it toward the three mechanical ends D, E, F

(photo 9) on the lamp support; this let you have the lamp properly aligned on the

optical system.

Photo 7 Photo 8

WARNING:

Never look directly at the lamp when it‟s lit.

Discharge lamps emits UV rays;

radiation from this lamp can cause

damage to eyes and skin.

Photo 9

Table des matières

Autres manuels DTS Équipement d'éclairage

DTS

DTS Scena LED 150 Manuel utilisateur

DTS

DTS 03.P16.02.01.LED PAR16 LED MR16 BLACK Manuel utilisateur

DTS

DTS Alchemy 7 Manuel utilisateur

DTS

DTS SCENA COMPACT LED 50 Manuel utilisateur

DTS

DTS DELTA R FULL COLOR Manuel utilisateur

DTS

DTS XR5 SPOT Manuel utilisateur

DTS

DTS DIVE/R 18 RGB Manuel utilisateur

DTS

DTS TITAN SOLO Manuel utilisateur

DTS

DTS NicKWash 600 Manuel utilisateur

DTS

DTS DONUT 6 Manuel utilisateur

DTS

DTS FREELINE 30 Manuel utilisateur

DTS

DTS SCENA LED 80 WHITE Manuel utilisateur

DTS

DTS NICK NRG1200 CT Manuel utilisateur

DTS

DTS PAR64Ip66 watertight Manuel utilisateur

DTS

DTS Delta 8 White + Amber R Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

DTS

DTS HORUS FULL COLOUR Manuel utilisateur

DTS

DTS XR1200 WASH Fresnel Manuel utilisateur

DTS

DTS ARTEMIO FRESNEL Manuel utilisateur

DTS

DTS SCENA COMPACT LED 50 Manuel utilisateur

DTS

DTS ALCHEMY 5 Manuel utilisateur

DTS

DTS XR2000 BEAM Manuel utilisateur

DTS

DTS Raptor Manuel utilisateur

DTS

DTS DELTA R FULL COLOR Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur

Silvair

Silvair MESH-CEDRP Manuel utilisateur
