DSPPA FP-808 Manuel utilisateur

FP-808 Focus Point Speaker with Video/Photos/Text functions

OWNER’S MANUAL

Welcome to use DSPPA public address system, please read the User's

Manual carefully first for better use.

FEATURES：

Target stereo audio in a narrow footprint

Accommodates 1 to 3 listeners at a time

Built-in infrared sensor for listeners

Built-in high efficient stereo amplifier

Auto switch between Focus mode and Normal mode

Multimedia functions of video/photos/text available

Description :

FP-808 is new and powerful focus point speaker mainly

composed by four parts , including stereo amplifier, audio and

video digital player, audio switch and human body infrared

induction. Connect the external device through the connector to

enjoy the music play, video, picture scanning, electronic book

reading. It supports remote control and the format of video file

can be PEG1(VCD)，MPEG2(VOB)，MP3, RM，RMVB. It also

supports SD card expansion, mass storage. FP-808 has an

intelligent automatic sensor system, it can realize the automatic

play by inducing the human body infrared control digital player.

Product introduction :

A. power switch E. Remote control receiver

B. Left speaker output F. Sensor receiver

C. Right speaker output G. Sensor indicator

D.SD card socket

Guangzhou DSPPAAudio Co., Ltd.

PublicAddress System

All manuals and user guides at all-guides.com

all-guides.com

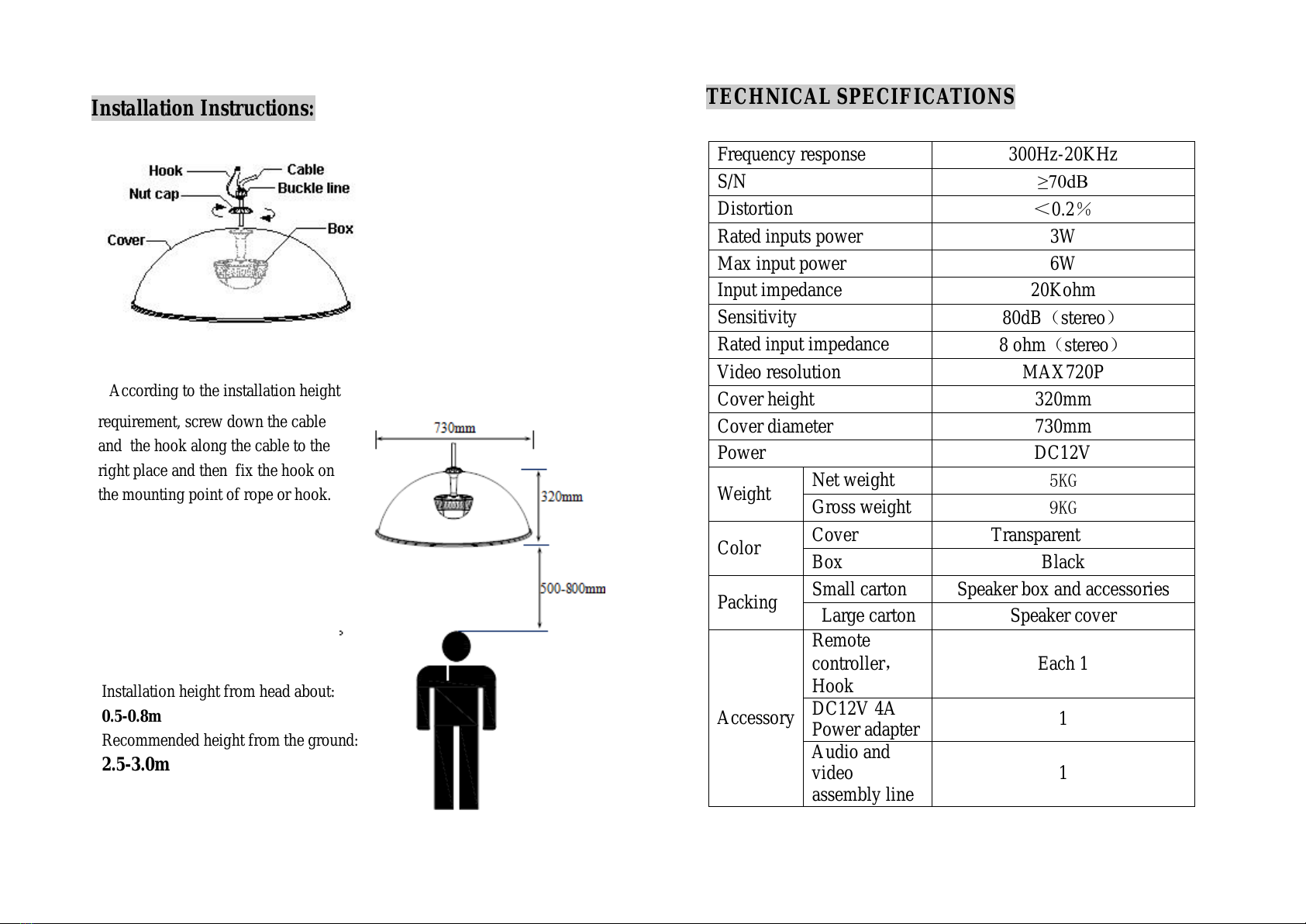

Installation Instructions:

TECHNICAL SPECIFICATIONS

Frequency response

300Hz-20KHz

S/N

≥70dB

Distortion

＜0.2％

Rated inputs power

Max input power

Input impedance

20Kohm

Sensitivity

80dB（stereo）

Rated input impedance

8 ohm（stereo）

Video resolution

MAX720P

Cover height

320mm

Cover diameter

730mm

Power

DC12V

Weight

Net weight

5KG

Gross weight

9KG

Color

Cover

Transparent

Box

Black

Packing

Small carton

Speaker box and accessories

Large carton

Speaker cover

Accessory

Remote

controller，

Hook

Each 1

DC12V 4A

Power adapter

Audio and

video

assembly line

According to the installation height

requirement, screw down the cable

and the hook along the cable to the

right place and then fix the hook on

the mounting point of rope or hook.

Installation height from head about:

0.5-0.8m

Recommended height from the ground:

2.5-3.0m

All manuals and user guides at all-guides.com

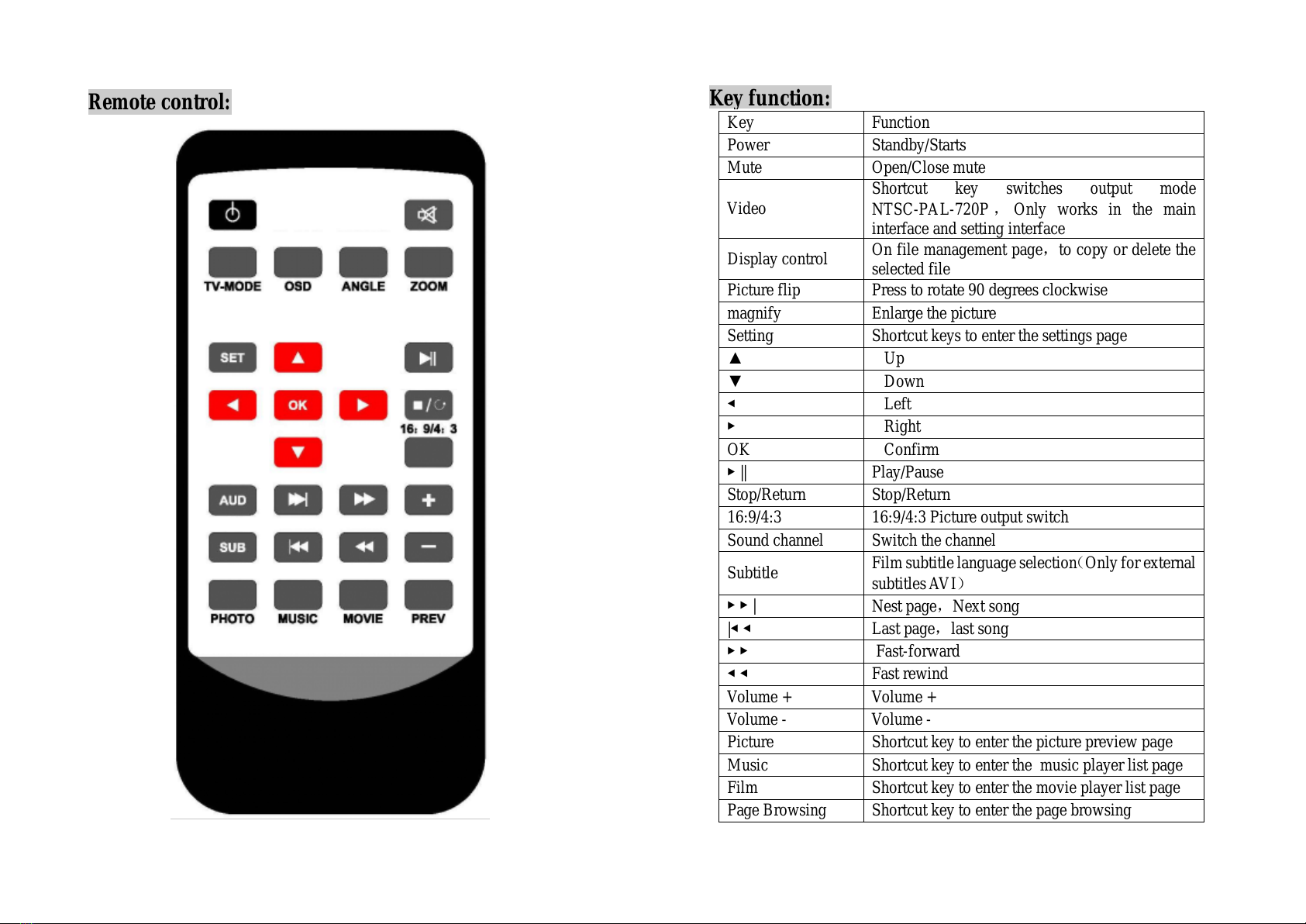

Remote control:

Key

Function

Power

Standby/Starts

Mute

Open/Close mute

Video

Shortcut key switches output mode

NTSC-PAL-720P ，Only works in the main

interface and setting interface

Display control

On file management page，to copy or delete the

selected file

Picture flip

Press to rotate 90 degrees clockwise

magnify

Enlarge the picture

Setting

Shortcut keys to enter the settings page

▲

▼

Down

◀

Left

▶

Right

Confirm

▶||

Play/Pause

Stop/Return

16:9/4:3

16:9/4:3 Picture output switch

Sound channel

Switch the channel

Subtitle

Film subtitle language selection（Onlyfor external

subtitles AVI）

▶▶|

Nest page，Next song

|◀◀

Last page，last song

▶▶

Fast-forward

◀◀

Fast rewind

Volume +

Volume -


Shortcut key to enter the picture preview page

Music

Shortcut key to enter the music player list page

Film

Shortcut key to enter the movie player list page

Page Browsing

Shortcut key to enter the page browsing

Key function

Key function:
