DSPPA DSP8064B Manuel utilisateur

DSP8064B 40W Wall Mount Speaker with Power Tap

Input 70V/100V/8Ω

Wide Freq.Resp.:65Hz-20KHz

Max SPL:107±2dB

High sensitivity:91±2dB

Wall mount type loudspeaker

Metal grille and ABS enclosure of black color

Equipped with hanging holes for mounting convenient

Features

The DSP8064 is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transmission is

realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel

connection of multiple loudspeakers possible.

Metal grille and ABS enclosure of black color, long-term durability, never out of shape and fading; high

sensitivity, clear and sonorous sound. Easy and secure wall mount installation by hanging holes.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where

background music and paging is needed.

Description

Specification

Model

DSP8064

Speaker Unit

6.5"×1, 1"×1

Rated Power

40W

Input

Constant voltage

70/100V

Constant resistance

8Ω

Sensitivity(1M,1W)

91±2dB

Max SPL(1M)

107±2dB

Freq. Resp

65Hz-20kHz

Weight

4.6 kg

Dimension(H×W×D)

310×215×203mm

1. Fit two Ø4mm nails on wall where it is needed to install a speaker system.

2. Connect audio broadcasting wire to the speaker according to the table below.

Constant voltage

Constant

resistance

70V

100V

8Ω

Red--White

40W

20W

40W

10W

20W

10W

2.5W

Note:

When the audio line is the constant voltage, prohibit the knob to the 8Ω.

Prohibit to adjust to“—” under state at 100V cause speaker damage!

3. Position the speaker, then adjust the direction of it and examine whether it is steady.

Installation

Hanging hole Nail For Mounting

Input Voltage

Terminal

Power

D SP 8064

Horizontal directivity patt ern

DSP80 64

Vertical directivity pattern

FREQ. RESPONSE DISTORTION

(dB SPL、1W、1m) (THD< 1.5% 1W、1m、200Hz~12kHz)

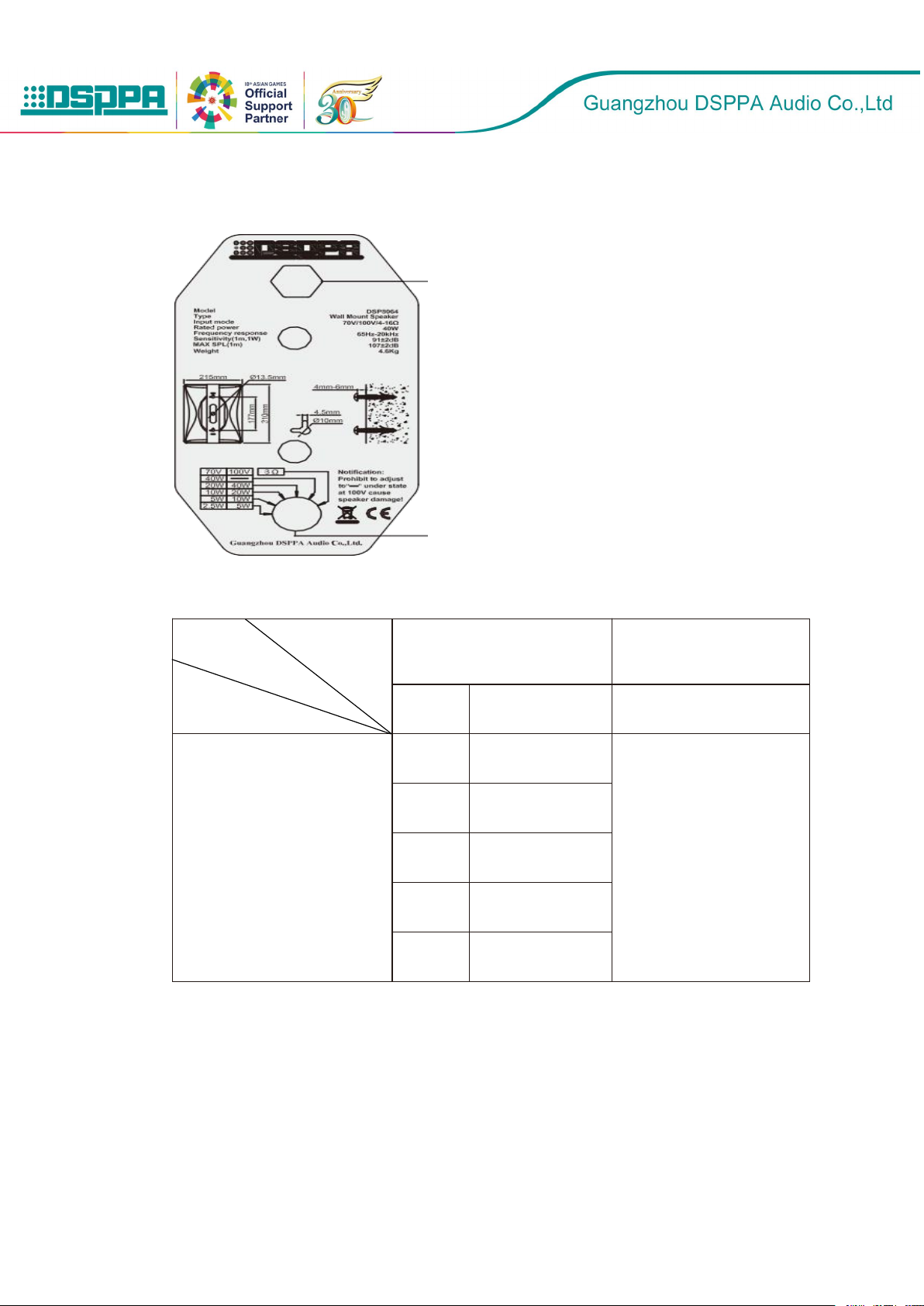

DSP8064 Power adjustment knob

Audio line interface

Power Adjustment Knob

Power Voltage

Terminal

Constant voltage

Constant resistance

70V

100V

8Ω

Red---white

40W

—

40W

20W

40W

10W

20W

10W

2.5W

Notification:

When the audio line is the constant voltage, prohibit the knob to the 8Ω.

Prohibit to adjust to“—” under state at 100V cause speaker damage!

Installation Diagram

Power adjust
