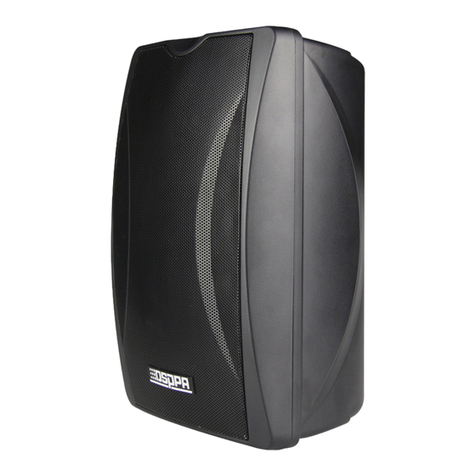

DSPPA IP Speaker Manuel utilisateur

IPSpeaker

User sManual

Thankyou forusingourhomeIPspeakerseries.Pleasecarefullyreadthis

manualfirstforbetteruse.

http://www.auxdio.com.cn

Overview

ThisIPspeakerisastereospeakerspeciallydesignedforhomeIPmusicsystem,usingthe

networkassignaltransmissioncarrier,integratedwithdecoderandpoweramplifier.

210W/4Ωand2 20W/4Ωmodelsareoptional.ThespeakerisastereoL-channel outputtype,

withaextensioninterfaceat therearforconnectiontoanR-channelspeaker.

Digitalsignalsfromthehostistransferred,viathenetworkswitch,tothespeakerforD/A

conversion,inwhichanalog signalsaregeneratedandamplifiedtoavoidanyexternal

interference.Therefore,theS/Nratioisimproved,andthesoundbecomespurerandclearer.

Transmissionofall signalsisrealizedthroughonlyonenetworkcable,withoutusingan

additionalsignalcableoraudiocable,sothatthecostisreducedand environmentcanbe

protected.TheIPspeakerisalwaysyourideal option.

Features

lActivedigitalspeakerusingEthernetassignalcarrier.

lWithbuilt-indecoder, D/Aconversionisperformedinsidethespeaker.

lWithbuilt-instereopoweramplifier,theL-channelIPspeakerisconnectedwithan

R-channelspeakerviatheextensioninterface.

lControllablethroughamulti-homedhost.

lVariousaudiosourcesselectablethroughPCsoftware.

lControllablethroughInternet.

Dimensions

Bigmodeldimensions:

NETWORKING SPEAKER

PublicAddress System

TOREDUCETHERISKOFFIREOR

ELECTRICSHOCK.DONOTEXPOSE

THISEQUIPMENTTORAINOR

MOISTURE.

SPEAKEROUT

RIGHT4

NET

POWERF1AL~220V/50Hz/30W

Small modeldimensions:

RearviewSideviewFront view

NETWORKING SPEAKER

PublicAddressSystem

TOREDUCETHERISKOFFIREOR

ELECTRICSHOCK.DONOTEXPOSE

THIS EQUIPMENTTORAINOR

MOISTURE.

SPEAKEROUT

RIGHT4

NET

POWERF1AL~220V/50Hz/30W

Specifications

DescriptionofComponents

1. On/Offswitch

Turntheswitchtothe “-”positiontoswitchonthepower,orturntheswitchtothe

“o”positiontoswitchoffthepower.

2. Fuse

Incaseofdamage,thefuseshallbereplacedwithanewoneofthesame

specifications.

3. AC220Vpowercord

Neverconnectthespeakertothemainsbeforethesystemwiringiscompleted.

4. Networkinterface

Theinterface isconnectedtoanIPsystem, whichmaybeacomputerinstalledwitha

homeIPmusicsystemcontrolsoftwareoraterminalcontrollerofhomeIPmusic

system.

5. Speakerextensioninterface

Theinterface isconnectedtoaR-channelspeakerofafixed-resistance typeof4

/10Wor4 /20W.Donotreversepolarity.

Tip:AterminalconsistsofanL-channelspeaker, whichistheIPspeaker,andan

R-channelspeaker,whichisafixed-resistance speakerofmatingspecifications.

Item Specifications

Small model

210W

Ratedpower Bigmodel 2 20W

Frequencyresponse 20Hz-20kHz

S/N ratio ≥80dB

Harmonicdistortion <0.5%

Built-inpower

amplifier

specifications

Resistanceofconnectedspeaker

4Ω

Speakersensitivity ≥90dBspl

Powersupply ~110V-250V

Small model

30W

Ratedpowerconsumption Bigmodel 60W

3Dview Rearview

IPSPEAKER

~220V/50Hz/30W F1AL POWER

NET

SPEAKEROUT

LEFT4

TO REDUCETHERISKOF FIREOR

ELECTRICSHOCK.DONOTEXPOSE

THISEQUIPMENT TO RAINOR

MOISTURE.

PublicAddress System

Installation

1.Installationdiagram

4-6mm

182mm

144mm

Installationprocedures

1.Install thesupportat therear,andmarkthepositionsofinstallationholesandcableholes.

1. Drillsuitablescrewholesontheinstallationsurface.Thewiringholesshallbe

sufficientlysizedtoallowspeakercablestopass through.

2. Passthespeakercablesthroughthesupport.Align thesupportwithscrewholes,andfix

theinstallationsurface.

3. Mountthespeakeronthesupportwithsupportknobs.Donottightentheknobsfirst, so

astoadjust itlaterwhilewiringtheterminalsontherear.

4. Adjustthespeakertothedesiredangleafterwiring,and tightenthesupport knobs.

WiringExample

FrequencyResponseCurve

Ethernetswitch

PublicAddressSystem

TOREDUCETHERISKOFFIREOR

ELECTRICSHOCK.DONOTEXPOSE

THISEQUIPMENTTORAINOR

MOISTURE.

SPEAKEROUT

LEFT4 NET

POWERF1AL~220V/50Hz/30W

IPSPEAKER

SPEAKEROUT

LEFT4

Impedance:4Ohm

Sensitivity:90dB

Power:20W(RMS)

IPSPEAKER

PublicAddressSystem

Host of home IPmusic system

IPspeaker R-channelspeaker
