INSTALLATION MANUAL

DSC Touch 1.4.3 Software

The DSC Touch is a 7” touchscreen built with an

Android operating system, providing full security and

smarthome functionality in an easy to use interface.

INTRODUCTION

INCLUDED IN BOX

ABOUT THIS GUIDE

DSC Confidential and Proprietary Page of2 114

QUESTIONS?

800-387-3630 or

[email protected]

SUPPORT

This document outlines the basic hardware specifications and software directions to

install and customize the DSC Touch. Note that the information presented is not

comprehensive, but is specifically dedicated to those menus, features, and systems

accessible solely to those with the proper installation code. Features accessible to

users and installers alike are outlined in the DSC Touch User Guide. The information

contained is confidential and proprietary, and is solely owned by DSC. Any

reproduction, modification or distribution without permission is strictly prohibited.

This manual covers the following

models of DSC Touch Alarm

System:

- SCW9067C (CDMA model)

- SCW9067H (HSPA model)

Reference to DSC Touch

throughout this manual applies to

all these models unless stated

differently.

Power

Supply

DSC

Touch

TABLE OF CONTENTS

CONTENTS

HARDWARE

5- Exterior Front

6- Exterior Back

7- Interior

8- Wiring Diagram

9- Installing the Back Plate

10- Powering the Panel

11- Mounting the Hardware

SOFTWARE

13- Home Screen Overview

14- Header or “Status” Bar

15- Footer

16- Settings

17- Settings Menu

INSTALLATION

19- Installation

20- Security Account

23- Security Sensors

24- AutoLearn Sensor

25- Add Sensor

26- Sensor Types

27- Sensor Name

29- Chime Type

30- Sensor Groups

44- Voice Prompt

45- Home Control Devices

47- Add Device

48- Clear Device

49- Delete Device

50- Remove All Devices

51- Rediscover Network

52- Neighbor Info

53- Counters

54- Timer

55- Sound

57- System Logs

58- Upgrade Software

59- Siren and Alarms

60- Security and Arming

62- Camera Settings

63- Device List

64- IQ2 Devices

65- Dual Path

SYSTEM TESTS

67- System Tests

68- Wi-Fi Test

69- Sensor Test

70- Cellular Test

71- Image Sensor Config

72- Home Control Test

73- Panel Test

74- IQ2 Devices Test

CUSTOMIZATION

76- System Settings

77- How to Connect Wi-Fi

78- Weather

79- Photo Frame

81- Load Images from SD

Card

82- Photo Frame Settings

Custom Names

83- Dealer Contact

84-Custom Names

85-Edit Chimes

86- User Management

87- Load Help Videos

TROUBLESHOOTING

89-About

92-Upgrade Software Using

Wi-Fi

93- Automatic Software

Updates

94- Software Update Via SD

Card

95- Power Down

96- Panel Reboot

97- Hard Reboot

98- Panel Test

Troubleshooting

101- System Monitor

102- Cannot Load Help

Videos

LEGAL

103- Important Information

SPECIFICATIONS

112- Hardware Specifications

HARDWARE

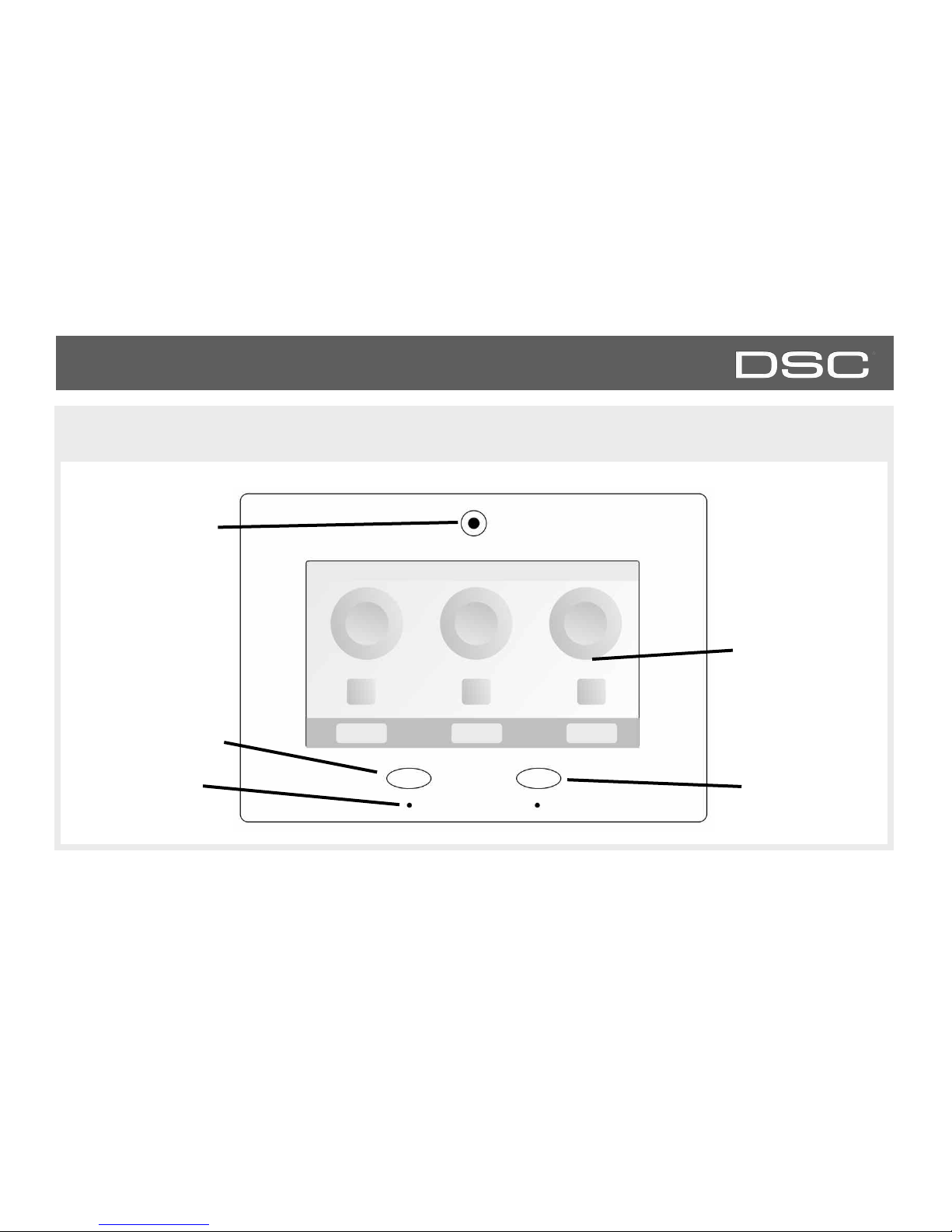

EXTERIOR FRONT

Panel Camera

Emergency Button

Home Button

Microphone

7” LCD Resistive

Touch Screen

DSC Confidential and Proprietary Page of5 114

HARDWARE

EXTERIOR BACK

Mounting plate

Mounting holes

SD Card Slot

Cooling Vents

Two-Way Voice

Speaker

Panel Sounds Speaker

Rear access opening

Siren

DSC Confidential and Proprietary Page of6 114

HARDWARE

INTERIOR

Battery*

Image Sensor Radio

Z-Wave Radio

Battery Connector*

Cellular Module

Terminal Block

Tamper Switch

Microphone Connector

Two-Way Voice Speaker

Connector

Panel Speaker Connector

Cellular Antenna

The battery should NEVER be disconnected without following proper power-down procedures (page 92)

Failure to comply may result in data corruption, panel failure, and a void of the manufacturer's warranty

*CAUTION

Note:

HSPA Models will

contain a SIM card

DSC Confidential and Proprietary Page of7 114

HARDWARE

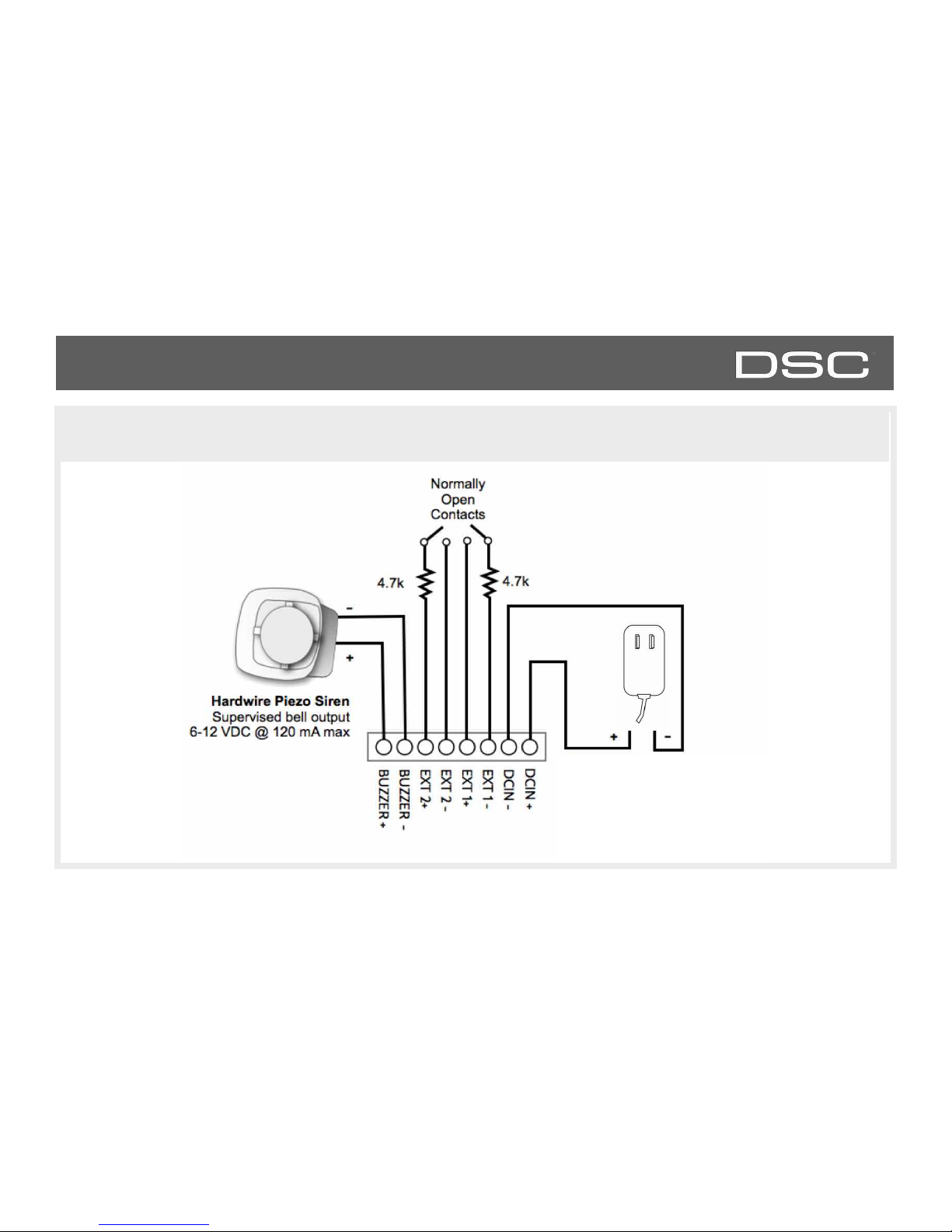

WIRING DIAGRAM

DSC Confidential and Proprietary Page of8 114

Note:

Only DCIN-, DCIN+ terminals evaluated by

UL/cUL. Other terminal connections have

not been evaluated by UL/cUL.

Note: Do not connect the plug

in adapter to a switched outlet.

Note:

Use only Class 2 power limited power supply

Input rating: 100-240VAC, 50/60Hz, 1A

Output rating: 12.5VDC/1.2A

Model MU15-R125120-A1 (P/N MU15-R1125-A00S) for USA

Model MU15-R125120-A1 (P/N MU15-R1125-A01S) for Canada

HARDWARE

INSTALLING THE BACK PLATE

Remove the retainer screw

and place in a safe location

Remove the back plate

from the panel by pulling

downward from the top

Secure one corner of the

plate in the desired

location, be sure to

position rear access

opening over the location

of your wire

Ensure the plate is level

and secure to wall with

appropriate mounting

hardware (not provided)

DSC Confidential and Proprietary Page of9 114

HARDWARE

POWERING THE PANEL

Hang the panel’s

suspension strap on the

hook mounted to the back

plate.

Connect power supply

wire to terminal block.

Red- DCIN +

Black- DCIN-

Plug in battery connector

CAUTION: Once connected, DO NOT unplug

the battery without following proper power

down procedures (page 92). Disconnecting the

battery may result in data corruption or panel

failure and a void of the manufacturer warranty.

Connect the wire to Power

Supply terminals.

Red- Positive

Black- Negative

IMPORTANT: Reversing

polarity on these wires may

cause damage to the panel.

DSC Confidential and Proprietary Page of10 114

IMPORTANT: To ensure proper

power at the panel, 18AWG wire, no

longer than 25 feet, should be used

between the Panel and the Power

Supply.
