8600 EMR

Surface Applied Closer with Detector

Installation instructions

08281010 – 03-2020

| EN |

28600 EMR 03-2020

08281010

dormakaba 8600 EMR Installation Instructions Table of Contents

Table of contents

1 Technical specifications 3

1.1 Overview 3

1.2 Preparation notes 3

2 Installation instructions 4

2.1 Installing track to frame 4

2.2 Install detector 4

2.3 Installing the slide channel 4

2.4 Install closer to door 5

2.5 Secure main arm 6

2.6 Secure arm to slide shoe 6

3 Adjustments 7

3.1 Adjust closing speeds: sweep, latch, backcheck,

delayed action 7

3.2 Adjust spring force 7

4 Wiring 8

4.1 Electrical specifications 8

4.2 Power supply 120 VAC, 50/60 HZ 9

4.3 Power supply 24V AC/DC 9

4.4 Power supply 24V AC/DC with remote

detectors 10

4.5 Wire gauge 11

4.6 SD-2 detector to main electromagnet

connection 12

4.7 SD-2 detector to auxiliary solenoid

connection 12

4.8 Solenoid attachment to UL/ULC listed alarm

control panel 12

4.9 SD-2 detector interconnection 13

4.10 SD-2 detector to remote area detector 14

4.11 SD-2 detector to audible signal appliance 14

4.12 SD-2 detector to remote alarm indicator

lamp 15

4.13 Alarm initiation wiring

(4 wire class B & 6 wire class A) 15

4.14 SD-2 detector sensitivity test

(ULC required only) 17

4.15 Hold open 17

4.16 Check connections 17

4.17 Engage hold open 17

4.18 Reset detector 18

4.19 Install detector cover 18

4.20 Install cover 18

4.21 Auxiliary stops 19

4.22 Unit testing 19

5 Maintenance 19

5.1 Maintaining the detector 19

5.2 Measure and record test voltage 19

5.3 Vacuum detector 20

5.4 Final steps 20

5.5 Smoke detector testing 21

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR 3

Technical specifications

1 Technical specifications

. Overview

Each 8600 EMR series unit contains a door closer,

hold open electromagnet, and smoker detector. The

unit can be used as a single installation or as a

series of singles powered from one or more power

supplies. When a series of 8600 EMR units are

wired together in a run, groups of up to 5 units may

be interconnected. Interconnection is accomplished

through terminals #4 and #15 and results in all

units alarming when any one of them senses

smoke. In turn, all associated hold open

electromagnets are de-energized. Within any run of

detectored units, it is permissible to form as many

interconnected groups as the total power supply

amperage will allow; but, again no more than 5

units can be interconnected together.

. Preparation notes

Any detectors 8600 EMR series unit can be

connected to an auxiliary EMF non-detectored unit,

or remote detector, or both. It can be a single

installation or part of any of the multiple

arrangements described above. An auxiliary unit

(double door applications) is a companion to the

main unit, and its electromagnet de-energizes

along with the main unit. A remote open area

detector sensing smoke alarms the 8600 EMR to

which it is connected and any other 8600 EMR to

which it is interconnected.

Single installations or groups of installations can

be connected to the alarm initiation circuit of a

compatible UL/ULC listed fire alarm control unit in

4-wire or 6-wire configurations.

Additional functions are provided to separately

power the hold open electromagnets directly from

the alarm control panel as well as connections for a

remote alarm indicator lamp.

1. Read entire instruction sheet prior to installation

and refere to NFPA 72E. Standards may be

obrained from THE NATIONAL PROTECTION

ASSOCIATION, Batterymarch Park, Quincy, MA

02269.

2. Reference unit carton for unit mounting type.

3. Prepare door and frame for fasteners using the

appropriate template. Mark, drill, and tap holes

as indicated. If surface wiring is used, omit 7/8”

hole for wire access.

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR

Track

Detector

Slide channel

. Installing track to frame

2 Installation instructions

2.2.1 Slide detector slot under standoff and attach

with four screws.

NOTE: If construction is still being completed near

detector installation “DO NOT” install detector at this

time, or protect the detector from construction dust

contaminants.

. Install detector

Fig.

Fig.

2.1.1 8600T and 8600DE:

• Install with detector cut-out toward latch edge

of door.

• Use two 1/4-20x2” metal or two No. 14x2-3/4”

wood screws.

8600T and 8600DE

Standoff

8600PT

Hinge

2.1.2 8600PT:

• Install with detector cut-out toward latch edge

of door.

• Use two 1/4-20x2” metal or two No. 14x2-3/4”

wood screws.

End cap End cap

Slot

. Installing the slide channel

Fig.

2.3.1 Remove one wire access plug according to the

installation type.

NOTE: Three access wire holes on optional surface

wired units only.

T & DE (RH)

T & DE (LH) (Surface conduit)

NOTE: No top plug on

PT mounts

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR 5

Closer

. Install closer to door

Fig.

Left hand door

8600T and 8600DE

Right hand door

8600PT

Right hand door

Left hand door

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR

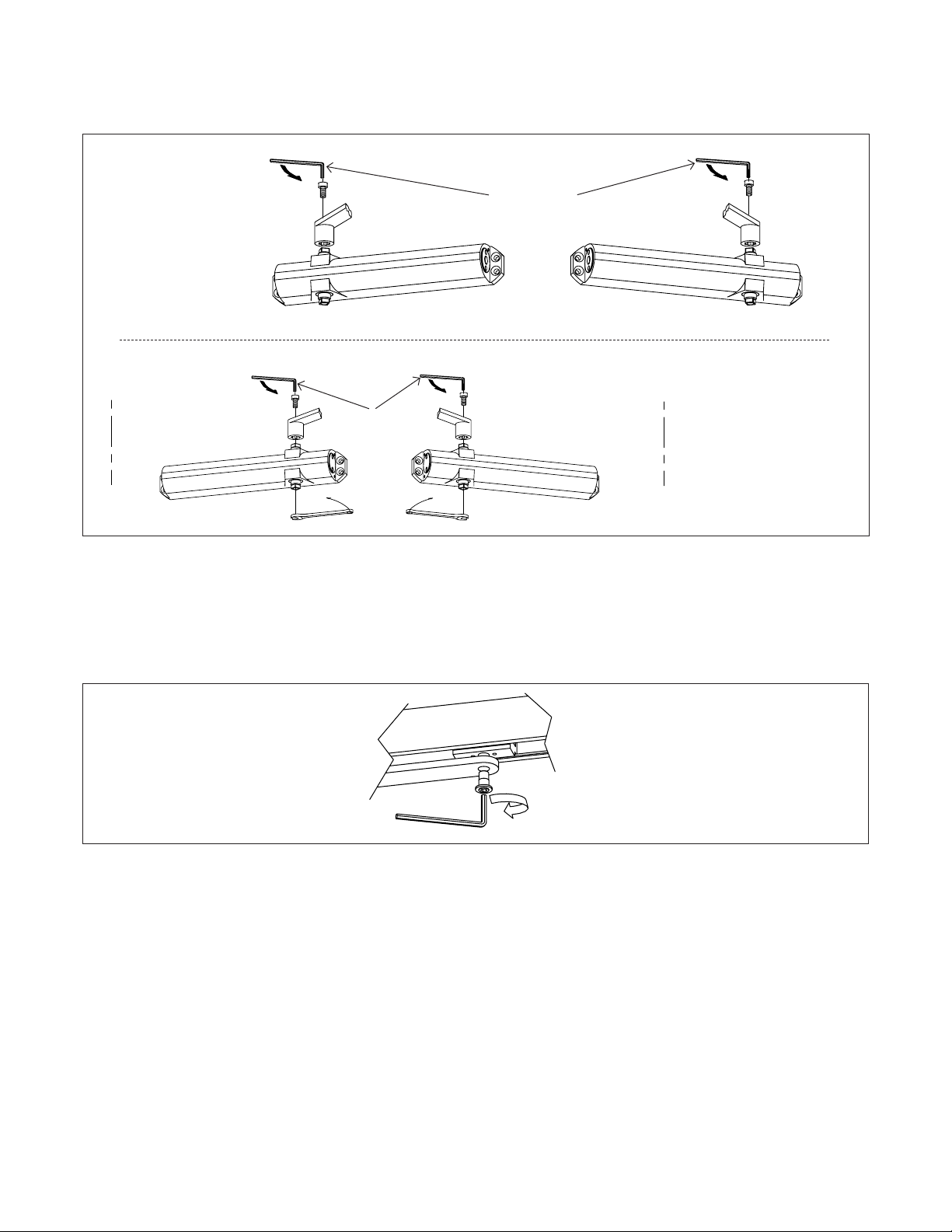

Main arm

. Secure arm to slide shoe

Fig.

2.6.1 Secure arm to slide shoe. 2.6.2 Use 3/16” hex head wrench.

. Secure main arm

Fig.

2.5.1 Attach main arm

to door closer.

2.5.2 Place arm on top

pinion as shown

at 45° angle.

2.5.3 Secure with

pinion screw.

6mm hex key

Left hand door

Right hand door

8600T and 8600DE

8600PT

2.5.1 With door in

closed position,

rotate spindle

45° with wrench.

2.5.2 Place arm on

spindle.

2.5.3 Open door and

secure with

pinion screw.

Left hand door Right hand door

6mm hex key

45° 45°

Rotate

pinion

Rotate

pinion

Hinge

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR 7

Closing speeds

Spring force

3 Adjustments

. Adjust closing speeds: sweep, latch, backcheck, delayed action

Fig.

. Adjust spring force

Fig.

Latch

Sweep

Delayed action

Backcheck positioning

Backcheck

Closer size Max door

weight (lbs)

Door width Full turns

Interior Exterior

8616

3 100 2'6" -11

4 125 3' 2’6” 0

5 150 3'6" 3’ +5

6 200 ‘4’ 3’6” +13

8656 5 150 3’6” 3’ -7

6 200 4' 3’6” 0

Spring force

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR

Electrical specifications

4 Wiring

WIRE THE UNITS ACCORDING TO BUILDING AND SYSTEM REQUIREMENTS.

OBSERVE ALL APPLICABLE CODES.

Fig.

. Electrical specifications

Voltage input 24 VDC +10% - 15%

24 VAC +10% - 15%

NOTE: 120 volt applications require optional external

transformer

Maximum input current @24 VDC- 161 mA (1 solenoid), 310 mA (2 solenoids)

@24 VAC- 161 mA (1 solenoid), 310 mA (2 solenoids)

NOTE: Excludes accessories

Maximum output to remote alarm indicator lamp 300 mA

Contact ratings Alarm and or accessory contacts -

1.25 A at 24 VDC or .3 A at 120 VAC

resistive, maximum.

Trouble contacts - 500 mA at 24 VDC

resistive, maximum.

SD-2

Detector connection list

Function Terminal

AC/DC 24V INPUT 3, 14

ALARM CONTACTS (NORMALLY OPEN) 1, 2

ELECTROMAGNET 6, 9

REMOTE ALARM INDICATOR LAMP + 8

REMOTE ALARM INDICATOR LAMP - 7

INTERCONNECT + 15

INTERCONNECT - 4

TROUBLE CONTACTS (NORMALLY CLOSED) 5, 13

24 VDC OUTPUT (UNFILTERED) + 10

IF JUMPER WIRE J11/J12 IS CUT, TERMINALS 8,

9 AND 10 ARE CHANGED TO FORM C RELAY

CONTACTS, RAIL OUTPUT IS LOST, AND HOLD

OPEN ELECTROMAGNETS MUST BE

POWERED FROM A SEPARATE SOURCE.

CONSULT FACTORY IF REMOTE DETECTORS

ARE USED IN THIS APPLICATION.

COM 10

N.C. 9

N.O. 8

LED & TEST

1 8

103

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR 9

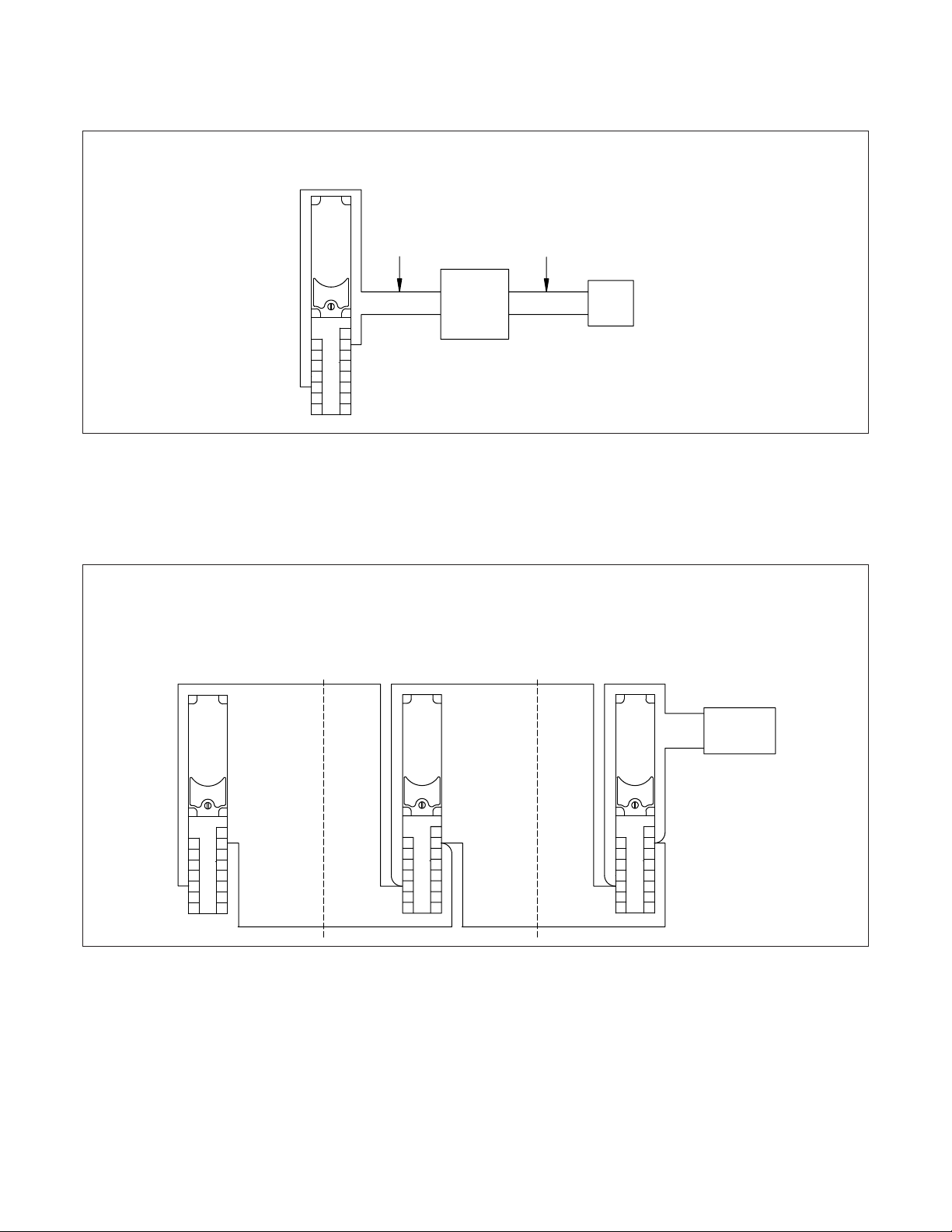

Wiring: power supply 120 VAC 50/60 Hz

Wiring: power supply 24 V AC/DC

. Power supply  VAC, / HZ

Fig.

120 VAC, 50/60 HZ: Connect the 120 VAC incoming voltage wires to the primary wires of the transformer.

Connect the secondary transformer wires to terminals #3 and #14 of the detector module. This connection is

not polarity dependent.

SD-2

Secondary

Transformer

Wires

Primary

Transformer

Wires

120VAC

Power

Input

External

Step

Down

Transformer

(Optional)

Note: For ULC installation,

transformer must install in 4” x 4”

electrical box x 3” deep minimum.

. Power supply V AC/DC

Fig.

24V AC/DC: The step down transformer is not used in this connection. Connect 24V AC/DC power to

terminals #3 and #14 on the detectors. These connections are not polarity dependent. If the unit is

connected to a second unit, connect terminal #3 of the first unit to terminal #3 of the second unit and

connect terminal #14 of the first unit to terminal #14 of the second unit. Continue this process for any

subsequent units to be powered from the same power supply.

SD-2 SD-2

SD-2

(3) (2) (1)

24 VAC/DC

power supply

dormakaba 8600 EMR Installation Instructions

08281010 03-20208600 EMR

Wiring: power supply 24 V AC/DC with remote detectors

. Power supply V AC/DC with remote detectors

Fig.

24V AC/DC with remote detectors: The step down transformer is not used in this connection. Perform wiring

connections as illustrated below. Additional units are wired in the same manner as unit #2. Installations using

a combination of SD-2 modules with and without remote area detectors can be wired accordingly by

substituting the wiring diagram section from unit #1, #2, or #3 in step #3 above instead of unit #1, #2, or #3

below with remote detector. The vertical dashed lines indicate where one diagram would be exchanged for

another.

NOTE: Input voltage must match detector voltage.

SD-2

SD-2 SD-2

(3) (2) (1) 24 VAC/DC

power supply

Remote

detector

Remote

detector

Remote

detector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dormakaba Système d'ouverture de porte

Dormakaba

Dormakaba 7400 FH Manuel utilisateur

Dormakaba

Dormakaba ED900 Manuel utilisateur

Dormakaba

Dormakaba 8900 JT Manuel utilisateur

Dormakaba

Dormakaba ED900 Manuel utilisateur

Dormakaba

Dormakaba ED900 Manuel utilisateur

Dormakaba

Dormakaba TS9356 PKT 120/170 Manuel utilisateur

Dormakaba

Dormakaba TS 93 G EN 2-5 Manuel utilisateur

Dormakaba

Dormakaba PORTEO Manuel utilisateur

Dormakaba

Dormakaba ED100 Manuel utilisateur

Dormakaba

Dormakaba RTS Series Manuel utilisateur

Dormakaba

Dormakaba 8900 EMR Manuel utilisateur

Dormakaba

Dormakaba UNIVERSAL GK 30 Manuel utilisateur

Dormakaba

Dormakaba ED50 Manuel utilisateur

Dormakaba

Dormakaba TS 98 XEA Manuel utilisateur

Dormakaba

Dormakaba UNIVERSAL Manuel utilisateur

Dormakaba

Dormakaba C800 Manuel utilisateur

Dormakaba

Dormakaba ED900 Manuel utilisateur

Dormakaba

Dormakaba 9000 Series Manuel utilisateur

Dormakaba

Dormakaba ED100 Manuel d'installation et d'exploitation

Dormakaba

Dormakaba ED100 Manuel utilisateur

Dormakaba

Dormakaba UNIVERSAL PT 60 Manuel utilisateur

Dormakaba

Dormakaba RTS88 Manuel utilisateur

Dormakaba

Dormakaba CLPKT90 Manuel utilisateur

Dormakaba

Dormakaba RTS88 Manuel utilisateur

Manuels Système d'ouverture de porte populaires d'autres marques

Pamex

Pamex KT-INP35 Manuel utilisateur

Label

Label NEPTIS/LE Manuel utilisateur

Cal-Royal

Cal-Royal N-F77CVR Manuel utilisateur

Scrigno

Scrigno OPEN1000 Manuel utilisateur

TriMark

TriMark UM 34 Manuel utilisateur

BFT

BFT WIND RMB 130B 200 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Besam

Besam Swingmaster MP Mode d’emploi

CRL

CRL SENIOR PRIMA Manuel utilisateur

Assa Abloy

Assa Abloy SARGENT 1431 Series Manuel utilisateur

GAL

GAL MOVFR Fiche technique

Olide

Olide 120B Manuel utilisateur

Normstahl

Normstahl IDO7 Manuel utilisateur

Häfele

Häfele Finetta T 70 VF Manuel utilisateur

AGS

AGS D-PL Manuel

Stanley

Stanley MA900ñ Instructions d'installation

WITTUR

WITTUR Hydra Plus UD300 Manuel

Alutech

Alutech TR-3019-230E-ICU Instructions d'installation et d'utilisation
