Dometic MSI924M Manuel utilisateur

MSI924M

Sine wave inverter

Installation and Operating Manual. . . . . . . . 7

Sinus-Wechselrichter

Montage- und Bedienungsanleitung . . . . .24

Onduleur sinusoïdal

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . . .42

Convertidor de ondas seno

Instrucciones de montaje y de uso . . . . . . .60

Conversor sinusoidal

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Inverter sinusoidale

Istruzioni di montaggio e d’uso . . . . . . . . .96

Sinus ondulator

Montagehandleiding en

gebruiksaanwijzing . . . . . . . . . . . . . . . . . . 114

Sinus ensretter

Monterings- og betjeningsvejledning . . .132

Sinus växelriktare

Monterings- och bruksanvisning . . . . . . .149

Sinus vekselretter

Monterings- og bruksanvisning . . . . . . . . 166

Sinus -vaihtosuuntaaja

Asennus- ja käyttöohje . . . . . . . . . . . . . . . 183

Синусоидальный инвертор

Инструкция по монтажу и эксплуатации 200

Przetwornica sinusoidalna

Instrukcja montażu i obsługi. . . . . . . . . . . 218

Sínusový menič napätia

Návod na montáž a uvedenie

do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 236

Sinusový měnič

Návod k montáži a obsluze . . . . . . . . . . . 253

Szinuszos inverter

Szerelési és használati útmutató . . . . . . . 270

ENERGY & LIGHTING

INVERTERS

MSI924M-IO-16s.book Seite 1 Mittwoch, 5. April 2017 5:18 17

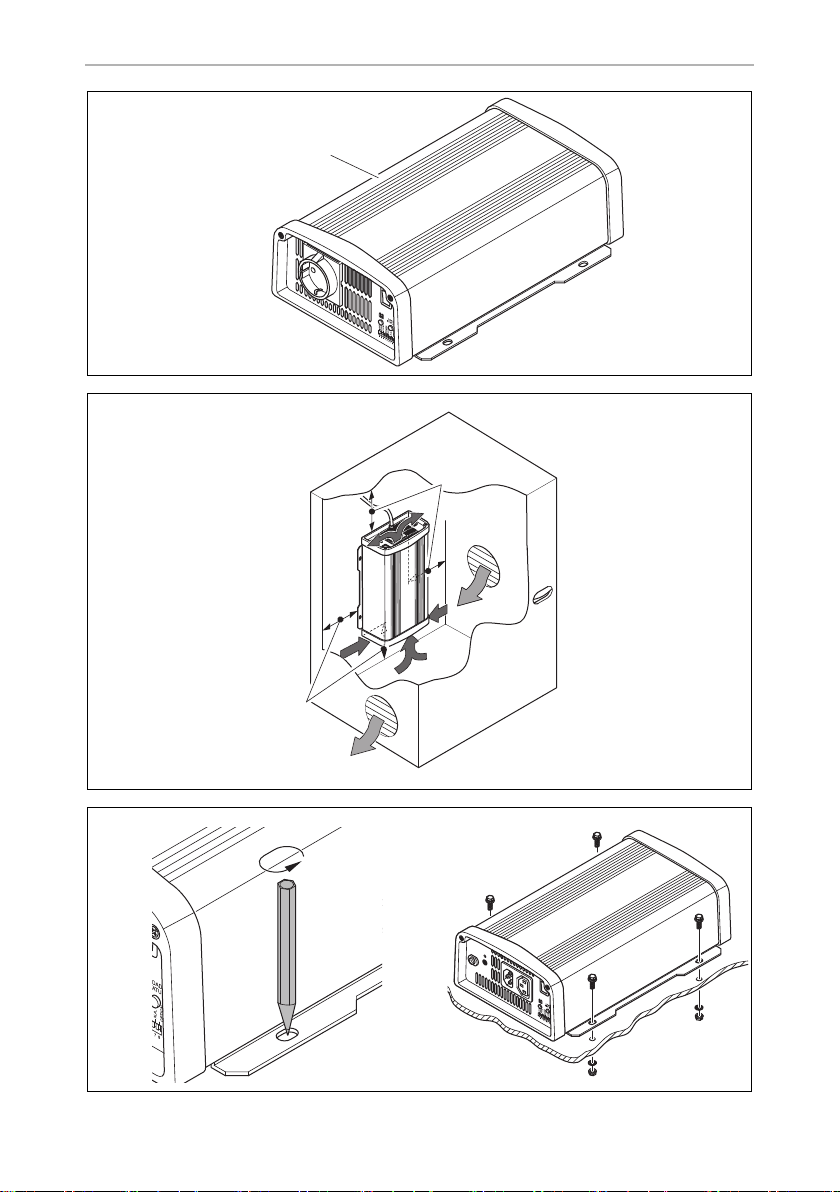

MSI924M-IO-16s.book Seite 2 Mittwoch, 5. April 2017 5:18 17

MSI924M

BREAKER

25 cm

INPUT

OUTPUT

BREAKER

MSI924M-IO-16s.book Seite 3 Mittwoch, 5. April 2017 5:18 17

MSI924M

NEG (-)

REMOTE

CHASSIS

DC INPUT

GROUND

POS (+)

ENB

N.O.

ENB

COM

GND

N.C.

345

4 3

OUT

VOLT.

FREQ.

POWER

SAVING

N.A.

OPTION

12345678

OFF

REMOTE

LOAD

STATUS

AC OUTPUT

MSI924M-IO-16s.book Seite 4 Mittwoch, 5. April 2017 5:18 17

MSI924M

ENB

GND

OFF

OFF:INV.

ON:INV.

OFF

LOW:INV.

HI:INV.

GND

ENB

(TR ON)

(TR OFF)

ENB

BAT+

BAT–

OFF

OFF:INV.

ON:INV.

DC POWER

GND

ENB

–

OFF

OFF:INV.

ON:INV.

MSI924M-IO-16s.book Seite 5 Mittwoch, 5. April 2017 5:18 17

MSI924M

NEG (-)

REMOTE

CHASSIS

DC INPUT

GROUND

POS (+)

ENB

N.O.

ENB

COM

GND

N.C.

345

OUT

VOLT.

FREQ.

POWER

SAVING

N.A.

OPTION

12345678

OFF

REMOTE

LOAD

STAT US

AC OUTPUT

186,6 mm

10 mm

Ø7 mm

200,6 mm

94,5 mm

313 mm

186,5 mm

MSI924M-IO-16s.book Seite 6 Mittwoch, 5. April 2017 5:18 17

MSI924M

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

5 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8 Fitting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

9 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

10 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

11 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

14 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

MSI924M-IO-16s.book Seite 7 Mittwoch, 5. April 2017 5:18 17

Explanation of symbols MSI924M

1 Explanation of symbols

2 General safety instructions

2.1 General safety

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

!WARNING!

•Only use the device as intended.

•Do not operate the device in a damp or wet environment.

•Do not operate the device near any flammable materials.

•Do not operate the device in areas that are potentially explosive.

•Maintenance and repair work may only be carried out by qualified per-

sonnel who are familiar with the risks involved and the relevant regula-

tions.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

MSI924M-IO-16s.book Seite 8 Mittwoch, 5. April 2017 5:18 17

MSI924M General safety instructions

•This device can be used by childrenaged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

•Electrical devices are not toys

Always keep and use the device out of the reach of children.

2.2 Safety when installing the device

!WARNING!

•Installing the device may only be performed by qualified personnel

who are familiar with the guidelines and safety precautions to be

applied.

•If electrical devices are incorrectly installed on boats, corrosion dam-

age might occur. The device should be installed by a specialist

(marine) electrician.

ANOTICE!

•Ensure that the device is standing firmly.

The device must be set up and fastened in such a way that it cannot tip

over or fall down.

•Do not expose the device to a heat source (such as direct sunlight or

heating). Avoid additional heating of the device in this way.

•If cables have to be fed through metal walls or other walls with sharp

edges, use ducts or tubes to prevent damage.

•Do not lay cables which are loose or bent next to electrically conduc-

tive material (metal).

•Do not pull on the cables.

•Do not lay the 220 V mains cable and the 24 V DC cable in the same

duct.

•Fasten the cables securely.

•Lay the cables so that they cannot be tripped over or damaged.

2.3 Operating the device safely

!WARNING!

•Operate the device only if you are certain that the housing and the

cables are undamaged.

MSI924M-IO-16s.book Seite 9 Mittwoch, 5. April 2017 5:18 17

Scope of delivery MSI924M

•Even after the fuse triggers, parts of the inverter remain live.

•Always disconnect the power supply when working on the device.

ANOTICE!

•Make sure the air inlets and outlets of the device are not covered.

•Ensure good ventilation. The inverter produces dissipated heatwhich

has to be diverted.

•Do not connect the 220 V output of the inverter (fig. 55, page 4) to

a different 220 V source.

3Scopeofdelivery

4Accessories

5 Target group for this manual

The electrical installation (chapter “Connecting the inverter” on page 14) is intended

for professionals who are familiar with the applicable regulations of the country in

which the equipment is to be installed and/or used.

All other chapters are intended for the users.

No. in

fig. 1,

page 3

Designation

1 Sine wave inverter

– Operating manual

Designation Ref. no.

Remote control MCR9M
