Dometic PP 1002 Manuel utilisateur

PP1002, PP1004, PP2002, PP2004

Inverter with mains priority circuit

Installation and Operating Manual. . . . . . . . 6

Wechselrichter mit

Netz-Vorrangschaltung

Montage- und Bedienungsanleitung . . . . .23

Onduleur avec commutation

prioritaire du secteur

Instructions de montage

et de service . . . . . . . . . . . . . . . . . . . . . . . . . 41

Inversor de onda sinusoidal con

conmutador de red de prioridad

Instrucciones de montaje y de uso . . . . . . .59

Conversor com ligação prioritária

de rede

Instruções de montagem e manual de

instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Inverter con commutazione di

priorità di rete

Istruzioni di montaggio e d’uso . . . . . . . . .95

Inverter met

netvoorrangsschakeling

Montagehandleiding en

gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 113

Ensretter med prioritetskobling

til net

Monterings- og betjeningsvejledning. . . 131

Växelricktare med

nät-prioritetomkoppling

Monterings- och bruksanvisning . . . . . . . 149

Vekselretter med

nettprioritetskobling

Monterings- og bruksanvisning. . . . . . . . 166

Verkkoetusijaiskytkennällä

varustettu vaihtomuunnin

Asennus- ja käyttöohje . . . . . . . . . . . . . . . 183

Инвертор c приоритетной сетевой

схемой

Инструкция по монтажу и эксплуатации 201

Przetwornica z sieciowym

przełącznikiem pierwszeństwa

Instrukcja montażu i obsługi. . . . . . . . . . . 220

Menič napätia so sieťovým

prioritným spínaním

Návod na montáž a uvedenie

do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 238

Měnič s prioritním síťovým

spínáním

Návod k montáži a obsluze . . . . . . . . . . . 257

Inverter hálózati elsőbbségi

kapcsolással

Szerelési és használati útmutató . . . . . . . 274

GRID

AC INPUT

230V AC

OUTPUT

POW

OLP

OVP

UVP

AC INPUT

CIRCUIT

BREAKER

ENERGY & LIGHTING

PERFECTPOWER

PP1000-PP2000--IO-16s.book Seite 1 Mittwoch, 3. August 2016 6:19 18

PP1000-PP2000--IO-16s.book Seite 2 Mittwoch, 3. August 2016 6:19 18

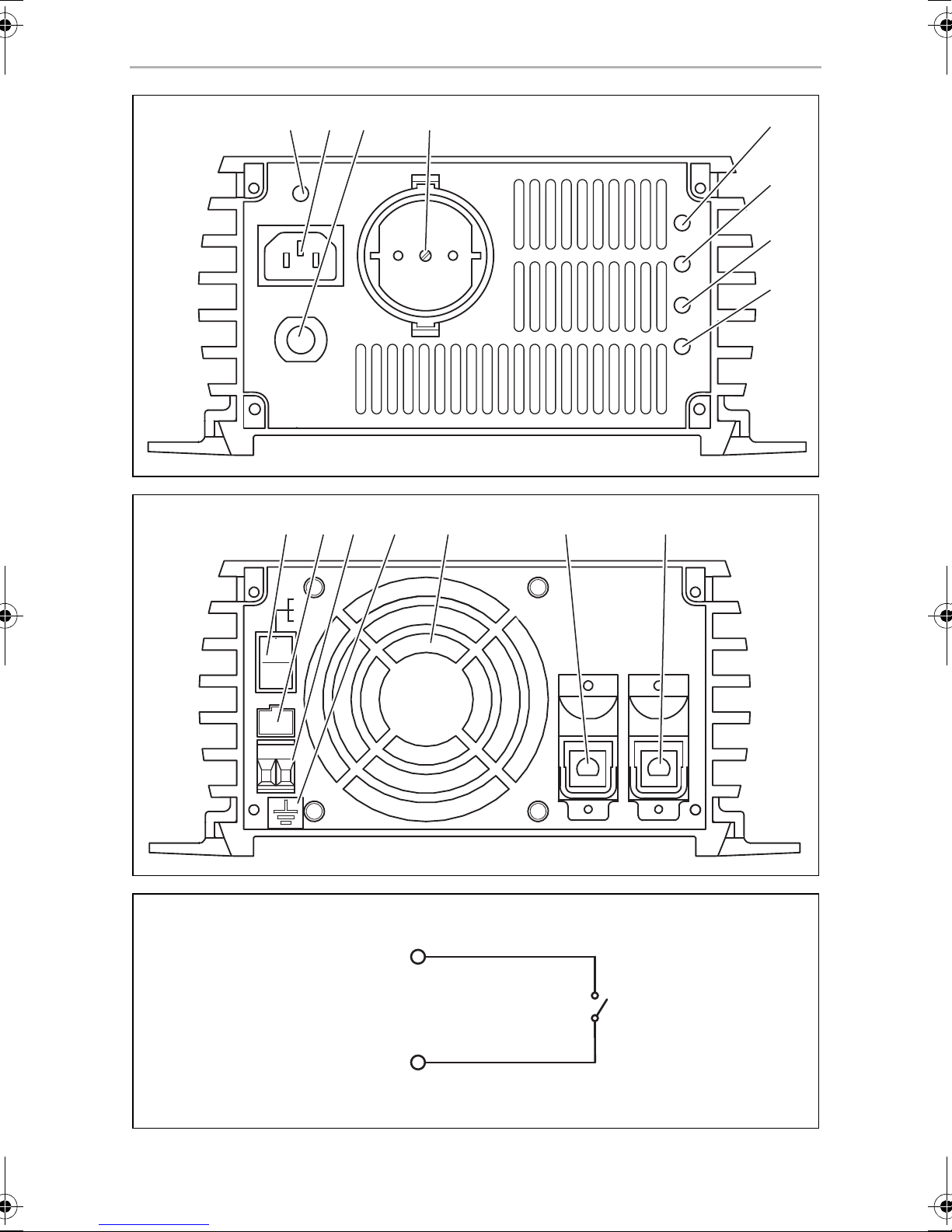

PerfectPower

GRID

AC INPUT

CIRCUIT

BREAKER

AC INPUT

230V AC

OUTPUT

POWER

OLP

OVP

UVP

321 4 5

DC INPUT

NEG– POS+

REVERSE POLARITY

WILL DAMAGE UNIT

REMO.

OFF

123 4 675

PP1000-PP2000--IO-16s.book Seite 3 Mittwoch, 3. August 2016 6:19 18

PerfectPower

N + FG

FG J3

N + FG

PP1000 PP2000

Status

Power

Level

Load

Level

Input

1. 2.

PP1000-PP2000--IO-16s.book Seite 4 Mittwoch, 3. August 2016 6:19 18

PerfectPower

Input

230 Vw

Output

230 Vw

PerfectPower

Input

230 Vw

FI 2

RCD

FI 1

RCD

654

PP1000-PP2000--IO-16s.book Seite 5 Mittwoch, 3. August 2016 6:19 18

PerfectPower

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

8 Fastening and connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

9 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

10 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

11 Rectifying faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

12 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

13 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PP1000-PP2000--IO-16s.book Seite 6 Mittwoch, 3. August 2016 6:19 18

PerfectPower Explanation of symbols

1 Explanation of symbols

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

2.1 General safety

!WARNING!

•Use the device only as intended.

•Maintenance and repair work may only be carried out by qualified

personnel who are familiar with the risks involved and the relevant

regulations.

•People (including children) whose physical, sensory or mental

capacities or whose lack of experience or knowledge prevent them

from using this product safely should not use it without the supervision

or instruction of a responsible person.

•Electrical devices are not toys!

Always keep and use the device well out of the reach of children.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

PP1000-PP2000--IO-16s.book Seite 7 Mittwoch, 3. August 2016 6:19 18

Scope of delivery PerfectPower

2.2 Safety when installing the device

!WARNING!

•Installing the device may only be performed by qualified personnel

who are familiar with the guidelines and safety precautions to be

applied.

•If electrical devices are incorrectly installed on boats, corrosion dam-

age might occur. The device should be installed by a specialist

(marine) electrician.

2.3 Operating the device safely

•Operate the device only if you are certain that the housing and the

cables are undamaged.

•Make sure the air inlets and outlets of the device are not covered.

•Ensure good ventilation. The inverter produces dissipated heat which

has to be diverted.

•Always disconnect the power supply when working on the device.

3Scopeofdelivery

WARNING!

Note the following basic safety information when using electrical

devices to protect against:

•Electric shock

•Fire hazards

•Injury

Quantity Designation

1Inverter

1 230 V connection cable

4 Mounting brackets

1 Mounting plate

2 Cable terminal

1 Operating manual

PP1000-PP2000--IO-16s.book Seite 8 Mittwoch, 3. August 2016 6:19 18

PerfectPower Accessories

4Accessories

Available as accessories (not included in the scope of delivery):

If you have questions in respect of the accessories, please contact your local service

partner.

5 Target group for this manual

The chapter “Connecting the inverter” on page 13 is solely intended for qualified

professionals who are familiar with the relevant VDE (German Engineering Society)

regulations!

All other chapters are intended for the users.

6 Intended use

Inverters PP1002, PP1004, PP2002 and PP2004 are used for supplying power to

230 V consumers with a 12 V or 24 V power supply:

•12 V: PP1002 and PP2002

•24 V: PP1004 and PP2004

The inverters are suitable for use in caravans, commercial vehicles and motor and

sailing vessels.

Description Ref. no.

Remote control MCR9 9600000091

WARNING!

Never use the inverter on vehicles where the positive terminal of the

battery is connected to the chassis.

PP1000-PP2000--IO-16s.book Seite 9 Mittwoch, 3. August 2016 6:19 18

Technical description PerfectPower

7 Technical description

Inverters PP1000 and PP2000 consist of two function units:

•Inverter switch: generates 230 Vwpower from a battery voltage of

–12 V: PP1002 and PP2002

–24 V: PP1004 and PP2004

•Mains priority circuit: switches automatically between 230 V of external mains

voltage (e.g. on a camping site) and a battery generated 230 V power supply

The external supply has priority. If no more external voltage is available, the

output socket is disconnected from the external power supply and connected to

the inverter voltage. This ensures that the output socket always has a power

supply of 230 V.

From inverter operation to mains power supply:

There is a delay when switching from inverter operation (whereby the 230 Vw

power is produced from the battery voltage) to the mains power supply.

When the plug is inserted in the outside socket (camping site, harbour) the

inverter is switched off after a delay of approx. 4 s. After a further 2 s, the mains

power supply is switched through. This gives the devices connected enough

time to switch off properly.

From mains power to inverter operation:

A delay also occurs when switching from mains power to inverter operation.

If the mains supply fails, the inverter switches on after 2 seconds.

The inverter is equipped with protection against thermal and electrical overloading,

as well as excess and insufficient voltage. The inverter switches off:

•If its internal temperature is too high

•If the load exceeds the values listed in the technical data

•If the input voltage is too high or too low

A single consumer or a socket distribution system can be connected to the inverter

to create an on-board 230 V supply with several sockets.

NOTICE!

When switching over, any devices connected should be switched off.

Because they do not receive voltage for 2 s, they may have to be

switched back on.
