Dometic WAECO BordBar TB08 Manuel utilisateur

TB08

Thermoelectric cooler

Operating manual

COOLING BOXES

BORDBAR

TB08-O-AU.book Seite 1 Freitag, 7. Oktober 2016 12:55 12

TB08-O-AU.book Seite 2 Freitag, 7. Oktober 2016 12:55 12

BordBar TB08

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

TB08-O-AU.book Seite 3 Freitag, 7. Oktober 2016 12:55 12

Explanation of symbols BordBar TB08

1 Explanation of symbols

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or

serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

TB08-O-AU.book Seite 4 Freitag, 7. Oktober 2016 12:55 12

BordBar TB08 Safety instructions

2.1 General safety

DDANGER!

•On boats: If the appliance is powered by the mains, ensure that the

power supply has a residual current circuit breaker.

!WARNING!

•Do not operate the cooling appliance if it is visibly damaged.

•If the power cable for this cooler is damaged, it must be replaced by

the manufacturer, customer service or a similarly qualified person in

order to prevent safety hazards.

•This cooler only be repaired by qualified personnel. Inadequate

repairs may cause serious hazards.

•This cooler can be used by children aged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and knowledge, providing they are supervised or

have been taught how to use the cooler safely and are aware of the

resulting risks.

•Cleaning and user maintenance must not carried out by unsupervised

children.

•Children should not play with the cooling appliance.

•Children must be supervised to ensure that they do not play with the

cooling appliance.

•Always keep and use the cooler out of the reach of children under 8

years of age.

•Do not store any explosive substances, such as spray cans with propel-

lants, in the cooler.

TB08-O-AU.book Seite 5 Freitag, 7. Oktober 2016 12:55 12

Safety instructions BordBar TB08

!CAUTION!

•Disconnect the cooling appliance from the mains

– Before cleaning and maintenance

–Afteruse

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•Only connect the cooler to the DC socket in the vehicle using the DC

connection cable.

•Only connect the device as follows:

– Plug the DC connection cable into the on-board socket in the

vehicle

– Or plug the AC connection cable into the AC mains

•Only use the AC connection cable to connect the device to the AC

mains.

•Never pull the plug out of the socket by the connection cable.

•If the cooler is connected to the AC socket: disconnect the refrigerator

and other electric consumers from the battery before connecting the

quick charging device.

•If the cooler is connected to the DC socket: disconnect the refrigerator

or switch it off when you turn off the engine. Otherwise you may dis-

charge the battery.

•The cooling device is not suitable for transporting substances which

are caustic or contain solvents.

TB08-O-AU.book Seite 6 Freitag, 7. Oktober 2016 12:55 12

BordBar TB08 Safety instructions

2.2 Operating the cooler safely

DDANGER!

•Do not touch exposed cables with your bare hands. This applies

especially when operating the device from the AC mains.

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

ANOTICE!

•Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for that purpose.

•Do not place the cooling appliance near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Always ensure sufficient ventilation so that the heat generated during

operation can dissipate. Make sure that the cooling appliance is

sufficiently far away from walls and other objects so that the air can

circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Never immerse the cooling appliance in water.

•Protect the cooling appliance and the cable against heat and

moisture.

TB08-O-AU.book Seite 7 Freitag, 7. Oktober 2016 12:55 12

Intended use BordBar TB08

3 Intended use

The cooler is portable. It can chill products as well as keep them cool or warm.

The cooler has been designed for use with a DC socket of a car, boat or caravan.

4Scopeofdelivery

•BordBar TB08 cooler

•Connection cable for DC connection

•Fastening and carrying strap

5 Technical description

The cooler can chill products to a maximum of 20 °C below the ambient temperature

as well as cool or keep them warm up to a maximum of 65 °C.

Control elements

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing

the food or medicine you wish to cool.

HOT

OFF

COLD

12V DC

HOT

OFF

COLD

12V DC

TB08-O-AU.book Seite 8 Freitag, 7. Oktober 2016 12:55 12

BordBar TB08 Operation

6Operation

No. in

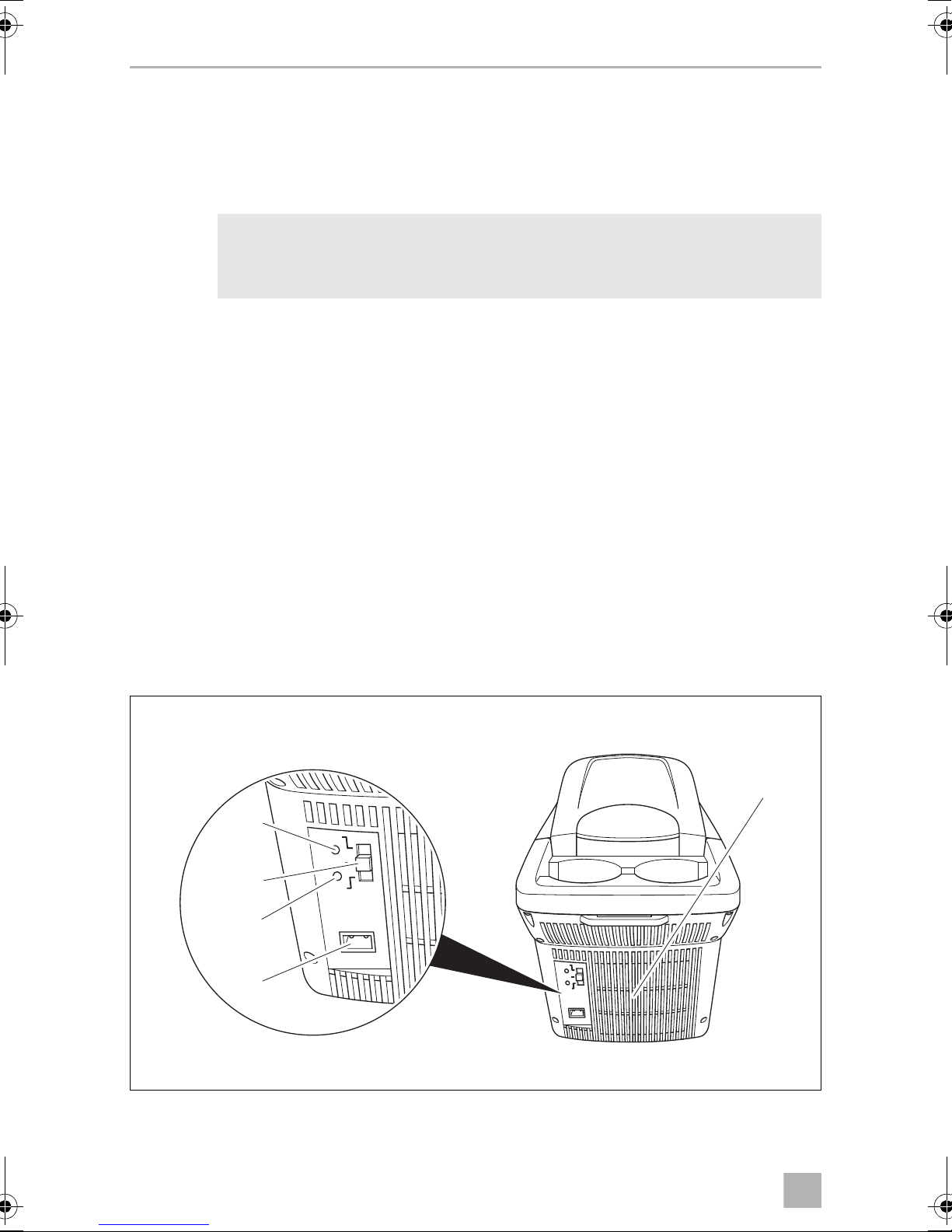

fig. 1, page 8 Description

1 Ventilation grilles

2 DC socket connection

3LEDCOLD

lights up green when the device is cooling

4 Slide switch for the operating mode

COLD: The device is cooling

OFF: The device is switched off

HOT: The device is warming

5LEDHOT

lights up red when the device is warming

NOTICE!

•Ensure that only those objects are placed in the cooler that are

intended to be cooled at the selected temperature.

•Ensure that food or liquids in glass containers are not excessively

refrigerated. Liquids expand when they freeze and can therefore

destroy glass containers.

NOTE

Before starting your new cooler for the first time, you should clean it

inside and outside with a damp cloth for hygienic reasons (see also

chapter “Cleaning and maintenance” on page 12).

TB08-O-AU.book Seite 9 Freitag, 7. Oktober 2016 12:55 12

Operation BordBar TB08

Fastening the cooler on the seat

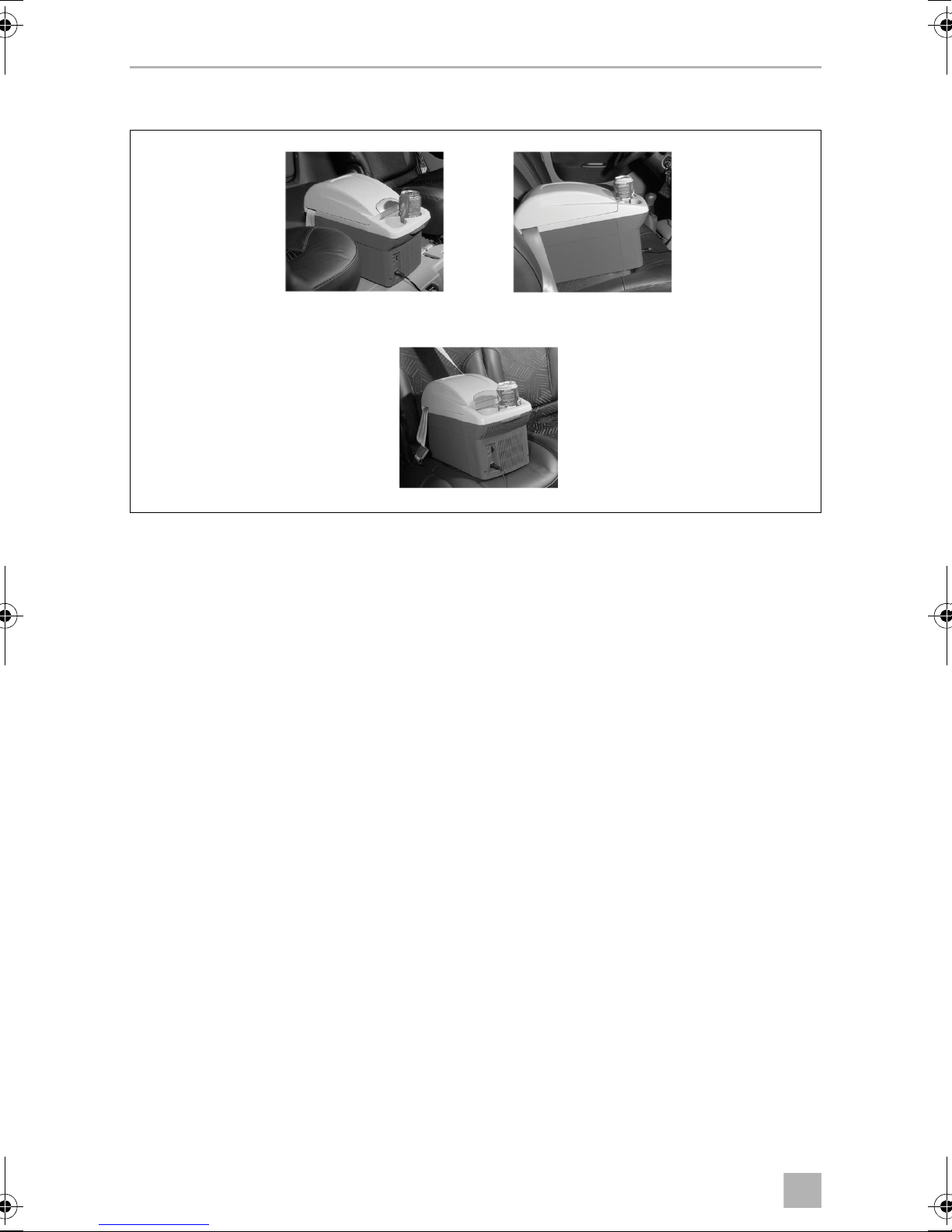

➤Place the cooler on a seat (passenger seat or the middle seat in the back).

➤Thread the seat belt into one of the belt holders and fasten the cooler onto the

passenger seat (fig. 2B) or the middle seat (fig. 2C).

➤If you want to position your cooler between two seats (fig. 2A,), use the

fastening and carrying strap supplied (fig. 3B, page 11) to do this.

TB08-O-AU.book Seite 10 Freitag, 7. Oktober 2016 12:55 12
