Thermoelectric cooler

Operating manual . . . . . . . . . . . . . . . . . . . . .5

COOLING BOXES

BORDBAR

TB15-O-16s.book Seite 1 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

BordBar TB15

LOW BATT. ON/OFF COLD HOT

OFF

4 5

TB15-O-16s.book Seite 3 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

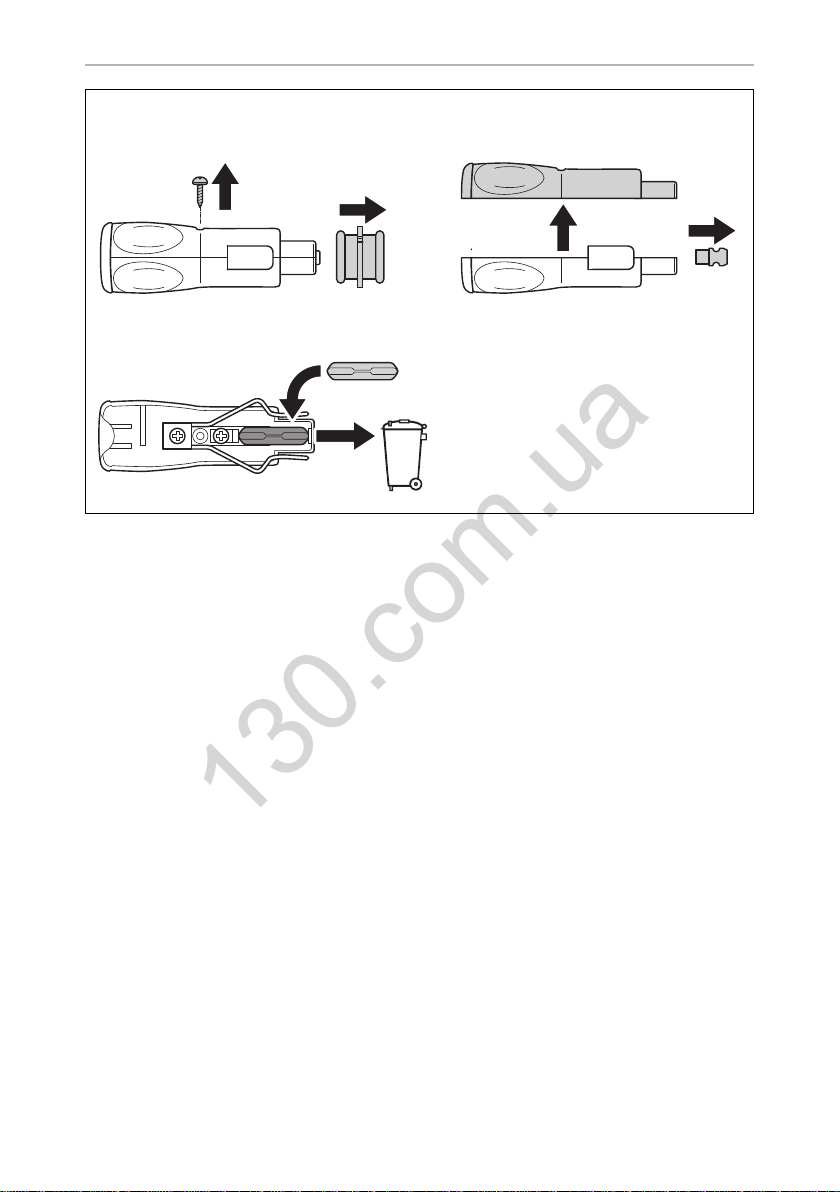

BordBar TB15

2. 1.

A B

TB15-O-16s.book Seite 4 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

BordBar TB15

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

TB15-O-16s.book Seite 5 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

Explanation of symbols BordBar TB15

1 Explanation of symbols

2 Safety instructions

2.1 General safety

!WARNING!

•Do not operate the device if it is visibly damaged.

•If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

•This device may only be repaired by qualified personnel. Improper

repairs can lead to considerable hazards.

•This device can be used by childrenaged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must not play with the device.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

TB15-O-16s.book Seite 6 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

BordBar TB15 Safety instructions

•Children must be supervised to ensure that they do not play with the

device.

•Always keep and use the device out of the reach of children under the

age of 8 years.

•Do not store any explosive substances such as spray cans with a

flammable propellant in the device.

!CAUTION!

•Disconnect the device from the power supply

– before each cleaning and maintenance

– after every use

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate corresponds to

that of the energy supply.

•Only connect the device to a DC plug socket in the vehicle (e. g.

cigarette lighter) with the DC cable.

•Never pull the plug out of the socket by the cable.

•Disconnect the cooler and other power consuming devices from the

battery before connecting the quick charging device.

•Disconnect the cooler or switch it off when you turn off the engine.

Otherwise you may discharge the battery.

•The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

•The cooling device contains inflammable cyclopentane in the

insulation. The gases in the insulation material require special disposal

procedures. Deliver the device at the end of its life-cycle to an appro-

priate recycling.

2.2 Operating the device safely

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

ANOTICE!

•Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

TB15-O-16s.book Seite 7 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

Intended use BordBar TB15

•Do not place the device near naked flames or other heat sources

(heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that

arises during operation does not build up. Make sure that the device

is sufficiently far away from walls and other objects so that the air can

circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Never immerse the device in water.

•Protect the device and the cable against heat and moisture.

3 Intended use

The cooler is portable. It can chill products as well as keep them cool or warm.

The device is designed for use with a 12 Vgon-board supply of a car (cigarette

lighter), boat or caravan.

4Scopeofdelivery

•BordBar TB15 cooler

•Cable for 12V gconnection

5Accessories

To operate the device using an AC power supply, we recommend using the

following mains rectifier.

Available as accessories (not included in the scope of delivery)

•220 – 240 Vw: CoolPower EPS817

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing

the food or medicine you wish to cool.

TB15-O-16s.book Seite 8 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

BordBar TB15 Technical description

6 Technical description

The cooler can chill products to a maximum of 20 °C below the ambient temperature

as well as cool or keep them warm up to a maximum of 65 °C.

An integrated battery monitor can be switched on to protect your vehicle battery

against excessive discharging.

Control elements

No. in

fig. 1, page 3 Description

1 Ventilation grilles

2LEDLOWBATT

flashes when the battery monitor has switched off the device due to

low voltage

lights up when the battery monitor is switched on and the device is

operating

3 Slide switch for the battery monitor

ON: Battery monitor is switched on

OFF: Battery monitor is switched off

4LEDCOLD

lights up green when the device is cooling

5LEDHOT

lights up red when the device is warming

6 Slide switch for the operating mode

COLD: The device is cooling

OFF: The device is switched off

HOT: The device is warming

TB15-O-16s.book Seite 9 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua

Operation BordBar TB15

7Operation

Fastening the device on the seat

➤Pull out the fastening rail on the rear of the device until it clicks (fig. 2A, page 3).

➤Place the device on a seat (passenger seat or the middle seat in the back).

➤Push the device back against the backrest so that the fastening rail is inserted

between the seat surface and backrest.

➤Thread the seat belt into one of the belt holders and fasten the device:

– front belt holder (fig. 2B or C, page 3)

– bottom belt holder (fig. 2D, page 3)

Switching the device on and off

➤Plug the 12 V connection cable into the cigarette lighter socket or a 12 V socket

in the vehicle.

➤Push the slide switch into the required position.

✓The cooler is switched on and starts cooling or heating the interior.

✓The respective LED lights up.

➤When you want to switch off the cooler, disconnect the plug.

NOTICE!

•Ensure that the objects placed in the cooler are suitable for cooling

to the selected temperature.

•Ensure that food or liquids in glass containers are not excessively

refrigerated. Liquids expand when they freeze and can therefore

destroy glass containers

NOTE

Before starting your new cooling device for the first time, you should

clean it inside and outside with a damp cloth for hygienic reasons

(please also refer to the chapter “Cleaning and maintenance” on

page 11).

NOTE

Press the release button on the bottom of the device to insert the

fastening rail.

TB15-O-16s.book Seite 10 Montag, 7. November 2016 3:55 15

Autogoods “130”

130.com.ua
