Dometic CoolAir RTX2000 Manuel utilisateur

RTX2000, SPX1200IC

Parking cooler

Operating manual

CLIMATE CONTROL

COOLAIR

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 1 Donnerstag, 20. Februar 2020 2:13 14

protected by copyright and design law. The underlying technical design and the

products contained herein may be protected by design, patent or be patent

pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.

All rights are reserved.

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 2 Donnerstag, 20. Februar 2020 2:13 14

RTX2000, SPX1200IC

Original instructions

Please read this instruction manual carefully before first use, and store it in

a safe place. If you pass on the product to another person, hand over this

instruction manual along with it.

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Using the parking cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

8 Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

10 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 3 Donnerstag, 20. Februar 2020 2:13 14

Explanation of symbols RTX2000, SPX1200IC

1 Explanation of symbols

2Safety

The manufacturer accepts no liability for damage in the following cases:

• Damage to the product resulting from mechanical influences and incorrect

connection voltage

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in the operating manual

2.1 Handling the product

!WARNING!

• Only use the parking cooler for the purpose specified by the manufac-

turer and do not make any alterations or structural changes to the

device.

• If the supply cord is damaged, it must be replaced by the manufac-

turer, its service agentor similarly qualified persons in order to avoid a

hazard.

• Do not use the parking cooler if it is visibly damaged.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided,

could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided,

could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 4 Donnerstag, 20. Februar 2020 2:13 14

RTX2000, SPX1200IC Safety

• Installation and repairs to the parking cooler may only be carried out

by qualified personnel who are familiar with the risks involved and the

relevant regulations. Inadequate repairs may cause serious hazards.

For repair service, please contact the service centre in your country

(addresses on the back page).

• People (including children) whose physical, sensory or mental capac-

ities or whose lack of experience or knowledge prevent them from

using this product safely should not use it without the supervision or

instruction of a responsible person.

•Electrical devices are not toys.

Always keep and use the product out of the reach of children.

• Children must be supervised to ensure that they do not play with the

product.

• Make sure no combustible objects are stored or installed near the air

outlet. A distance of at least 50 cm must be maintained.

•Donot undo the upper cover of the parking cooler in the event of a

fire. Use approved extinguishing agents instead. Do not use water to

extinguish fires.

• Do not reach into air grilles or ventilation nozzles or insert any foreign

objects in the system.

!CAUTION!

• Disconnect all power supply lines when working on the parking cooler

(cleaning, maintenance etc).

ANOTICE!

• The parking cooler is not suitable for use in agricultural or construction

vehicles.

• Vehicles with attached parking coolers may only be cleaned in auto-

matic car washes where the top brush can be manually deactivated.

• Switch the parking cooler off before tilting the cab for maintenance.

• Switch off the parking cooler before using automatic washing equip-

ment (automatic car washes etc.) to clean the vehicle.

•Donot operate the parking cooler if the ambient temperature is

below 0 °C or above 52 °C.

• Please inform your vehicle manufacturer if the height entered in your

vehicle documents needs to be altered due to the installation of the

parking cooler.

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 5 Donnerstag, 20. Februar 2020 2:13 14

Target group RTX2000, SPX1200IC

2.2 Operating the product safely

ANOTICE!

• Do not insert foreign objects into the system.

3 Target group

The information contained is aimed at the user of the parking cooler.

4 Intended use

The parking cooler is used to supply the interior of the driver's cab with cool and

dehumidified air.

The system is designed for stationary use, however it can be used while driving.

The parking cooler is not designed for use in agricultural or construction vehicles.

The parking cooler is suitable for ambient temperatures of 5 °C to 52 °C.

INOTE

Only install the parking cooler using the manufacturer's assembly kit.

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 6 Donnerstag, 20. Februar 2020 2:13 14

RTX2000, SPX1200IC Technical description

5 Technical description

The parking cooler can be used for conditioning inside the vehicle. The air in the inte-

rior is guided into the system through the intake grille, cooled, dried and conveyed

back into the interior through the blower nozzles.

In BOOST mode, the parking cooler cools the vehicle interior for not more than

20 minutes at maximum power and then switches to AUTO mode. When the set

temperature is reached, the parking cooler switches to AUTO mode before the

20 minutes is reached.

In AUTO mode, the fan and compressor speed are controlled automatically.

In ECO mode the fan and compressor speed are controlled automatically. The com-

pressor power is limited in ECO mode electronically.

The system is controlled using the control panel or the remote control.

The system is fitted with a battery monitor. If the system is operated when the vehicle

ignition is switched off, the system switches off automatically as soon as the supply

voltage falls below a set level.

NOTE

The parking cooler can lower the temperature within the vehicle to a cer-

tain level. The temperature depends on the type of vehicle, the ambient

temperature and the cooling capacity of your parking cooler. For the

cooling capacity of your parking cooler, chapter “Technical data” on

page 27.

NOTE

This set level can be changed. For this, please contact the specialised

company that installed the system.

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 7 Donnerstag, 20. Februar 2020 2:13 14

Operation RTX2000, SPX1200IC

6Operation

6.1 Device elements

The parking cooler has the following device elements:

No. in

fig. 1, page 3 Explanation

1 Blower nozzles

2 Intake grille

3 Control panel

RTX2000

SPX1200IC

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 8 Donnerstag, 20. Februar 2020 2:13 14

RTX2000, SPX1200IC Operation

6.2 Control panel

The system's control panel contains the following operating and display elements:

No. in

fig. 2, page 4 Symbol Description

1 Display (see chapter “Display” on page 12)

2 Infrared receiver (for the remote control)

3 Opens the sub-menus for setting or decreases the value

of the selected parameter once a menu has been

opened.

4 Opens the sub-menus for setting or increases the value of

the selected parameter once a menu has been opened.

5 Scrolls through the menu items.

6 Switches the parking cooler

•on

• off (press button briefly)

• to standby mode (press button longer than 3 s)

7 LED Power (blue):

Only lights up when the system is switched on or in

standby.

456 3

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 9 Donnerstag, 20. Februar 2020 2:13 14

Operation RTX2000, SPX1200IC

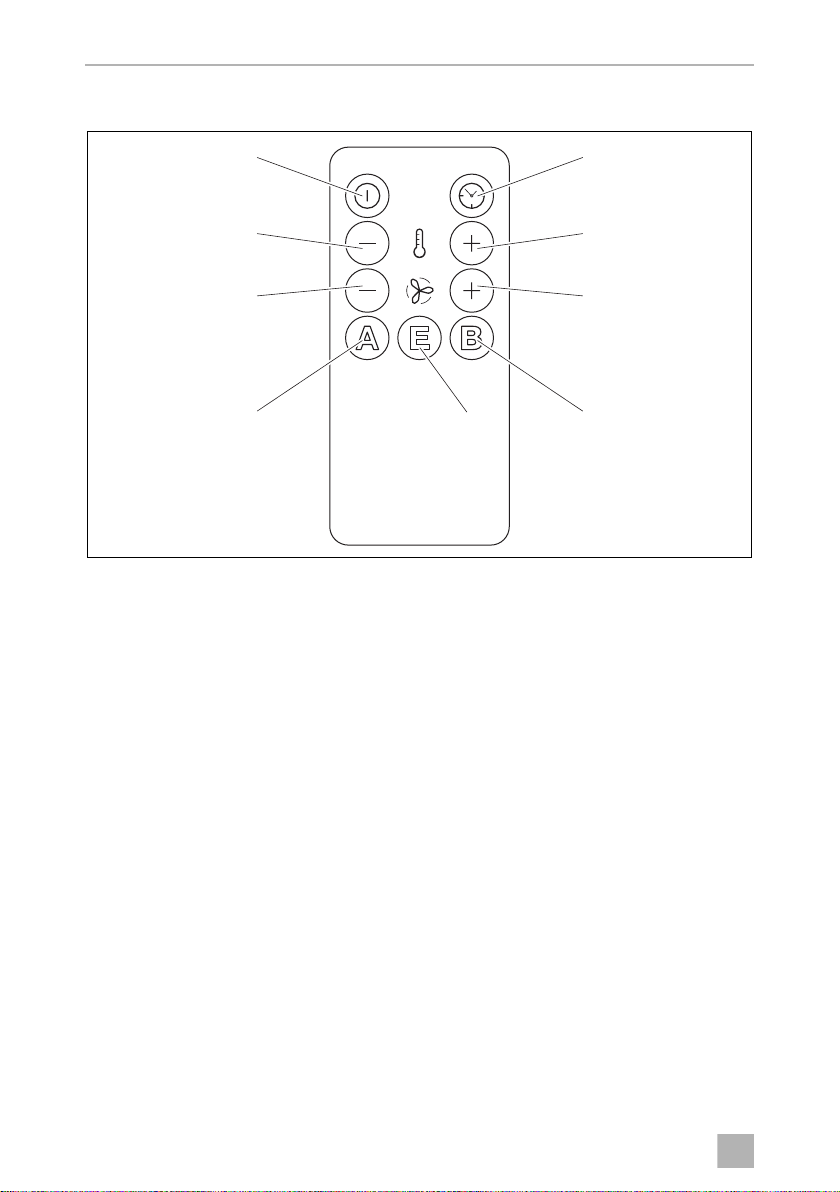

6.3 Remote control

RTX2000-SPX1200IC_OPM_APAC(en).book Seite 10 Donnerstag, 20. Februar 2020 2:13 14
