Dogtrace D-control 402 Mode d'emploi

d–control 400

Electronic training collar –

basic training set for a single dog

d–control 401

Electronic training collar –

basic training set for a single dog –

briefcase version

d–control 402

Electronic training collar –

basic training set for two dogs –

briefcase version

Service instructions

Thank you for purchasing the product

DOGtrace™ d–control

from VNT electronics s.r.o., Czech Republic.

We would like to ask you for reading this manual carefully before using the unit

and keeping it for future use.

EC Declaration of Conformity

Guideline R&TTE 1999/5/CE

The manufacturer: VNT electronics s.r.o. declares that the below mentioned product:

Electronic training collar DOGtrace™ d–control

complies to all Europe Council Guidelines, Under No. 1999/5/CE of 7. 4. 1999

and corresponds to the following standards:

ETSI EN 300 220

VNT electronics s.r.o. • Němčice 23 • 561 18 Němčice u České Třebové

Phone: +420 461 310 762 • Czech Republic • www.dogtrace.com

WARNING:

The person with a personal instrument to support heart activity (pacemaker, deﬁbrillator)

must respect the relevant precautionary measures. The d–control emits a certain stationary

magnetic ﬁeld (lower part of the remote controller and RF signals).

Frequency= 869.52 MHz, maximum transmitted power = 25 mW.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Product description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Battery installation and replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Turning ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Programming (matching) of the remote controller and the receiver . . . . . . . . . . . . . . . . . . . . . . . . . 9

How to use the remote controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to check that your DOGtrace™ d–control works correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

For the best results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

We are starting with the training collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Hints for using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Introduction

Scope of delivery

Optional accessories

Do you need to have your dog under instant control? Do you want to train and breed it easily,

quickly, precisely, and eﬃciently? Electronic training system DOGtrace™ d–control, consisting of the

transmitter and the collar, will help you train your dog with eﬃciency unattainable with other

methods. The hand-held transmitter (similar to the remote controller controlling your TV set) makes

it possible to give orders to a large distance. There are two sorts of order. A warning sound signal,

a short alerting electronic pulse, and a series of correcting electronic pulses. It is possible to adjust

the intensity of electronic pulses in a simple way. Electronic systems of the transmitter and collar use

state-of-the-art technology based on single-chip microprocessors and wireless communications.

Thanks to the ergonomic design and low weight of the collar, it is possible to use it also for small

breeds of dog.

}Collar (receiver) with the strap (2pc in d–control 402)

}Electrodes

}CR2 3V lithium battery 2pc (3pc in d–control 402)

}Neon test discharge lamp

}Remote controller (transmitter) with the fastener

}Cord to hang the transmitter on the neck

}Service instructions and Certiﬁcate of Warranty

}Briefcase (with d–control 401 and d–control 402)

}Dummy collars }Spare batteries

}Varicoloured woven belts }Spare seals

}Spare electrodes }Spare screws

Product description

REMOTE CONTROLLER COLLAR WITH THE STRAP

LCD PANEL DESCRIPTION

REMOTE CONTROLLER }1– Backlit LCD display, 2– Adjustable permanent pulse (booster)

button, 3– Correction pulse button, 4– Sound signal button, 5– Power ON/OFF button,

6– Buttons to select a level of correction pulses, 7– Dog A or Dog B Selector.

COLLAR WITH THE STRAP }1– Strap, 2– Electrodes, 3– Indicator, 4– Target.

LCD PANEL DESCRIPTION }1– Transmission indication, 2– Battery power indicator,

3– Indicator of preset level of correction pulses, 4– Dog A or Dog B selection indicator.

1 2

Battery installation and replacement

INSTALLATION (REPLACEMENT) OF THE BATTERY IN THE RECEIVER (COLLAR)

}Remove 4 screws of the receiver housing cover plate with a cross-head screwdriver. Install the 3V

lithium CR2 battery. Mind the correct polarity indicated on the receiver PCB with “+“ symbol in the

battery compartment (see the photo).

}A beep indicating correct installation of battery will sound.

}If you do not hear the beep after installation of the battery, remove it immediately. Check the

polarity and try to install it again.

}Before putting the plate cover to its place make sure that the rubber seal is correctly seated in its

slot. Tighten adequately the 4 screws on the cover plate of the receiver.

Checking the battery power

Look at the indicator on the front panel of the receiver (collar) to check the state of battery:

}The battery is fully charged: The LED indicator in on-state blinks slowly in green.

}The battery is weak: The LED indicator in on-state blinks in red. Prepare a spare 3V lithium battery

CR2 and follow the section describing the battery installation.

Make sure that the receiver works correctly.

Battery polarity indication

INSTALLATION (REPLACEMENT) OF THE BATTERY IN THE REMOTE CONTROLLER

}Unscrew the screw on the rest side of the repote controller and lift oﬀ carefully the cover of the

controller. Watch out, it is connected with the keypad by a wire. Install a new button cell

(3V lithiová typ CR 2450) and mind the correct polarity (see the photo). The “+“ symbol on the cell

must be up after installation, i.e. visible. Replace the cover of the box and tighten the screw

adequately.

Checking the battery power

To check the state of the transmitter battery, look at the LCD display:

}The battery is fully charged: The symbol of battery is permanently lit on the LCD display in on-state.

}The battery is weak: The symbol of battery starts blinking on the LCD display in on-state. Prepare

a spare 3V lithium battery CR2450 and follow the previous section “Installation of the battery in

the remote controller”. Make sure that the remote controller works correctly.

TIP You can remove the batteries

more easily if you use a small

screwdriver and insert it carefully

under the edge of the battery

(from the opposite side than

the LCD).

Battery compartment

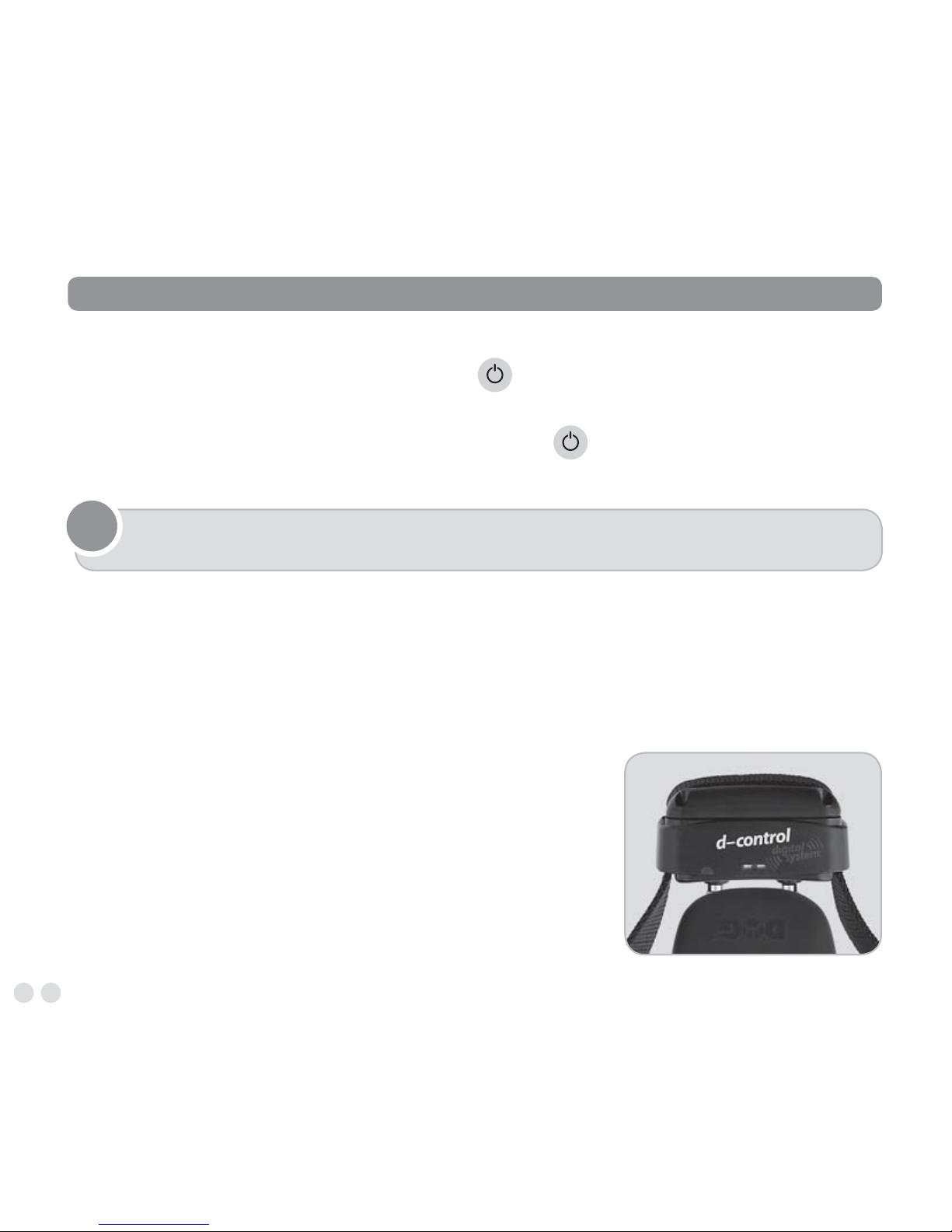

Turning ON/OFF

TURNING THE REMOTE CONTROLLER ON/OFF

}Turning on: Press down for 1 second the black On/Oﬀ button on the remote controller.

Turning on is indicated by lighting up of the LCD display.

}Switching oﬀ:Again, press down for 1 second the black On/Oﬀ button. Turning oﬀ

is indicated by going out of the LCD display.

TURNING THE RECEIVER (COLLAR) ON/OFF

The magnetic switching system located in the remote controller is used to turn the receiver (collar)

on and oﬀ.

}Turning on: Touch the lower part of the remote controller for 1 second to the target on the

receiver (refer to the Fig.). The receiver indicator will start blinking in green and this indicates that

the receiver is ready for use.

}Turning oﬀ:Again, touch the lower part of the

remote controller for 1 second to the target on the

receiver (see the Fig.). The LED indicator of the

receiver will be lit red. The receiver is turned oﬀ.

To extend the serviceability of the battery, it is

necessary to turn oﬀ the receiver always after training

is ﬁnished. If you do not use the receiver for a longer

period of time, we recommend you to remove

the battery from the receiver.

The situation when the receiver is turned on/oﬀ

and the transmitter is being matched with the receiver

}CAUTION: To save the service life of the battery, the transmitter will be automatically

turned oﬀ after 120 minutes of inactivity.

Programming (matching) of the remote controller and the receiver

Every remote controller has its own RF operational code. Programming of the remote controller with

the receiver (collar) will be accomplished during the ﬁrst use of the DOGtrace™ d–control or with

a new remote controller or a receiver (when one or the other is lost). This operation will enable you

to match your remote controller with the delivered receiver (collar).

}Turn on your transmitter.

}Select Dog A using the button on the transmitter

}Touch the lower part of your remote controller to the target on your receiver (see the photo on

page 7). The green LED will be permanently lit and after some 6 seconds, it will switch to the

programming mode, indicated by permanent ﬂashing of the red LED.

}Now take your transmitter away and press down the sound signal button on your remote

controller. The codes will be matched in this step and your receiver will produce a sound signal.

}Select Dog B using the button on the transmitter and proceed in the same way (it is applicable

when you wish to use your d–control for the other dog by purchasing another receiver or if you

have purchased the d–control 402).

}IMPORTANT: Before programming is started (before the ﬁrst use of your receiver or code

rewriting) make sure that no one else uses his/her d–control or another product made by

DOGtrace™ in your neighbourhood – your receiver could randomly receive the code from

the other remote controller and set itself to it. If this happens, program your receiver

once again using your remote controller.

NEW PROGRAMMING OF YOUR RECEIVER

The receiver can be programmed repeatedly without restraint either using the same remote controller

or with another (see the section Programming (matching) of your remote controller and receiver).

TIP It is possible to program an unlimited number of receivers to one receiver, which is

possible to use for common training of several dogs. It is possible to record two transmit-

ters into one receiver, which the instructor can use, for instance, for a potential correction

of the dog’s training.

How to use the remote controller

The DOGtrace™ d–control remoter controller is designed for co-operation with two separate

receivers independent of each other (A Dog or B Dog selection).

Button – sound signal

When you press down the sound signal button, you will be able to send the sound signal to your

receiver at a great distance. There is no time limit for this function: The buzzer will sound for as long

as you are holding the pressed down button and the green LED on your receiver will be permanently

lit. It will be indicated by the transmission symbol on the LCD display of your remote controller.

Button – permanent pulse

By pressing down this button, you will send your dog a warning in the form of an electronic pulse

transmitted by the two electrodes located in the receiving collar for a deﬁned period of time, which

is shorter than one second (regardless of how long you are pressing down the button). It is necessary

to hold the button pressed for one second at least. The red LED on your receiver will glimpse.

It will be indicated by the transmission symbol on the LCD display of your remote controller.
