DJI RS 2 Quick Start Guide

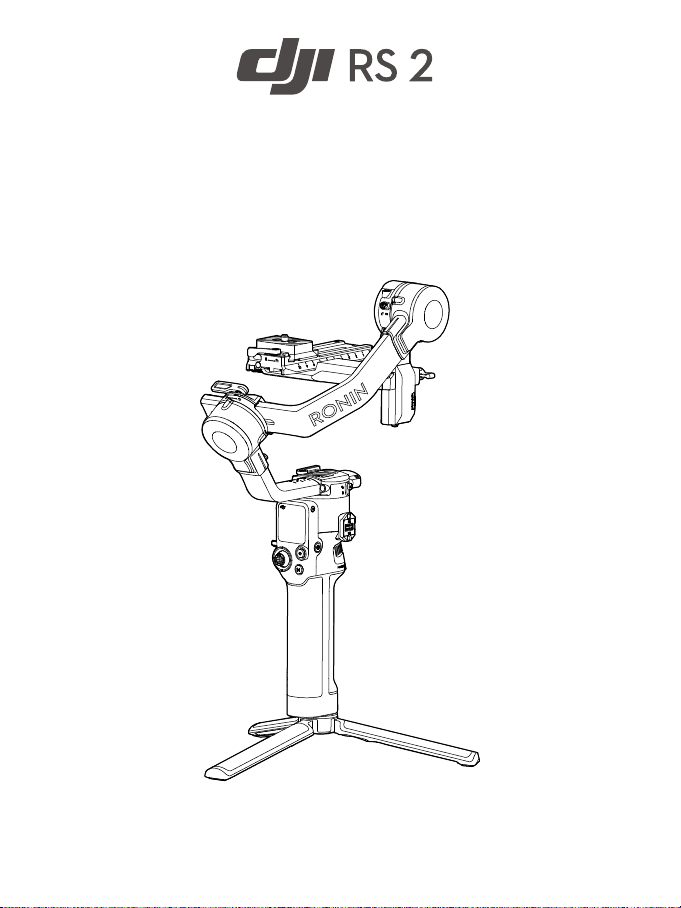

DJI RS 2 Overview

1. Tilt Lock

2. Tilt Motor

3. Pan Lock

4. Pan Motor

5. Touchscreen

6. Ronin Series Accessories (RSA)/

NATO Ports

7. Power Button

8. Camera Control Button

9. M Button

10. BG30 Grip (Built-in battery with

¼"-20 screw hole)

11. Extended Grip/Tripod

12. Joystick

13. Lower Quick-Release Plate

14. Upper Quick-Release Plate

15. Roll Motor

16. Roll Lock

17. Grip Lever/Safety Button

18. Battery Level Indicators

19. Battery Level Button

20. Power Port (USB-C)

21. Trigger

22. Front Dial

23. Image Transmission/Focus Motor

Port (USB-C)

24. Focus Motor Port (USB-C)

25. RSS Camera Control Port (USB-C)

DJI RS 2 Quick Start Guide

Getting Started

A. Downloading the DJI RONINTM App and Watching the Tutorials

B. Charging the Battery and Checking the Battery Level

Before using for the first time, charge the battery grip through the power port using a

charging cable (included) and a USB adapter (not included). It is recommended to use a

USB adapter with QC 2.0 and PD protocol (max. 24 W).

During charging and usage, the battery level indicators indicate the battery level. When

not in use, press the battery level button to check the battery level.

C. Attaching the Extended Grip/Tripod

Ronin App

USB Power

Adapter

Power Outlet

100 - 240 V

Tutorials

Power Port High Low

DJI RS 2 Quick Start Guide

Roll Lock

D. Mounting the Grip

Insert the grip into the gimbal as shown 1. Make sure the grip lever is in the unlocked

position 2, and then toggle to the locked position after attaching 3.

To remove the grip, toggle the lever to the unlocked position, hold down the safety

button, and pull the grip away from the gimbal.

The gimbal is folded by default. To unfold the gimbal, toggle the tilt lock, roll lock, and pan

lock levers to the unlocked position and adjust the gimbal position as shown, and then

toggle the three locks to the locked position.

Pan Lock

Tilt Lock

DJI RS 2 Quick Start Guide

E.PoweringOn/OandEntering/ExitingSleepMode

Press and hold the power button to turn DJI RS 2 on or off. Press twice to enter or exit

sleep mode.

F. ActivatingDJIRS2

DJI RS 2 needs to be activated through the Ronin app before using

for the first time.

1. Press and hold the power button to power on the gimbal.

2. Enable Bluetooth on your mobile device and launch the Ronin

app. Note that a DJI account is required to launch the Ronin app.

Once detected in the list of Bluetooth devices, select DJI RS 2

and input the default Bluetooth password: 12345678. Make

sure you are connected to the internet and follow the on-screen

instructions to activate DJI RS 2.

Mounting the Camera

Make sure to prepare the camera before mounting it to DJI RS 2. Remove the lens cap and

check that the battery and memory card are inserted in the camera. Make sure DJI RS 2 is

powered off or in sleep mode before mounting the camera.

1. Attach the Upper Quick-Release Plate

The camera lens and the arrow on the bottom of the upper quick-release plate must face

the same direction. Attach the upper quick-release plate to the camera by tightening the

screw.

DJI RS 2

Creat

User Proﬁle Status

Device Activation

Activation is required prior to using the

device. To do so, information regarding

your device and DJI account will be

uploaded to DJI. Please agree and

proceed to activation.

Agree and activate

A camera riser is required when using a focus motor or a small camera with a large lens, such as a

Sony A6400 with the Sony FE 24-70 f2.8 GM lens.

DJI RS 2 Quick Start Guide

2. Attach the Lower Quick-Release Plate and Lens-Fastening Strap

Toggle the lever on the lower quick-release plate to the unlocked position 1, then insert

the camera 2and toggle the lever to the locked position 3after it is engaged. Attach the

lens-fastening strap to the lower quick-release plate 4, and bind the strap to the camera

lens 5. Note that the rubber of the lens-fastening strap must be directly under the lens.

It is recommended to use the lens-fastening strap when using a long or heavy lens, and

always use the lens-fastening strap before enabling SuperSmooth mode.

To remove the camera from the lower quick-release plate, toggle the lever to the unlocked

position and remove the camera while pressing the safety lock beside the lever.

3. Attach the Camera to the Gimbal

Toggle the lever on the camera mounting plate to the unlocked position 1and insert the

lower quick-release plate 2. Toggle the lever to the locked position once the camera is

roughly balanced 3.

Safety Lock 4

DJI RS 2 Quick Start Guide

To remove the lower quick-release plate, toggle the lever on the camera mounting plate

to the unlocked position and remove the lower quick-release plate while pressing the

safety lock on the mounting plate.

Balancing

Balancing is required before shooting. Before balancing, make sure to power on the camera

if using an optical zoom lens and to select the focal length if using a varifocal lens. Make sure

DJI RS 2 is powered off or in sleep mode before balancing.

1. Balancing the Vertical Tilt

a. Unlock the tilt axis and loosen the mounting plate knob 1.

b. Rotate the tilt axis so that the camera lens is pointing upward. Check to make sure

the camera is not top or bottom-heavy. If top-heavy, move the camera backward 2. If

bottom-heavy, move the camera forward 2.

c. Tighten the mounting plate knob while holding the camera upward. The vertical tilt is

balanced when the camera is steady while pointing upward.

4. Connect the Camera Control Cable

Choose the proper camera control cable according to the camera type. Plug one end

of the cable into the RSS camera control port of the gimbal (shown above) and plug the

other end into the camera.

Safety Lock

RSS Camera Control Port

DJI RS 2 Quick Start Guide

3. Balancing the Roll Axis

a. Unlock the roll axis. Toggle the lever on the roll arm to the unlocked position 1.

b. Check the direction in which the roll motor swings. If the camera rotates to the left,

move the camera to the right 2. If the camera rotates to the right, move the camera

to the left 2.

c. Toggle the lever on the roll arm to the locked position. The roll axis is balanced when

the camera is steady.

d. Lock the roll axis.

2. Balancing Depth for the Tilt Axis

a. Rotate the tilt axis so that the camera lens is pointing forward. Toggle the lever to the

unlocked position 1.

b. Check to make sure the camera is not front or back-heavy. If front-heavy, move the

camera backward by turning the knob 2. If back-heavy, move the camera forward.

c. Toggle the lever to the locked position. The tilt axis is balanced when the camera is

steady while tilted up or down by 45°.

d. Lock the tilt axis.

DJI RS 2 Quick Start Guide

4. Balancing the Pan Axis

a. Unlock the pan axis. Toggle the lever on the pan arm to the unlocked position 1.

b. While holding the grip, tilt DJI RS 2 forward, and rotate the pan arm until parallel with you.

c. Check the movement of the pan axis. If the camera lens rotates to the left, push the

pan axis to the right 2. If the camera lens rotates to the right, push the pan axis to the

left 2.

d. Toggle the lever on the pan arm to the locked position. The pan axis is balanced when

the camera is steady when rotating the pan while tilting the grip.

Briefcase Mode

You can use DJI RS 2 in Briefcase mode with the briefcase handle and extended grip/

tripod mounted. The briefcase handle can be mounted to either RSA/NATO port. Attach the

briefcase handle as shown. Make sure the knob is tightened.

When attaching the briefcase handle to the other side, the Extended Grip/Tripod angle must be

adjusted by loosening the screw on the briefcase handle.
