dji RONIN TC Manuel utilisateur
V1.0 2015.6
User Manual
RONIN THUMB CONTROLLER
© 2015 DJI. All Rights Reserved.
1
Disclaimers and Warnings
Congratulations on purchasing your new DJI product. Carefully read the manual
and all disclaimers before using this product. By using this product, you hereby
agree to this disclaimer and signify that you have read it in its entirety. You agree
that you are responsible for your own conduct, for all content that is created using
this product, and for any consequences that may arise from either. You agree to
use this product only for purposes that are proper and in accordance with local
regulations, stated terms, and all applicable polices and guidelines.
By reading this disclaimer, you also agree that:
1. Any part of this disclaimer is subject to change without prior notice. Refer to
www.dij.com for the latest version.
2. DJI reserves the right of nal interpretation of this disclaimer.
As DJI has no control over use, setup, nal assembly, modication, or misuse of
its products, no liability shall be assumed or accepted for any resulting damage
or injury. By using, setting up, or assembling the product, the user accepts
all resulting liability. DJI assumes no liability for damages or injuries incurred
directly or indirectly from the use of this product.
DJI and Ronin are registered trademarks. All names of products, brands, etc.
appearing in this manual are trademarks or registered trademarks of their
respective owner companies. This product and manual are copyrighted by DJI,
with all rights reserved. No part of this product or manual shall be reproduced
in any form without the prior written consent or authorization of DJI. No patent
liability is assumed with respect to the use of the product or information
contained herein.
2
© 2015 DJI. All Rights Reserved.
Content
Disclaimers and Warnings 1
In the Box 3
Introduction 4
Thumb Controller 4
External Receiver (For Ronin Only) 5
Installation 6
Installing the Thumb Controller 6
Installing the External Receiver (For Ronin Only) 7
Binding the Thumb Controller to the Gimbal 8
Binding to the Ronin-M 8
Binding to the Ronin 8
Indicator Status 10
Using the Thumb Controller 11
Gimbal 13
Channel 14
Settings 14
DJI Assistant App Tuning 16
DJI PC/MAC Assistant Tuning 17
Settings 17
Updating the Thumb Controller and the Receiver 18
Specications 20
© 2015 DJI. All Rights Reserved.
3
In the Box
Check to ensure that all of the following items are included in the package. If
any items are missing, contact DJI or your local dealer.
The following items are included with the Thumb Controller for the Ronin-M:
The following items are included with the Thumb Controller for the Ronin:
Thumb Controller×1 Quick Release
Accessory Mount×1
Micro-USB Cable×1 Step-down
Adapter×1
External Receiver ×1 4-Pin Cable×1 Adhesive Tape×1
Thumb Controller×1 Quick Release
Accessory Mount×1
Micro-USB Cable×1 Step-down
Adapter×1
4
© 2015 DJI. All Rights Reserved.
Introduction
The Thumb Controller is designed specically for DJI Ronin series handheld
gimbals. It provides a simple, intuitive interface for controlling the gimbal’s pan,
tilt, and roll motions. The pressure-sensative thumb stick and the easy-to-read
OLED display give Ronin users more control than ever before.
The Thumb Controller communicates with the Ronin-M via a preinstalled internal
receiver. An external receiver is needed when the Thumb Controller is used
with the Ronin.
Thumb Controller
[1] Power Button
Press and hold the power button to
turn on/off the Thumb Controller.
[2] Status Indicator
Indicates the status of the Thumb
Controller.
[3] OLED Display
Displays the menu of the Thumb
Controller.
[4] Pressure-Sensative Thumb Stick
Transmits the user’s input to the
pressure sensor.
[1]
[2]
[3]
[4]
© 2015 DJI. All Rights Reserved.
5

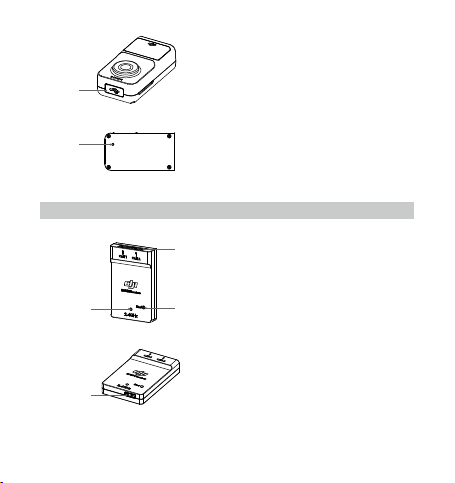

[5] Micro-USB Port
For charging the Thumb Controller
and upgrading its rmware.
[6] Override Button
Allows a reset of the Thumb
Controller following a failed update
process.
[1] CAN Ports
Connects the receiver to the Ronin.
[2] Bind Button
Connects the Thumb Controller to
the Ronin.
[3] LED Indicator
Indicates the status of the receiver.
[4] Micro-USB Port
For upgrading the rmware.
External Receiver (For Ronin Only)
[5]
[6]
[1]
[2]
[3]
[4]
6
© 2015 DJI. All Rights Reserved.
Installation
Installing the Thumb Controller
1. Install the quick-release accessory mount by clamping it around the handlebar
of the Ronin and tightening the screw. Only use the step-down adapter when
installing onto a Ronin-M.
2. Clip the Thumb Controller into the quick-release accessory mount and
ensure that it is secure.
© 2015 DJI. All Rights Reserved.
7
Installing the External Receiver (For Ronin Only)
1. Use the 4-pin cable to connect the CAN port on the Ronin to the CAN 1 or
CAN 2 port on the receiver.
2. Use the provided adhesive tape to secure the receiver on the Ronin.
8
© 2015 DJI. All Rights Reserved.
Binding the Thumb Controller to the Gimbal
Binding to the Ronin-M
1. Turn on the Ronin-M.
2. Press the Ronin-M’s Bind Button (shown below) one time. The LED indicator
on the Ronin-M will rapidly blink green.
3. Turn on the Thumb Controller. If the LED indicator on the Ronin-M and the
LED indicator on the Thumb Controller both glow solid green, they have been
successfully connected.
Binding to the Ronin
1. Turn on the Ronin.
2. Press the Bind Button on the receiver one time. The LED indicator on the
receiver will rapidly blink green.
3. Turn on the Thumb Controller. If the LED indicator on the receiver and the
LED indicator on the Thumb Controller both glow solid green, they have been
successfully connected.
Bind Button
© 2015 DJI. All Rights Reserved.
9
The binding process only needs to be performed one time, unless the
bind button is pressed or the Ronin/Ronin-M needs to be connected to
another Thumb Controller.
Bind Button
