Dji OSMO Manuel utilisateur

User Manual

OSMO MOBILE

2017.01

V1.2

Using this Manual

Legend

Important Tips

Install the DJI GO App

Search for ‘DJI GO’ on the App Store or Google Play and install

the app on your mobile device.

DJI GO supports iOS 8.0 (or later) or Android 4.4 (or later).

Searching for Keywords

Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe

Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on

Mac to begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that

section.

Printing this Document

This document supports high resolution printing.

Contents

Using this Manual 2

Legend 2

Install the DJI GO App 2

Introduction 4

GettingStarted 5

Intelligent Battery 5

Mount and Balance the Mobile Phone 7

Optional Accessories 8

UsingtheOsmoMobile 9

Controls and Operations 9

Operation Modes 12

DJIGOApp 14

Download 14

Connecting to the DJI GO App 14

Key Pages 15

UpgradingtheFirmware 18

How to Upgrade 18

UsingtheZenmuseM1gimbalwithOsmoHandle 18

Install the Zenmuse M1 18

Notes19

Specifications 20

Introduction

The OSMOTM Mobile is an advanced 3-axis gimbal that stabilizes and controls your

smartphone, turning it into a smart motion camera. Its light and ergonomic design places

physical controls at your ngertips, to form a powerful go anywhere smartphone lmmaking

device. The DJI GO app brings ActiveTrack and Motion Timelapse features to the Osmo

Mobile.

Equipped with 3-axis stabilization and SmoothTrack technology, the Osmo Mobile

compensates for natural arm movements and smooths out transitions, creating seamlessly

smooth video. Finer operations can be done with the joystick, and the phone can be instantly

positioned by hand. The DJI Rosette Mount on the side of the handle supports a number

of accessories, including an Extension Rod, a Tripod, and various mounts for specialized

lmmaking applications.

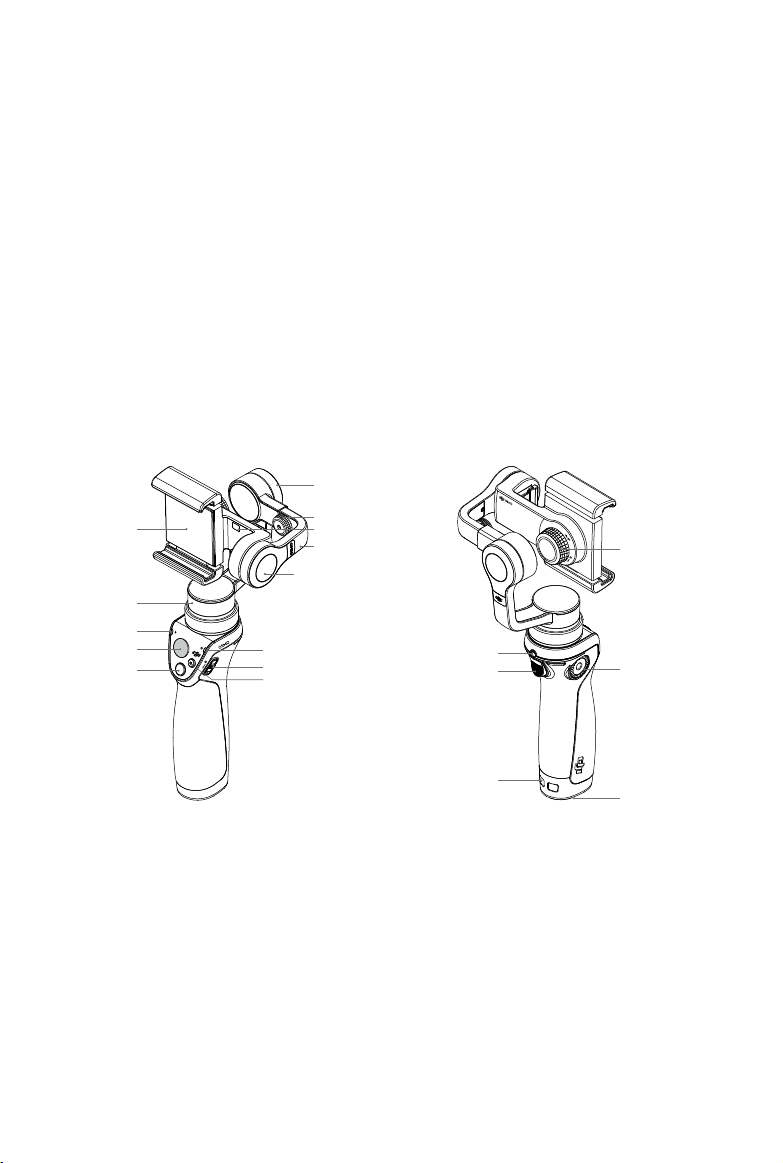

At a Glance:

[1] Mobile Phone Holder

[2] Pan Motor

[3] Camera Status LED

[4] Joystick

[5] Shutter Button

[6] Record Button

[7] Power Switch

[8] System Status LED

[9] Tilt Motor

[10] Adjustable Arm

[11] Mobile Phone Detection Sensor

[12] Balance Adjustment Knob

[13] Roll Motor

[14] Holder Lock Knob

[15] Charging/Upgrade Port

[16] Trigger

[17] DJI Rosette Mount

[18] Lanyard Hole

[19] Battery Cover

[13]

[12]

[9]

[1]

[2]

[3]

[4]

[5]

[8]

[7]

[6]

[10]

[11]

[14]

[17]

[19]

[15]

[16]

[18]

Getting Started

Intelligent Battery

The 980 mAh Intelligent Battery can power the Osmo Mobile for about 4.5 hours.

Intelligent Battery Functions

Battery Balancing Balances the voltage of each cell during charging.

Overcurrent Protection Stops charging if the charging current is too large.

Overcharge Protection Stops charging if its voltage is too high.

Over-discharge Protection Stops discharging if its voltage is too low.

Short Circuit Protection Cuts the power supply if a short circuit is detected.

Temperature Control Stops charging if the core temperature falls below 41°F (5°C)

or exceeds 104°F (40°C).

Battery Level Display The battery level is displayed in the DJI GO app.

Battery Specications

Model HB01-522365

Type LiPo

Capacity 980 mAh

Energy 10.8 Wh

Voltage 11.1 V

Charging Temperature 41° to 104° F (5° to 40° C)

Operating Temperature 32° to 104° F (0° to 40° C)

Be sure to fully charge the Intelligent Battery for the rst time to activate it.

Read the user manual, Intelligent Battery Safety Guidelines before use. The user

takes full responsibility for all operations and usage.

Osmo Mobile User Manual

Inserting the Battery

Slide the locking switch at the base of the Osmo Mobile to open the battery cover. Insert the

battery and lock the battery cover.

Charging

To charge the Osmo Mobile, connect the USB adapter (not included) to the charging port

using the provided power cable.

The battery is fully charged when the system status LED become solid green.

USB Adapter Charging Time : 3 hours (when charging at 1 A)

Maximum Supported USB Charging Current: 2.1 A

System Status LED

Only use the Power Cable with the Osmo Mobile. Damage may occur if the Power

Cable is attached to any other device's 3.5 mm port.

Removing the Battery

Slide the locking switch at the base of the Osmo Mobile to open the battery cover. Push the

red safety hook away from the battery to let it pop up, and then remove the battery.

Osmo Mobile User Manual

Mount and Balance the Mobile Phone

1. With the Osmo Mobile powered off, loosen the Holder Lock Knob, place the mobile phone

in the mobile phone holder and tighten the knob to secure its position.

2. The system is balanced if the mobile phone remains level when released, balanced only

by the gimbal.

If the roll axis tilts to the left, pull

out the arm until the roll axis

remains level.

If the roll axis tilts to the right, adjust

the mobile phone to the left until the

roll axis levels out.

Left Right

Do not power on the Osmo Mobile without a mobile phone. The Osmo Mobile will

not work if no device is detected by the Mobile Phone Detection Sensor.

It is important to balance the mobile phone in order to achieve optimal performance.

The Osmo Mobile should only be balanced when powered off.

Osmo Mobile User Manual

Optional Accessories

DJI provides various optional accessories for the Osmo Mobile.

Osmo Base

Provides a stable platform for your Osmo to

stand upright.

Universal Mount

Used to mount external devices such as a

ashlight.

Extension Rod

Good for taking group seles, overhead shots

or reaching into small spaces.

Tripod

For stationary shots that require steady

footage. The tripod must be used with the

Extension Rod.

High Capacity Intelligent Battery

Battery capacity is 1225 mAh.

Osmo Charger

The Osmo Charger is designed to charge the

Osmo series Intelligent Battery by connecting

to a power outlet.

Osmo Quad Charging System

Used with the dedicated DJI Battery Chargers,

which can charge up to four Osmo Intelligent

Batteries.

Using the Osmo Mobile

Controls and Operations

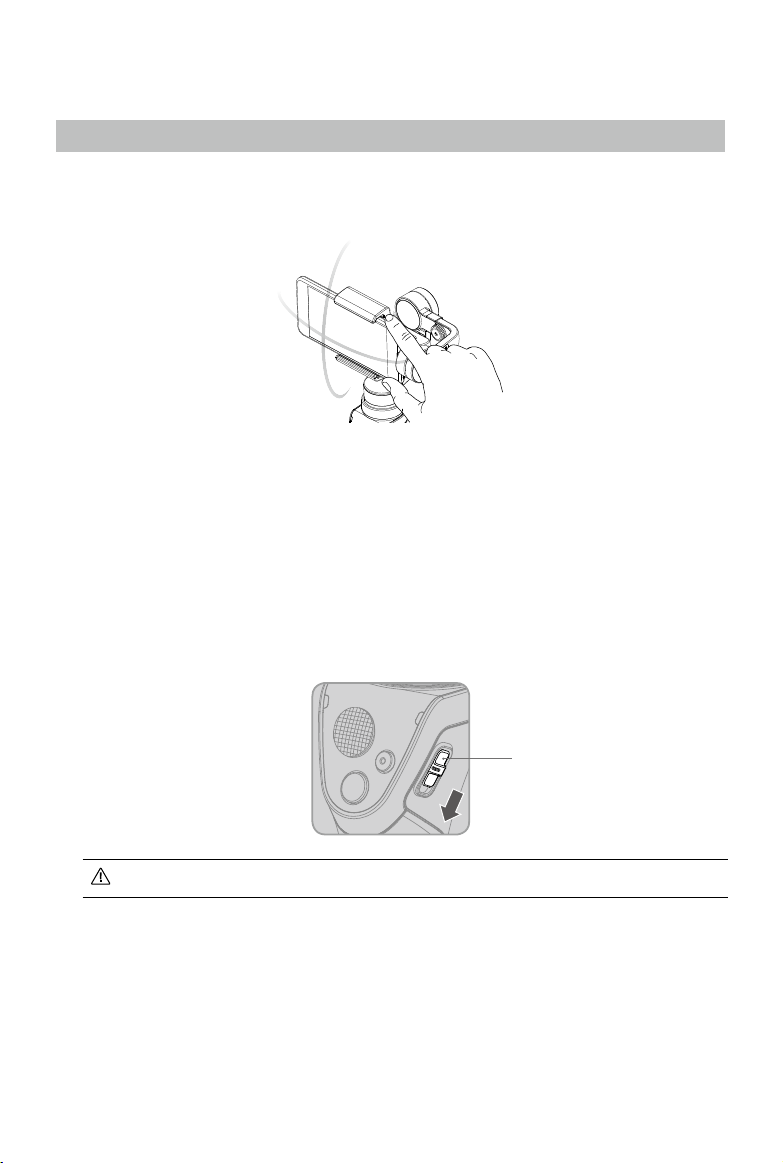

The gimbal anticipates handle movement to smooth out pan and tilt transitions, and uses

SmoothTrack technology to reduce mobile phone shakes from natural arm movements.

You can position the mobile phone directly by hand.

Hold the Osmo Mobile steady and upright while it is starting up.

Power Switch

[2] Joystick

Vertical movement tilts the camera. Horizontal movement pans the camera. Joystick

control direction can be set in the DJI GO app.

[3] Shutter Button

Press this button to take photos based on your settings in the DJI GO app. Hold down

shutter button to capture continuous photo.

Additionally, there are buttons on the front and back of the handle that allow for ner control

over the gimbal and mobile phone. All of the buttons and controls are described below.

[1] Power Switch

To turn on/off the Osmo Mobile, pull the power switch down and hold for 1.5 seconds.

With the Osmo Mobile powered on, pull the power switch and then release quickly will

cause the Osmo Mobile to go in or out of sleep mode.

Osmo Mobile User Manual

[4] Record Button

Press this button once to start recording video, and again to stop recording.

[5] Camera Status Indicator

Indicates the camera’s system status. Refer to the table below for details.

Camera Status Indicator

Record Button

Shutter Button

Joystick

Blinking Pattern Descriptions

LED Off No device connected.

—

Solid Blue Camera is functioning normally.

Blinks Green Shooting photo.

Blinks Green slowly Self-timer

Blinks Green for each shot Burst shooting

Blinks Red slowly Recording video

[6] System Status Indicator

Indicates the status of the Osmo Mobile. Refer to the table below for details.

System Status Indicator
