Dimplex SS5800PB Manuel utilisateur

Owner’s Manual

Model

SS5800PB

DS5804

DS5603

DS5804CM

7206570100R09

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this replace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this stove.

!NOTE: Procedures and

techniques that are

considered important

enough to emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result

in damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations . . . . . . . . . . . . . . . . .3

IMPORTANT INSTRUCTIONS ...............4

Stove Installation ..........................7

Operation ................................8

Maintenance ............................10

Warranty ...............................13

Replacement Parts ........................16

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

replace from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

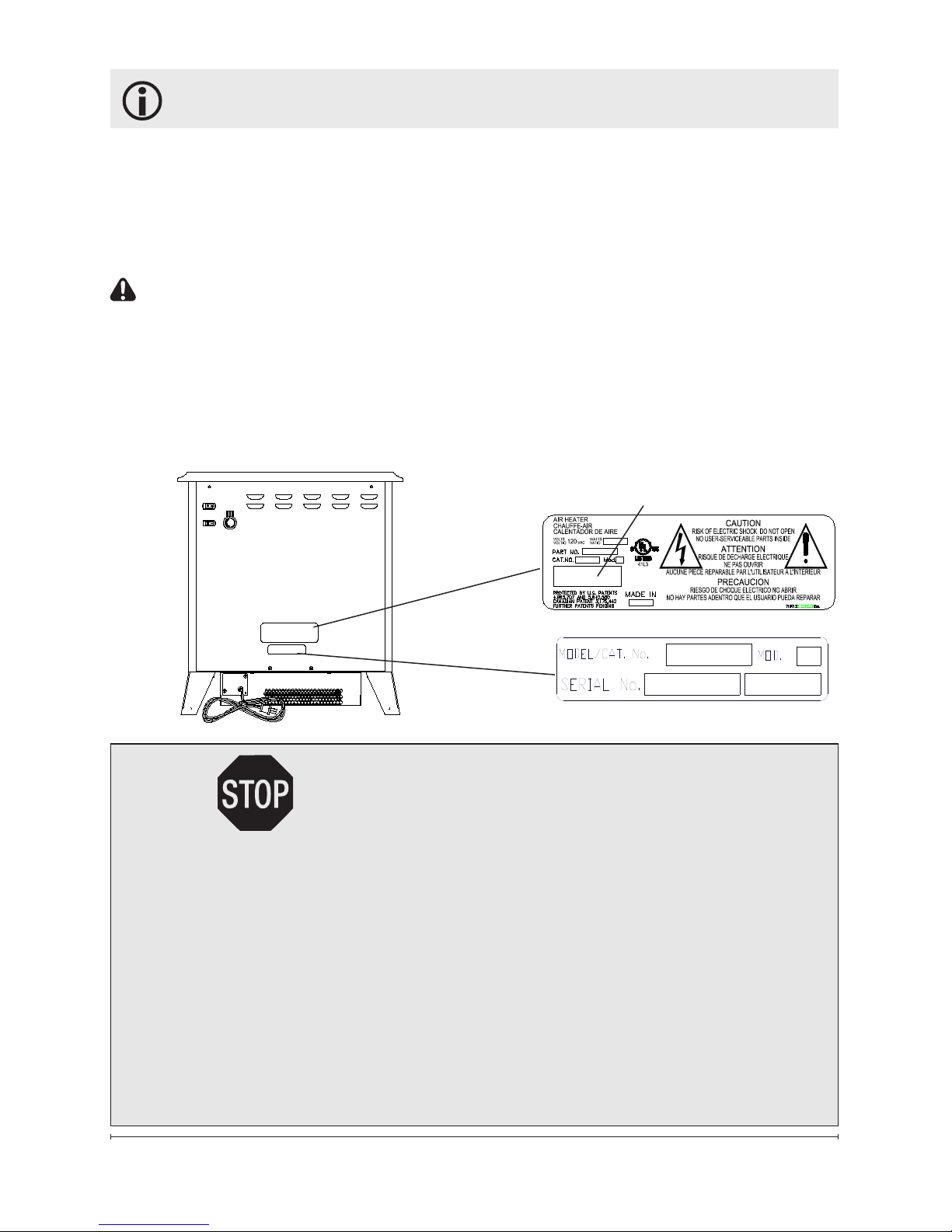

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label of your stove.

Model Number

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

4 www.dimplex.com

① Read all instructions before using

the stove.

② The heater is hot when in use.

To avoid burns, do not let bare skin

touch hot surfaces. The trim around

the heater outlet becomes hot during

heater operation. Keep combustible

materials, such as furniture, pillows,

bedding, papers, clothes, and

curtains at least three (3) feet (0.9 m)

from the front of the unit.

CAUTION: High Temperature,

keep electrical cords, drapery,

and other furnishings at least 3FT

(0.9m) from the front of the heater

and away from the side and rear.

③ Extreme caution is necessary

when any heater is used by or near

children or invalids and whenever the

unit is left operating and unattended.

④ Always unplug the stove when not

in use.

⑤ Do not operate any unit with a

damaged cord or plug, or if the heater

has malfunctioned, or if the stove has

been dropped or damaged in any

manner. Return heater to authorized

service facility for examination,

IMPORTANT INSTRUCTIONS

electrical or mechanical adjustment,

or repair.

⑥ Do not use outdoors.

⑦ The stove is not intended for

use in bathrooms, laundry areas and

similar indoor locations. Never locate

heater where it may fall into a bathtub

or other water container.

⑧Do not run the cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafc area

and where it will not be tripped over.

⑨To disconnect the unit, turn the

controls off, then remove the plug

from the outlet.

⑩Do not insert or allow foreign

objects to enter any ventilation or

exhaust opening as this may cause

an electric shock or re, or damage to

the heater.

⑪ To prevent a possible re, do

not block air intake or exhaust in any

manner. Do not use on soft surfaces,

like a bed, where openings may

become blocked.

SAVE THESE INSTRUCTIONS

⑫ All electrical heaters have hot

and arching or sparking parts inside.

Do not use in areas where gasoline,

paint, or ammable liquids are used

or stored or where the unit will be

exposed to ammable vapors.

⑬Do not modify the Stove. Use it

only as described in this manual. Any

other use not recommended by the

manufacturer may cause re, electric

shock or injury to persons.

⑭To reduce the risk of electric

shock, this appliance has a polarized

plug (one blade is wider than the

other). This plug will t in a polarized

outlet only one way. If the plug does

not t fully in the outlet, reverse the

plug. If it still does not t, contact

a qualied electrician to install the

proper outlet. Do not change the

plug in any way. This heater is not

intended for use with an extension

cord. Plug the cord directly into an

appropriate wall receptacle.

⑮ Do not burn wood or other

materials in the stove.

⑯Do not strike the clear door panel.

⑰Always use a certied electrician

should new circuits or outlets be

required.

⑱ Always use properly grounded,

fused and polarized outlets.

⑲ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the unit.

⑳ When transporting or storing the

unit and cord, keep in a dry place,

free from excessive vibration and

store so as to avoid damage.

IMPORTANT INSTRUCTIONS

6 www.dimplex.com

!NOTE: This equipment has

been tested and found to comply

with the limits for Class B digital

device, pursuant to part 15 of

the FCC Rules. These limits are

designed to provide reasonable

protection against harmful

interference in a residential

installation. This equipment

generates, uses and can radiate

radio frequency energy and, if not

installed and used in accordance

with the instructions, may cause

harmful interference to radio or

television reception, which can

be determined by turning the

equipment off and on, the user is

encouraged to try to correct the

interference by one or more of

the following measures:

Reorient or relocate the •

receiving antenna.

Increase the separation •

between the equipment and

the receiver.

Connect the equipment into •

an outlet on a circuit different

from that to which the receiver

is connected.

Consult the dealer or an•

experienced radio/TV

technician for help.

Operation is subject to the

following two conditions: (1)

this device may not cause

interference and; (2) this device

must accept any interference,

including interference that may

cause undesired operation of the

device.

IMPORTANT INSTRUCTIONS

Stove Installation

!NOTE: A 15amp, 120 volt

alternating current (VAC) circuit

is required. A dedicated circuit is

preferred but not essential in all

cases. A dedicated circuit will be

required if, after installation, the

circuit breaker trips or fuse blows

on a regular basis when the

heater is operating. Additional

appliances on the same circuit

may exceed the current rating of

the circuit breaker.

WARNING: Ensure the power

cord is not installed so that it is

pinched or against a sharp edge

and ensure that the power cord

is stored or secured to avoid

tripping or snagging to reduce the

risk of re, electric shock or injury

to persons.

WARNING:Construction

and electrical outlet wiring must

comply with local building codes

and other applicable regulations

to reduce the risk of re, electric

shock and injury to persons.

WARNING:Do not attempt

to wire your own new outlets or

circuits. To reduce the risk of re,

electric shock or injury to persons,

always use a licensed electrician.

Make sure the units Main On/1.

Off switch is switched Off

(refer to operating instruction

section).

Plug the unit directly into a 15 2.

Amp/120 Volt outlet.

8 www.dimplex.com

To access the controls go to the

back of the Stove (Figure 1).

A. Three Position On/Off

Switch

The switch has two On positions

marked with “-” and “=”. The “-”

position is for manual operation.

In this position, the built-in remote

control is bypassed.

The “=” position is for operating

the unit with the provided remote

control. When in “=” position

the unit is operated with the ON

and OFF buttons of the remote

control.

When the switch is in the center

position the unit is off.

B. Heater On/Off Switch

The Heater On/Off Switch

supplies power to the heater fan

and the heater element.

C. Heater Thermostat Control

To adjust the temperature to

your individual requirements,

turn the thermostat control

clockwise all the way to turn

on the heater. When the room

reached the desired temperature,

turn the thermostat knob counter

clockwise until you hear a click.

Leave in this position to maintain

the room temperature at this

setting. For additional heat, turn

clockwise until you hear the click

again and the heater will turn on.

To turn the heater off, switch the

Heater On/Off Switch to the Off

position.

!NOTE: When the heater is

switched On, the heater fan will

operate. The heater element may

or may not be on, depending on

the thermostat control setting.

Figure 1

Operation

Resetting The

Temperature Cutoff

Switch

Should the heater overheat, an

automatic cut out will turn the

heater off and it will not come

back on without being reset.

It can be reset by switching

the Main On/Off Switch to Off

and waiting 5 minutes before

switching the unit back on.

CAUTION: If you need to

continuously reset the heater,

unplug the unit and call Dimplex

North America Limited at 1-888-

346-7539.

Remote Control (Figure 2)

The stove is supplied with an

integrated On/Off remote control,

that is factory syncronized with

the stove.

To operate, push the ON button

to turn stove on, push the OFF

button to turn the stove off. The

amount of heat produced will

be dependant on positioning of

manual heat controls.

!NOTE: Ensure that the stove’s

On/Off switch is set to the

remote control setting (“ II ”

position).

Button

Battery

Cover

OFF

Button

Battery

Figure 2

Initialization/Reprogramming

Follow these steps for remote

control initialization if required:

① Set the main power switch to

OFF.

② Set the 3 Position Switch to

the Remote position (refer to

Operation Section).

③ Wait a minimum of ve (5)

seconds and then turn the

main power ON.

④Within 10 seconds of re-

acquiring power, press the ON

button located on the remote

control transmitter.

!NOTE: You will have only 10

seconds to perform this last

10 www.dimplex.com

Operation

Battery Replacement

①Slide battery cover open on

the hand held transmitter

(Figure 4).

②Correctly install one (1) 12 Volt

(A23) battery in the battery

holder.

③Close the battery cover.

WARNING: Disconnect

power before attempting any

maintenance or cleaning to

reduce the risk of re, electric

shock or damage to persons.

Light Bulb Replacement

CAUTION: Allow at least ve

(5) minutes for light bulbs to cool

off before touching bulbs to avoid

accidental burning of skin.

Light bulbs need to be replaced

when you notice a dark section

of the ame or when the clarity

and detail of the log exterior

disappears. There are two bulbs

under the log set which generate

the ames and embers.

Tool Requirements: Phillips

screw driver

Helpful Hints

It is a good idea to replace all

light bulbs at one time if they are

close to the end of their rated life.

Group replacement will reduce

the number of times you need

to open the unit to replace light

bulbs.

Upper Light Bulb Requirements

Quantity of one (1) clear

chandelier or candelabra bulbs

with an E-12 (small) socket base,

7 Watt rating.

Upper Bulb Replacement

Open door by pulling the1.

step. Failure to do so will

result in these steps needing

to be followed again.

This will synchronize the remote

control transmitter and receiver.

Maintenance

Autres manuels pour SS5800PB

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Dimplex Cheminée intérieure

Dimplex

Dimplex Optiflame Electric Fireplace Manuel utilisateur

Dimplex

Dimplex RBF30-AU Manuel utilisateur

Dimplex

Dimplex VFA2927 Manuel utilisateur

Dimplex

Dimplex 690932 Series Manuel utilisateur

Dimplex

Dimplex CHADWICK CDW15XHD Manuel utilisateur

Dimplex

Dimplex BF362SD Manuel utilisateur

Dimplex

Dimplex DF3003 Manuel utilisateur

Dimplex

Dimplex CHERITON COAL Manuel utilisateur

Dimplex

Dimplex RITZ20W Manuel utilisateur

Dimplex

Dimplex LEE Manuel utilisateur

Dimplex

Dimplex SACRAMENTO SCR20 Manuel utilisateur

Dimplex

Dimplex DWOP20R Manuel utilisateur

Dimplex

Dimplex Rome Manuel utilisateur

Dimplex

Dimplex BFSL33 Manuel utilisateur

Dimplex

Dimplex DF2608 Manuel utilisateur

Dimplex

Dimplex DF2690 Manuel utilisateur

Dimplex

Dimplex BFSL33 Manuel utilisateur

Dimplex

Dimplex BF36 Series Manuel utilisateur

Dimplex

Dimplex BIZET BZT20 Manuel utilisateur

Dimplex

Dimplex Atherton ATH20 Mode d’emploi

Dimplex

Dimplex DFR2551L Manuel utilisateur

Dimplex

Dimplex 7206560100R00 Guide d'installation

Dimplex

Dimplex 6908760100 Manuel utilisateur

Dimplex

Dimplex PRISM BLF5051-AU Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
