Owner’s Manual

Model

DF2624L

6908931359

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this replace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this stove.

!NOTE: Procedures and

techniques that are

considered important

enough to emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result

in damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations .................3

IMPORTANT INSTRUCTIONS ...............4

Fireplace Installation .......................7

Operation ................................9

Maintenance ............................12

Warranty ...............................13

Replacement Parts ........................15

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

replace from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-346-7539

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

S E R IAL No.

MODE L

MOD.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using this heater.

② This heater is hot when in use.

To avoid burns, do not let bare

skin touch hot surfaces. The trim

around the heater outlet becomes

hot during heater operation.

WARNING: High tempera-

tures may be generated under

certain abnormal conditions.

Do not partially or fully cover

or obstruct the front of this

heater.

③ Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④ Always unplug the heater

when not in use.

⑤ Do not operate any heater

with a damaged cord or plug, or if

the heater has malfunctioned, or if

it has been dropped or damaged

in any manner. Return heater

to authorized service facility

for examination, electrical or

IMPORTANT INSTRUCTIONS

mechanical adjustment, or repair.

⑥ Do not use outdoors.

⑦ This heater is not intended for

use in bathrooms, laundry areas

and similar indoor locations.

Never locate this heater where

it may fall into a bathtub or other

water container.

⑧ Do not run cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafc

area and where it will not be

tripped over.

⑨ To disconnect heater, turn

controls to off, then remove plug

from outlet.

⑩Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or

damage the heater.

⑪ To prevent a possible re, do

not block air intakes or exhaust

in any manner. Do not use on

soft surfaces, like a bed, where

openings may become blocked.

⑫ All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

SAVE THESE INSTRUCTIONS

liquids are used or stored or

where it will be exposed to

ammable vapors.

⑬ Do not modify the heater.

Use it only as described in

this manual. Any other use

not recommended by the

manufacturer may cause re,

electric shock, or injury to

persons.

⑭ To reduce the risk of electric

shock, this heater has a polarized

plug (one blade is wider than

the other). This plug will t in a

polarized outlet only one way.

If the plug does not t fully in

the outlet, reverse the plug.

If it still does not t, contact a

qualied electrician to install the

proper outlet. Do not change

the plug in any way. Always plug

heaters directly into a wall outlet/

receptacle. Never use with an

extension cord or relocatable

power tap (outlet/power strip).

⑮ Do not burn wood or other

materials in the replace.

⑯ Do not strike the front glass.

⑰Always use a certied

electrician should new circuits or

outlets be required.

⑱ Always use properly

grounded, fused and polarized

outlets.

⑲ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

heater.

⑳ When transporting or storing

the heater and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

IMPORTANT INSTRUCTIONS

WARNING: Remote control

contains a small battery. Keep away

from children. If swallowed, seek

medical attention immediately.

WARNING: Do not install battery

backwards, charge, put in re or mix

with used or other battery types - may

explode or leak causing injury.

!NOTE: Changes or modications

not expressly approved by the party

responsible for compliance could

void user's authority to operate the

equipment.

CAUTION: This equipment has

been tested and found to comply with

the limits for Class B digital device,

pursuant to part 15 of the FCC

Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment

generates, uses and can radiate

radio frequency energy and, if not

installed and used in accordance with

the instructions, may cause harmful

interference to radio or television

reception, which can be determined

by turning the equipment off and

on, the user is encouraged to try to

correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between

the equipment and the receiver.

• Connect the equipment into an

outlet on a circuit different from

that to which the receiver is

connected.

• Consult the dealer or an

experienced radio/TV technician

for help.

Operation is subject to the following

two conditions: (1) this device may

not cause interference and; (2) this

device must accept any interference,

including interference that may cause

undesired operation of the device.

Fireplace Installation

WARNING: Ensure the power

cord is not installed so that it is

pinched or against a sharp edge

and ensure that the power cord is

stored or secured to avoid tripping

or snagging to reduce the risk

of re, electric shock or injury to

persons.

WARNING: Construction

and electrical outlet wiring must

comply with local building codes

and other applicable regulations

to reduce the risk of re, electric

shock and injury to persons.

WARNING: Do not attempt

to wire your own new outlets or

circuits. To reduce the risk of re,

electric shock or injury to persons,

always use a licensed electrician.

!NOTE: A 15 Amp, 120 Volt

alternating current (VAC) circuit

is required. A dedicated circuit

is preferred but not essential in

all cases. A dedicated circuit will

be required if, after installation,

the circuit breaker trips or fuse

blows on a regular basis when the

heater is operating. Additional

appliances on the same circuit

may exceed the current rating of

the circuit breaker.

Glass Installation

1. Unpack the rebox and the

front glass.

2. Remove the glass retaining

bracket from one side of the

rebox. (Figure 1)

3. Slide the glass into the glass

support track on both the top

and the bottom, until it is fully

inserted.

4. Replace the glass retaining

bracket.

Mantel Installation

For use with a new or existing

mantel. Depending on the avail-

able space within the mantel cav-

ity, the unit can be secured to the

mantel at the bottom side or back.

Remove the screw on the bottom

Figure 1

8 www.dimplex.com

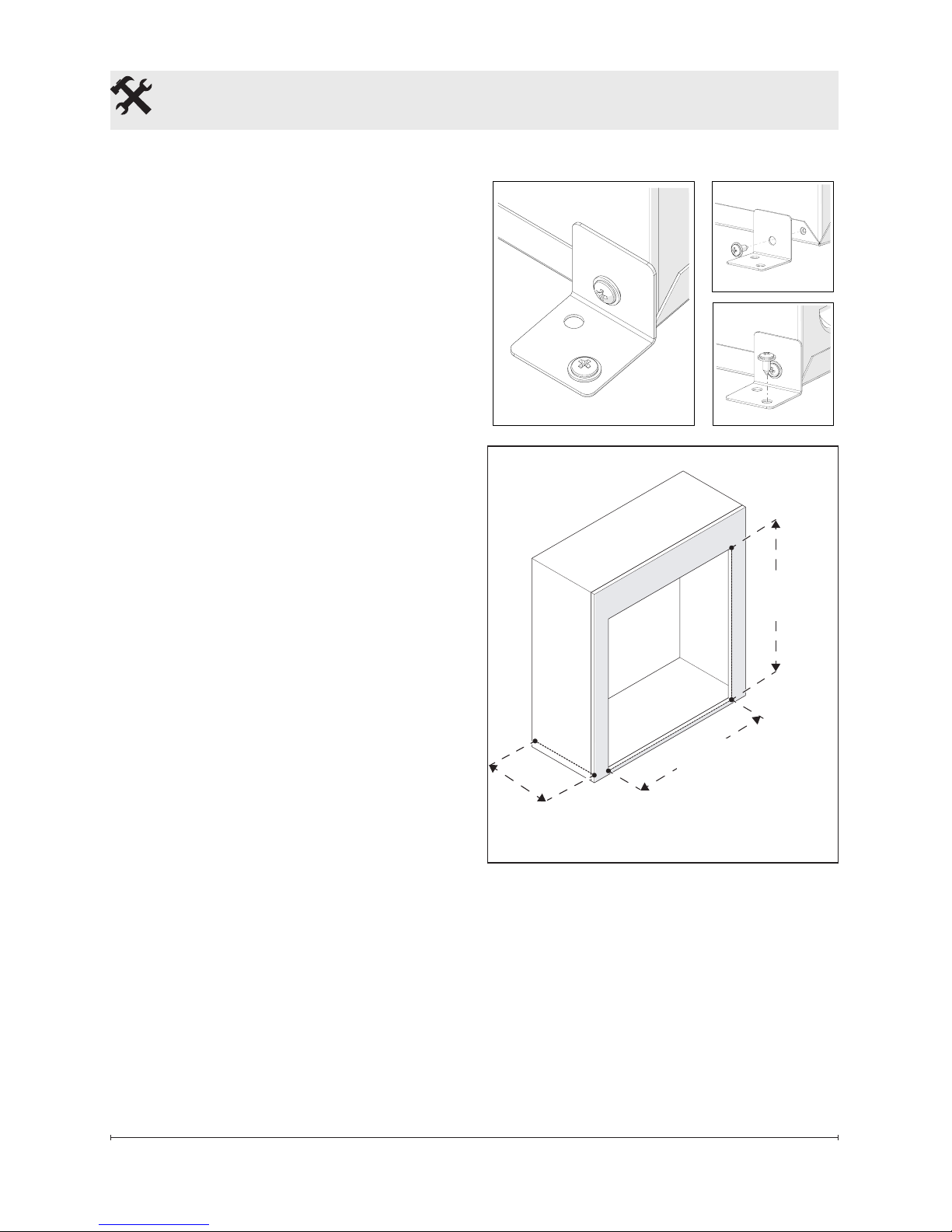

ange in the most appropriate

place for securing and using the

provided L-bracket and the screw

that was removed attach the re-

box to the mantel. (Figure 2)

!NOTE: There are no guide

holes provided for the L-Brackets

in the mantel.

If not installing the unit into a

Dimplex mantel the required

opening dimensions for the

replace are: 27.0 in. (686 mm)

wide x 23.0 in. (584 mm) high x

7 ½ in. (191 mm) deep (Figure 3).

The rebox is to be installed

from the front of the mantel and

inserted so that the anges are

ush against the front surface of

the mantel.

Fireplace Installation

Figure 3

27.0 in.

(686 mm)

23.0 in.

(584 mm)

7 ½ in.

(191 mm)

Figure 2

Operation

The unit can be controlled by

either the manual controls which

are located on the upper right of

the replace or the remote (Figure

4 & 5).

A. Standby

Turns the unit On and Off.

→ Activated by pressing the

Standby button on the remote or

the unit.

• The unit will turn on with the

same functions that it was set

to when it was turned Off and

the intake temperature will be

indicated on the On Screen

Display.

!NOTE: When any button is

pressed the intake tempera-

ture will be displayed on the On

Screen Display for 5 seconds.

B. Flame Effects

Cycles through the different

Lighting Effects: Flames and Log,

Flame only, Log Only, Flames and

Log Off.

→ Activated by pressing the

button on the remote or the unit.

C. Heat ON/OFF

Turns the heater function On

and Off based on the thermostat

setpoint.

→ Activated by pressing the

button on the unit or the remote.

• Indicated by the icon and

the intake temperature being

displayed on the On Screen

Display, for 5 seconds before

turning off.

Figure 5

Figure 4

A B C F A

On Screen Display

10 www.dimplex.com

Operation

!NOTE: The unit can be oper-

ated in Heat Only Mode. When

the unit is only running with the

heater, the icon and the intake

temperature will continuously

be displayed on the On Screen

Display.

!NOTE: The heater may emit

a slight, harmless odor when rst

used. This odor is a normal con-

dition caused by initial heating of

internal heater parts and will not

occur again.

D & E. Thermostat Controls

Adjusts the temperature set point

to your individual requirements.

Once the desired set temperature

is reached the heater will turn off.

The heater will cycle on and off

to maintain the desired set tem-

perature. The default temperature

setting is 72°F (22°C).

→ Adjusted by pressing the

to decrease the setpoint and the

to increase the setpoint on the

remote.

• The On Screen Display will in-

dicate the temperature setpoint

as it is adjusted.

!NOTE: Holding the button

down on the unit will change the

temperature from °C to °F, or vice

versa.

Disable Heat

If desired, depending on the sea-

son, the heater on the unit can be

disabled. The unit will operate in

the same fashion, with remainder

of the controls.

Pressing the and buttons

on the unit at the same time and

holding for 2 seconds will disable

and enable the heater.

!NOTE: When the heater has

been disabled and either the

or the is pressed the On

Screen Display will indicate "--".

F. Sleep Timer

The Sleep Timer can be set to

automatically shut off the replace

after a preset time (from 30 min-

utes to 8 hours).

→ To set the timer press the timer

button on either the remote or the

unit, repeatedly, until the desired

time is displayed.

• The On Screen Display will

display the different times as it

is adjusted. Once the timer has

begun, pressing the button

will display the time remaining

before the unit turns Off.

Autres manuels pour DF2624L

Table des matières

Langues :

Autres manuels Dimplex Cheminée intérieure

Dimplex

Dimplex VEGA Manuel utilisateur

Dimplex

Dimplex OPTIMYST RTOPI20BR Manuel utilisateur

Dimplex

Dimplex CASTILLO CS3550 Manuel utilisateur

Dimplex

Dimplex 3-STEP Optimyst Mode d’emploi

Dimplex

Dimplex BLF50 Manuel utilisateur

Dimplex

Dimplex Cassette L Pebble Manuel utilisateur

Dimplex

Dimplex DF2600 Manuel utilisateur

Dimplex

Dimplex 6911540100 Manuel utilisateur

Dimplex

Dimplex DFB8842 Manuel utilisateur

Dimplex

Dimplex DNV20BR Manuel utilisateur

Dimplex

Dimplex ELECTRALOG CFP3913 Manuel utilisateur

Dimplex

Dimplex DFO2607 Manuel utilisateur

Dimplex

Dimplex CAS500R Manuel utilisateur

Dimplex

Dimplex Pro Series Manuel utilisateur

Dimplex

Dimplex DF2608 Manuel utilisateur

Dimplex

Dimplex Burgate BRG20 Manuel utilisateur

Dimplex

Dimplex WINSLOW SWM3520 Manuel utilisateur

Dimplex

Dimplex DF3003 Manuel utilisateur

Dimplex

Dimplex SP1 Wallfire Manuel utilisateur

Dimplex

Dimplex EWT SP16-LED Manuel utilisateur

Dimplex

Dimplex CASSETTE 400 Manuel utilisateur

Dimplex

Dimplex Wesley Side Control Manuel utilisateur

Dimplex

Dimplex BFL50-EU Manuel utilisateur

Dimplex

Dimplex VCX1525 Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
