QUICK REFERENCE GUIDE FOR THE DIMPLEX

ELECTRIC FIREPLACE

1. Prior to the first use of the fireplace verify the following:

• Are the circuit breakers for the socket the unit uses on?

2. The information regarding the model of your fireplace can be found on the

rating plate. See Page 6 for location.

3. If you have any technical questions regarding the operation or service of

your fireplace have your Model and Serial Number ready, and contact

Dimplex North America technical support at 1-888-DIMPLEX

(1-888-346-7539) before returning the product to the point of purchase.

CONTENTS

Page 1 Important Instruction

Page 2 Fireplace Package Contents

Page 3 Unpacking Instructions (firebox)

Page 5 Unpacking Instructions (mantel)

Page 6 Important Instructions

Page 7 Site Selection and Preparation

Page 8 Fireplace Installation

Page 12 Operation

Page 14 Maintenance

Page 15 Stereo Instructions

Page 20 Warranty

CONTENTS

IMPORTANT INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the

risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using the electric fireplace.

2. Always unplug the electric fireplace when not in use.

3. Do not operate any unit with a damaged cord or plug, or if the electric fireplace has

been dropped or damaged in any manner. Return unit to authorized service facility for

examination, electrical or mechanical adjustment, or repair.

4. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or

the like. Arrange cord away from traffic area and where it will not be tripped over.

5. To disconnect the unit, turn the controls off, then remove the plug from the outlet.

6. Do not modify the electric fireplace. Use it only as described in this manual. Any

other use not recommended by the manufacturer may cause fire, electric shock or

injury to persons.

7. Do not burn wood or other materials in the electric fireplace.

8. Do not strike the fireplace glass.

9. Always use a certified electrician should new circuits or outlets be required.

10.Always use properly grounded, fused and polarized outlets.

11.Disconnect all power supply before performing any cleaning, maintenance or

relocation of the unit.

12.Do not use a pressure washer to clean unit.

13. When transporting or storing the unit and cord, keep in a dry place, free from

excessive vibration and store so as to avoid damage.

NOTE

Procedures and techniques that are considered important enough to emphasize.

CAUTION

Procedures and techniques which, if not carefully followed, will result in damage to the

equipment.

WARNING

Procedures and techniques which, if not carefully followed, will expose the user to the risk of

fire, serious injury, illness or death.

PLEASE SAVE THIS USER’S GUIDE FOR FUTURE REFERENCE

Items Included With Your Fireplace Package

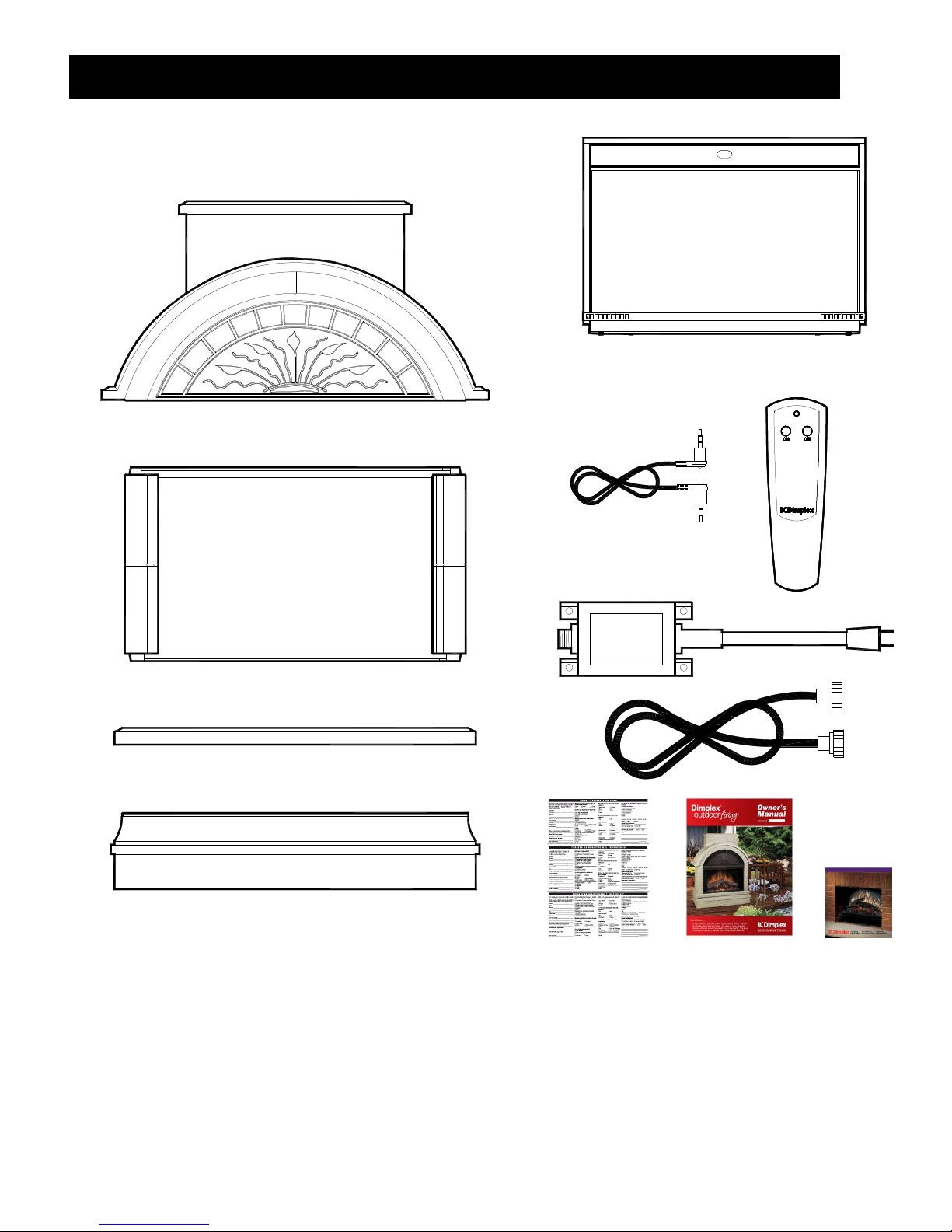

AMantel Top HTransformer

BMantel Body ITransformer to Fireplace Connection wire

CMantel Base JRegistration/Warranty Card

DMantel Pedestal KOwner’s Manual

EFirebox LProduct Catalog

FMP3 Connection Wire

GFireplace Remote Control

FIREPLACE PACKAGE CONTENTS

1. Remove firebox from carton.

UNPACKING INSTRUCTIONS (FIREBOX)

2. Carefully lay unit on it’s back. (Figure 1)

3. Remove screws from the left and right side of the front glass lower support.

4. Carefully insert the tip of a slot screwdriver between the glass edge and either the left

or right side trim.

5. Using the screwdriver as a lever, gently apply pressure in a downward motion, forcing

the edge of the glass up.

UNPACKING (continued)

6. Remove packing foam from the top of the log set. (Figure 2)

7. Remove strapping and packing material from around the log set.

8. Clean front glass if needed.

9. Re-assemble logset and front glass.

Screw

Figure 1

Figure 2

UNPACKING INSTRUCTIONS (MANTEL)

1. Carefully unpack mantel components from boxes and place to one side.

2. Make sure all packing material has been removed from within the top and around the

mantel component.

NOTE

Do not dispose of packing material until fireplace is completely installed.

Model Number

Serial Number

CAT. NO.

MODEL NO.

IMPORTANT INSTRUCTIONS

If you have any questions regarding our products please have the product model and serial

numbers available upon calling Dimplex customer service or technical support. To locate the

model and serial number labels see below (Figure 3). Record the Model number and Serial

number on the front cover of this manual for future reference.

Model NumberSerial Number

Model

Number

Serial

Number

Carton

Firebox

Figure 3

SITE SELECTION AND PREPARATION

NOTE

Select a suitable, level location away from standing water. For ease of electrical hook up

you may wish to locate the fireplace near an existing outlet. A 15amp, 120 volt outdoor GFI

is required. Additional appliances on the same circuit may exceed the current rating of the

circuit breaker.

WARNING

Ensure the power cord and transformer are not installed so that it is pinched or against a

sharp edge and ensure that the cord and transformer are stored or secured to avoid tripping

or snagging to reduce the risk of fire, electric shock or injury to persons.

Construction and electrical outlet wiring must comply with local building codes and other

applicable regulations to reduce the risk of fire, electric shock and injury to persons.

Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric

shock or injury to persons, always use a licensed electrician.

NOTE

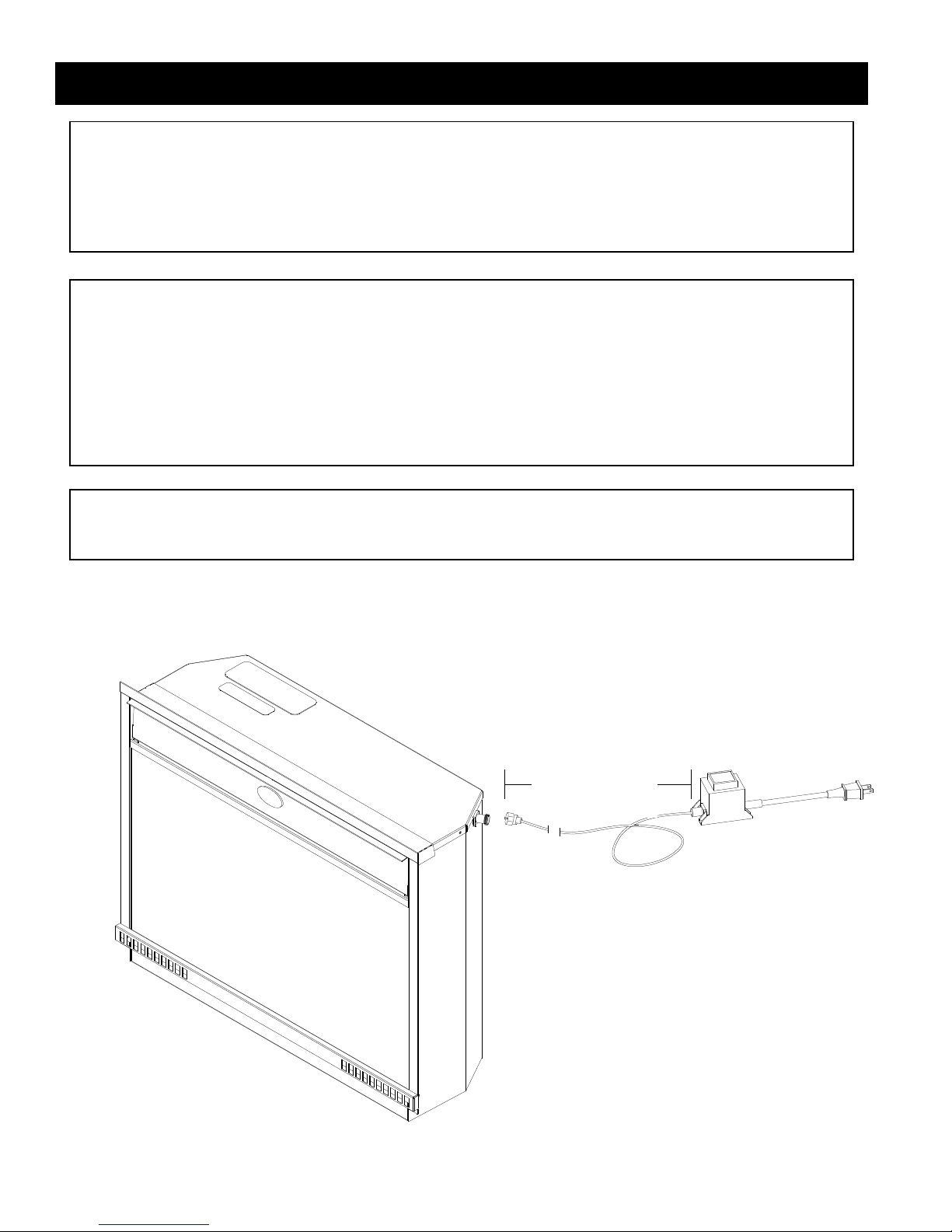

The transformer to fireplace connection cord is 20 feet in length (6.10 meters) (Figure 4)

20 Feet

(6.10 meters)

Figure 4

FIREPLACE INSTALLATION

Assemble mantel as shown.

NOTE

A slight gap between mantel parts is normal and required for a tight fit.

Back of Unit

STEP 1

Mantel Body

Mantel Base

Mantel Pedestal
