Digitus DS-45331 Manuel utilisateur

4in1 AV Adapter/Switch

Quick Installation Guide

DS-45331

1. Introduction

The DIGITUS® 4in1 AV Adapter/Switch offers the option of

connecting any device. It features four video inputs (HDMI,

DP, Mini DP, and USB-C™) for connection to a TV, monitor or

projector (HDMI). The changeover switch on the device can

be used to switch conveniently between input devices.

Power supply is provided via the Micro USB connection (min.

10W/5V/2A required). The adapter also supports UHD

resolutions (4K/60Hz).

2. Features

1. 4x Video inputs: HDMI, DP, Mini DP, USB-C™

2. DP 1.2 / HDMI 2.0

3. 1x Video output: HDMI

4. Supports: UHD 4K2K/60 Hz

5. Cable length: Input 30 cm / Output 100 cm

6. Switch conveniently between the signal sources using the

changeover switch on the adapter

7. Power supply via Micro USB connection (min. 10W,

5V/2A required)

8. Aluminum housing

9. Perfect for stationary and mobile use

10. HDCP 2.2 / 1.4

3. Package Contents:

1x Adapter

1x Micro USB cable (0.5 m)

1x QIG

4. Product Specification

Product Size

85.5 x 60 x 14 mm ( L x W x H)

Cable Length

Shell

Aluminum + ABS

Weight

200g

Operating

temperatures

0°C -40°C

Operating Humidity

10%-80%

Karting

DC 5V 350mA

Input

DP / Mini DP / HDMI / TYPE C

Output

HDMI

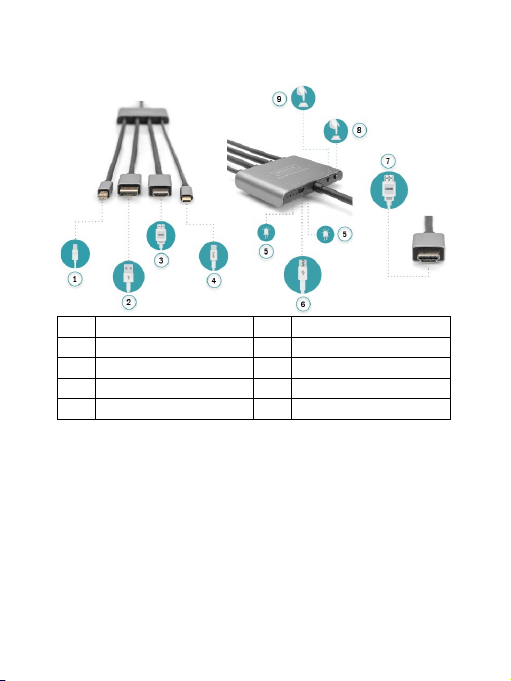

5. Product Overview

Mini DisplayPort

Micro USB

DisplayPort™

HDMI(output)

HDMI(input)

Power Switch

USB Type-C™

Interface Switch

LED indicator

6. User Operation

1. Plug the USB A of the included USB power cable into the

power adapter and insert the Micro USB end connector

into the product’s Micro USB female socket

2. Connect the HDMI OUT to the display device (TV,

monitor, projector, etc.) and set the signal source to

HDMI input.

3. Plug the MINI DP, DP, HDMI, TYPE C connector of the

product into the signal source to be connected, and the

display device will show the display screen of the signal

source

4. Press the interface switch on the product to switch the

input signal, the corresponding LED indicator after the

switch, representing the switched device as the signal

input source. The power button can be used to turn on

and off the working power of the product.

Hereby Assmann Electronic GmbH declares that the

Declaration of Conformity is part of the shipping content. If

the Declaration of Conformity is missing, you can request it

by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
