Digital Equipment Prioris XL 6000 Series Manuel utilisateur

Prioris™XL 6000 Server

PowerGrade with Pentium®Pro Chip

Upgrade

Installation Guide

Order Number: ER−PCB6U−IA. A01

Digital Equipment Corporation

April 1997

The information in this document is subject to change without notice and should not be construed as a

commitment by Digital Equipment Corporation.

Restricted Rights: Use, duplication, or disclosure by the U.S. Government is subject to restrictions as set forth in

subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-

7013.

FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. Any changes or modification made to this equipment may void the user’s

authority to operate this equipment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio and television reception; however,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to a different outlet than the receiver.

• Consult the dealer or an experienced radio/TV technician for help.

DO NOT attempt to modify this equipment. If modified, the FCC may void your authority to operate this

equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment

Regulations and meets all requirements of the Australian/New Zealand Regulation AS3548.

Prioris, DEC, ServerWORKS, and the DIGITAL logo are trademarks of Digital Equipment Corporation. Intel

and Pentium are registered trademarks of Intel Corporation. MS-DOS is a registered trademark of Microsoft

Corporation. All other trademarks and registered trademarks are the property of their respective holders.

 1997 Digital Equipment Corporation.

iii

Contents

Introduction 1

Kit Contents..................................................................................................... 1

Tools and Supplies Needed............................................................................... 1

Processor Compatibility in a Multiprocessor Environment ............................... 2

Boot the Quick Launch CD-ROM and Create Diskettes 2

Enable the On-Board VGA Controller 3

Power Down the Server 3

Set Jumper on the Main Logic Board ............................................................... 4

Replace the Panel and Reconnect the Cables .................................................... 5

Power Up the Server and Update Your BIOS 5

Powergrade Installation 5

Install the CPU Chip ....................................................................................... 6

Check the CPU Speed Settings....................................................................... 10

Reset the Flash Program Jumper..................................................................... 10

Install any Video Option Card ....................................................................... 10

Replace the Panel and Reconnect the Cables .................................................. 10

Run the System Configuration Utility (SCU) 11

Bulletin Board Access .............................................................13

Figures

Figure 1 XL 6000 Main Logic Board Jumper Locations .................................. 4

Figure 2 Removing the Clip from the Shipping Holder ................................... 6

Figure 3 Removing the New CPU from its Shipping Holder ........................... 7

Figure 4 Installing the New CPU Chip ........................................................... 8

Figure 5 Installing the Clip to Secure the CPU Chip ....................................... 9

Tables

Table 1 Kit Contents ...................................................................................... 1

Table 2 XL 6000 CPU Speed Jumper Settings .............................................. 10

Conventions

Symbol Meaning

NOTE: Provides general information.

WARNING: Indicates the presence of a hazard that can cause

personal injury if the hazard is not avoided.

NOTE: You may lose data if you have not backed up your

system. If you do not wish to install this kit yourself, contact

Digital Customer Service. For a nominal fee, a Customer

Service Technician can install it for you.

PowerGrade Option Warranty

This document is a supplement to the warranty information and terms

provided with your Prioris Server.

PowerGrade Options Limited Warranty

PowerGrade option kits are qualified Digital Personal Computer Hardware Options that

are warranted to be free from defects in material and workmanship under normal use.

This Limited Warranty does not extend to any Product not purchased from Digital or

from an Authorized Digital Reseller. This Limited Warranty also does not extend to

any Product that has been damaged or rendered defective (a) by operation outside the

usage parameters stated in section four entitled Warranty Exclusions and Limitations of

Liability of the Digital Personal Computers Warranty and Service Information

document; (b) as a result of accident, misuse or abuse; (c) as a result of service or

installation by anyone other than Digital, an Authorized Digital Reseller, or an

Authorized Digital Service Provider, or (d) by the use of parts not manufactured or sold

by Digital.

Upon installation in the appropriate Prioris Server, the PowerGrade option will carry

the longer of either a one year Return-to-Digital warranty or the remainder of the

warranty period for the Digital Prioris Server.

Warranty Exclusions and Limitations of Liability

Installation of a PowerGrade option requires handling and installing a CPU chip, which

must be performed with extreme care to avoid product damage. Therefore, Digital

recommends that the installation of this option be performed by an Authorized Digital

Service Provider.

Please refer to the “Digital Personal Computers Warranty and Service

Information” document provided with your Digital Prioris Server for further

information.

Prioris XL 6000 Server PowerGrade

with Pentium®Pro Chip Upgrade

Introduction

Thank you for purchasing this PowerGrade kit. This kit contains all the

components and instructions required to upgrade your CPU to a 200 MHz

Pentium®Pro processor with 256KB cache.

Installing this kit may involve updating your system BIOS (Basic Input-Output

System). To do this, you will need to remove any video option card, if installed,

and enable the internal VGA controller. Once the BIOS process has completed

successfully, you can then reinstall any video option card. You must install the

new BIOS before installing your Powergrade kit. This installation guide provides

the necessary details.

Kit Contents

Table 1. Kit Contents

Item

Pentium®Pro 200 MHz /256KB CPU assembly

Antistatic wrist strap

ServerWORKS Quick Launch CD-ROM

Installation Guide

Tools and Supplies Needed

• Phillips screwdriver, 1 pt.

• Antistatic wrist strap with grounding clip (supplied)

• Two MS-DOS formatted diskettes

Prioris XL 6000 Server PowerGrade

Boot the Quick Launch CD-ROM and Create Diskettes

During this procedure, you will create a BIOS upgrade diskette and a System

Configuration Utility (SCU) diskette. The ServerWORKS Quick Launch CD-

ROM contains the required BIOS and SCU.

1. Power on your server and boot the ServerWORKS Quick Launch CD-ROM.

2. From the Quick Launch Main Screen, select the “Installations & Utilities”

button and the Utility tab.

3. Insert a DOS-formatted diskette into drive A, and choose “BIOS Phlash

Diskette,” and select Continue.

4. Insert another diskette into drive A, choose “System Configuration Utility

(SCU)” diskette, and select Continue.

5. Select the BIOS version that you created in step 3 to create the appropriate

SCU diskette.

6. Select Exit to end Quick Launch.

7. Remove the Quick Launch CD-ROM.

Prioris XL 6000 Server PowerGrade

Enable the On-Board VGA Controller

If your system has an optional video controller, you will need to remove it and

enable the on-board VGA controller. If you are already using the on-board

controller, skip this procedure and go to “Power Down the Server.”

1. Insert the SCU diskette into drive A and turn on or reset your server. The

diskette should boot automatically.

2. When the SCU title appears, press any key to continue. Afterwards,

follow the instructions on your screen to access the SCU main menu.

3. From the main menu, use the arrow keys to highlight an item and then

press Enter to select it. Press F1 at any time for help about a selection.

4. Select the Advanced Control Group and enable the

Embedded - PCI VGA controller.

5. Select Save and Exit to save this selection.

Power Down the Server

1. Turn off your server.

2. Disconnect any external devices, the ac power cord, and the monitor

power cord.

3. Unlock the security lock on the server.

4. Remove the left side panel by sliding it toward the rear of the server.

5. If present, remove any Video Option Card.

WARNING: You might injure yourself or damage your server if you

attempt to remove the side panel before unplugging the ac and monitor

power cords.

Prioris XL 6000 Server PowerGrade

Set Jumper on the Main Logic Board

The Prioris XL 6000 uses a jumper on the main logic board to allow modification

to the system BIOS. Set the following jumper:

J36-C1, pins 2 to 3 Flash Program to Program mode

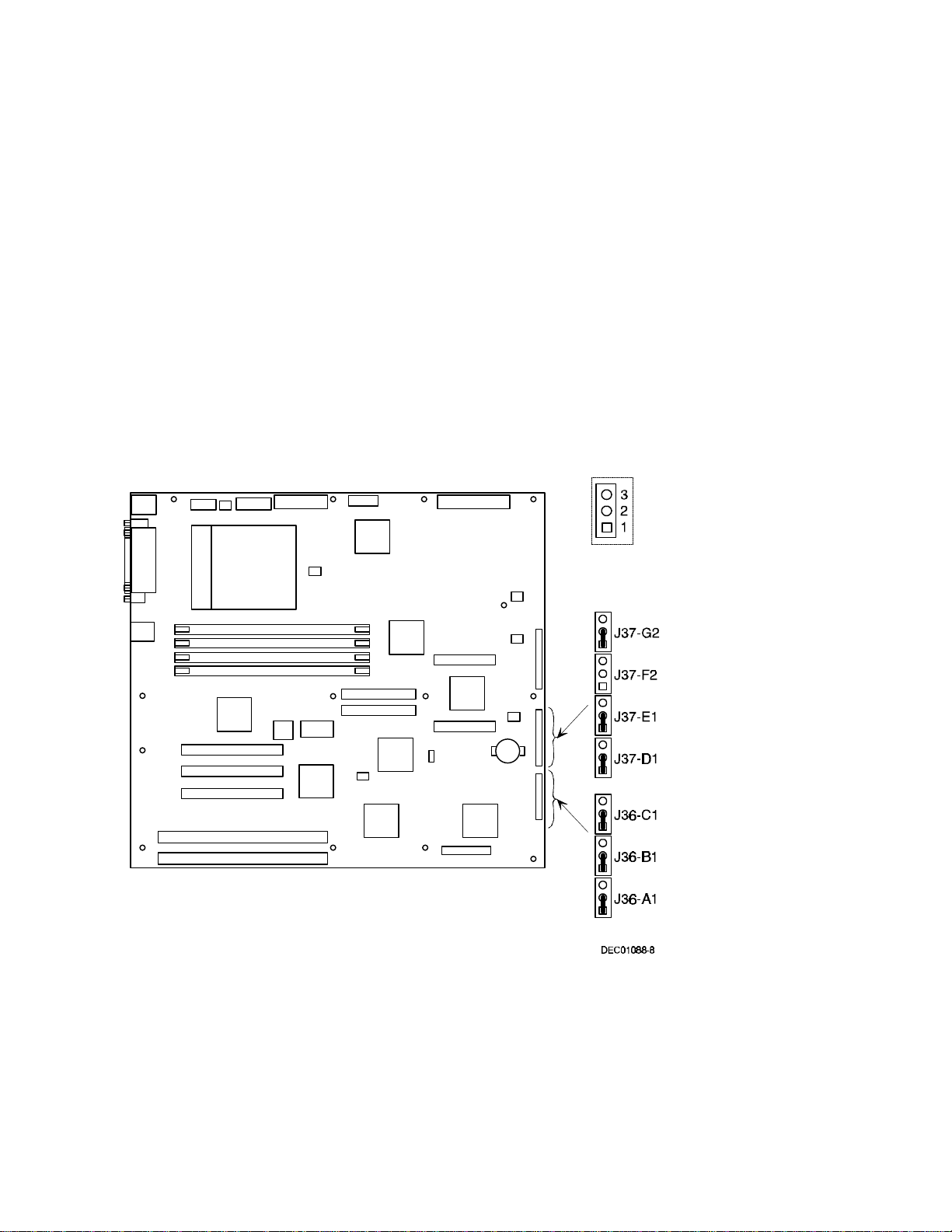

Figure 1. XL 6000 Main Logic Board Jumper Locations
