Digi opengear CONSOLE MANAGER 8100 Manuel utilisateur
QUICK START GUIDE
CONSOLE MANAGER 8100
Includes Models: CM8116, CM8132, CM8148
November 2023
REGISTER
This Quick Start Guide covers basic installation and configuration of the CM8100.
Register your product: https://opengear.com/product-registration
When you register, you:
lActivate your warranty.
lGet notified when firmware updates are released: https://opengear.com/support/device-updates/
WHAT'S IN THE BOX

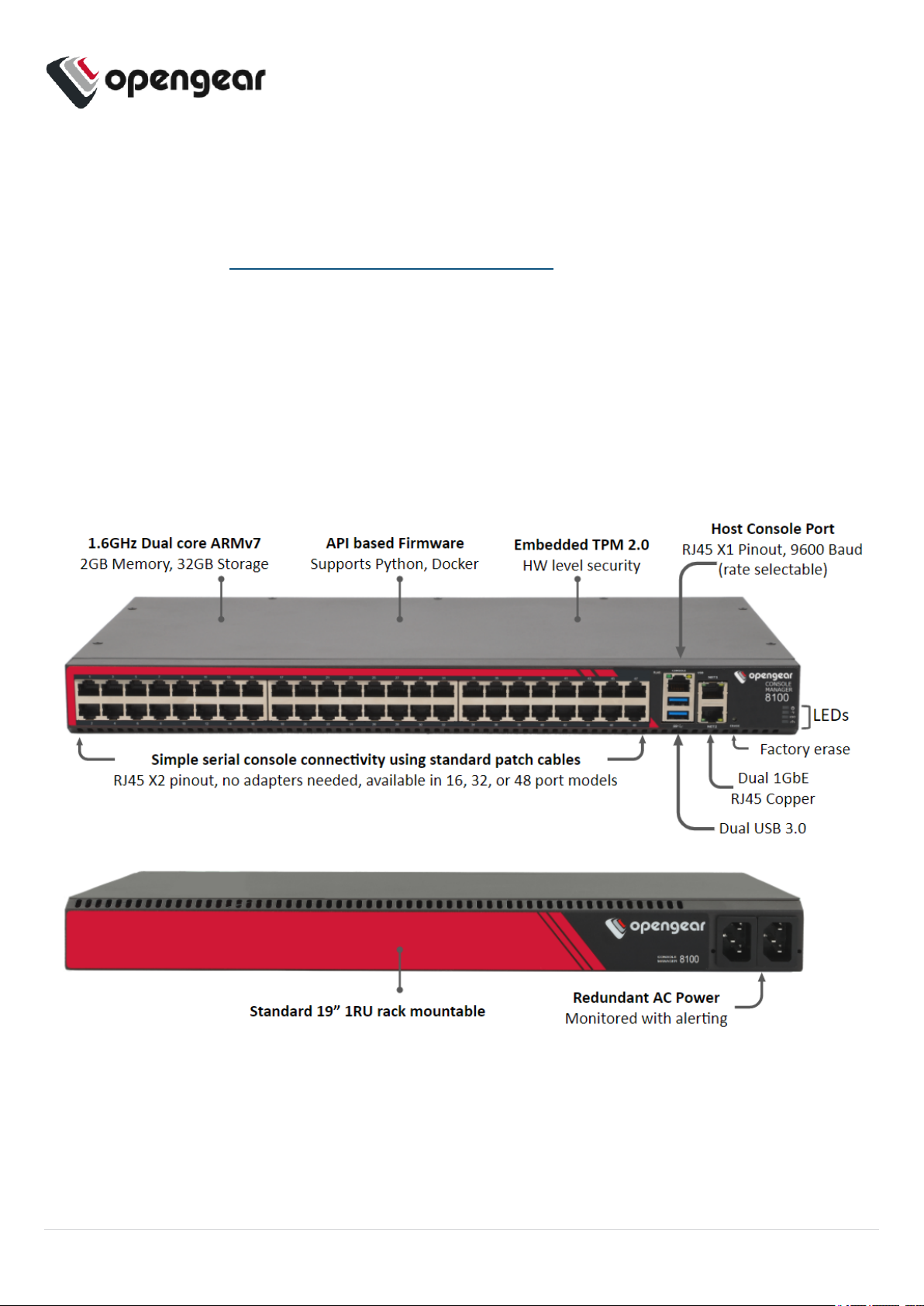

CM8100 Device
Figure: CM8100 model
2
Kit Contents
Note: Contents may be different from those pictured due to region or supplier.
Label Item Quantity Notes
CM8100 device 1
1 IECpower cables 2 Region-specific
2 Rack mount screw kit 1
3 CM8100 rack ears 2
4RJ45 to DB9F rollover serial adapter 1Part number 319018
5 CAT5e RJ45 UTPstraight cable - 5ft/1.5m 1 Part number 440016
Table: List of contents
3
HARDWARE INSTALLATION
Figure: Network interfaces for CM8100
Step 1. Connect Network Interfaces
Connect the device to a local network using any of the available
physical network interfaces. All interfaces are configured by default
to receive IPv4 addresses via DHCP and IPv6 addresses via
SLAAC.
Additionally, the device can be accessed from a computer or local
network via NET1 with a static IPv4 address as shown in Table: Default static interface connection.
Model Interface Static Address
1GbEthernet NET1 192.168.0.1/24
10GbEthernet NET3 192.168.0.1/24
Table: Default static interface connection
Firewall Zone Network Interfaces
WAN NET1
LAN NET2
Table: Default firewall zones for interfaces
Step 2. Connect Serial Devices
Connect managed devices to the serial interfaces on the front of the unit.
4
Step 2a. Connect Internal Modem
CM1800-10G devices with internal Modem (POTS) only
CM1800-10G devices with DDC designation are fitted with an internal modem. Connect the RJ11 cable at
the RJ11 port at the rear, you will hear or feel a click when it is correctly inserted. The modem is
configured at the WebUI (see the CM8100 User Guide).
Step 3. Connect USB Devices
USBserial devices can be connected to the USB3 slots of the unit if required.
Step 4. Connect The Power
Figure: Dual AC power supply connectors.
Dual AC power supply connectors.
Connect the power cable to the rear of the unit.
A second power cable can be connected if redundancy is
required. The power cables can be connected in any order.
CM8100-10G-DDC and CM8100-10G-5G-DDC devices with dual
DC power have DC terminals:
LEDPowerStatus Indicator
Figure: Power supply has redundancy Figure: Power supply does not have redundancy
5
ACCESS THE DEVICE
Step 1. Log in via the Web UI
Using a computer on the same subnet as the static network interface shown in "Hardware Installation" on
page1, access the web UI with your web browser at https://192.168.0.1/ .
Note: The device has a self-signed SSLcertificate. Your browser will display an "Untrusted
connection"warning. Click through the warning to access the login page.
To log in for the first time, enter the username root and password default and click Submit.
Step 2. Change the Root Password
When logging in to the device for the first time you will be prompted to change the root password
immediately.
Note: Users are prevented from reusing the word “default” as their password. The factory default
password automatically expires after a factory reset and users must choose a new password. This
policy is applied through the WebUI, Config Shell and CLI.
Enter the current password followed by the new password and click Log in.
The ACCESS > Serial Ports page appears displaying a list of connected serial devices and links to a
Web Terminal or SSH connection for each.
6
CONFIGURE SERIAL PORTS
To change settings for individual serial ports:
1. Navigate to CONFIGURE >Serial Ports.
2. Click the Edit button next to the port you wish to modify.
3. Change port settings, logging settings or configure IP aliases.
4. Click Apply to save changes.
Field Value
Mode ConsoleServer
Pinout X2
Baud Rate 9600
Data Bits 8
Parity None
Stop Bits 1
Table: Default configuration for serial ports
7
CONFIGURE LOCAL CONSOLE
CONFIGURE>Local Management Consoles
Console Manager CM8100 units contain one RJ45 serial console.
Edge Manager EM8000 units contain one dedicated USB serial console for local management.
To configure local console ports:
1. Navigate to CONFIGURE > Local Management Consoles.
2. Click the Edit button next to the local console you wish to modify.
3. Change port settings.
4. Click Apply to save changes.
Field Value
Baud Rate 9600
Data Bits 8
Parity None
Stop Bits 1
Emulation VT102
Table: Default serial port configuration for local console access
8

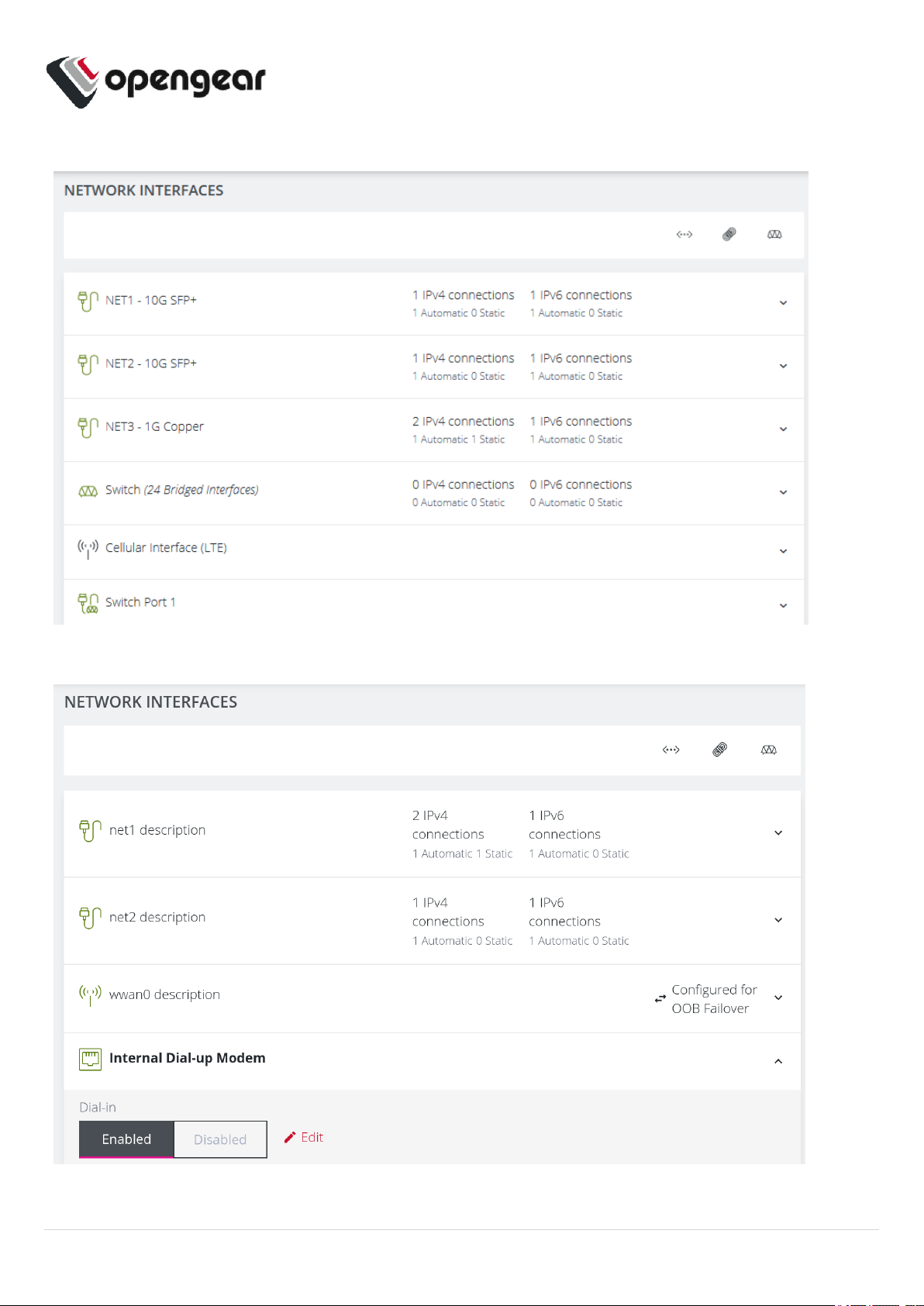

CONFIGURE NETWORK
CONFIGURE >Network Connections >Network Interfaces
Click to expand any row to display status information about the interface and its connections.
1G Devices
9
10G Devices
10G Devices with internal modem (POTS)
10
