Digi TransPort WR64 Guide d'application

Digi WR64

Hardware Reference

Revision history—90002276

Revision Date Description

A July 2018 Initial release.

B December 2018 Added Quick Start content.

Trademarks and copyright

Digi, Digi International, and the Digi logo are trademarks or registered trademarks in the United

States and other countries worldwide. All other trademarks mentioned in this document are the

property of their respective owners.

Disclaimers

Information in this document is subject to change without notice and does not represent a

commitment on the part of Digi International. Digi provides this document “as is,” without warranty of

any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or

merchantability for a particular purpose. Digi may make improvements and/or changes in this manual

or in the product(s) and/or the program(s) described in this manual at any time.

Warranty

To view product warranty information, go to the following website:

www.digi.com/howtobuy/terms

Customer support

Gather support information: Before contacting Digi technical support for help, gather the following

information:

Product name and model

Product serial number (s)

Firmware version

Operating system/browser (if applicable)

Logs (from time of reported issue)

Trace (if possible)

Description of issue

Steps to reproduce

Contact Digi technical support: Digi offers multiple technical support plans and service packages.

Feedback

To provide feedback on this document, email your comments to

Digi WR64 Hardware Reference 2

techcomm@digi.com

Include the document title and part number (Digi WR64 Hardware Reference, 90002276 B) in the

subject line of your email.

Digi WR64 Hardware Reference 3

Contents

Quick start

Step 1: What's in the box 6

Step 2: Gather accessories 6

Step 3: Connect 7

Step 4: Power up 7

Step 5: Configure 8

Next steps 8

Quick start using the Digi Remote Manager mobile app 8

Digi WR64 hardware

Digi WR64 key features 9

Digi WR64 hardware specifications 9

Digi WR64 front and back views 9

Digi WR64 electrical rating 10

Digi WR64 power connector 10

Mount the Digi WR64 on a wall 11

Install SIM cards 11

Digi WR64 serial connector pinout 12

Digi WR64 LEDs 13

Power 13

GNSS Service 13

Wi-Fi1 Service 13

Wi-Fi2 Service 13

WWAN1/WWAN2 Signal 13

WWAN1/WWAN2 Service 13

Ethernet 1-4 Link and Activity (on rear panel) 14

Power sensor and button behavior 14

Tips for improving cellular signal strength 14

Reset the device to factory defaults 14

Digi WR64 regulatory and safety statements

RF exposure statement 16

Federal Communication (FCC) Part 15 Class B 16

Radio Frequency Interference (RFI) (FCC 15.105) 16

European Community - CE Mark Declaration of Conformity (DoC) 16

CE mark (Europe) 17

Maximum transmit power for radio frequencies 18

Innovation, Science, and Economic Development Canada (IC) certifications 18

Digi WR64 Hardware Reference 4

Digi WR64 Hardware Reference 5

RoHS compliance statement 19

Safety statements 19

Certifications

International EMC (Electromagnetic Compatibility) and safety standards 20

Quick start

Congratulations on your Digi WR64 purchase. The following steps guide you through the setup.

Step 1: What's in the box

When you open the WR64 package, look for the following:

nWelcome Card

nDigi WR64 device

nDigi WR64 label

Step 2: Gather accessories

Digi offers several WR64 accessory kits so you can purchase exactly what you need to support your

WR64. See WR64 support for a list of accessory kits.

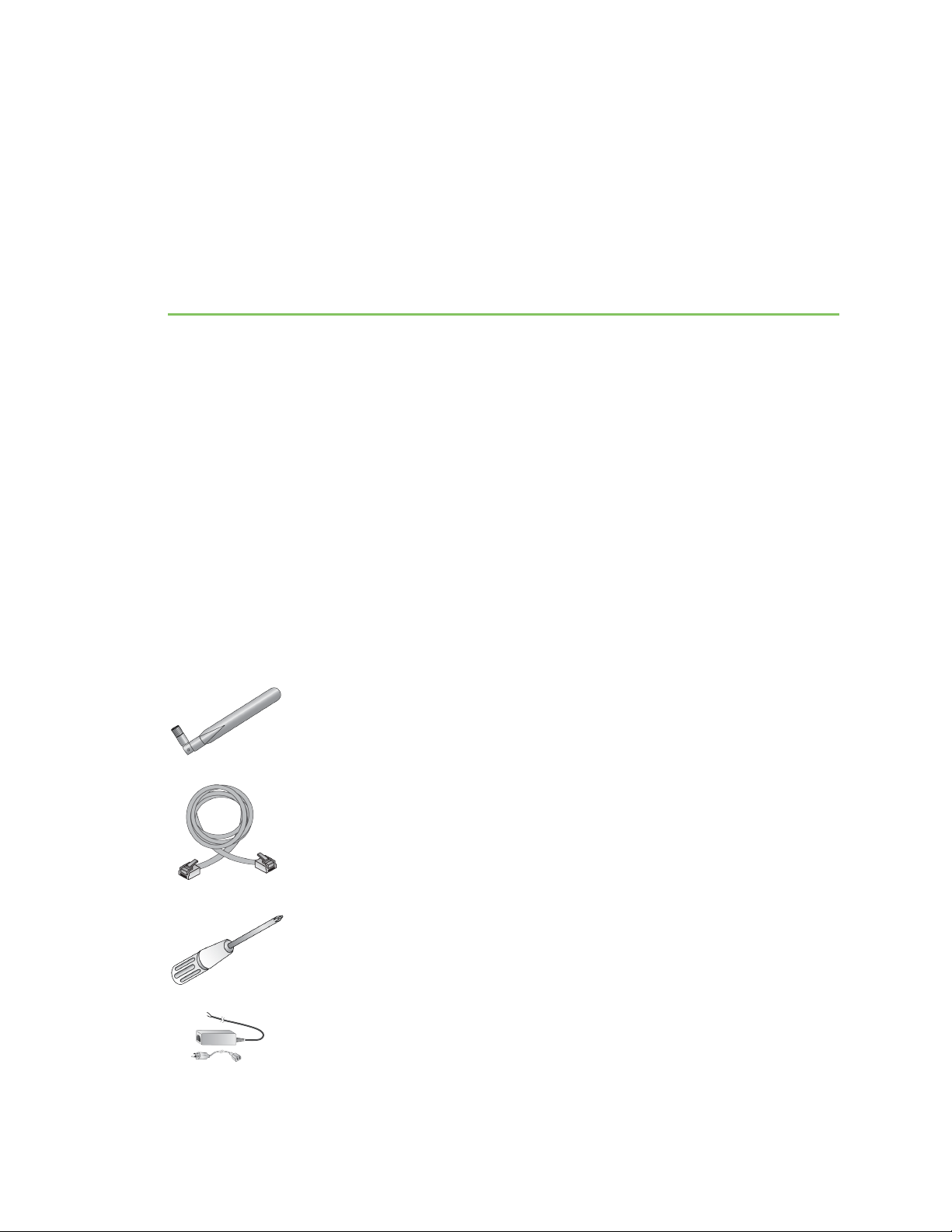

Here's the list of accessories used in this Quick start:

Antennas

Use antennas provided by a Digi accessory kit or use alternate antennas that

comply with the WR64 antenna requirements.

Ethernet cable(s)

nIf you intend to configure Ethernet at this time, use an Ethernet cable to

connect the WR64 WAN/ETH1 port to a WAN.

nUse an Ethernet cable to connect the WR64 ETH2 port to a laptop or PC to

access the local web interface via a browser.

Phillips-head screwdriver

Use a #1 Phillips-head screwdriver to remove and replace the SIM gasket cover

when installing SIM cards.

Power supply

Use a power supply provided by a Digi accessory kit or use an alternate power

supply that complies with the power supply requirements.

Digi WR64 Hardware Reference 6

Quick start Step 3: Connect

Digi WR64 Hardware Reference 7

Laptop or personal computer

Use an Ethernet cable to connect your WR64 to a laptop or PC.

SIM card(s)

If you intend to configure cellular at this time, acquire SIM cards as needed. Note

the carrier, network APN (Access Point Name), and SIM pin (if any) for each card.

Smart phone or tablet

Optional: Use a smart phone or table to to automatically register your WR64 in

your Digi Remote Manager account and connect to your cellular network. See

Quick start using the Digi Remote Manager mobile app.

Step 3: Connect

a. If you intend to configure cellular at this time, Install SIM cards.

b. Attach antenna(s).

c. If you intend to configure Ethernet at this time, use an Ethernet cable to connect the WR64

WAN/ETH1 port to a hub with access to the Internet.

d. Use an Ethernet cable to connect the WR64 ETH2 port to your PC.

Step 4: Power up

a. Connect DC power.

Note If you need help understanding power requirements, see Digi WR64 power connector.

Quick start Step 5: Configure

Digi WR64 Hardware Reference 8

b. Indicator LEDs blink to show status during startup.

c. Wait for the power LED to stop blinking. The device is ready.

Step 5: Configure

d. On the PC connected to the WR64, open a browser and go to 192.168.1.1.

e. Log into the WR64:

User name: Use the default user name: admin

Password: Use the unique password printed on the bottom label of the device (or the

printed label included in the package)

The WR64 Getting Started Wizard appears.

Next steps

After completing the Getting Started Wizard:

To manage and configure your WR64 locally using the local

web interface, see Digi WR Routers User Guide.

To manage and configure your WR64 remotely using Digi

Remote Manager, see Digi Remote Manager User Guide.

Quick start using the Digi Remote Manager mobile app

After connecting your hardware and powering up, you can use the Digi Remote Manager mobile app to

quickly register your WR64 into your Digi Remote Manager account.

Here's how:

If you already have a Digi Remote Manager account:

a. Download the Digi Remote Manager mobile app from the App Store (iPhone) or Google Play

(Android).

b. Click Log in or Sign Up and log in to your account.

c. From the menu, select Install a device with a QR or bar code and scan the installation QR

code on the label.

d. Follow the prompts to complete your WR64 registration.

If you need to sign up for a Digi Remote Manager account:

a. Click here to create a new account. You'll receive an email with login instructions.

b. On your smartphone or tablet, download the Digi Remote Manager mobile app from the App

Store (iPhone) or Google Play (Android).

c. Open the Digi Remote Manager mobile app, click Log in and log into your new account.

d. From the menu, select Install a device with a QR or bar code and scan the installation QR

code on the label.

e. Follow the prompts to complete your WR64 registration.

Digi WR64 hardware

Digi WR64 key features

The Digi WR64 is an LTE-Advanced (LTE-A) router. Key features include:

nWired Gigabit Ethernet (4-port) for onboard systems

nSegmented private versus public data communication across dual 600 Mbps CAT11 cellular

nVideo offload over 1.7 Gbps 802.11ac Wi-Fi backhaul

nPassenger Wi-Fi over 867 Mbps 802.11ac access point

nSuperior network performance management through Digi Remote Manager (DRM)

nGlobal deployment support

Digi WR64 hardware specifications

For a detailed list of Digi WR64 hardware specifications, see Digi WR64 specifications.

Digi WR64 front and back views

The following figures show front and back views of the Digi WR64.

Digi WR64 Hardware Reference 9

Digi WR64 hardware Digi WR64 electrical rating

Digi WR64 Hardware Reference 10

Digi WR64 electrical rating

The Digi WR64 devices require connection to a conditioned power system that meets these

requirements:

nTolerance within maximum operating voltage range 9 VDC to 36 VDC.

nDigi WR64 power connector on the front of the device requires wiring terminals with the

following specifications:

Wire size: 30-12 AWG

Wire type: copper wire only

Terminal blocks torque: 5-7 pounds per inch

For supply connections, use wires suitable for at least 85° C.

nPower installation must be performed by a qualified electrician, following the National

Electrical Code, ANSI/NFPA 70 and Canadian Electrical Code, Part I, CSA C22.1.

nThere must be a disconnect device in front of WR64 devices to protect maintenance workers.

Use a 20 A circuit-breaker as the disconnect device.

nBefore doing any maintenance, the maintenance worker must use caution and close the

general power supply.

Digi WR64 power connector

The WR64 has a power connector located on the back of the device:

Pin Connection

1 Ignition sensor

2 Positive

3 Negative

See Digi WR64 electrical rating for information on connecting power to the device.
