Digi TransPort WR11 Manuel utilisateur

Package Contents

Quick Start Guide

TransPort WR11

Mounting Tips!

TransPort WR11 Antenna

If any item is missing or damaged, please contact your supplier. Also, make a record of any damage that may have occurred during

shipping and report it to the supplier.

Depending on model and configuration, the package will also contain additional cables/antennas as appropriate.

2Install SIM Card(s)

Power Supply

Power Supply Adapters

(For non-U.S. models only)

Re-attach the SIM cover.

DIGI TRANSPORT WR11

Power

Signal

Service

SIM card(s) should be inserted into SIM sockets as illustrated in the following images.

The Dual SIM feature on the Digi TransPort WR11 provides support for a primary and secondary mobile service provider. The secondary

service can be used as a back-up in the event that the primary service disconnects or starts roaming.

DIGI TRANSPORT WR11

Service

Signal

Power

The Digi TransPort WR11 should be positioned on a flat, level surface. The unit is designed for indoor use and should be mounted in a location

with adequate ventilation. Also, do not expose the unit to extremes of heat or cold, strong magnetic fields, or liquids.

DIGI TRANSPORT WR11

SIM 2 SIM 1

Service

Signal

Power

Insert SIM card(s) as shown in the following

image. If you are only using one SIM card, make

sure you use the SIM 1 slot.

DIGI TRANSPORT WR11

Power

Signal

Service

HSPA+ Models

90002198_C

Remove the SIM door. Hold the product on a flat surface and using

a screwdriver, firmly pull the cover straight up.

To complete configuration of your device, refer to the Users Guide and Application Notes provided on the Digi support site

(www.digi.com/support).

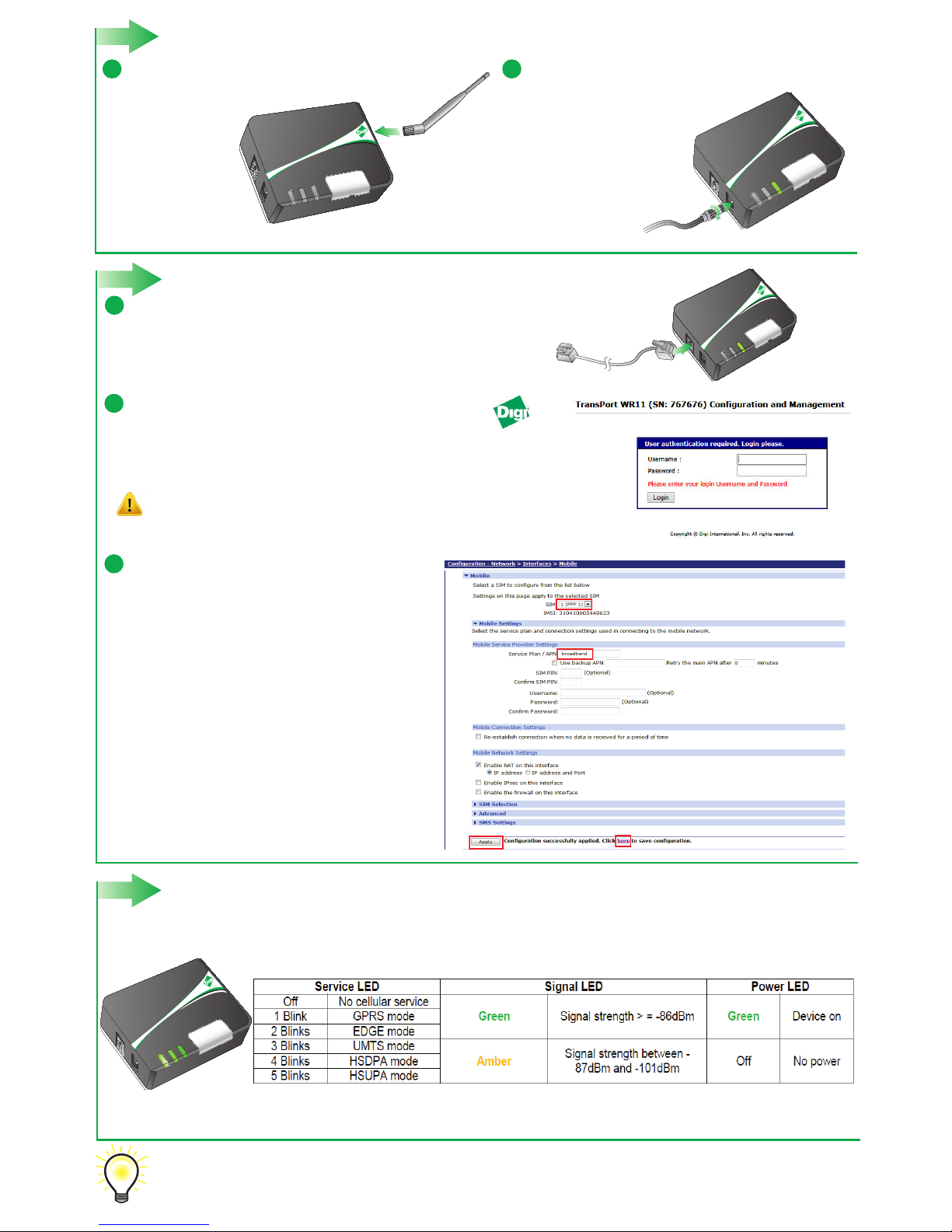

3Connect Antenna and Power Supply

What’s Next?

Connect the cellular antenna to the connector (SMA female) on

the unit.

Note: International units come with interchangeable power supply adapters which can be used according to regional needs.

DIGI TRANSPORT WR11

Service

Signal

Power

Configure the Unit

Connect the plug end of the power supply to the 5 volt power

connector on the device, and plug the other end into a wall

outlet.

Connect to the Web Interface: Open a Web browser (such as

Firefox, Internet Explorer, Chrome) on your PC and navigate

to http://192.168.1.1. If successful, you will be prompted to enter

a username and password. The default username is username,

and the default password is password.

DIGI TRANSPORT WR11

Service

Signal

Power

DIGI TRANSPORT WR11

Service

Signal

Power

Connect an Ethernet Cable: Connect one end of the cable to the ethernet port

on the device and the other end to an ethernet port on a PC. Ensure that the DHCP

client is enabled on the PC.

Note: The ethernet cable required for the connection is customer supplied.

The cable is not included in the package.

Note: When the signal strength is less than -101, the Signal-Strength LED is off. Place the device in a location where it gets a better signal.

Configure the APN: Browse to Configuration - Network >

Interfaces > Mobile. Select the SIM1 or SIM2 using the

drop-down box. Go to Mobile Settings, and enter the APN

name assigned to that SIM. Click Apply to apply changes

click here to save all changes.

To verify that the device is connected to the cellular network, check to see that the service LED is blinking as shown in the table.

You will also see the mobile IP address on the home page.

Insert power supply end fully and

rotate clockwise to engage

and lock.

Verify your Connection

After you have logged in, it is strongly recommended that

you immediately change the default username and password.

DIGI TRANSPORT WR11

Power

Signal

Service
