Digi XBee Manuel utilisateur

XBee Wi-Fi Development Kit

Getting Started Guide

90002133_A

6/17/2011

©2011DigiInternational,Inc. 2

Allrightsreserved.

Digi,DigiInternational,theDigilogo,theDigiwebsite,aDigiInternationalCompany,XBee,andDigiXBeeare

trademarksorregisteredtrademarksofDigiInternational,Inc.intheUnitedStatesandothercountries

worldwide.Allothertrademarksarethepropertyoftheirrespectiveowners.

Allothertrademarksmentionedinthisdocumentarethepropertyoftheirrespectiveowners.

Informationinthisdocumentissubjecttochangewithoutnoticeanddoesnotrepresentacommitmentonthe

partofDigiInternational.

Digiprovidesthisdocument“asis,”withoutwarrantyofanykind,eitherexpressedorimplied,including,butnot

limitedto,theimpliedwarrantiesoffitnessormerchantabilityforaparticularpurpose.Digimaymake

improvementsand/orchangesinthismanualorintheproduct(s)and/ortheprogram(s)describedinthismanual

atanytime.

Thisdocumentcouldincludetechnicalinaccuraciesortypographicalerrors.Changesareperiodicallymadetothe

informationherein;thesechangesmaybeincorporatedinneweditionsofthepublication.

©2011DigiInternational,Inc.. 3

Table of Contents

Using this Guide............................................................................................................ 4

Conventions used in this Guide.............................................................................. 4

Contact Information................................................................................................. 4

Introduction.................................................................................................................... 5

Goals of the Kit ....................................................................................................... 5

Requirements of the Kit.......................................................................................... 5

System Requirements ..........................................................................................5

Additional Requirements ......................................................................................5

Part 1: Set up your XBee Wi-Fi Development Kit................................................. 6

Identify Kit Components.......................................................................................... 6

Assemble your XBee Wi-Fi Development Kit......................................................... 7

Part 2: Download and Install X-CTU Software....................................................... 8

Installing USB Drivers............................................................................................. 8

Installing X-CTU Software ...................................................................................... 8

Part 3: Establish an 802.11 bgn Network Connection......................................... 9

Starting the X-CTU Software.................................................................................. 9

Running the X-CTU Software............................................................................... 10

Part 4: Put the XBee Module into Deep Sleep Mode ......................................... 18

Further Information ............................................................................................... 22

Appendix A: Troubleshooting.................................................................................23

Resetting the XBee Wi-Fi Module........................................................................ 23

Appendix B: Possible Access Point/Router Connection Issues...................25

©2011DigiInternational,Inc.. 4

Using this Guide

Conventions used in this Guide

Contact Information

FormoreinformationaboutyourDigiproducts,orforcustomerserviceandtechnicalsupport,contact

DigiInternational.

Thisiconindicatesastepthathasthepotentialtobetroublesome.

Furtherinformationregardingitemsmarkedwiththissymbolcanbe

foundin“AppendixA”or“AppendixB”.

Thisiconindicatesahint,orconceptthatislearned.

Thisiconindicatesthatagoalofthekithasbeencompleted.

Thisiconindicatesawarningofthepotentialforconfusionordanger.

ToContactDigiInternationalby: Use

Mail

DigiInternational

WorldHeadquarters

11001BrenRoadEast

Minnetonka,MN55343

Phone

8:00AM‐5:00PM(U.S.MountainTime)

1‐866‐765‐9885toll‐freeUSAandCanada

1‐801‐765‐9885Worldwide

OnlineSupport http://www.digi.com/support/eservice/

Email rf‐e[email protected]

©2011DigiInternational,Inc.. 5

Introduction

ThankyouforpurchasinganXBeeWi‐FiDevelopmentKit.Thiskitisdesignedtomakeiteasytosetupan

XBeeWi‐Finetwork,senddatafromoneXBeetotheother,andadjusttheXBeesettings.Beforeyoustart

workingwiththekit,let'scoversomebasics.

Goals of the Kit

Asyougothroughthestepsinthiskit,youwill:

Requirements of the Kit

System Requirements

Toinstallthesoftwarementionedinthisguide,youwillneedaPCrunningMicrosoftWindows

2000,XP,VistaorWindows7.

Additional Requirements

Thisguideassumestheuseofan802.11bgnaccesspointorwirelessrouter(notprovided)with

WPA,orWPA2withPSKandDHCPenabled.TheXBeeWi‐FidoesnotsupportWEPorenterprise

encryption.

Further,thisguideassumesbothmodulesareconnectedtothesameaccesspointorrouter.

WhileitispossibletoconnecttheXBeeWi‐Fitodifferentaccesspointsorrouters,itisbeyond

thescopeofthisguide.ForinformationoncommunicationacrossaccesspointsseetheUser's

Manual.

1.SetupyourXBeeWi‐FiDevelopmentKit.

2.DownloadandinstallX‐CTUconfigurationsoftware.

3.UseX‐CTUtoestablishan802.11bgnnetworkconnectionbetween

theXBeeWi‐Fimodulesusinganaccesspointorwirelessrouter.

4.PuttheXBeeWi‐Fimoduleintodeepsleepmode.

©2011DigiInternational,Inc.. 6

Part 1:



Set up your XBee Wi-Fi Development Kit

Identify Kit Components

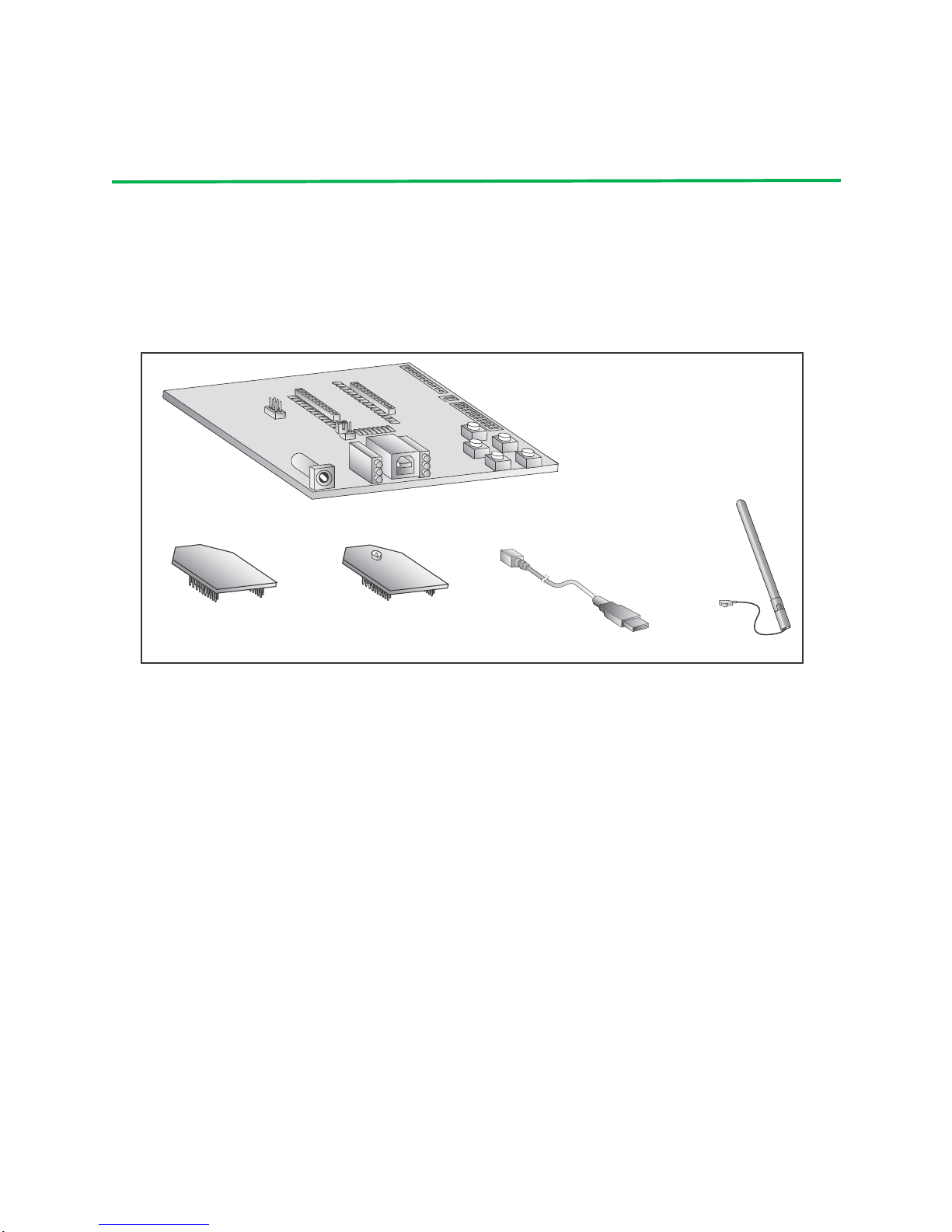

Carefullyunpackandverifythecontentsofyourkit.Yourkitshouldincludethefollowing:

2 - XBee Interface Boards

XBee Wi-Fi PCB

Antenna Module

U.FL Antenna

XBee Wi-Fi

U.FL Module

2 - USB Cables

©2011DigiInternational,Inc.. 7

XBeeWi‐FiDevelopmentKitGettingStartedGuide

Assemble your XBee Wi-Fi Development Kit

AssemblethekitbyplacingoneXBeeWi‐FimoduleoneachoftheXBeeUSBDevelopmentBoardsas

showninthediagrambelow.ConnecttheU.FLantennatotheU.FLXBeeasshown.ConnecttheUSB

cabletotheXBeeUSBDevelopmentBoard;itwillbeattachedtothecomputerinalaterstep.

Notes:

1.TheantennaisonlyinstalledonU.FLmodules.ThePCBantennamodulecomesequipped

withanantennaalreadyonthemodule.

2.ModulesareinstalledbyaligningpinsandpressingintotheXBeeUSBDevelopmentBoard

socket.

3.ModulescanberemovedfromtheXBeeUSBDevelopmentBoardsocketbycarefully

applyingupwardpressuretothemodule.

4.Thepowersupplyjackisonthelowerleftcorneroftheboard.Itisnotrequiredforthis

module.ThisguideassumestheboardispoweredbyaUSBcableconnectedtothe

computer.

YouhavejustcompletedGoal#1‐settingupyourXBee

Wi‐FiDevelopmentKit.

©2011DigiInternational,Inc.. 8

Part 2: Download and Install X-CTU Software

ForproperkitconfigurationandoperationX‐CTUsoftware(version5.15orlater)mustbedownloaded

andinstalled.AcopyofX‐CTUsoftwareandUSBdriverswillneedtobeoneachcomputerusedin

conjunctionwiththisguide.

Installing USB Drivers

TheXBeeUSBinterfaceboardisa"plug‐and‐play"devicethatshouldbedetectedbythePC

automatically.IfyouareusingWindows7orVista,theUSBdriversshouldautomaticallyinstallanda

notificationwillappearinthelowerrightportionofyourscreenindicatingsuccessorfailure.IftheUSB

driversfailtoinstall,pleasefollowtheUSBdriverinstallationinstructionsfoundhere:

http://www.digi.com/support/kbase/kbaseresultdetl.jsp?id=3214.

IfyouareusingWindows2000orXP,downloadandinstallthedriverasperthefollowingdirections.

ToinstalltheUSBdriver:

1.Downloadthedriversetupfileat:

http://ftp1.digi.com/support/driver/FTDI_Windows_Driver_Setup.exe.

2.Double‐clickonthesetupfile.Awindowwillpopupduringinstallationandautomaticallyclose

whentheprocessiscomplete.TheUSBinterfaceboardmaynowbeconnectedtothecomputer.

Installing X-CTU Software

1.DownloadX‐CTUatwww.digi.com/xctu.

2.Browsetothefoldertowhichyousavedtheaboveinstallfile.

3.Double‐clickontheinstallerfileandfollowtheX‐CTUSetupWizard.

4.WhenaskedifyouwouldliketocheckDigi'swebsiteforfirmwareupdates,clickYes.

5.Afterthefirmwareupdatesarecomplete,clickClose.Updatesmaytakeafewminutes,pleasebe

patient.

6.StartX‐CTUbydouble‐clickingontheX‐CTUicononyourdesktop,orbyselectingStart>Programs

>Digi>X‐CTU.

TheX‐CTUsoftwareisnowreadytobeused.

YouhavejustcompletedGoal#2‐downloadingandinstalling

theX‐CTUconfigurationsoftware.

©2011DigiInternational,Inc.. 9

Part 3: Establish an 802.11 bgn Network

Connection

Twotypesofnetworkconnectionareavailable.Thefirstisad‐hocwhereatwomodulenetworkis

establishedwithouttheaidofanaccesspointorrouter.Thismodeisnotdiscussedinthisguide.Further

informationonad‐hocnetworksisavailableintheUser'sManual.Thesecondtypeofnetworkiscreated

usinganaccesspointorrouter.Thebasicsofthistypeofconnectionwillbecoveredinthissection.

Starting the X-CTU Software

1.ConnecttheXBeeUSBDevelopmentBoardUSBcabletothecomputer.

2.GotothefilewhereyousavedtheX‐CTUsoftware.

3.Double‐clickonX‐CTU.exetostarttheprogram.

©2011DigiInternational,Inc.. 10

XBeeWi‐FiDevelopmentKitGettingStartedGuide

Running the X-CTU Software

1.UnderthePCSettingstab,selectthePCserialCOMportthatwillbeused(USBSerialPort(COM4)

inthiscase.TheUSBportswillbelabeledas“USBSerialPort”andareassignedanumberbasedon

yourPC'ssettings.

2.SetthefollowingvaluesintheComPortSetupsectionofX‐CTU:

BaudRate: 9600

FlowControl: None

DataBits: 8

Parity: None

StopBits: 1



Note:TheX‐CTUbaudratemustmatchthemodule'sBDparameterforproper

communication.Themoduledefaultis9600baud.
