Digi-tech Le Lyra Manuel utilisateur

Owner’s Manual

NOTE: The information contained in this manual is subject to change at any time without notification. Some

information contained in this manual may also be inaccurate due to undocumented changes in the product or operating

system since this version of the manual was completed.The information contained in this version of the owner’s manual

supersedes all previous versions.

DECLARATION OF CONFORMITY

Manufacturer’s Name: DigiTech®

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, U.S.A.

declares that the product:

Product name: Le Lyra

Product option: all (requires Class II power adapter that conforms

to the requirements of EN60065, EN60742, or equivalent.)

conforms to the following Product Speciﬁcations:

Safety IEC 60065 -01+Amd 1

EMC EN 55022:2006

EN 55024:1998

FCC Part 15

Supplementary Information:

The product herewith complies with the requirements of the:

LowVoltage Directive 2006/95/EC

EMC Directive 2004/108/EC.

RoHS Directive 2002/95/EC

WEEE Directive 2002/96/EC

With regard to Directive 2005/32/EC and EC Regulation 1275/2008 of 17 December 2008,

this product is designed, produced, and classiﬁed as Professional Audio Equipment and thus is

exempt from this Directive.

With regard to Directive 2005/32/EC and EC Regulation 278/2009 of 6 April 2009, this

regulation applies to Class A (single output) external power supplies.The external power supply

used with this product is a multi-output power supply and thus is exempt from this Directive.

Roger Johnsen

Director, Engineering

Signal Processing

8760 S. Sandy Parkway

Sandy, Utah 84070, USA

Date: December 20, 2010

European Contact:Your local DigiTech Sales and Service Ofﬁce or

Harman Music Group

8760 South Sandy Parkway

Sandy, Utah

84070 USA

Ph: (801) 566-8800

Fax: (801) 568-7583

ELECTROMAGNETIC

COMPATIBILITY

This device complies with part 15 of the FCC Rules and

the Product Specifications noted on the Declaration of

Conformity. Operation is subject to the following two

conditions:

• this device may not cause harmful

interference, and

• this device must accept any interference received, including

interference that may cause undesired operation.

Operation of this unit within significant

electromagnetic fields should be avoided.

• use only shielded interconnecting cables.

If you want to dispose this product, do not mix it with general household waste. There is a

separate collection system for used electronic products in accordance with legislation that

requires proper treatment, recovery and recycling.

Private household in the 25 member states of the EU, in Switzerland and Norway may return their used

electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar

new one).

For Countries not mentioned above, please contact your local authorities for a correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and

recycling and thus prevent potential negative effects on the environment and human health.

iii

Warning

For your protection, please read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that

produce heat.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been

dropped.

11. WARNING: To reduce the risk of ﬁre or electric shock, do not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, or other markings and pertinent information.

Warranty

We at DigiTech®are very proud of our products and back up each one we sell with the following

warranty:

1. Please register online at www.digitech.com within ten days of purchase to validate this warranty.

2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and

workmanship under normal use and service.

3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show evidence

of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION, where all parts and

labor will be covered up to a period of one year (this warranty is extended to a period of six years when the

product has been properly registered by mail or through our website). A Return Authorization number may be

obtained from DigiTech by telephone.The company shall not be liable for any consequential damage as a result of

the product’s use in any circuit or assembly.

4. Proof-of-purchase is considered to be the burden of the consumer.

5. DigiTech reserves the right to make changes in design, or make additions to, or improvements upon this product

without incurring any obligation to install the same on products previously manufactured.

6. The consumer forfeits the beneﬁts of this warranty if the product’s main assembly is opened and tampered with

by anyone other than a certiﬁed DigiTech technician or, if the product is used with AC voltages outside of the

range suggested by the manufacturer.

7. The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor

authorizes any person to assume any obligation or liability in connection with the sale of this product. In no

event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the

performance of this warranty due to causes beyond their control.

Congratulations and thank you for purchasing the Eternal

Descent Lyra FX Pedal by DigiTech! The DigiTech Lyra pedal is a limited edition

stompbox featuring the tones from the music behind the Eternal Descent

comic book/CD created by guitarist/comic book designer Llexi Leon. The

7 tones in Lyra were originally created using the DigiTech RP1000. These

seven sounds have been custom programmed into the 7 Lyra (song) types,

selectable using the Lyra knob control. The user interface provides further

control over each of these tones by providing Level, Gain and FX Mix

control.

Lyra’s features include:

• Custom Eternal Descent Artwork

• Signature Tones from Eternal Descent sessions Based around custom

RP1000 presets

• Controls for Level, Gain, FX Mix, and Lyra

• Guitar Input

• Mono and Stereo Amplifier Outputs

• Included PS200R DC power supply

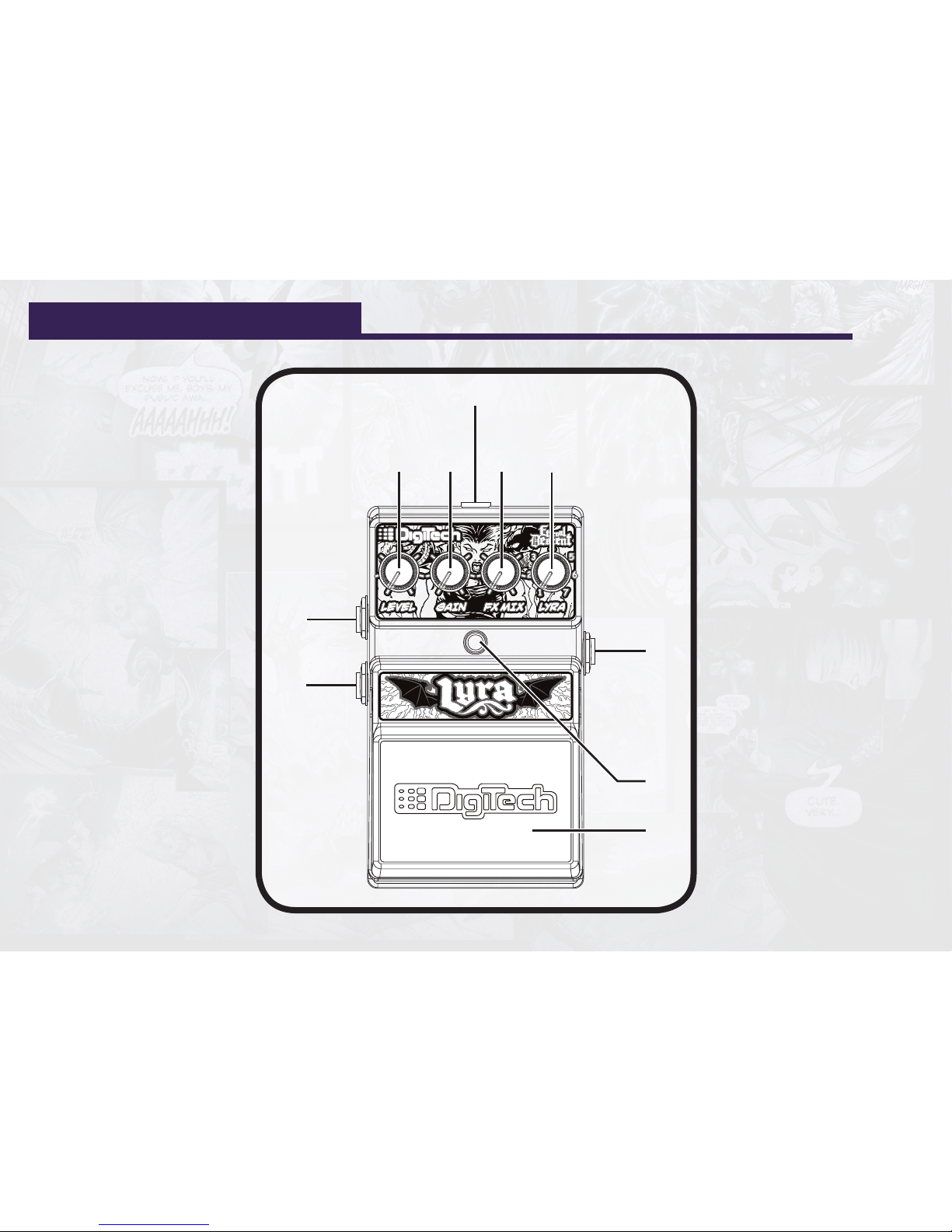

Controls & Jacks

23 4 5

1. DC Adapter Jack

Connect the included Harman PS200R power supply to this jack. Use the

proper supply for your area’s Mains line voltage.

2. Level Knob

Controls the output level. Turning the knob clockwise increases the level

and turning it counter-clockwise decreases the level.

3. Gain Knob

Controls the amount of amp/distortion gain in each of the Lyra types. Turn

the knob clockwise to increase the gain and counter-clockwise to decrease

the gain. Set the to the 12 o’clock position to match the sound of the

actual song.

4. FX Mix Knob

Controls amount of effects (modulation, delay, and reverb) that are mixed

in with distortion/amp sound. Turn the knob clockwise to increase these

effects and counter-clockwise to decrease the effects. Set the to the 12

o’clock position to approximately match the sound of the actual song.

5. Lyra Knob

The Lyra knob selects one of the seven tones taken from songs of the

Eternal Descent soundtrack.

The selectable Lyra tones are:

1. Crystal Cascade - A shimmering clean laden with repeats.

“Memories flooding back”, “moments lost in time”, “echo in eternity”

2. The Morass - An eerie tone with a touch of dirt and a swirling phase.

“Distant melodies come bubbling from the black mire”

3. Ethereal Entity - A saturated lead with a slow attack and reverse

delay. “The voices of the damned are calling”

4. Divine Lead - A soaring rock lead with an octave effect.

“An aria of the angels”

5. Lyra’s Lightning - A Super Charged lead tone with delay.

“Lyra’s signature shred attack”

6. Dark Blues - A smooth tweed tone with a plate reverb.

“On tour with Constellation 9”

7. Crushing Chaos - A Nightmare of Heavy Gain and extreme Flanging.

“Machinations of a madman”

6. Input Jack

Connect your guitar here.

7. Indicator LED

This LED indicates when the effect is turned on or off.

8. Foot Switch

Press the Foot Switch to turn the effect on and off.

9. Out 1 (Mono) Jack

Use this output when connecting to a single amp input.

10. Out 2 Jack

Use this output in conjunction with the Out 1 jack when connecting to two

amplifiers for stereo operation.

Connections

The Lyra has a single input and a pair of stereo outputs.

Follow these setup directions before use:

1. Turn the volume down on the amplifier you are connecting to.

2. Connect the pedal output to the amplifier input.

3. Connect the guitar to the pedal input.

4. Connect the power supply to the pedal.

5. Turn the level control on the pedal to the minimum position.

6. Turn up your amplifier level to the desired listening level.

7. Turn on the pedal by pressing the pedal switch and gradually turn up

the level control on the pedal to the desired listening level.
