Warning

For your protection, please read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

8. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when

unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

11.WARNING:To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or

moisture.

12. Refer to labels on the unit, including bottom cover, or

other markings and pertinent information.

DECLARATION OF CONFORMITY

Manufacturer’s Name: DigiTech

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, USA

declares that the product:

Product name: DigiDelay

Product option: all (requires Class II power

adapter that conforms to the

requirements of EN60065,

EN60742, or equivalent.)

conforms to the following Product Specifications:

Safety: IEC 60065 (1998)

EMC: EN 55013 (1990)

EN 55020 (1991)

Supplementary Information:

The product herewith complies with the requirements of the

Low Voltage Directive 72/23/EEC and the EMC Directive

89/336/EEC as amended by Directive 93/68/EEC.

Vice-President of Engineering

8760 S. Sandy Parkway

Sandy, Utah 84070, USA

Date:April 12, 2002

European Contact: Your local DigiTech Sales and

Service Office or

Harman Music Group

8760 South Sandy Parkway

Sandy, Utah

84070 USA

Ph: (801) 566-8800

Fax: (801) 568-7583

WARRANTY: We at DigiTech are proud of our products and back-up each one with the following warranty:

1.The warranty registration card must be mailed within ten days after purchase date to validate this war-

ranty.

2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials

and workmanship under normal use and service.

3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show

evidence of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION,

where all parts and labor will be covered up to a period of one year (this warranty is extended to a

period of six years when the product has been properly registered by mail or through our website).

A Return Authorization number may be obtained from DigiTech by telephone.The company shall not

be liable for any consequential damage as a result of the product's use in any circuit or assembly.

4. Proof-of-purchase is considered to be the burden of the consumer.

5. DigiTech reserves the right to make changes in design, or make additions to, or improvements upon

this product without incurring any obligation to install the same on products previously manufactured.

6.The consumer forfeits the benefits of this warranty if the product's main assembly is opened and tam-

pered with by anyone other than a certified DigiTech technician or, if the product is used with AC volt-

ages outside of the range suggested by the manufacturer.

7.The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor

authorizes any person to assume any obligation or liability in connection with the sale of this product.

In no event shall DigiTech or its dealers be liable for special or consequential damages or from any

delay in the performance of this warranty due to causes beyond their control.

NOTE:The information contained in this manual is subject to change at any time without notification. Some

information contained in this manual may also be inaccurate due to undocumented changes in the product or

operating system since this version of the manual was completed.The information contained in this version

of the owner's manual supersedes all previous versions.

The DigiDelay is a unique delay pedal, combining several features that

have never been available in a standard stompbox. The DigiDelay offers

4-seconds of delay, four different delay types including ping-pong, tape,

reverse, modulated, and a loop function. The Loop function records

loops up to 4 seconds in length that you can add overdubs to. The

DigiDelay also features Tap Tempo delay and switchable CIT™ cabinet

modeling. This owner’s manual will guide you through all of these

features. But feel free to experiment as you read through it.

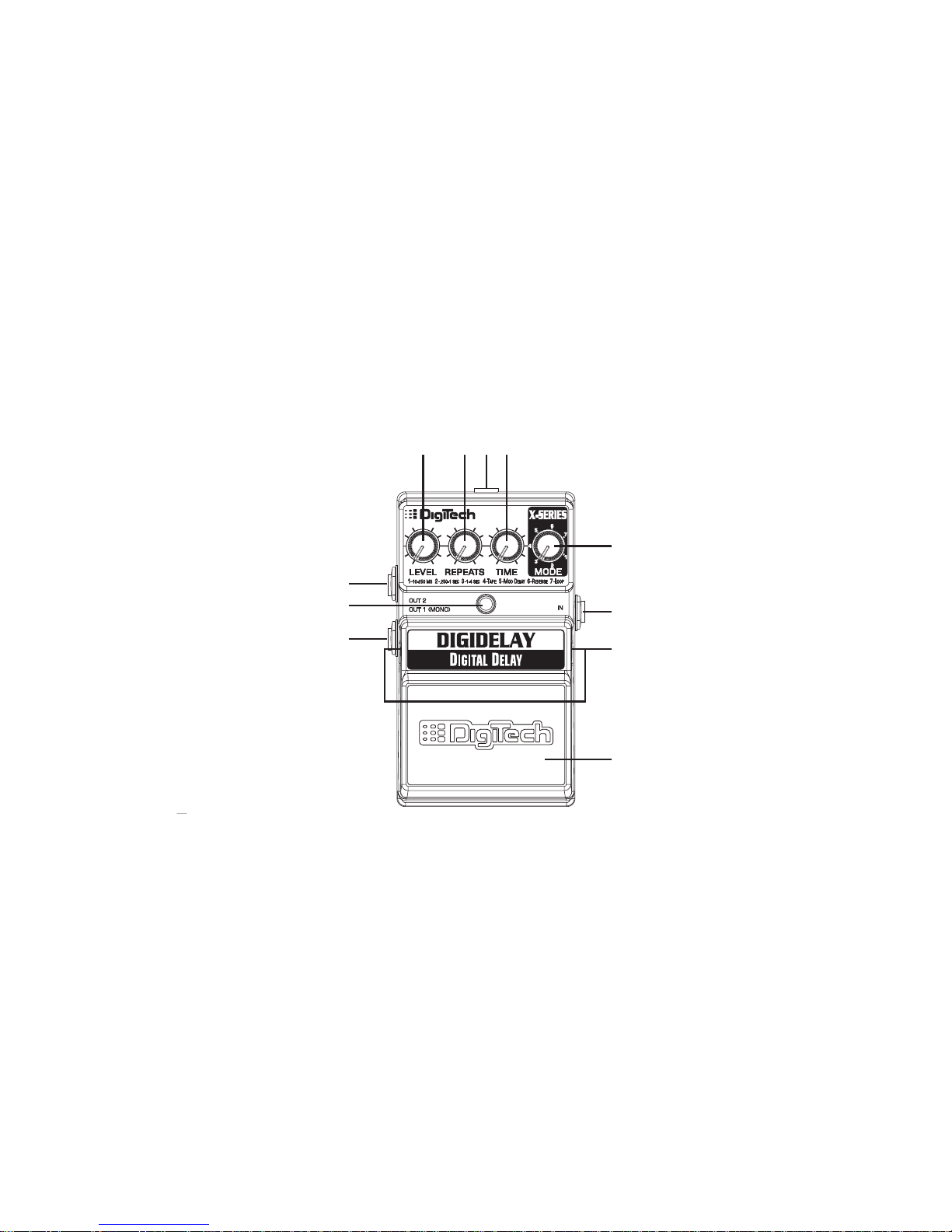

1. Level Knob

Controls the delay effect’s output level. Turn this knob clockwise to

increase the output level, and counter-clockwise to decrease the output

level.

2. Repeats Knob

Controls the number of delay repeats. Turn this knob clockwise to

increase the number of repeats, and counter-clockwise to decrease the

number of repeats. Turning this knob to the maximum position engages

repeat-hold of the delay signal. This knob is disabled in 7-LOOP mode.

2 3 4

3.AC Adapter Jack

Connect a DigiTech PS200R power supply to this jack. Use the proper

supply for your area’s Mains line voltage.

4.Time Knob

Controls the amount of delay time specified by the range selected with

the Mode (5) knob. The knob’s minimum position is the shortest delay

time for the given range. The knob’s maximum position is the longest

delay time for the given range. When

4-TAPE

5-MOD DLY

, or

6-REVERSE

is selected, the delay time ranges vary from 10ms - 8 seconds

(see Mode Knob for exact ranges). You can increase the delay time by

tapping in a longer time using the Tap Tempo delay feature (see Tap

Tempo section). The

Time

knob is disabled when

7-LOOP

is selected or

when the DigiDelay is in Tap Tempo mode.

5. Mode Knob

Selects a delay range, delay type, or the infinite Loop function. The first

four mode settings give you ping-pong delay when Out 2 is used in

conjunction with Out 1.

Select one of the following:

1-10-250 MS

- 10 to 250 milliseconds

2-250 MS-1 SEC

- 250 milliseconds to 1 second

3-1-4 SEC

- 1 to 4 seconds

4-TAPE*

- Emulates a vintage tape delay

5-MOD DLY* -

A digital delay with chorused repeats

6-REVERSE*

- A delay where the repeats are played backwards

7-LOOP

- A repeat/hold function that lets you create infinite loops of up

to four seconds in length.

Mod Delay delay time range is 10ms - 1 sec. Tape Delay range is

100ms -1 sec. Reverse delay range is 1 - 8 seconds. To increase the

time of Tape or Mod Delay types, use the Tap Tempo delay feature.

6. Input Jack

Connect your instrument to this jack. Connecting a guitar cable to this

jack supplies battery power even though the Indicator LED may not be

lit. To prolong battery life, disconnect all cables from the pedal when not

in use.

7. Pedal Release Pins

These two pins are spring-loaded hinges that hold the pedal in place.

Push these pins in to release the pedal from the pedal chassis exposing

the battery compartment. (See battery replacement diagram).

8. Pedal

Press the pedal to turn the effect on and off. The Pedal is also used for

tapping in the delay time when using the Tap Tempo delay feature.

9. Out 1(Mono) Jack

Connect this output to a single guitar amplifier when only one amp or

mixer channel is being used.

10. Indicator LED

This LED indicates when the effect is turned on. When using the Tap

Tempo delay feature, the LED will flash at the rate of the delay time. If

the LED becomes dim or does not light when the cables are connected,

the battery needs to be replaced.

11. Out 2 Jack

Connect this output to a second amplifier for ping-pong delay when

using one of the first three Mode settings, or Tape or Reverse delay

types. Use both this output combined with Out 1 for a more enhanced

chorusing effect when using the Modulated Delay.

Tap Tempo Delay

The DigiDelay’s Pedal can be used as a tap-tempo switch for setting the

delay time during a live performance. To use the Pedal for tap-tempo,

follow these steps:

1.While the delay effect is on, press and hold the Pedal (8) for 3

seconds until the Indicator LED (10) begins flashing. The LED

flashes at the delay time’s duration.

2.Tap the Pedal switch at least two times to set a new delay time. The

last two pedal tap intervals set the delay time. The Time (4) knob is

disabled when tap-tempo is active, and the delay cannot be bypassed.

3.To exit tap-tempo, press and hold the Pedal for 3 seconds until the

Indicator LED stops flashing and lights solid red.

Loop Delay

The Mode knob’s 7-LOOP setting is used to create an infinite delay

loop up to four seconds long. Once a loop is created, you can add

overdub parts to it. To use the Loop feature, follow these steps:

1. Select 7-LOOP using the MODE (5) knob.

2. Begin with the effect bypassed. Press and hold the Pedal (8) and

immediately begin playing. The Indicator LED (10) is lit solid red.

3.When you reach the end of your loop, release the Pedal. The passage

plays back in an infinite loop, and the Indicator LED flashes red.

4.To add overdubs to the existing loop, press and hold the Pedal at any

time and begin playing. The Indicator LED is lit solid red as long as

the pedal is held, indicating that anything played will be added to the

loop.

5.To stop the loop, quickly press the Pedal. This puts the DigiDelay

into Bypass. The loop stops playing and the delay loop memory is

cleared.
