EC90A-AL Installation Guide

Package Contents

DFI reserves the right to change the specications at any time prior to the product's release. For the latest revision and details of the

installation process, please refer to the user's manual.

www.d.com

•

One EC90A-AL system unit

• Mounting screws for SATA drive

•

Mounting screws for Mini PCIe module

•

1 Quick Installation Guide

•

1 CD disk includes:

- Drivers / Manual

Front View

Panel

HDD LED

Reset

Status LED

(green)

Mini-DP

USB 2.0 LAN 2

LAN 1

USB 3.0

Bottom View

COM 1 /DIO

DC-in 2-pin Switch

Top View

Removing the Chassis Cover

Please observe the following guidelines and follow the procedure to open the

system.

1. Make sure the system and all other peripheral devices connected to it have

been powered off.

2. Disconnect all power cords and cables.

3. The 9 mounting screws on the front, both sides and bottom of the system are

used to secure the cover to the chassis. Remove these screws and put them in

a safe place for later use.

Chassis screw

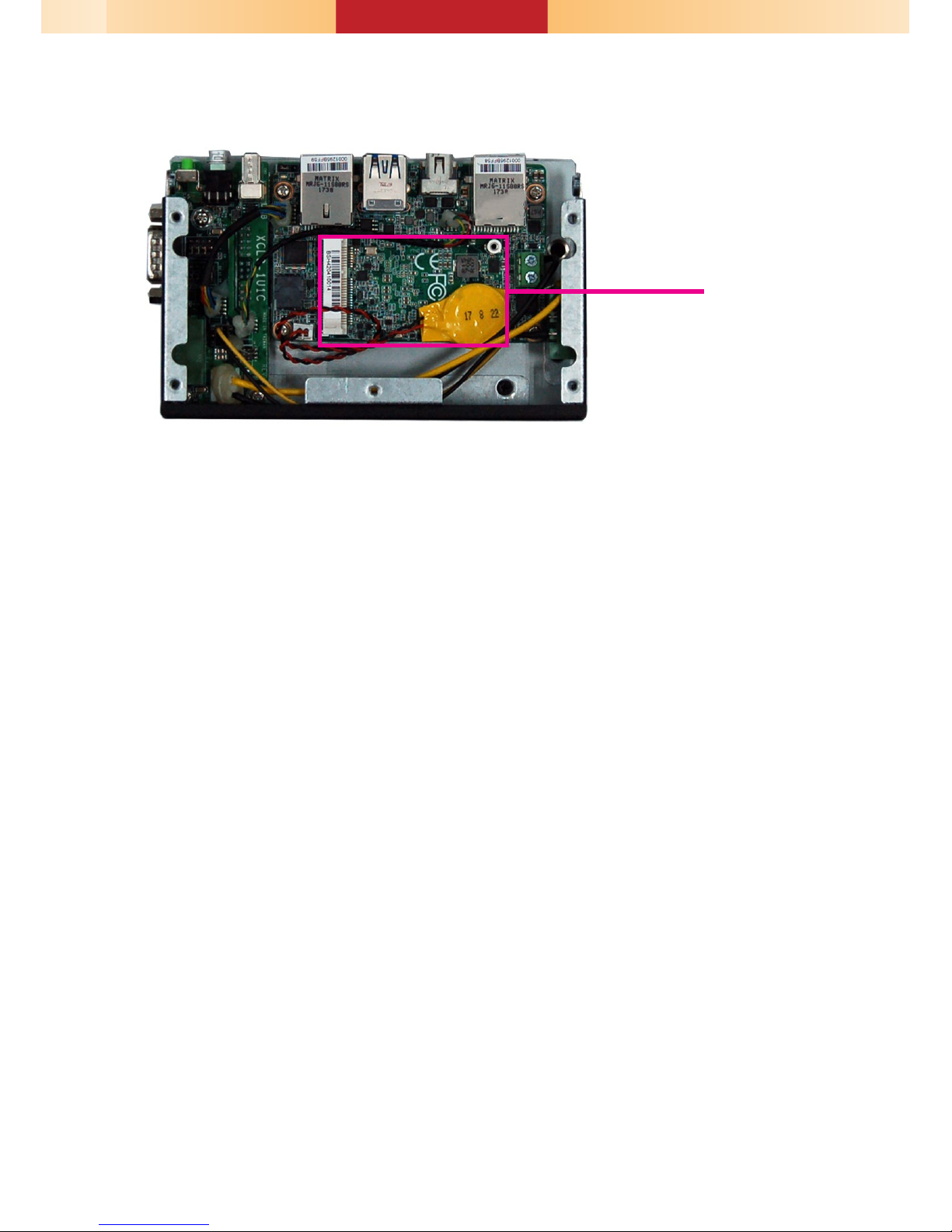

4. Lift the cover to open the system. The Mini PCIe socket is readily accessible

after removing the chassis cover.

Mini PCIe socket

Installing a Mini PCIe Card

The system board is equipped with 1 Mini PCIe slot that supports PCIe and USB

signals.

1. Grasp the Mini PCIe card by its edges and align the notch in the connector of

the PCIe card with the notch in the connector on the system board. Insert the

bottom edge of the card into the socket.

2. Push the Mini PCIe card down and use the provided mounting screw to secure

the card on the system board. Route the antenna(s) to the antenna holes on

side of the chassis.

Mounting Screw

Antenna Holes

Insert the card

at an angle

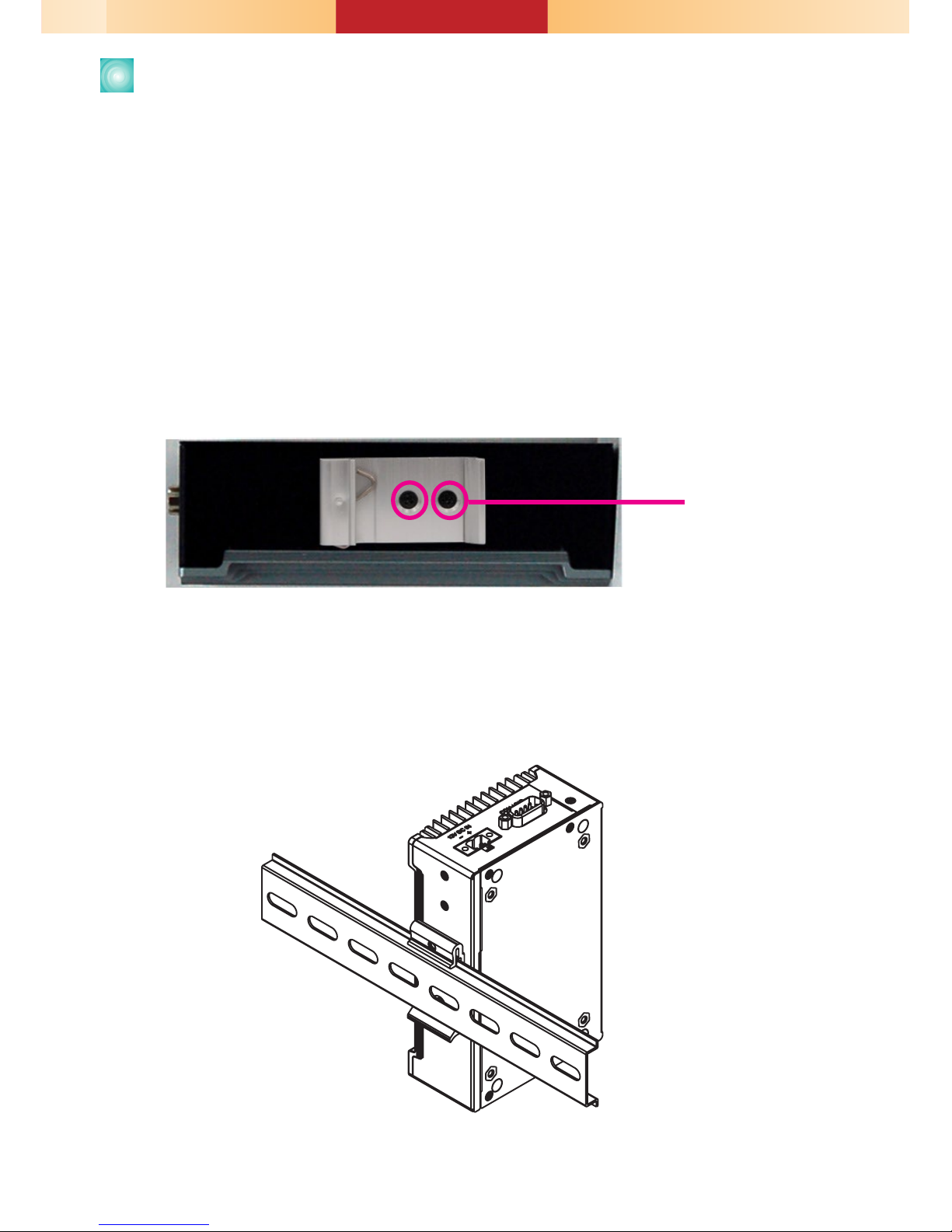

DIN-Rail Mount

The system features DIN-rail mount chassis that facilitates fast installation of the

EC90A-AL to a DIN rail.

The din-rail mount kit includes the following:

• Din-rail mount bracket

• 2 screws

1. Use the provided mounting screws to attach the din-rail mount bracket to the

rear side of the device.

2. Install the device onto the rail.

Mounting screws

The wall mount kit includes the following:

• Two wall mount brackets

• Bracket screws

Wall Mount

1. Align the mounting holes of the wall mount bracket with the screw holes of

the system and use the provided mounting screws to secure the wall mount

brackets on both sides of the system.

Mounting Screw Mounting Screw

The following diagrams show the location and dimension of the wall moutning holes.

108

8.50

95.20

107.20

108

8.50

95.20

107.20

Board Layout and Jumper Settings

A50001823

Note:

You cannot use the external COM Port 1 and DIO

at the same time. Please set JP1 and JP2 together.

www.d.com

External COM Port 1 /

DIO Pin Select

JP1 JP2

COM (default) 1-2, 4-5, 7-8,

10-11 On

1-2, 4-5, 7-8,

10-11 On

DIO 2-3, 5-6, 8-9,

11-12 On

2-3, 5-6, 8-9,

11-12 On

eMMC

DIO

Intel Atom

E3900 Series

Intel I210IT

Front

Panel

15 5 1

SMBus

9 1

LPDDR4LPDDR4

Buzzer

Power

Reset

USB 2.0

JP2

1 5

62 1

Battery

DC-in

J3 J4

JP1

DIO/COM 1

Standby Power LED

Clear CMOS

Data (JP2)

LPDDR4LPDDR4

SPI Flash

BIOS

Mini PCIe

LAN 2

USB 0

USB 2.0

Battery

DC-in

F81803

10 2

COM1

LAN 1

USB 0-1

USB 3.0

Mini DP++
