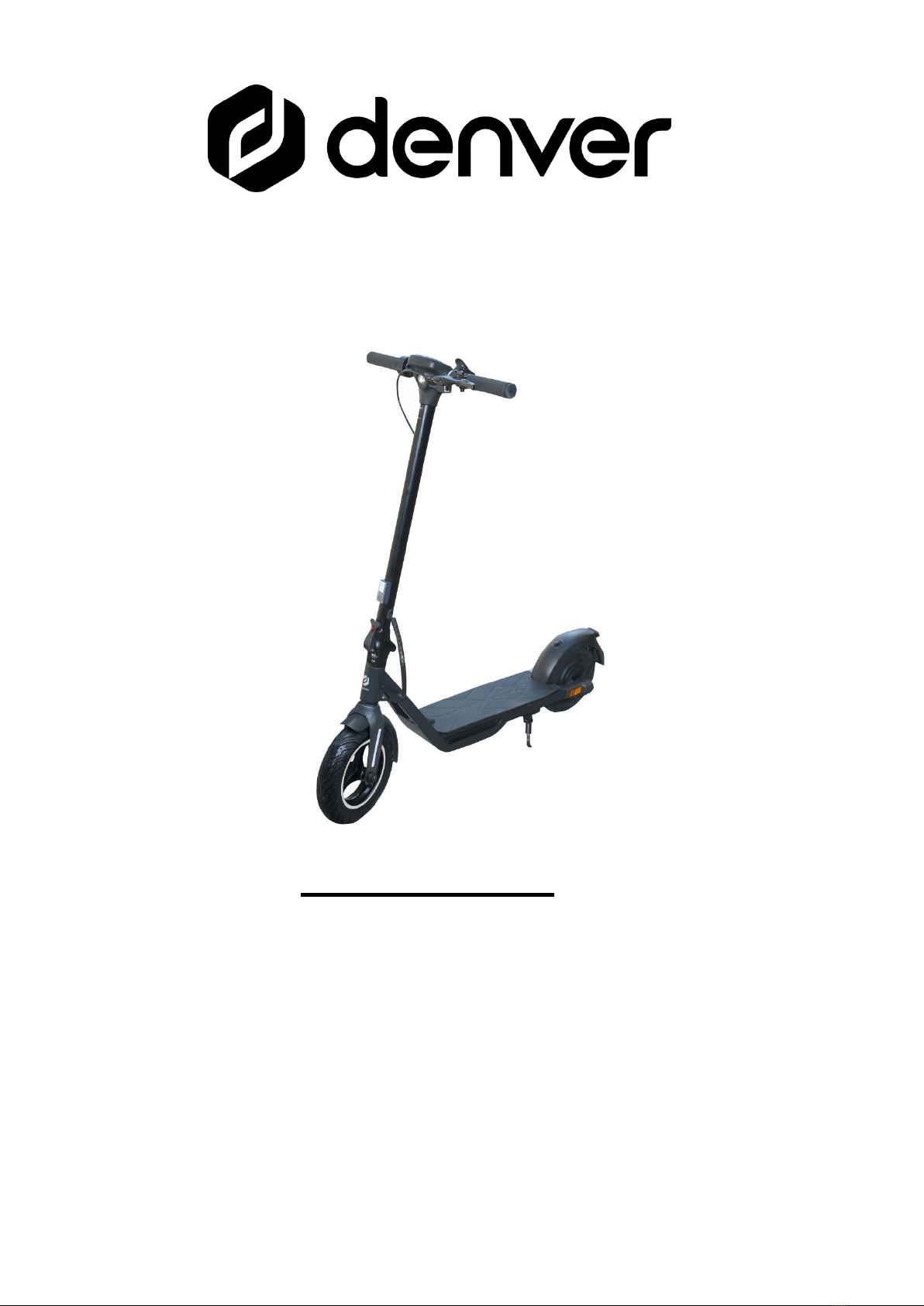

Denver SEL-10810FD Manuel utilisateur

User manual

SEL-10810FD

facebook.com/denver.eu

Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can

guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize

yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.

This appliance can be used by children aged from 14 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

April/2022

ENG1

Table of Contents

1 Product and Accessories ....................................................................................................................... 2

2 Unfolding and folding the scooter ......................................................................................................... 4

3 Assembling the device ............................................................................................................................5

4 Charging the scooter .............................................................................................................................. 6

5 Intended Use .......................................................................................................................................... 7

6 Safety Instruction ................................................................................................................................... 7

7 Maintenance .......................................................................................................................................... 8

8 Operational control ...........................................................................................................................10

9 Electric scooter riding ...........................................................................................................................11

10 List of parameters ................................................................................................................................. 12

11 Electric scooter safe parking .................................................................................................................13

12 Safe transportation ...............................................................................................................................13

13 Warnings ............................................................................................................................................... 13

ENG2

1 Product and Accessories

Important!

This electric scooter must be charged and stored in a safe way.

For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above

45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the

supplied power adapter to charge the electric scooter.

Make sure that all screws are properly tightened to avoid unsafe situations.

WARNING

●Please make sure to check that the steering system is correctly adjusted and that all

connection components are firmly secured and not broken before riding, refer to handlebar

assembly and safety instruction.

●Please read operation guide and warnings of correct techniques for use and braking

●Always wear shoes.

●When self-locking nuts and other self-locking fixings may lose their effectiveness.

●All parts and materials of electric scooter cannot be changed, modifications are not allowed.

●Please take care not to lose the keys. The keys are unique for each scooter. If they are lost the

lock has to be changed.

1.1 Product and Accessories

Key hole

Front reflector

Foldable

10” wheel size

Rear reflector and LED light

Rear Drum brake

Side reflector

Kickstand

ENG3

IMPORTANT NOTICE !

Always remember to disconnect the plug before taking out the battery of the compartment.

During insertion of the battery always remember to connect the plug after insertion.

Screw for handlebar

attachment x 4

Handlebar

Accelerator

Front LED light

Display

Bell

Manual and

Electric brake in

one solution.

Charger

Allen key x 1

Key for battery

compartment x 2

Battery compartment lid

Detachable Battery Pack

Connecting port

Hand-strip

Lid Lock

Charging port

Connecting wire

ENG4

2 Unfolding and folding the scooter

Unfolding the scooter

1) Place the electric scooter on its wheels like below. Unlock the hook on the handlebar.

2) Pull up the handle in a gentle way. Raise the handle slowly.

Close the lock lever located on the lower part of the handlebar support tube.

3) The electric scooter is unfolded as soon as you hear the rod clicks into place.

Folding the scooter

1. Release the release lever located on the lower part of the support tube of the handlebars.

2. Fully open the release lever.

3. Open the scooter by accompanying the handlebar tube downwards.

4. Hook the folded tube onto the appropriate support.

ENG5

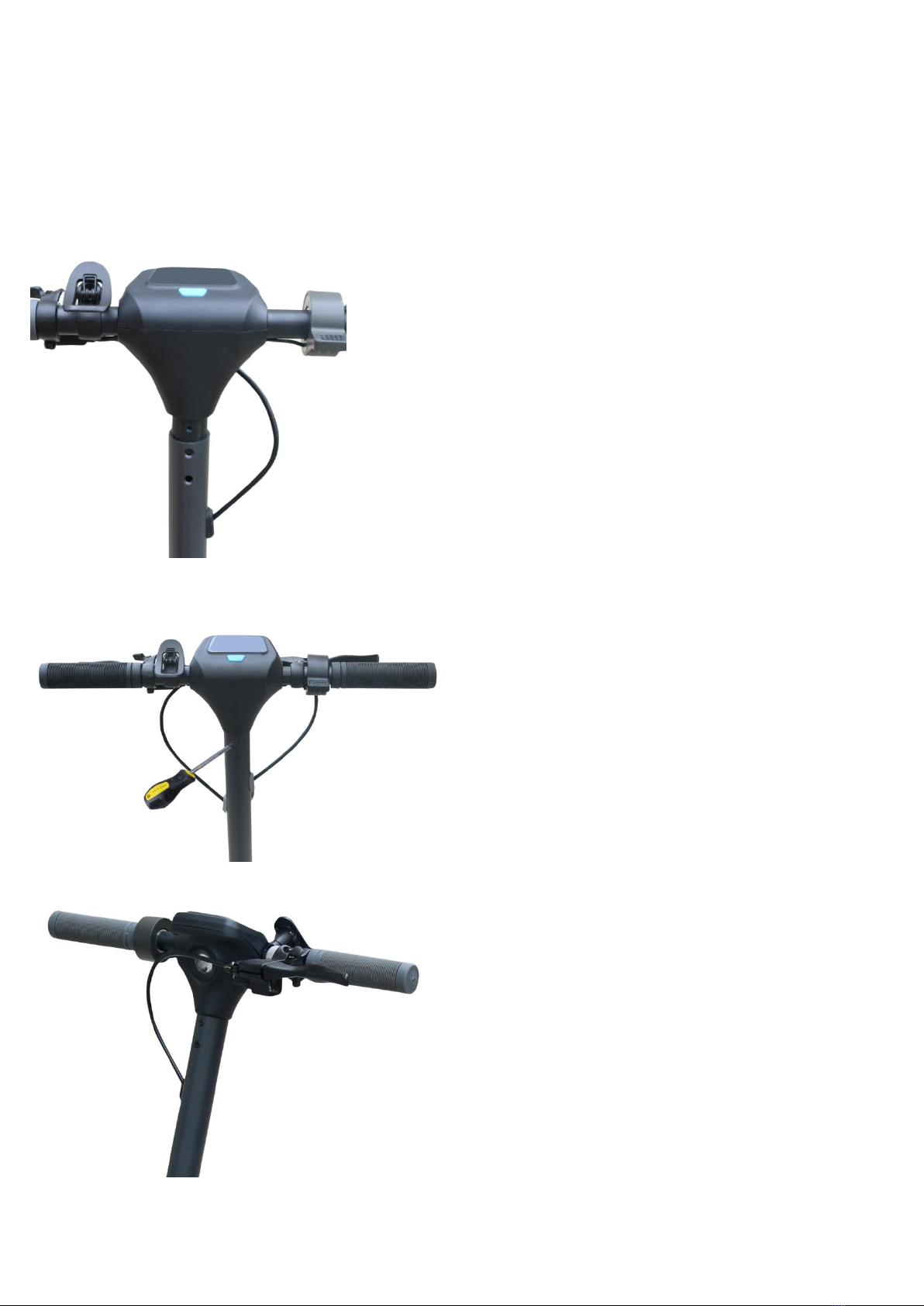

3 Assembling the device

Before using the scooter it is necessary to install the handlebar on the frame main vehicle.

1). Insert the handlebar into the vehicle frame.

2). After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well;

repeat the operation also in the side opposite of the handlebar inserting a total of 4 screws.

ENG6

4 Charging the scooter

4.1 Charge the scooter directly

Connect the supplied power adapter to the charging port of the electric scooter.

4.2 Charge the detachable battery separately

1. Use the supplied key to unlock the lid of battery compartment and then open the lid.

2. Unplug the wire inside the battery compartment which is connecting the battery pack with scooter body.

3. Hold the hand-strip on battery pack and take it out.

4. Connect the supplied power adapter to the charging port of the detachable battery.

Charging port

ENG7

5 Intended Use

The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment.

The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 120 kg.

The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. List of

parameters”). Importantly, the Electric scooter may only be operated in good visibility conditions and only if the

physical conditions for stability on the Electric scooter are met (for example, not on one leg/not under the influence

of drugs or alcohol). When operating the electric scooter, the operator must wear personal protective equipment

specified in the section (“13. Warnings” > 13.2 Preparation”).

6 Safety Instruction

We recommend always wearing helmet and protective gear like elbow, knee and wrist protectors to ensure your

personal safety.

Also make sure you have read the user manual carefully, to ensure you know how to ride it in a safe and fun

way.

The Electric scooter is for domestic use only.

It is your responsibility to be aware of and comply with all regulations. If there are no regulations for this

Electric scooter in your country, please take care of your own safety and the safety of others.

Also pay attention to other people. Always ride safely and only at a speed that allows you to brake safely at

any time. A common thing for such products is that there is a risk that you may fall off the product and injure

yourself. Always ride as safely as possible.

If lending the electric scooter to friends and family, please make sure they use proper protective gear and

know how to ride it.

Before riding the electric scooter, please check that all parts are working as supposed to. If any loose parts,

abnormal noise, reduced battery life etc. are detected, please contact your retailer for product service and

warranty. Do not repair the electric scooter yourself.

Inspect the rear tire and rear brake according to Section 7 of the maintenance specification in this operating

instructions. The electric scooter may become unstable if the rear brake is deformed or loose.

Avoid stepping on the rear fender. This may cause the fender to loosen or damage the fender.

ENG8

As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the

additional resistance. The rear tire can also get loose if the brake is in constant braking position.

Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the

rubber and it will no longer have the same grip on the road as usual. Do not touch the tire after braking.

If you hear unusual noises or notice friction when switching on the electric scooter, a bearing may be

damaged. A worn bearing may even be indicated by strong vibration of the handlebar. In this case, please

contact your retailer since the bearing needs to be replaced and/or the handlebar checked and adjusted.

Ride the electric scooter only on a dry surface since otherwise the riding safety and braking performance may

be impaired and the motor or bearings may be damaged.

Please do not ride up or down long and steep slopes.

Stop riding when battery is low. The electric scooter then moves only slowly and does not have the same

traction as normal. In this case, please use the handbrake rear brake to stop the electric scooter. Get off the

Electric scooter as soon as the speed allows to do that safely.

Do not use the electric brake and the throttle at the same time.

A normally working Electric scooter operates safely and quietly. If you hear noises or notice bumpy operation,

please check wheels, bearings, and brakes. Contact your customer service for repair and maintenance, if

necessary.

7 Maintenance

To ensure you get the best possible performance and experience from your electric scooter, it is important

to do regular maintenance for important parts of the product.

●Battery maintenance

●Bearings, Screws, Brakes and Wheels

●Storage and Cleaning

Your electric scooter will require some maintenance so please read and familiarize yourself with this guide.

●Battery maintenance

All batteries have a life cycle, and performance will decrease over time, however here are some advice to

maximize the life span of the battery.

Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long

time. This is to prevent damage to the battery, caused by low voltage over an extended period.

Avoid draining the battery completely. It is best to charge while there is still power on it. This will extend

battery life. If the battery is constantly depleted, it will damage the battery (damaged battery caused by

wrong handling are not covered by the warranty).

If riding the electric scooter in cold or very hot areas, the battery time can be lower than when riding in

temperatures from 15-25° Celsius. This is not a failure on the batteries, but normal behavior.

ENG9

Please notice: Even a fully charged battery will run out of power if the electric scooter is not used for a period.

Expect a fully charged battery to keep power between 90 and 120 days in off mode, before it is fully

discharged. If only partially charged, this period is lower.

Please make sure the battery does not get above 50° Celsius, or below minus 10° Celsius for a longer period.

(e.g. don’t leave the electric scooter in a hot car in summer, do not put battery into fire etc.) Low temperature

(e.g. subzero temperature) can damage the battery cells.

Keep the Electric scooter away from open flame or other sources of heat to prevent the battery from getting

too hot. Also make sure not to leave the electric scooter at freezing temperatures. Both heat and excessive

cold can cause the battery to discharge.

Only use original charger or an official replacement, as different batteries may require specific charger, and if

using other chargers, this could cause damage to the product.

Do not overcharge and discharge the battery.

Please make sure to charge the battery before it is completely out of power, to avoid damaging the battery

cells. (damaged battery caused by wrong handling are not covered by the warranty)

It is forbidden to disassemble battery package. This is only to be handled by official service repair centers and

professionals.

●Bearings, Screws, brakes and Wheels

Your electric scooter is made up of moving parts, which in time, will be susceptible to wear and tear.

Bearings and screws:

The electric scooter has sealed and dust proof bearings so that no lubrication is required. Check the bearings

for wear at regular intervals to avoid unsafe riding. Do not jump on and off and do not apply excessive force

otherwise to avoid damage to the bearings. This is not a sports electric scooter.

Make sure that all screws are properly tightened to avoid unsafe situations.

Please check the screws regularly and tighten if they seem loose.

Brakes:

Check the brake for wear at regular intervals to avoid unsafe riding. Do not apply excessive force to avoid

damage to the brake.

Electric scooter with drum brake like this model will require adjustment over time and in the end will need to

be repaired or replaced when worn down. Avoid using electric scooter when brakes are worn down.

Wheels:

Check the wheels for wear at regular intervals to avoid unsafe riding.
