Denver DSC-5000 Manuel utilisateur

DSC-5000

facebook.com/denverelectronics

Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can

guide you through the functions and usage of Electric kick scooter. Before using this scooter, familiarize

yourself with how to operate, so that you can keep the scooter in the best condition possible.

1. Product and Accessories

Electric brake

Throttle

Clasp Mechanical brake

2. Instrument menu

For better operation, please read the instructions carefully.

2.1 Appearance

2.2 Keyboard

1) There are 3 instruments: Power on/off key , shift gears key , type switch key ,

the different functional and role exchanged by long press or short press the keys.Press any

two keys at the same time will perform other function and role.

2) Battery level and speed is showing the instantaneous status, and changing

from time to time. Single mileage and milti mileages etc show as you choose the

different keys.

3) When short press key, each short-press will display the value of this current mileage

(KM),Battery voltage (V), motor current value (A), motor speed value (rad / min), total mileage

(KM) accordingly.

4) Short press key, modify assistance drive.

5) Long press , turn on or turn off instrument indicator.

Mileage/

Total mileage Gear range

Speed up key

Switch key

Type conversion

Battery indicator

Speed indicator

2.3 Operation Instructions

1) Long press instrument key, instrument panel display blue light, the scooter is on.

2) Press the throttle near your right thumb, the scooter starts; continue to press the throttle, the

speed increases, loosening the throttle, the speed decreases.

3) The left hand side is the electronic brake, press the electronic brake to execute the brake

functions, release the electronic brake to cancel the brake function.

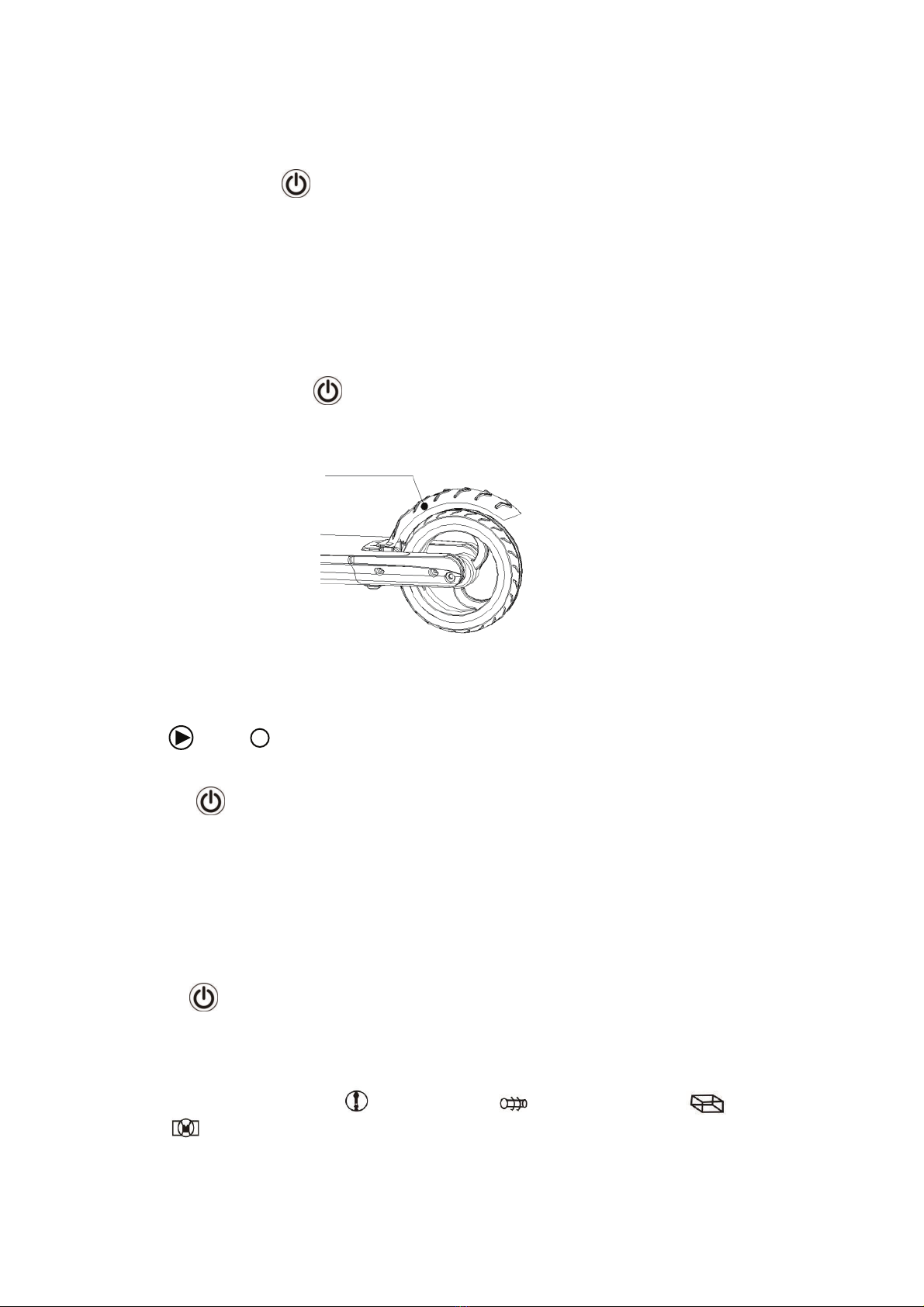

4) Heel touch on the mechanical brake, can impliment the mechanical brake, as shown in ﬁgure.

5) Long press the instrument key, instrument blue light disappears, the scooter power off.

2.4 Parameter Settings

Long press key + at the same time enter to the SET (parameter setting), followed by zero or

non-zero start, the motor pole log ratio, wheel diameter settings.

1). Short press key, when display 1, enter zero start and non-zero start horizontal setting. When

parameter value is 0, it will start with zero. When parameter value is 1, it will start non-zero.

(Zero start: When starting, the scooter in the stationary case, press the switch to start walking,

factory default is zero start.)

(Non-zero start: When starting, the scooter is static, press the switch and the scooter does not work,

manually start riding , the scooter works. )

2). Long press again to exit the setting state, and save the set parameters.

3). Failure model indicator

When the electric scooter breaks down, the failure meter will display what section breaks

down, such as: brake failure , motor failure , handlebar failure , controller

failure etc.

Light on the mechanical brake pads

Figure (1)

3. Folding steps

1. Folding

1) Hold the clasp and pull it outward

2)Press the front tube of scooter downward

(Attention: The limit position must be put right.)

3)After a click, folding process finishes.

2. Unfolding:

1) Stand the scooter on its wheels, press the

unlock clasp.

2) Raise the handle slowly.

3) Unfolding process finished when you hear

the “click”.

4. Right and Left Handlebar assembly

1) Parts inside the packaging: two handlebars

2) Assembly methods: Loosen the screw on the handlebar, rotate the axle to make the

meter screen upwards while the handlebar and display screen turn inwards in a

horizontal level.

Figure (2) Figure (3)

Turn Direction Turn Direction

5. Charger connection

Plug the adapter into the charging port

6. Safety Instruction

We recommend always wearing helmet and protective gear like elbow, knee and wrist protectors to

ensure your personal safety.

Also make sure you have read the user manual, to ensure you know how to ride it in a safe and fun

way.

Please also pay attention to the rules your country has regarding use of such products. In many

countries it is not allowed to ride on public roads and places. Only on closed courts. It is always your

own personal responsibility to live up to these rules. Even in countries where there are not any

written rules, please keep in mind that you should always ensure your own and others safety.

Also pay attention to other persons. Always ride in a safe way and make sure not to drive faster than

you can stop in a safe way. As with all other products like these, there is a risk of falling and hurting

yourself.Sopleasemakesuretorideitinthesafestwaypossible.

This is not a transport vehicle. More a sport/entertainment kick scooter for having fun.

If lending the kick scooter to friends and family, please make sure they use proper protective gear &

know how to ride it.

Before riding the kick scooter, please check that all parts are working as supposed to. If any loose

parts, abnormal noise, reduced battery life etc. Please contact the place of purchase about product

service and warranty.

7. Daily Manitenance

•Storage and cleaning

If your kick-scooter gets dirty, please clean it with a damp cloth. (you can use a stiff brush first to get

the worst dirt off and then use a cloth afterwards to clean it.). It is also possible to use a little

toothpaste if the dirt is stuck. Remember to clean with damp cloth after this.

Please make sure to keep the kick scooter turned off while cleaning it, and make sure to cover the

charging input to avoid problems with the electronics.

Please notice: Do not use alcohol, gas, kerosene or other corrosive and volatile chemical solvents.

This can damage both the appearance and the internal structure of the kick scooter. You may not

use pressured water-gun or running water either.

Please store your kick scooter in a dry and cool environment when not in use. Avoid leaving it

outdoors, as it is not made for use in wet areas. Nor is it good to expose to high temperatures

caused by direct sun for a long time.

•Maintenance of batteries

Please make sure the batteries do not get over 50° Celsius, or under 20° Celsius for a longer period

of time. (e.g don’t leave the kick scooter in a hot car in summer, do not put batteries into fire et.)

Low temperature (e.g. subzero temperature) can damage the battery cells.

Please avoid draining the batteries 100%. It is best to charge them while there is still power on them.

This will extend battery life. Also if riding the kick scooter in cold or very hot areas, the battery time

can be lower than when riding in temperatures from 15-25° Celsius. This is not a failure on the

batteries, but are normal behavior.

Please notice: Even fully charged batteries will run out of power if the kick scooter is not used for a

period of time. Expect between 90 and 120 days in off mode if batteries are fully charged. If only

partially charged, this period of time is lower.

Please make sure to charge the batteries before they are 100% out of power, to avoid damaging the

battery cells. (damaged battery caused by wrong handling are not covered by warranty)

It is forbidden to disassemble battery package. This is only to be handled by official service repair

centers and professionals.

8. Parameter table

Performance Item Parameter

Size

Folding size(MM 1010*415*245

Developed Size(MM) 924*415*997

Carton size (MM) 1020*175*245

Quality Max Load(KG) 125KG

Empty Quality(KG) 8.0KG

Ride Condition Age(Year) 16-50

Height(CM) 130~200CM

Scooter

Max Speed(KM/H) 24km/h

Endurance(KM) 12~15km

Max. grade ability 20°

Terrain

Hardened pavement, flat asphalt

pavement, below 20 degrees the ramp,

No higher than the 10CM stair, no more

than 2CM channel

Battery

Rated voltage(V) 25.2V

Input voltage(V) 29.4V

Battery capacity(Ah) 4.0Ah

Motor Motor Power (W) 250W

Battery Charger

Rated Power (W) 58.8W

Rated input voltage (v) 110V-240V

Rated output voltage (v) 29.4

Rated current (A) 2A

Charging Time 2~2.5H
