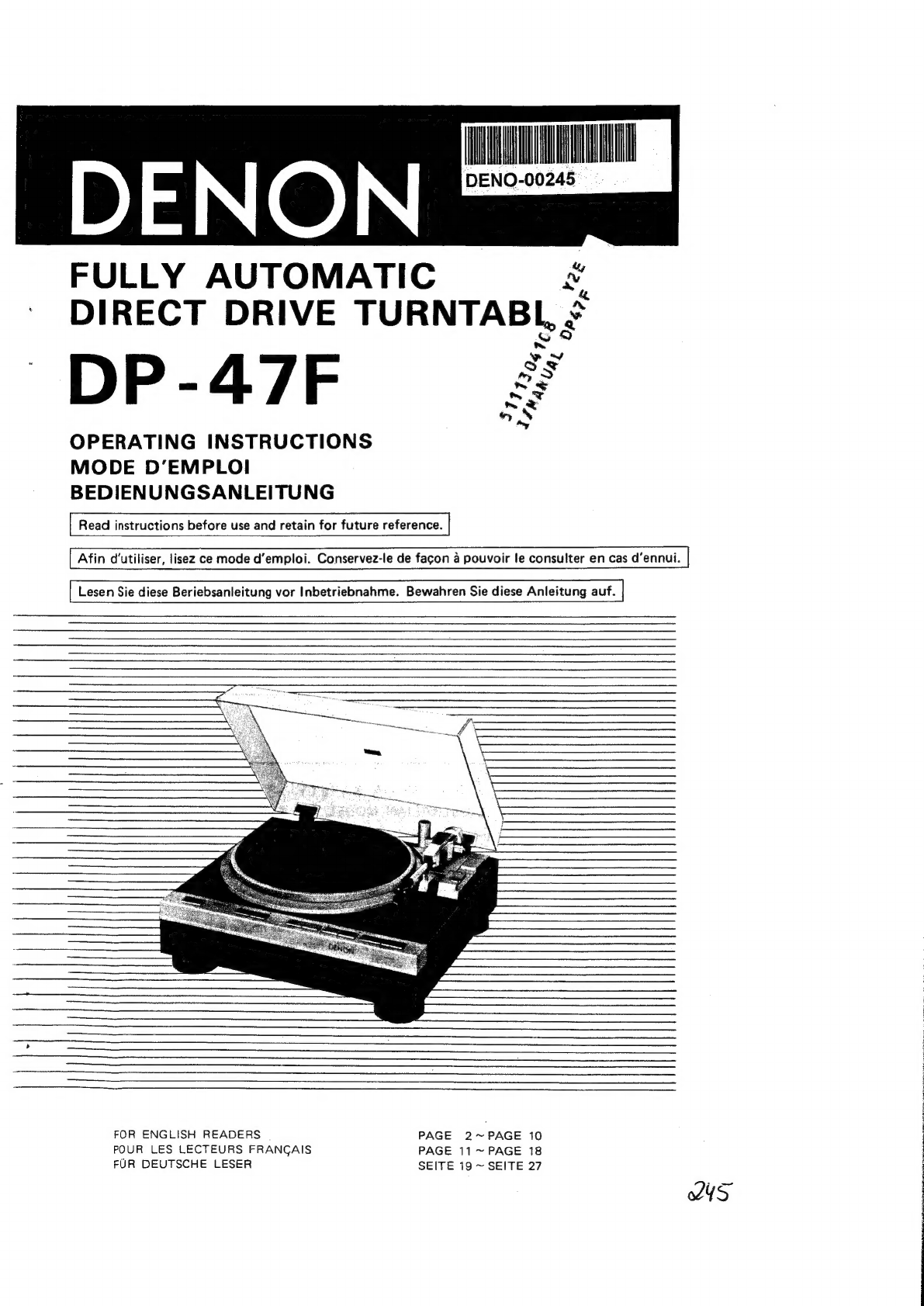

UO

DENQ-00245

FULLY

AUTOMATIC

&

DIRECT

DRIVE

TURN

ABL,

¢

DP-47F

OPERATING

INSTRUCTIONS

MODE

D’EMPLOI

BEDIENUNGSANLEITUNG

Read

instructions

before

use

and

retain

for

future

reference.

Lesen

Sie

diese

Beriebsanleitung

vor

Inbetriebnahme.

Bewahren

Sie

diese

Anleitung

auf.

Afin

d'utiliser,

lisez

ce

mode

d'emploi.

Conservez-le

de

facon

4

pouvoir

le

consulter

en

cas

d’ennui.

FOR

ENGLISH

READERS

PAGE

2~

PAGE

10

POUR

LES

LECTEURS

FRANCAIS

PAGE

11

~

PAGE

18

FUR

DEUTSCHE

LESER

SEITE

19

~

SEITE

27

IMPORTANT

TO

SAFETY

WARNING:

TO

PREVENT

FIRE

OR

SHOCK

HAZARD,

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE.

Model

No.

DP-47F

Serial

No.

-

Please,

record

and

retain

the

Model

name

and

serial

number

of

your

set

shown

on

the

rating

label,

IMPORTANT

(BRITISH

MODEL

ONLY)

The

wires

in

this

mains

lead

are

coloured

in

accordance

with

the

following

code:

Blue:

Neutral

Brown:

Live

As

the

colours

of

the

wires

in

the

mains

lead

of

this

apparatus

may

not

correspond

with

the

coloured

markings

identifying

the

terminals

in

your

plug

proceed

as

follows.

The

wire

which

is

coloured

blue

must

be

connected

to

the

terminal

which

is

marked

with

the

letter

N

or

coloured

black.

The

wire

which

is

coloured

brown

must

be

connected

to

the

terminal

which

is

marked

with

the

letter

L

or

coloured

red.

FOR

YOUR

SAFETY

(AUSTRALIAN

MODEL

ONLY)

To

ensure

safe

operation,

the

three-pin

plug

supplied

must

be

inserted

only

into

a

standard

three-pin

power

point

which

is

effectively

earthed

through

the

normal

household

wiring.

Extension

cords

used

with

the

equipment

must

be

three-core

and

be

correctly

wired

to

provide

connection

to

earth.

Wrongly

wired

extension

cords

are

a

major

cause

of

fatalities.

The

fact

that

the

equipment

operates

satisfactorily

does

not

imply

that

the

power

point

is

earthed

and

that

the

installation

is

completely

safe.

For

your

safety,

if

in

any

doubt

about

the

effective

earthing

of

the

power

point,

contact

a

qualified

electrician.

Note:

Whenever

the

power

switch

is

in

the

OFF-state,

the

apparatus

is

still

connected

on

AC

line

voltage.

Please

be

sure

to

unplug

the

cord

when

you

leave

home

for,

say,

a

vacation.

ea,

—

TABLE

OF

CONTENTS

—

FEATURES

ye6

7s

3%

hae,

8

Wien

aca

iesensaten

sl

pa

Bh

siete

tn

Sal

sales

cet

Sigg

eee

eee

cep

ares

Wee

Mh:

aes

3

PARTS

NOMENCLATURE

AND

FUNCTIONS...

...

2.0.0.0...

cee

eee

eee

teens

4

HOWTO.

ASSEMBEE?

.c

s.s9

in.

wos.

¥

Stal

dog

2

See

Guleeiat

eS

AAS

GES

aa

aS

erred

eds

wR

ate

ones

5

HOW:

“EO

CONNECT

og.

eos

ieee

Pe

dis

tele

eleva

Pies

Be

WAG

ONS

ES

See WaT

are

Ne

ere

5

ADJUSTING

THE

TRACKING

FORCE,

ANTI-SSKATING

FORCE

AND

Q-DAMPING

........

6

HOW!

TOU

PLAY

cox

era

lioe

hea

a

peste

ee

ee

pane

Gb

ned

doe

6a

en

dene,

ale

ta

SIRS

OTe

Boies

6

REPLACEMENT

OF

PARTS

AND

READJUSTMENTS

.........

0.000

cece

eee

eee

8

SPECIFICATIONS

5:

foi)

elveeedas

ag

5

ened

SS

aS

he

we

ee

See

a

Be

Se

9

TROUBLESHOOTING

GUIDE

2.1...

ce

eee

ee

et

ees

10

1.

Microprocessor

controlled,

contactless

servo

tonearm

A

unique

microprocessor

controlled,

contact-

less

servo

tonearm

ensures

safe,

easy

to

use

automatic

operation

with

no

deterioration

in

sound

quality.

.

Q-damping

method

(Dynamic

servo

tracer)

Low

frequency

resonance

caused

by

the

car-

tridge

compliance

and

the

effective

tonearm

mass

is

electronically

damped

both

horizontally

and

vertically

to

effectively

suppress

crosstalk

and

inter-modulation

distortion.

The

dynamic

servo

tracer

maximizes

the

performance

of

the

low

mass

tonearm

and

results

in

a

record

re-

production

of

excellent

sound


with

minimum

noise

and

distortion.

.

Low

mass

straight

arm

Having

an

outstanding

tracing

ability,

this

arm

maximizes

the

performance

of

the

high

com-

pliance

cartridge

to

the

full

extent.

Even

with

the

most

up-to-date

high

grade

records,

its

tracing

ability

is

excellent.

.

Locate

function

Just

by

pressing

the

locate

button,

the

tone-arm

is

moved

to

any

desired

location

where

the

re-

cord

play

is

started.

.

Record

size

detector

and

automatic

speed

selector

The

record

size

and

the

speed

are

automatically

set,

when

playing

12

inch

records

(33

1/3

rpm)

or

7

inch

records

(45

rpm)

in

the

automatic

play

mode.

The

unit

provides.a

safety

measure

which

causes

the

tonearm

to

stop

and

return

to

the

arm

rest

to

protect

the

stylus

tip

when

there

is

no

record

on

the

turntable,

even

if

the

start

button

is

pressed.

.

DENON

quartz

on

bi-directional

servo

Bi-directional

servo

and

electronic

braking

sys-

tem

have

been

added

to

the

combination

of

the

magnetic

recording

detector

and

the

quartz

lock

to

ensure

a

stable

performance

of

rotation

and

a

sharp

operation.

.

Finely-finished

wood

cabinet

design

Mirror-like

finish,

large

cabinet

with

85

mm

in

height,

and

a

new

howling-proof

insulator

have

been

incorporated

into

the

DP-47F.

.

Newly-developed

high-output

MC

cartridge

(for

U.K.

model

only)

The

DP-47F

is

equipped

with

a

high-output

MC

cartridge

DL-80MC

which

has

a

superb

tracing

capability

and

resolution

and

it

allows

a

clear

sound

to

be

reproduced.

.

Newly-developed

cartridge

(for

European

model

only)

A

high-output

MC

cartridge

comparable

to

MM

cartridges.

The

DL-160

MC

cartridge

can

be

connected

directly

to

the

MM

position

of

the

amplifier.

Note:

@

U.S.,

Canadian

&

Asian

models

do

not

include

cartridge.

@

U.K.

model

includes

the

DL-80

MC

cartridge.

Record

size

detector

lamp

Counter

weight

Tonearm

rower

=

This

switch

is

used

to

turn

on

or

off

power.

Press

this

button

to

allow

the

record

size

detector

lamp

to

light

up.

For

turning

off

power,

move

the

arm

back

to

the

arm

rest,

clamp

it,

then

press

this

button

again.

[

2

BEE

ees

33.

START/LOCK.

45

For

playing

records

manually,

press

the

but-

ton

corresponding

to

the

record

speed.

‘331/3

rpm

records

.........

(33.

Start)

45rpm

records............

(45.

Start)

in

the

automatic

play

mode,

the

switch

will

automatically

be

set

to

33"

for

12

inch

re-

cords

and

“45”'

for

7

inch

records.

The

Speed

Indication

lamp

also

shows

the

“LOCK”

indication

and

it

keeps

blinking

until

the

turntable

reaches

a

specified

num-

ber

of

rotations,

when

it

lights

up

again.

[3

RITE

«tocar

»

au

Use

this

for

moving

the

tone

arm

horizontal-

ly

to

the

position

from

which

you

wish

to

start

playing.

|

4

|

Ov

eece

tice

UP

LIFTER

i

Press

this

button

to

raise

or

lower

the

tone-

arm

during

play,

or

when

playing

records

manually.

The

“UP”

indicator

will

light

up.

|

5

|

Pree

REPEAT

Press

this

button

for

playing

the

same

record

repeatedly:

the

“ON”

indicator

will

light

up.

6

Bicuanuene

START

Press

this

button

to

start

records

automati-

cally.

7

Boon

STOP

Press

this

button

to

stop

a

record

during

play.

Tracking

force

adjustment

knob

Operate

this

knob

for

adjusting

the

tracking

force.

The

anti-skate

and

Q

damping

are

adjusted

simultaneously.

8

TRACKING

FORCE/ANTI-SKATE

3

‘HOW

TO

ASSEMBLE

1.

Remove

the

packing

material

Remove

the

packing

material

(styrofoam)

attached

to

both

sides

of

the

cabinet.

.

Install

the

turntable

platter

and

the

turntable

mat

1)

Insert

the

turntable

platter

onto

the

motor

shaft.

2)

Place

the

turntable

mat

on

the

platter,

align-

ing

the

size

detection

holes.

For

the

pro-

truding

sections

of

the

turntable

mat

into

the

outer

square

of

the

turntable

platter.

Notes:

®

Be

careful

not

to

scratch

the

magnet-

ic

coating

on

the

inner

surface

of

the

turntable.

Further,

avoid

touching

the

diamond-cut

(shiny)

edge

of

the

turntable

platter

with

hands,

as

this

may

cause

corrosion

of

the

surface.

@

Automatic

record

size

detection

will

not

function,

if

the

size

detection

holes

on

the

platter

and

the

mat

are

not

properly

aligned.

HOW

TO

CONNECT

Align

the

square

detection

holes

Turntable

mat

Protruding

section

on

the

reverse

side

Turntable

platter

insert

the

protruding

sections

into

the

outer

square

holes

Motor

shaft

1.

Connect

the

left

(L)

and

the

right

(R)

output

wires

to

the

respective

“PHONO”

input

termi-

nals

of

the

amplifier

to

be

used.

Further,

connect

the

ground

wire

(which

is

together

with

the

output

wires)

to

the

“GND”

terminal

of

the

amplifier.

Notes:

Although

the

auxiliary

cartridge

DL-80MC

is

a

moving

coil

(MC

TYPE)

cartridge,

it

can

be

connected

directly

to

the

MM

position

of

the

amplifier

without

step-up

transformers

or

head

amplifiers.

U.S.,

Canadian

&

Asian

models

do

not

include

cartridge.

See

page

8

for

mounting

cartridge.

.

Connect

the

AC

power

plug

to

an

AC

wall

out-

let.

5

\—

Power

cord

AC

wall

outlet

Ground

wire

A

9a

OO

RD

WS

PT

RT

ORO

EAL

Lee

eae,

TE

AL

Se

ee

PO

a

MAKE

THE

FOLLOWING

ADJUSTMENT

WITH

THE

POWER

TURNED

OFF.

1.

Release

the

arm

clamp

Hold

the

tonearm

and

lower

the

arm

clamp

in

the

direction

of

the

arrow.

\

Armrest

Arm

clamp

2.

Move

the

tonearm

Take

the

tonearm

off

the

arm

rest

and

move

it

to

a

position

between

the

arm

rest

and

the

turn-

table.

Tracking

force/anti-skating/damping

adjustment

knob

Arm

rest

3.

Balance

the

tonearm

horizontally

Rotate

the

counter

weight

knob

until

the

tone-

arm

remains

balanced

parallel

to

the

turntable

surface.

Make

parallel

Counter

weight

knob

BEFORE

PLAYING

1.

Turn

the

power

supply

of

the

amplifier

on,

and

set

the

selector

switch/knob

to

‘““PHONO”.

2.

Place

a

record

on

the

turntable

and

raise

the

stylus

cover.

.

Turn

the

turntable

power

supply

on.

4.

Release

the

arm

clamp.

w&

—6—

ADJUSTING

THE

TRACKING

FORCE,

ANTI-SKATING

FORCE

AND

©

DAMPING

|

Rotate

the

counter

weight

knob

in

the

direction

of

sovf'y

the

arrow,

Spree:

sesso

4,

Return

the

tonearm

to

the

arm

rest

Return

the

tonearm

to

the

arm

rest

and

hold

it

in

place

with

the

clamp.

Arm

clamp

7

5.

Adjust

the

tracking

force

and

the

anti-skating

Since

the

cartridge

supplied

with

this

turntable

requires

a

tracking

force

of

1.89,

rotate

the

tracking

force

knob

and

align

the

number

1.8

with

the

reference

line.

The

anti-skating

and

Q-

damping

are

automatically

adjusted

at

the

same

time.

Reference

line

—

fi

TRACKING

FORCE

ANTI-SKATING

WHEN

ADJUSTING

THE

TRACKING

FORCE

AND

THE

ANTI-SKATING

When

using

a

cartridge

other

than

the

one

supplied

with

this

turntable,

apply

the

suitable

tracking

force

for

it

after

consulting

the

cartridge

instruc-

tion

manual.

The

anti-skating

is

automatically

adjusted

at

the

same

time.

oh

Arm

clamp

FOR

AUTOMATIC

PLAY

1.

Press

the

start

button.

The

tonearm

will

move

over

to

the

record

and

play

will

begin.

@

For

30cm

(12

inch),

331/3

rpm

_

records

and

17cm

(7inch),

45

rpm

records,

the

speed

and

size

are

automatically

selected.

To

play

records

of

other

than

the

above

mentioned

size,

proceed

as

follows:

(1)

Press

the

start

button.

(2)

Press

the

speed

selector

button

correspond-

ing

to

the

record

speed.

ata

|—|

ar

Press

the

start

button.

Press

the

speed

selector

button.

2.

When

play

finishes,

the

tonearm

will

return

to

the

arm

rest

and

the

turntable

will

stop

(when

the

repeat

switch

is

off).

When

the

repeat

switch

is

on

(‘““REPEAT”

is

lit),

the

record

will

be

played

again.

FOR

MANUAL

PLAY

@

When

playing

records

from

the

middle

@

When

playing

non-standard

size

records

It is

possible

to

play

the

records

by

the

follow-

ing

3

methods:

1st

method

1.

Manually

move

the

tonearm

to

the

desired

posi-

tion

above

the

record

and

lower

the

stylus.

At

this

time,

the

turntable

will

not

rotate

yet.

2.

Press

the

speed

selector

button

corresponding

to

the

record

speed.

The

turntable

will

start

to

rotate

and

play

will

begin.

3.

When

play

finishes,

the

tonearm

will

return

to

the

arm

rest

and

the

turntable

will

stop.

2nd

method

1.

Press

the

speed

selector

button

corresponding

to

the

record

speed.

2.

Manually

move

the

tonearm

towards

the

re-

cord

and

the

turntable

will

start

to

rotate.

3.

Lower

the

stylus

at

the

desired

position

on

the

record,

and

play

will

being.

4.

When

play

finishes,

the

tonearm

will

return

to

the

armrest

and

the

turntable

will

stop.

3rd

method:

1.

Set

the

arm

lifter

button

to

“UP”

(’’UP”

will

light).

2.

Manually

move

the

tonearm

to

the

desired

posi-

tion

above

the

record.

3.

Press

the

speed

selector

button

corresponding

’

to

the

record

speed.

The

turntable

will

start

to

‘rotate.

4.

The

tonearm

will

be

lowered

and

play

will

begin.

5.

When

play

finishes,

the

tonearm

will

return

automatically,

as

in

the

automatic

play

mode.

RECORD

PLAY

BY

THE

“LOCATE”

METHOD

Besides

the

above

procedures

the

tonearm

can

be

moved

by

pressing

the

locate

button.

1.

Press

the

locate

button

corresponding

to

the

desired

tonearm

movement.

2.

Move

the

stylus

to

the

desired

position.

3.

Release

the

locate

button.

The

tonearm

will

be

lowered

and

play

will

begin.

@

The

“locate’’

procedure

can

be

utilized

also

for

the

following:

©

During

play

O

While

the

tonearm

is

moving

Caution:

When

playing

records

by

the

locate

method,

be

careful

not

to

lower

the

stylus

on

the

turntable

mat.

(sam

i

Moves

the

arm

to

the

Moves

the

arm

to

the

left,

toward

the

center.

right,

away

from

the

record

center,

WHEN

PLAYING

TRANSPARENT

RECORDS

Rotate

the

turntable

mat

90°,

and

play

the

record

with

the

square

windows

of

the

turntable

covered.

(Follow

the

same

procedure

when

playing

warped

records.)

Note:

When

the

start

button

is

pressed,

the

stylus

tip

will

always

lower

at

the

30

cm

(12

inch)

position.

When

playing

other

size

records,

be

sure

to

play

them

manually

to

avoid

stylus

tip

damage.

REPEATED

PLAY

Press

the

repeat

button

‘‘on’’

(“REPEAT”

will

light).

The

same

record

will

be

played

repeatedly

until

the

repeat

is

cancelled.

To

cancel

the

repeat,

Press

the

repeat

button

once

more.

®

When

stopping

during

play

1.

Press

the

stop

button

The

tonearm

will

return

to

the

arm

rest

and

the

turntable

will

stop.

2.

Or,

press

the

arm

lifter

button

to

the

““UP’”’

position.

The

tonearm

wil!

rise

at

the

posi-

tion,

while

the

turntable

will

keep

rotating.

REPLACEMENT

OF

PARTS

AND

READJUSTMENTS

|

Stylus

replacement

(U.K.

model

only)

The

stylus

tip

life

of

the

attached

cartridge

is

ap-

proximately

500

hours.

Earlier

replacement

of

the

stylus

is

recommended,

as

a

worn

stylus

tip

may

cause

distorted

sounds

and

damage

to

the

records.

Be

sure

to

ask

for

‘“‘DENON

DSN-80”

when

purchasing

a

replacement

stylus.

There

will

be

no

guarantee

on

the

performance

and

against

malfunctions

if

a

different

stylus

is

used.

How

to

replace

1.

Loosen

the

lock

screw

on

the

foremost

end

of

the

tonearm,

and

pull

the

head

shell

out

in

the

direction

of

the

arrow.

2.

Remove

four

lead

wires

located

at

the

back

edge

of

the

cartridge.

3.

Holding

the

both

sides

of

the

stylus

cover

with

your

fingers,

pull

it

out

in

the

direction

of

the

arrow

in

the

figure.

At

this

time,

the

terminals

are

also

removed.

4.

Attach

a

new

replacement

stylus

to

the

car-

tridge

until

it

is

locked.

5.

Connect

the

lead

wires

to

the

terminal.

See

the

“Cartridge

Replacement”

for

the

con-

nection.

Cartridge

replacement

A

different

cartridge

with

a

weight

between

3

and

12g

(including

screws

and

nuts)

can

be

attached

to

the

head

shell

of

this

turntable

unit.

(When

pur-

chasing

only

the

head

shell,

ask

for

the

“DENON

PCL-40"")

The

overhang

of

this

turntable

unit

is

16

mm.

When

the

installation

is

performed

as

shown

in

the

diagram,

the

proper

overhang

is

obtained.

Note:

When

the

cartridge

has

been

replaced,

be

sure

to

readjust

the

horizontal

balance,

tracking

force

and

OQ-damping.

The

color

designation

of

the

lead

wires

is

as

follows.

Be

careful

not

to

make

any

errors.

Red

,.........

right

channel

(R)

White.........

left

channel

(L)

Green.........

right

channel

ground

(RG)

Blue

,..........

left

channel

ground

(LG)

How

to

raise

the

stylus

cover

(For

attached

cartridge

DL-80

or

DL-160)

To

protect

the

stylus

tip,

lower

the

stylus

cover

after

use.

Pull

out

¢

Lock

screw

Head

shell

a

Replacement

stylus

DSN-80

Attach

parallel

to

each

other

Head

shell

Attach

vertically

bottom

view

Head

shell

front

view

Stylus

cover

Before

playing,

raise

the

stylus

cover

in

the

direc-

.

tion

of

the

arrow.

(SPECIFICATIONS

=

MOTOR

Drive

System:

Turntable

Speeds:

Wow

&

Flutter:

S/N

Ratio:

Rise

Time:

Turntable

Platter:

Motor:

Speed

Control

System:

Speed

deviation:

Load

characteristics:

GENERAL

Power

Supply:

Power

Consumption:

Dimensions:

Weight:

TONEARM

SECTION

Arm

Type:

Effective

Length:

Overhang:

Tracking

Error:

Automatic

Mechanism:

Adjustable

Tracking

Force

Range:

Suitable

Cartridge

Weight

Range:

CARTRIDGE

Output

Voltage

Frequency

Response:

Tracking

Force:

Servo

controlled

direct

drive

33-1/3,

45

rpm

Below

0.010%

wrms

(servo

system)

Below

0.020%

(JIS)

Over

78

dB

(DIN-B)

Nominal

speed

within

2

seconds

(at

33-1/3

rpm)

Aluminum

die-cast;

310

mm

diameter

Linear

drive

motor

Speed

servo

by

frequency

detection,

phase

servo

control

Below

0.01%

0%

(80

g

tracking

force;

outermost

groove)

50/60

Hz,

Voltage

is

shown

on

rating

label

Approx.

8

W

434

x

179

x

410

mm

(W

x

H

x

D)

17

x

7.3

x

16.1

in

Approximately

8.5

kg

(19

Ib)

Dynamically

balanced,

straight

tube

tonearm

220

mm

16

mm

Within

3°

Electronically

controlled,

fully

automatic

0

~

3.0

g

(1

scale

=

0.1

g)

Approximately

3.0

~

12.0

g

(including

screws,

nuts)

DL-80MC

DL-160

(European

model

only)

1.6mV

1.6

mV

20

Hz

~

45

kHz

20

Hz

~

45

kHz

1.8+0.3

g.

1.8+0.3

g.

High-output

MC

type

High-output

MC

type

U.S.,

Canadian

and

Asian

models

do

not

include

cartridge.

*

For

product

improvement

purposes,

the

specifications

are

subject

to

change

without

notice.

_9—

‘TROUBLESHOOTING

GUIDE

When

trouble

arises,

check

the

following

items

before

you

consider

any

problem

as

a

malfunction.

Turntable

does

not

operate

when

start

button

is

pressed.

The

tonearm

does

not

move:

@

Is

the

power

switched

on?

@

is

thearmclamp

released?

..

0...

2...

ee

ee

ee

eee

eee

Refer

to

page

6

The

stylus

does

not

lower

onto

the

record:

@

Is

atracking

force

being

applied?

..

6...

ee

ee

ee

ees

Refer

to

page

6

The

stylus

does

not

lower

on

the

desired

position:

@

{s

the

cartridge

properly

installed

on

the

head

shell?

.........

00s

eee

eres

Refer

to

page

8

@

Is

the

turntable

unit

placed

horizontally?

No

sound

@

Are

the

cartridge

and

the

tonearm

connected

properly?

.......--

0+

eee

eres

Refer

to

page

8

@

Are

the

output

wires

properly

connected

to

the

amplifier?

.........-0..

2000s

Refer

to

page

5

@

Are

the

amplifier

knobs/switches

properly

set

for

record

reproduction?

Hum

noise

is

audible:

@

Is

the

ground

wire

of

the

output

wires

connected

to

the

amplifier?

..........-.

Refer

to

page

5

@

Arethe

output

wires

properly

connected?

@

Is

the

head

shell

secured

properly

with

the

lock

screw?

.....-.

0.00

e

sence

eee

Refer

to

page

8

The

stylus

skips/Jumps

@

Is

the

tracking

force

applied

properly?

2...

0.1...

ccc

ee

ees

Refer

to

page

6

@

Is

the

record

warped

or

scratched?

@

fs

there

any

large

amount

of

dust

on

the

stylus?

The

arm

stops

moving

forward

during

play:

@

Is

the

record

scratched?

@

Is

something

touching

the

arm?

Sound

is

too

weak/strong:

@

ts

the

amplifier

switched

and

connected

properly

for

the

type

of

cartridge

(output)

being

used?

Noise

is

picked

up

by

the

tuner:

@

Should

the

tuner

pick

up

noise

while

the

turntable

unit

is

in

operation,

move

the

tuner

away

from

the

turntable,

or

relocate

the

tuner

antenna.

The

tonearm

moves

up

and

down

when

power

is

switched

on:

@

The

up

and

down

movement

of

the

tonearm

when

the

power

is

switched

on/off

is

not

a

defect.

—10—
