Delta CS-LDM-50M Manuel utilisateur

User Manual

Page 1

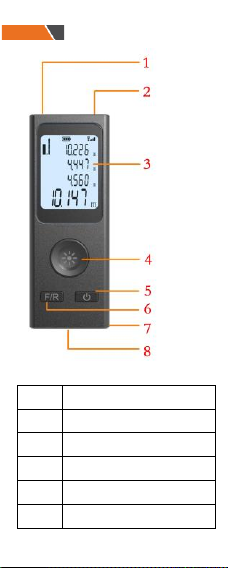

Interface

Item

Description

Laser receiving lens

Laser emission port

LCD display

Main button

Shut down button

Page 2

Function button

Lanyard hole

Charging port

Operating instructions

1. Do not look directly at the red laser

light emitted from the laser emitting

port with your eyes. Looking directly

at it will cause damage to your eyes.

2. Do not cover the receiving lens and

laser emitting port of the rangefinder

when measuring the distance, and

place the rangefinder on a fixed baffle

or bracket plane as much as possible.

3. During measurement, the

rangefinder cannot be moved before

the measurement result is displayed

on the software interface.

4. The better the laser's throwback

(scattering, non-reflection) effect on

the target surface, the farther its range.

When the laser spot falls on the

surface of the following objects, the

measurement will be inaccurate：

-- Transparent surfaces (water, glass).

-- Surfaces that reflect surfaces

Page 3

(polished metals)

-- Porous surfaces (e.g. soundproof

materials)

-- Textured surfaces (e.g. rough

plaster walls, natural stone).If

necessary, reflective target paper (e.g.

white paper) can be placed on top of

these objects

5. Front/Rear reference

Front/Rear reference: means whether

the body length is counted in the

measurement data of both ways.

Front datum: Without fuselage

length. Rear reference: Include

fuselage length

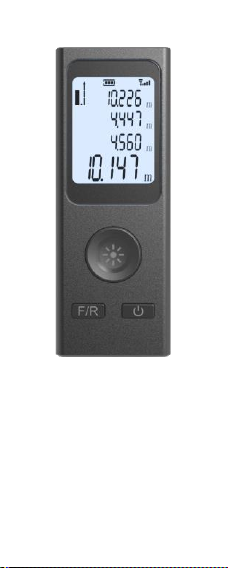

Front benchmark display shows by

Rear reference display shows by

Page 4

Basic operation

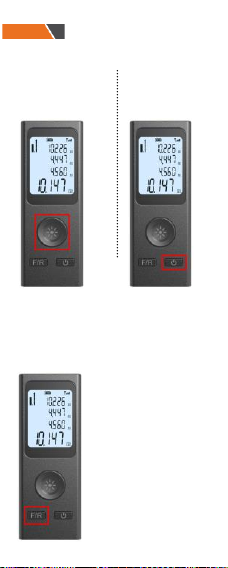

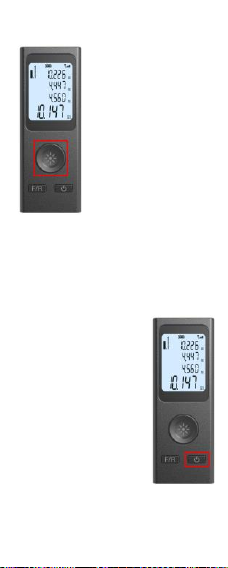

① On/Off

a. Press the b. Press the

main button 0.5 shut down button

seconds to turn 2 seconds to

on. shut down.

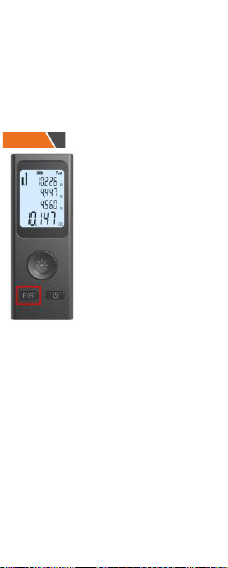

②Switching front/rear reference

In the power-on state, press the

function button for about 1 second to

switch the reference.

Note: The selection of

the reference should

be before the start of

the measurement or

after the end of a

single measurement.

Do not switch the

reference during the

measurement process.

Page 5

③Switch numerical unit

In the shutdown state,

press the main button

and turn it on and

keep the keys on,

wait for about 2

seconds after turning

on the device to enter

the measurement

numerical unit

switching state.

The unit can be

switched between m

(meter)/ft (feet)/in

(inch) in turn.

④Other operations

a. Return operation

Press the shut down

button for about 0.5

seconds to return to the

previous level of

data or mode.

b. LCD backlight control

Long press the switch

button for about 1 second

to turn off/on the LCD

backlight.

Page 6

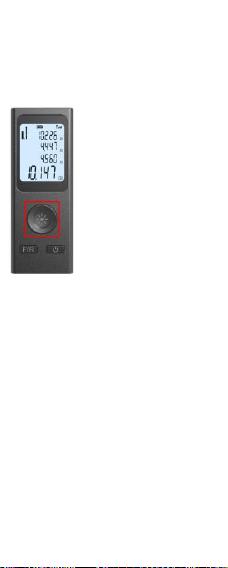

⑤ Simple measurement

a. Single measurement

When power on, press

the main button for

about 0.5 seconds and

turn on the red

measurement laser.

Short press again to

start the measurement

and display the data.

If no operation, the

meter will be

automatically turned

off after 20 seconds

and automatically

turned off after 60

seconds.

b. Consecutive measurement

Long press the main button for

about 1 second to enter the

consecutive measurement mode. In

the process of moving the meter to

a new position, the real-time

distance measurement data will be

displayed on the screen.

Under consecutive mode, the

Page 7

meter will automatically display

the maximum and minimum value

of the measured data.

Advanced function Operation

Switch function mode:

When power on, short

press the function

button for about 0.5

seconds to switch the

function mode, and

press once to switch

one function mode.

① Area measurement

In this mode, the area can

be measured and

automatically calculated.

Short press the main button to

measure the data (1), and then

short press the measured data (2).

The meter will automatically work

out the volume based on these 2

Page 8

measurements and display it on

the primary display area.

Data⑴[Length]

Data⑵[Width]

Automatic

measurement

of area data

Area measurement symbol:

② Volume measurement

In this mode, the area can be

measured and automatically

calculated.

Short press the main button to

measure data (1), short press again

to measure data (2), and short

press again to measure data (3).

The meter will automatically work

out the volume based on these 3

measurements and display it on

the primary display area.

Page 9

Data⑴[Length]

Data⑵[Width]

Data⑶[Height]

Automatic

measurement of

volume data

Volume measurement symbol：

③ Primary Pythagorean

In this mode, the system uses the

Pythagorean law a2+b2=c2，The third

side measurement data is

automatically measured by the two

side measurement data.

This mode can calculate the length of

the target edge only by running the

Pythagorean law once, which is also

called Primary Pythagorean mode.

Short press the main button to
