TRD04 Series

OIL FILLED RADIATOR

Instructions for use

This product is only suitable for well insulated spaces or occasional use

ELECTRICAL CONNECTION

A) If your appliance comes tted with a plug, it will incor-

porate a 13 Amp fuse. If it does not t your socket, the

plug should be cut o from the mains lead, and an ap-

propriate plug tted, as below. WARNING: Very carefully

dispose of the cut o plug after removing the fuse: do

not insert in a 13 Amp socket elsewhere in the house as

this could cause a shock hazard. With alternative plugs

not incorporating a fuse, the circuit must be protected

by a 15 Amp fuse. If the plug is a moulded-on type, the

fuse cover must be re-tted when changing the fuse

using a 13 Amp Asta approved fuse to BS 1362. In the

event of losing the fuse cover, the plug must NOT be

used until a replacement fuse cover can be obtained

from your nearest electrical dealer. The colour of the

correct replacement fuse cover is that as marked on the

base of the plug.

B) If your appliance is not tted with a plug, please follow

the instructions provided below:

WARNING -THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with

the following code:

Green and yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead may not cor-

respond with the coloured markings identifying the terminals

in your plug, proceed as follows:

The green and yellow wire must be connected to the termi-

nal in the plug marked with the letter E or the earth symbol

or coloured green or green and yellow. The blue wire

must be connected to the terminal marked with the letter N

or coloured black. The brown wire must be connected to the

terminal marked with the letter L or coloured red.

IMPORTANT WARNINGS

Read all the Instruction for Use carefully before using

the appliance. Keep this Instructions for Use.

Danger!

Failure to observe the warning may result in life threatening

injury by electric shock.

- Do not use the heater in the vicinity of

bathtubs, wash basins, showers, sinks

and swimming pools.

- Never use the heater to dry laundry.

- If the power cable has been damaged,

it must be replaced by the manufac-

turer or the technical service centre or

by a qualied person so as to avoid all

risks.

Important!

Failure to observe the warning could result in injury or dam-

age to the appliance.

- This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory

or mental capabilities or lack of ex-

perience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved.

Children shall not play with the appli-

ance. Cleaning and user maintenance

shall not be made by children without

supervision.

- Children of less than 3 years should be

kept away unless continuously super-

vised.

- Children aged from 3 years and less

than 8 years shall only switch on/o

theapplianceprovided thatithasbeen

placed or installed in its intended nor-

mal operating position and they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children aged from 3 years

and less than 8 years shall not plug

in, regulate and clean the appliance or

perform user maintenance.

CAUTION — Some parts of this

product can become very hot and

cause burns. Particular attention

has to be given where children

and vulnerable people are pre-

sent.

- WARNING: Do not use this heater in

small rooms when they are occupied

by persons not capable of leaving the

room on their own, unless constant

supervision is provided.

The body of this radiator is lled with

a precise quantity of special oil, so that

repairs requiring the opening of the

oil body must only be made by the

service agent. Any oil leakage must be

reported to the Customer Experience,

see enclosed guarantee for details.

- When scrapping the heater, follow the

regulations concerning the disposal of

oil.

- T

he appliance must not be located im-

mediately below a xed socket-outlet.

CAUTION: in order to avoid any dan-

ger caused by an accidental resetting

of the safety system, this appliance

must not be powered through an ex-

ternal timer.

- Do not obstruct the air intake and out-

let area (danger of overheating).

Danger of burns!!

Failure to observe the warning could result in burns or scalds.

- WARNING: In order to avoid

overheating, never under any

circumstances cover the appliances

during operation, as this would lead

to dangerous overheating.

- The use of an extension lead is not

recommended, as overheating of the

extension lead may occur during the

operation of the heater.

- Never place the power cable on top of

the heater while it is hot.

- Do not rest anything on the appliance.

WARNING: To reduce the risk of re,

keep textiles, curtains, or any other

ammable material a minimum dis-

tance of 1 m from the air outlet.

Please note:

This symbol indicates recommendations and important in-

formation for the user.

We recommend that you not place the

heater in a draught, because strong

draughts of air may adversely aect

the equipment’s operational ecien-

cy.

- Use this heater on a horizontal and sta-

ble surface.

- Always use the appliance in an upright

position.

- Do not use this heater if it has been

dropped.

- Do not use if there are visible signs of

damage to the heater.

- The rst time you use the appliance,

operate it of at least 15 minutes at

maximum to eliminate the “new”

smell.

A little smoke due to the protective

substances applied to the heating el-

ement before transport may be given

o.

Position the appliance so that the plug

and the outlet can be easily reached.

Do not use the appliance in rooms less

than 4 m2in area.

The appliance is tted with a safety

device which will switch o it in case

of accidental overheating.

To reset, please contact Customer Ex-

perience, see enclosed guarantee.

- Before putting the appliance away,

make sure it is completely cooled and

unplugged from the mains socket.

Do not store in dusty atmospheres.

- The appliance must not be hung.

For non-EU countries only:

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or in-

struction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure

that they do not play with the appliance.

Disposing of the appliance

The appliance must not be disposed of with house-

hold waste, but taken to an authorised waste sepa-

ration and recycling centre.

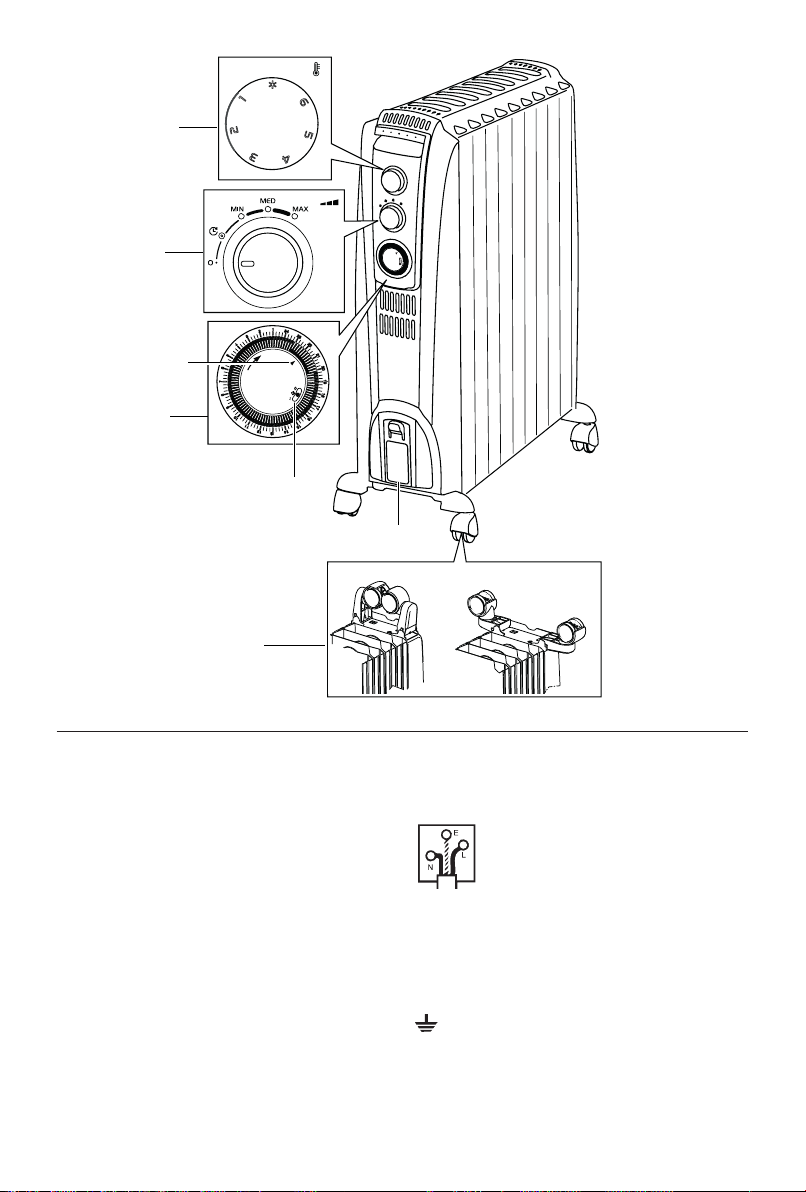

DESCRIPTION

A Thermostat

B Power selector

C Timer

DTimer pointer

E Slide switch

F Cord holder

G Wheel

USE

Fitting the wheels

Turn the radiator upside down on a rug or soft surface to

prevent damaging the paint nish. Fully unfold the wheels

by turning them outwards (Fig. 1). Turn the radiator back to

its upright position.

Caution

Always operate the heater in upright position only (wheels

on the bottom, controls on top).

Any other position could create a hazardous situation.

Location

The heater should not be placed immediately below a power

outlet. Do not use this radiator in rooms with a oor area of

less than 4 m2(43 sq. ft. ).

Connection

- Before using the appliance check that your supply volta-

ge is the same of that shown on the rating label of the

unit and that the power socket and power supply line

correspond to the load specied.

- Check also the current capacity of your fuses. CONNECT

YOUR HEATER TO EARTH PROVIDED SOCKET ONLY.

Turning on

Insert the plug into an electrical outlet, rotate the thermostat

knob (A) to maximum and turn the unit on as follows using

the power selector:

- Turn the power selector dial (B) to the position to

retain the time set only.

- Turn the power selector to position MIN to select

minimum output (the min light will be on).

- Turn the power selector to position MED to select

medium output (the min/med light will be on).

- Turn the power selector to position MAX to select

maximum output (the lights will be on).

Adjusting the thermostat

When the room has reached the desired temperature, turn

the thermostat knob slowly in an anti-clockwise direction

until you hear a "click" and not beyond it. The thermostat

will then adjust the set temperature automatically and

keep it constant. If your unit is a three power version, in

intermediate seasons or on days when temperatures are not

particularly cold, select minimum output to optimize savings

and consumption.

Antifreeze function

Turn the thermostat dial to the position and the power

selector to position MAX. The appliance will maintain a

minimum room temperature of approximately 5°C, thus

preventing freezing while conserving energy. In models that

come with a timer, teeth must be set in the inward position.

Reminder

To completely shut the appliance o, turn the power selector to

the "0" position and then unplug the appliance from the outlet.

HOW TO USE THE TIMER

To program heating, proceed as follows:

- Look at the time on your clock or watch. If it is 10

p.m., turn the numbered timer disk clockwise until

the number 22 (10 p.m.) on the disk coincides with

the pointer son the timer. Set the periods of time

when you want the appliance to work by pushing the

teeth inward. Each tooth corresponds to a period of 15

minutes.This will leave visible sectors which correspond

to the periods of operation. When set, the radiator

will operate automatically each day during the times

programmed (important: the radiator must always be

plugged into the socket).

- To change the programming, move the teeth and set the

new periods of operation.

- To turn the appliance o, turn the power selector to "0".

In this position, the time will not be retained. If on the

other hand you want to retain the time set, turn the

power selector (B) to the position.

Important!

DO NOT ROTATE CLOCK DIAL COUNTER-

CLOCKWISE.

The timer is like an electric clock, and will only work when

plugged into a power supply.

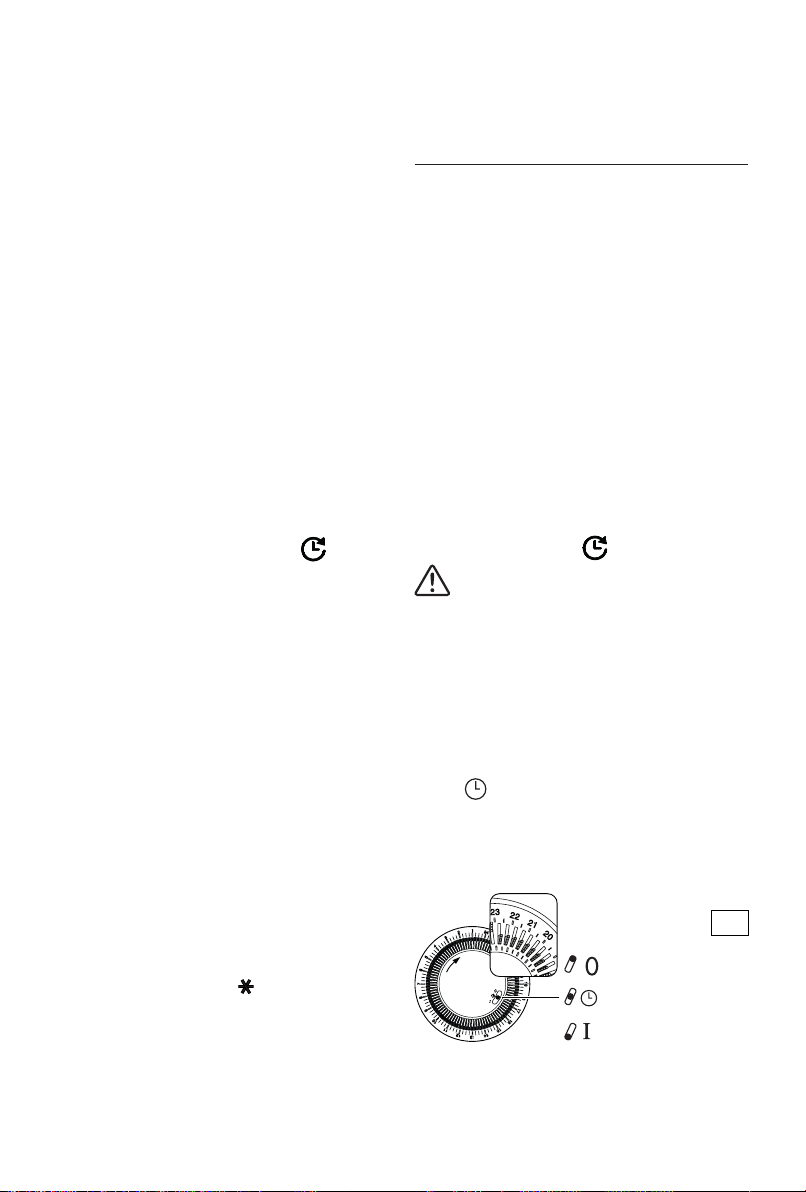

Timer override

If you wish to override the timer settings, push the timer

switch to position I(g.2) manual (timer override). To return

to timed operation push the switch back to the middle

position (g.2).

NOTE: if the timer switch is at the 0 position (g. 2),

the heater is o and will not operate).

Heater o

Timer operation

Manual (timer ov

erride)

Fig. 2

TIMER IN POSITION

Slide

switch

(E)

Power

selector

(B)

Operation

0• Appliance o.

• The time is not retained.

• Appliance o.

• The time is retained.

Min • Programming active.

• The appliance operates at low

power.

• The time is retained.

Med • Programming active.

• The appliance operates at

medium power.

• The time is retained.

Max • Programming active.

• The appliance operates at

high power.

• The time is retained.

TIMER IN POSITION

Slide

switch

(E)

Power

selector

(B)

Operation

0• Appliance o.

• The time is not retained.

• Appliance o.

• The time is retained.

Min • Programming not active.

• The appliance operates

continuously at low power.

• The time is retained.

Med • Programming not active.

• The appliance operates

continuously at medium

power.

• The time is retained.

Max • Programming not active.

• The appliance operates

continuously at high power.

• The time is retained.

TIMER IN POSITION 0

Slide

switch

(E)

Power

selector

(B)

Operation

00• Appliance o.

• The time is not retained.

• Appliance o.

• The time is retained.

Min • Programming not active.

• The product does not activate

low power.

• The time is retained.

Med • Programming not active.

• The product does not activate

medium power.

• The time is retained.

Max • Programming not active.

• The product does not activate

maximum power.

• The time is retained.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance doesn't work Be sure it is plugged in and that the

electrical outlet is working.

Check for any obstruction.

The temperature may be set too low.

Plug into the power outlet.

Remove the obstruction and let the

appliance cool down. If the appliance

doesn't work please contact Customer

Experience.

Set the temperature to a higher position.

Safety device

A safety device shuts the radiator down in the case of

overheating.To start the radiator up again, contact Customer

Experience. See enclosed guarantee leaet.

MAINTENANCE AND SERVICE

Always unplug the heater from the power outlet and allow

the radiator to cool.

Wipe radiator with a soft damp cloth; do not use detergents

or abrasives. Should the radiator not be in use over a certain

length of time, wind the cord around the holder and store it

in a dry place. This appliance has been built to last for many

years of trouble-free service. In case of malfunction or doubt,

do not try to repair the heater by yourself: this might increase

the risk of re and electric shock. Please refer to the enclosed

guarantee leaet for service and assistance details.

TECHNICAL CHARACTERISTICS

Power supply See rating plate

Absorbed power "

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DeLonghi Chauffage

DeLonghi

DeLonghi CERAMIC FAN HEATER Manuel utilisateur

DeLonghi

DeLonghi TRNS0808M Manuel utilisateur

DeLonghi

DeLonghi TR0715 Manuel utilisateur

DeLonghi

DeLonghi TRRS0715E-6A Manuel utilisateur

DeLonghi

DeLonghi TRH0715-6A Manuel utilisateur

DeLonghi

DeLonghi HCX Series Manuel utilisateur

DeLonghi

DeLonghi DCH5090EL Manuel utilisateur

DeLonghi

DeLonghi HFX60V15CA Manuel utilisateur

DeLonghi

DeLonghi HVF3533 Manuel utilisateur

DeLonghi

DeLonghi HS Manuel utilisateur

DeLonghi

DeLonghi HCM2030 Manuel utilisateur

DeLonghi

DeLonghi HFX30 Series Manuel utilisateur

DeLonghi

DeLonghi Horizontal HTC 4030 Manuel utilisateur

DeLonghi

DeLonghi DRAGON 4 TRDS4 0820E Manuel utilisateur

DeLonghi

DeLonghi OIL FILLED RADIATORS Manuel utilisateur

DeLonghi

DeLonghi HM24 Manuel d'instructions d'installation

DeLonghi

DeLonghi DCH4120 Manuel utilisateur

DeLonghi

DeLonghi OIL FILLED RADIATORS Manuel utilisateur

DeLonghi

DeLonghi FAN HEATER Manuel utilisateur

DeLonghi

DeLonghi FAN HEATER Manuel utilisateur

DeLonghi

DeLonghi MG7307CMM Manuel utilisateur

DeLonghi

DeLonghi DRAGON 4 Manuel utilisateur

DeLonghi

DeLonghi HCX9115E-6A AG Manuel utilisateur

DeLonghi

DeLonghi TRD40615EBK Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
