DeLonghi DRAGON 4 Manuel utilisateur

5711010741/04.13_00

TRD TRD40820T-TRD41020T

OIL FILLED RADIATORInstructions for use

Description

INTRODUCTION

Thank you for choosing a De’Longhi product.

Please take a few moments to read the instructions to avoid

risks or damage to the appliance.

Symbols used in these instructions

Important warnings are identied by the symbols below.

It is important to respect the warnings.

Failure to respect the warnings could lead to electric shock,

serious injury, burns, re or damage to the appliance.

Important!

Failure to observe the warning could result in injury or

damage to the appliance.

Danger of burns!!

Failure to observe the warning could result in burns or

scalds.

Please note:

This symbol indicates recommendations and important

information for the user.

IMPORTANT WARNINGS

Safety warnings

Important!

- This appliance can be used by children

aged from 8 years and above and

persons with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children shall not play with

the appliance. Cleaning and user

maintenance shall not be made by

children without supervision.

- Children of less than 3 years should

be kept away unless continuously

supervised.

- Children aged from 3 years and less

than 8 years shall only switch on/

o the appliance provided that it

has been placed or installed in its

intended normal operating position

and they have been given supervision

or instruction concerning use of

the appliance in a safe way and

understand the hazards involved.

Children aged from 3 years and less

than 8 years shall not plug in, regulate

and clean the appliance or perform

user maintenance. CAUTION —

Some parts of this product can become

very hot and cause burns. Particular

attention has to be given where

children and vulnerable people are

present.

- WARNING: In order to avoid

overheating, never under any

circumstances cover the appliances

during operation, as this would lead to

dangerous overheating.

- The body of this radiator is lled with

a precise quantity of special oil, so that

repairs requiring the opening of the

oil body must only be made by the

service agent. Any oil leakage must be

reported to the Customer Experience,

see enclosed guarantee for details.

- The appliance must not be located

Important warnings en

Description/Use en

immediately below a xed socket-

outlet.

- Do not use the heater in the vicinity of

bathtubs, wash basins, showers, sinks

and swimming pools.

Ifthepowercablehasbeendamaged,it

must be replaced by the manufacturer

or the technical service centre or by a

qualied person so as to avoid all risks.

- ATTENTION:inordertoavoidanydanger

caused by an accidental resetting of

the safety system, this appliance must

not be powered through an external

timer.

Please note:

- Never use the heater to dry laundry.

- Never place the power cable on top of the heater while

it is hot.

- We recommend that you not place the heater in a

draught, because strong draughts of air may adversely

aect the equipment’s operational eciency.

- Only use the heater in an upright position.

- The heater must be positioned at least 50cm from

furniture or other objects.

- The rst time you use the appliance, operate it of at

least 15 minutes with the thermostat at maximum to

eliminate the “new” smell. A little smoke due to the

protective substances applied to the heating element

before transport may be given o.

- Do not obstruct the hot air outlet grilles or the air intake

grille on the bottom of the appliance.

- Position the appliance so that the plug and the outlet

can be easily reached even after installation.

- Do not use the appliance in rooms less than 4 m2in

area.

- The appliance is tted with a safety device which will

switch o it in case of accidental overheating. To reset,

please contact Customer Experience, see enclosed

guarantee.

Danger of burns!!

- The use of an extension lead is not recommended, as

overheating of the extension lead may occur during the

operation of the heater.

The appliance complies with the following EC

directives:

- Low Voltage Directive 2006/95/EC and subsequent

amendments;

- EEC Directive 2004/108 on electromagnetic

compatibility (EMC) and subsequent amendments;

Disposing of the appliance

In compliance with European directive 2002/96/

EC, the appliance must not be disposed of with

household waste, but taken to an authorised waste

separation and recycling centre.

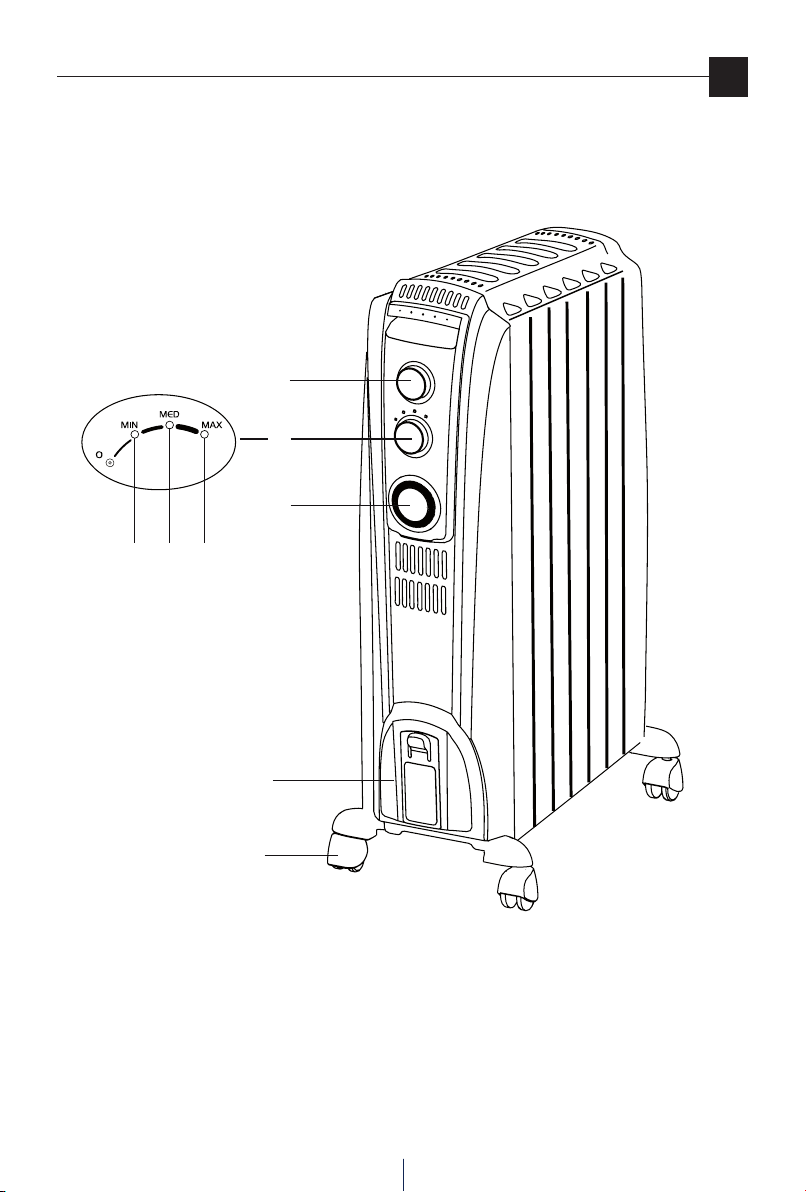

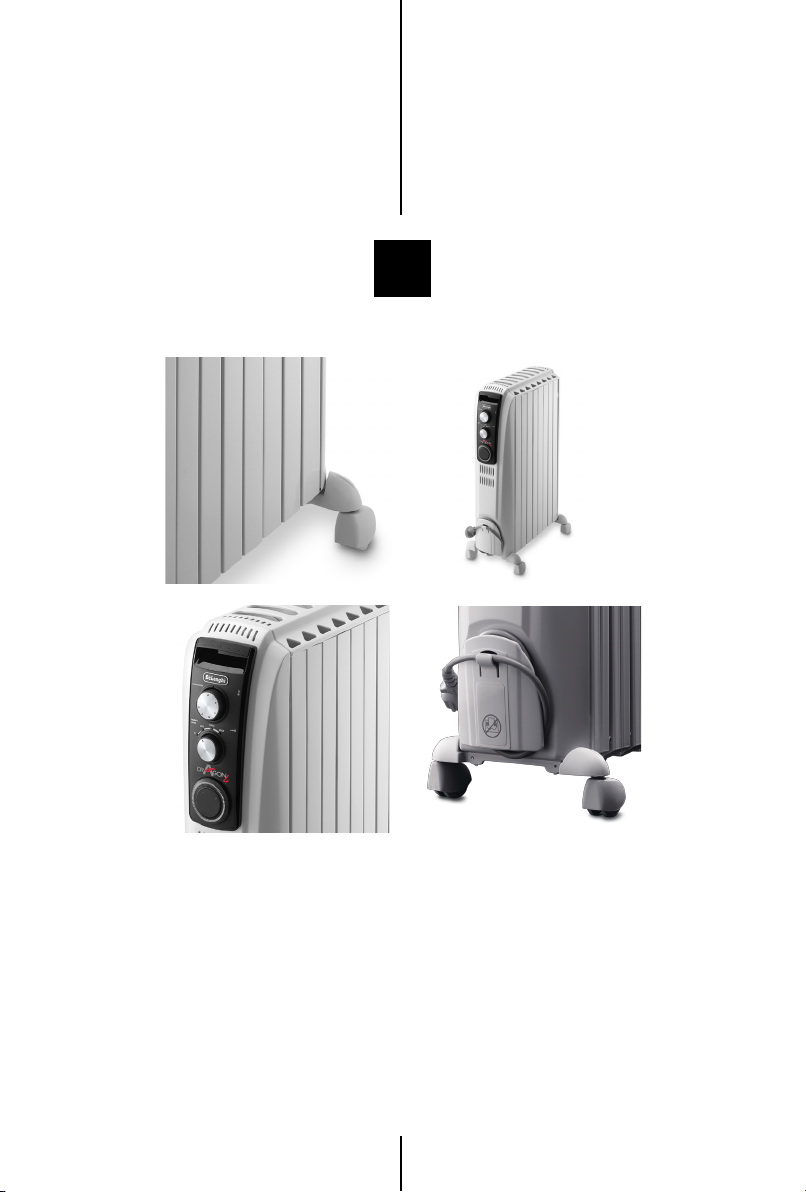

DESCRIPTION

A Thermostat

B Power setting knob

C/D/E Power indicator lights (MIN, MED, MAX)

F Timer

G Cord holder

H Wheel

USE

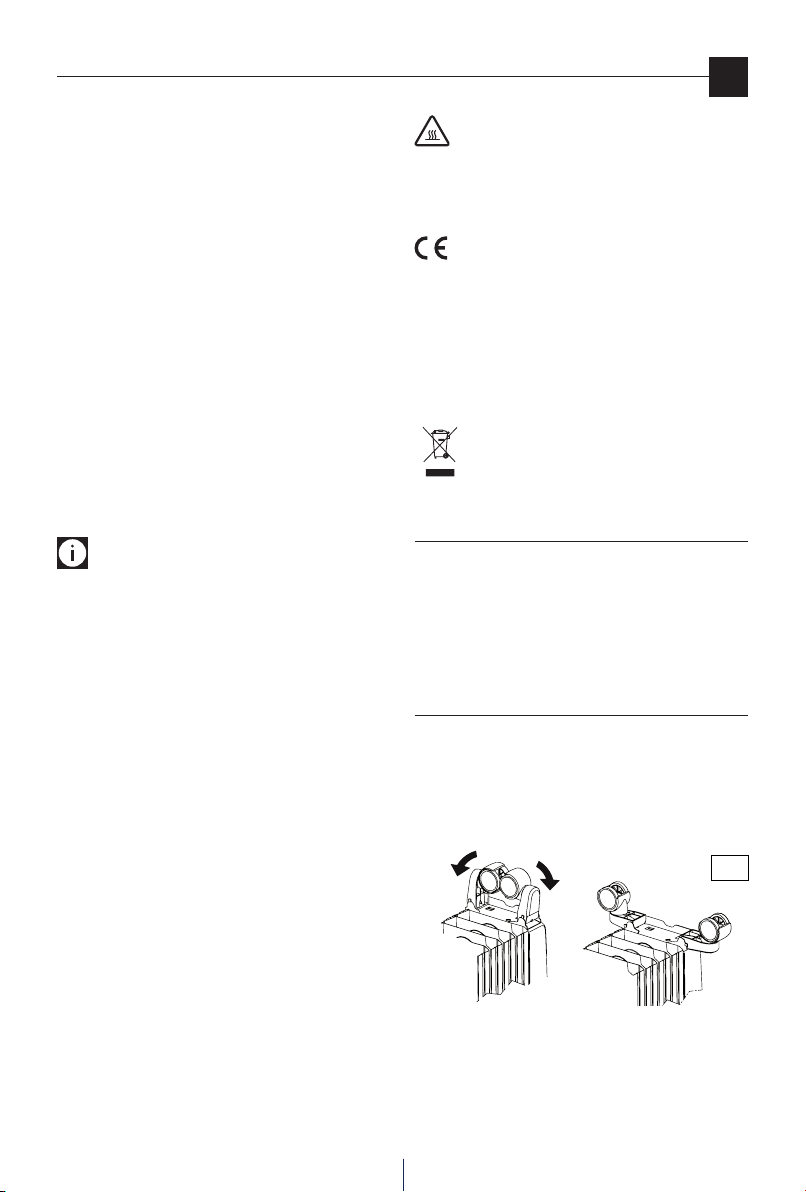

Fitting the wheels

Turn the radiator upside down on a rug or soft surface to

prevent damaging the paint nish. Fully unfold the wheels

by turning them outwards (Fig. 1). Turn the radiator back to

its upright position.

Caution

Always operate the heater in upright position only (wheels

on the bottom, controls on top).

Any other position could create a hazardous situation.

Fig. 1

Location

The heater should not be placed immediately below a power

outlet.

Do not use this radiator in rooms with a oor area of less than

4 m2(43 sq. ft. ).

Connection

- Before using the appliance check that your supply

voltage is the same of that shown on the rating label

of the unit and that the power socket and power supply

line correspond to the load specied.

- Check also the current capacity of your fuses. CONNECT

YOUR HEATER TO EARTH PROVIDED SOCKET ONLY.

- This appliance complies with directive 2004/108/ec on

electromagnetic compatibility.

Keep loose clothing or bedding, furniture and ammable

material away from the heater's wall outlet.

Turning on

Insert the plug into an electrical outlet, rotate the thermostat

dial to maximum and turn the unit on as follows using the

power selector:

- Turn the power selector to position MIN to select

minimum output (the min light will be on).

- Turn the power selector to position MED to select

medium output (the min/med lights will be on).

- Turn the power selector to position MAX to select

maximum output (the lights will be on).

Adjusting the thermostat

When the room has reached the desired temperature, turn

the thermostat dial slowly in a clockwise direction until you

hear a "click" and not beyond it.

The thermostat will then adjust the set temperature

automatically and keep it constant.

If your unit is a three-output version, in intermediate seasons

oron days when temperaturesarenot particularly cold,select

minimum output to optimize savings and consumption.

Antifreeze function

Turn the thermostat dial to the position and the power

selector to position MAX.

The appliance will maintain a minimum room temperature of

approximately 5°C, thus preventing freezing while conserving

energy. In models that come with a timer, teeth must be set

in the inward position.

Reminder

To completely shut the appliance o, turn the power selector to

the "0" position and then unplug the appliance from the outlet.

UNITS WITH TIMER

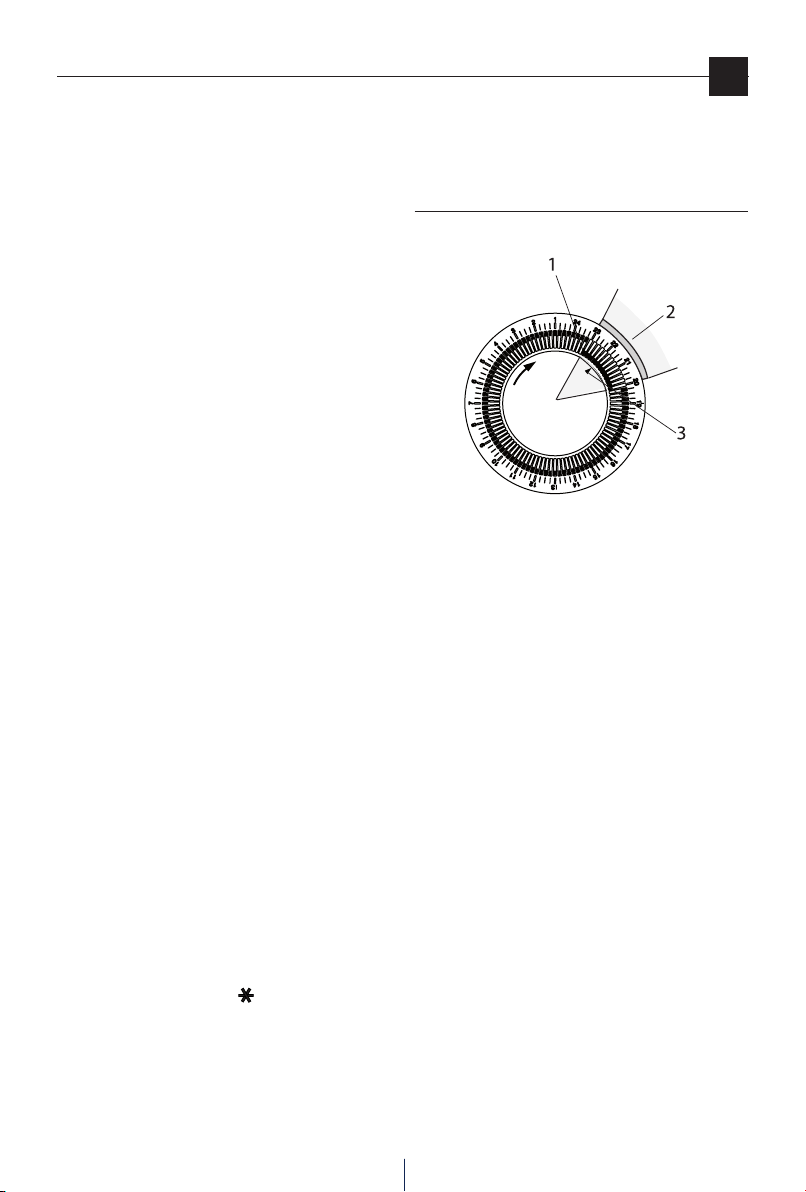

How to use the timer

To program heating, proceed as follows:

- Look at the time on your clock or watch. If it is 10 p.m.,

turn the numbered timer disk clockwise until the

number 22 (10 p.m.) on the disk coincides with the

pointer s(3) on the timer. Set the periods of time

when you want the appliance to work by pushing the

teeth (1) inward. Each tooth (1) corresponds to a period

of 15 minutes. This will leave visible sectors which

correspond to the periods of operation (2). When set,

the radiator will operate automatically each day during

the times programmed (important: the radiator must

always be plugged into the socket).

- To change the programming, move the teeth back

into the initial position and set the new periods of

operation.

- If you want to make the appliance operate without

programming, push all the teeth inward. In this case, to

turn the appliance o completely, as well as turning the

dial to the o position, you must also unplug it from the

power outlet to avoid continued operation of the timer.

IMPORTANT: DO NOT ROTATE CLOCK DIAL COUNTER-

CLOCKWISE.

The timer is like an electric clock, and will only work when

plugged into a power supply. When unplugged, the timer

stops and must be later re-set.

Use/Units with timer

SAFETY DEVICE

A safety device switches the heater o in the event of

overheating.To restart the heater, call the nearest De'Longhi

Customer Service.

MAINTENANCE AND SERVICE

Always unplug the heater from the power outlet and allow

the radiator to cool.

Wipe radiator with a soft damp cloth; do not use detergents

or abrasives. Should the radiator not be in use over a certain

length of time, wind the cord around the holder and store it

in a dry place. This appliance has been built to last for many

years of trouble-free service. In case of malfunction or doubt,

do not try to repair the heater by yourself: this might increase

the risk of re and electric shock. Call your nearest De'Longhi

Customer Service (see attached list of Service Centers).

TECHNICAL CHARACTERISTICS

Power supply See rating plate

Absorbed power “

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance doesn't work - Be sure it is plugged in and that the

electrical outlet is working.

- Check for any obstruction.

- The temperature may be set too low.

- Plug into the power outlet.

- Remove the obstruction and let the

appliance cool down. If the appliance

doesn't work please contact the nearest

De'Longhi Customer Service.

- Set the temperature to a higher position.

Safety/Maintenance/Troubleshooting

Autres manuels pour DRAGON 4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DeLonghi Chauffage

DeLonghi

DeLonghi Electric radiator Manuel d'instructions d'installation

DeLonghi

DeLonghi FAN HEATER Manuel utilisateur

DeLonghi

DeLonghi HCM2030 Manuel utilisateur

DeLonghi

DeLonghi HVF3032 Manuel utilisateur

DeLonghi

DeLonghi KH390715CM Manuel utilisateur

DeLonghi

DeLonghi HMP1500 Manuel utilisateur

DeLonghi

DeLonghi Heater Manuel d'instructions d'installation

DeLonghi

DeLonghi RCH100 Manuel utilisateur

DeLonghi

DeLonghi HMH550-3R Manuel utilisateur

DeLonghi

DeLonghi DR 18TTW Manuel utilisateur

DeLonghi

DeLonghi HWB5050T Manuel utilisateur

DeLonghi

DeLonghi HM24 Manuel d'instructions d'installation

DeLonghi

DeLonghi HFX30 Series Manuel utilisateur

DeLonghi

DeLonghi TRD40615ECA Manuel utilisateur

DeLonghi

DeLonghi FAN HEATER Manuel utilisateur

DeLonghi

DeLonghi DRAGON HM3 Manuel utilisateur

DeLonghi

DeLonghi EW 7707CM Manuel utilisateur

DeLonghi

DeLonghi TRD40615E-6A Manuel utilisateur

DeLonghi

DeLonghi TRD40615ECA Manuel utilisateur

DeLonghi

DeLonghi PALACE Manuel d'installation et d'exploitation

DeLonghi

DeLonghi HVA1120 Manuel utilisateur

DeLonghi

DeLonghi HFX30 Series Manuel utilisateur

DeLonghi

DeLonghi HFX30 Series Manuel utilisateur

DeLonghi

DeLonghi TRH0715 Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
