DeLonghi DRAGON HM3 Manuel utilisateur

instructions

DRAGON HM3

Please retain these instructions for future reference

GB 3-06-2004 11:27 Pagina 1

Fig.1

Dragon HM3 2

Thank you for choosing this De’Longhi radiator. To get the

very best out of your new radiator it is advisable to read

these instructions before using it.This will ensure that you

gain optimum results and use the appliance safely.

General instructions

Take the radiator out of its packing box and remove any polystyre-

ne pieces or any other packaging material that might be lodged

inside it.

Make sure that the radiator has not been damaged during transit and

that the mains cable is in working order. Do not operate the radia-

tor if damaged.

“Easy wheel”system

Turn the radiator upside-down on a rug or a soft surface in order to

prevent damaging the paint finish.Fully unfold the castors by turning

them outwards (Fig.1).

Turn the radiator back to its upright position.

Electrical connection

-Before plugging the radiator into the mains, check that your

supply voltage is the same as that shown on the rating plate of

the radiator.

- If using more than one appliance at a time,it is important to

ensure that the ring main is adequate to cope with the power

requirements.

- It is important to ensure that the socket is adequately earthed.

- This radiator complies with EEC Directive 89/336 relating to

electromagnetic compatibility.

How to use it

Switching on

Plug the radiator in; position the thermostat slider to maximum and

turn the radiator on as follows using the power selector:

•Turn the power selector to position 1to select minimum output

(the light on the left will come on).

•Turn the power selector to position 2to select medium output

(the light on the right will come on).

•Turn the power selector to position 3to select maximum output

(both lights will come on).

Adjusting the thermostat

Leave the thermostat at its highest setting until the room has

reached the required temperature.Then slowly turn the thermo-

stat slider back until you hear a click.The temperature selected in

this way will then be regulated automatically and kept constant by

the thermostat.

GB 3-06-2004 11:27 Pagina 2

Frost protection function

With the thermostat slider in the minimum position and a power

selected,the unit maintains the room at a temperature of about

5˚C, preventing freezing with minimum energy consumption.

Models with 24-hour timer

Using the timer

If you wish to use the timer,position the switch in the middle position .

(Fig.4).

Setting the correct time

Check the time on your watch.If for example it is 4.00 pm.(16.00),

turn the dial in a clockwise direction until the number 16 is lined up

with the triangular pointer (fig.2).

N.B.:Never turn the dial in an anti-clockwise direction!

The timer is in effect an electric clock and works only if the plug is

connected to the power supply. Whenever the plug is disconnected

or there is a power failure,the clock must be re-set.

To program the timer

1) Set the operating times by pushing out with your thumbnail to

the outer rim,the notches on the dial corresponding to the period

required (fig.3) (each notch represents 15 mins.)

2) Make sure that the timer indicates the correct time (see instruc-

tions on setting the correct time).

3) Turn the radiatior on and set it to the heat setting and tempera-

ture level on the thermostat as required.

Once programmed in this way, the appliance will repeat the pre-

established program every day, if the selector is in the position.

Timer override

If you wish to override the timer settings,push the timer switch to

position 1(fig.4) manual (timer override).To return to timed opera-

tion push the switch back to the middle position (fig.4).

NOTE: if the timer switch is at the 0position (fig.4), the heater is

off and will not operate).

IManual (timer override)

Timer operation

Heater off

Fig.2

pointer

operating time

fig.3

fig.4

Dragon HM3

GB 3-06-2004 11:27 Pagina 3

Cleaning and maintenance

Your oil filled raditor is absolutely free from maintenance,fully relia-

ble and will give many years of trouble free service.Wipe radiator

with soft damp cloth;do not use detergents or abrasives.

If necessary, use a vacuum cleaner to remove any built-up dirt.

Important notes

-Do not use your radiator close to bath, wash-basin, shower and

swimming pool.

-Do not use your radiator to dry laundry.

-Never place the power cable on top of the radiator while it is hot.

-Only use the radiator in an upright position.

-The heater must be positioned at least 50 cm from furniture or

other objects.

-If the power cable has been damaged, it must be replaced by the

manufacturer or the technical service centre or by a qualified per-

son so as to avoid all risks.

-In order to eliminate the radiator’s “new” smell,set it to maximum

power for at least 8 hours when used for the first time.During this

operation,the room in which the radiator is located must be venti-

lated.

-It is perfectly normal for the radiator to make“creacking” sounds when

used for the first time.(or in the case of unfrequent use).

-The radiator must not be located immediately below a fixed socket-outlet.

-The body of this radiator is filled with a precise quantity of special

oil, so that repairs requiring the opening of the oil body must only

be made by the service agent. Any oil leakage must be reported to

the service agent.

-Do not use this appliance in rooms having a floor area of less than

4m2 as this can lead to overheating.

-If the appliance is scrapped, provisions on the disposal of oil must

be respected.

-The use of an extension lead is not recommended,as overheating of

the extension lead may occur during the operation of the radiator.

-As with any electrical appliance,whilst the instructions aim to cover

as many eventualities as possible,caution and common sense should

be applied when operating your appliance,particularly in the vicinity

of young children.

The appliance is fitted with a safety device which will switch off it in

case of accidental overheating.To reset, disconnect the plug from the

power for 30 minutes, remove the cause of overheating then plug the

appliance in again.

ATTENTION: in order to avoid any danger caused by an accidental

resetting of the safety system, this appliance must not be powered

through an external timer.

IMPORTANT: Do not cover the radiator during ope-

ration as this could lead to dangerous overheating,

Dragon HM3

GB 3-06-2004 11:27 Pagina 4

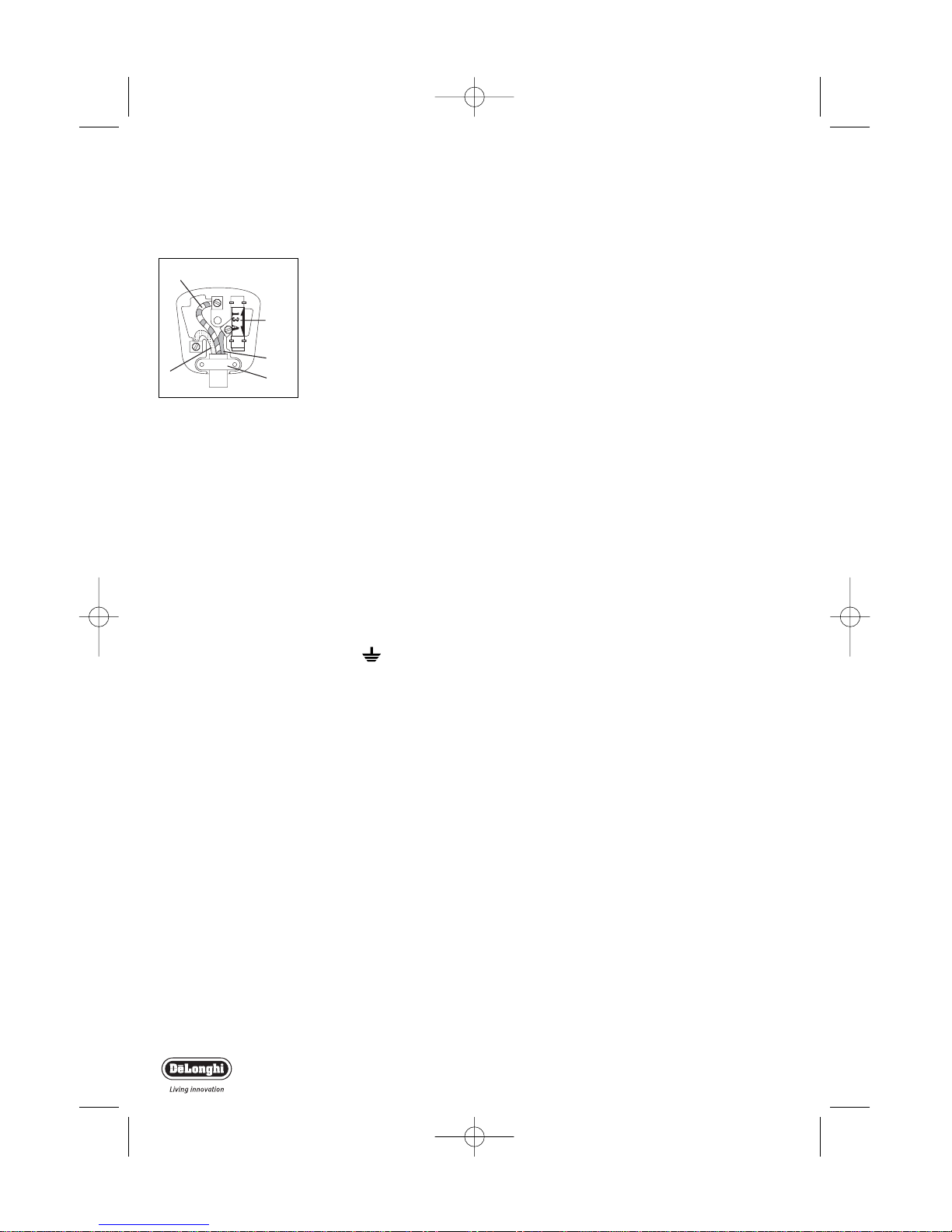

Electrical requirements

Before using this appliance ensure that the voltage indicated

on the product corresponds with the main voltage in your

home, if you are in any doubt about your supply contact your

local electricity company.

The flexible mains lead is supplied connected to a B.S. 1363 fused plug

having a fuse of 13 amp capacity. Should this plug not fit the socket out-

lets in your home,it should be cut off and replaced with a suitable plug,

following the procedure outlined below.

Note: Such a plug cannot be used for any other appliance and should

therefore be properly disposed of and not left where children might find

it and plug it into a supply socket - with the obvious consequent danger.

N.B.We recommend the use of good quality plugs and wall sockets that

can be switched off when the machine is not in use.

important: the wires in the mains lead fitted to this appliance are

coloured in accordance with the following code:

As the colours of the wires in the mains lead of this appliance may not

correspond with the coloured markings identifying the terminals in your

plug,proceed as follows:

The wire which is coloured green and yellow must be connected to the

terminal in the plug which is marked with the letter E or by the earth

symbol or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal

which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal

which is marked with the letter L or coloured red.

When wiring the plug, ensure that all strands of wire are securely

retained in each terminal.Do not forget to tighten the mains lead clamp

on the plug.If your electricity supply point has only two pin socket out-

lets,or if you are in doubt,consult a qualified electrician.

Should the mains lead ever require replacement, it is essential that this

operation be carried out by a qualified electrician and should only be

replaced with a flexible cord of the same size.

After replacement of a fuse in the plug,the fuse cover must be refitted.

If the fuse cover is lost, the plug must not be used until a replacement

cover is obtained.The colour of the correct replacement fuse cover is

that of the coloured insert in the base of the fuse recess or elsewhere

on the plug.Always state this colour when ordering a replacement fuse

cover.

Only 13amp replacement fuses which are asta approved to B.S. 1362

should be fitted.

This appliance conforms to the Norms EN 55014 regarding the sup-

pression of radio interference.

GREENANDYELLOW

BLUE

BROWN

EARTH

NEUTRAL

LIVE

Green andYellow to Earth

Blue to

Neutral

13 amp

Fuse

Brown

to Live

Cord Clamp

Warning - this appliance

must be earthed

Dragon HM3 5

GB 3-06-2004 11:27 Pagina 5

5710008300/05.04

GB 3-06-2004 11:27 Pagina 6
