Getting Started With Your System

Installation and Configuration

DANGER:

Observe the following instruction to help prevent an imminently

hazardous situation which, if not avoided, will result in death or serious injury:

The backup power supply contains LETHAL VOLTAGES. All repairs and service

should be performed by AUTHORIZED SERVICE PERSONNEL ONLY. There are

NO USER SERVICEABLE PARTS inside the backup power supply.

WARNING:

Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the Solution

Unpack the solution and identify each item.

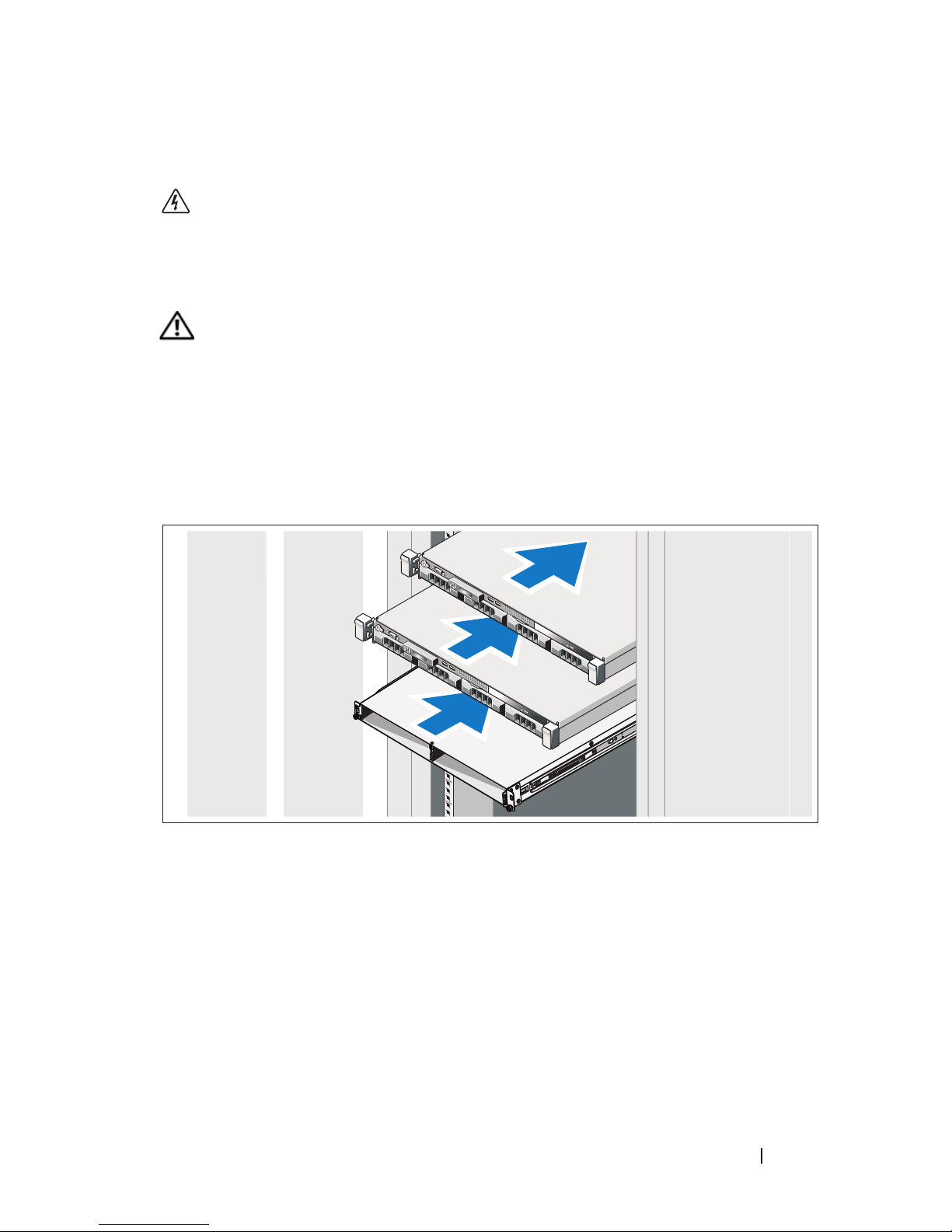

Installing the Rails, the System, and the Backup Power Supply in a Rack

Assemble the rails and install the system and backup power supply (BPS) in the

rack. Follow the safety instructions and the rack installation instructions

provided with the solution.

Getting Started With Your System

Connecting the Battery in the BPS Power Module

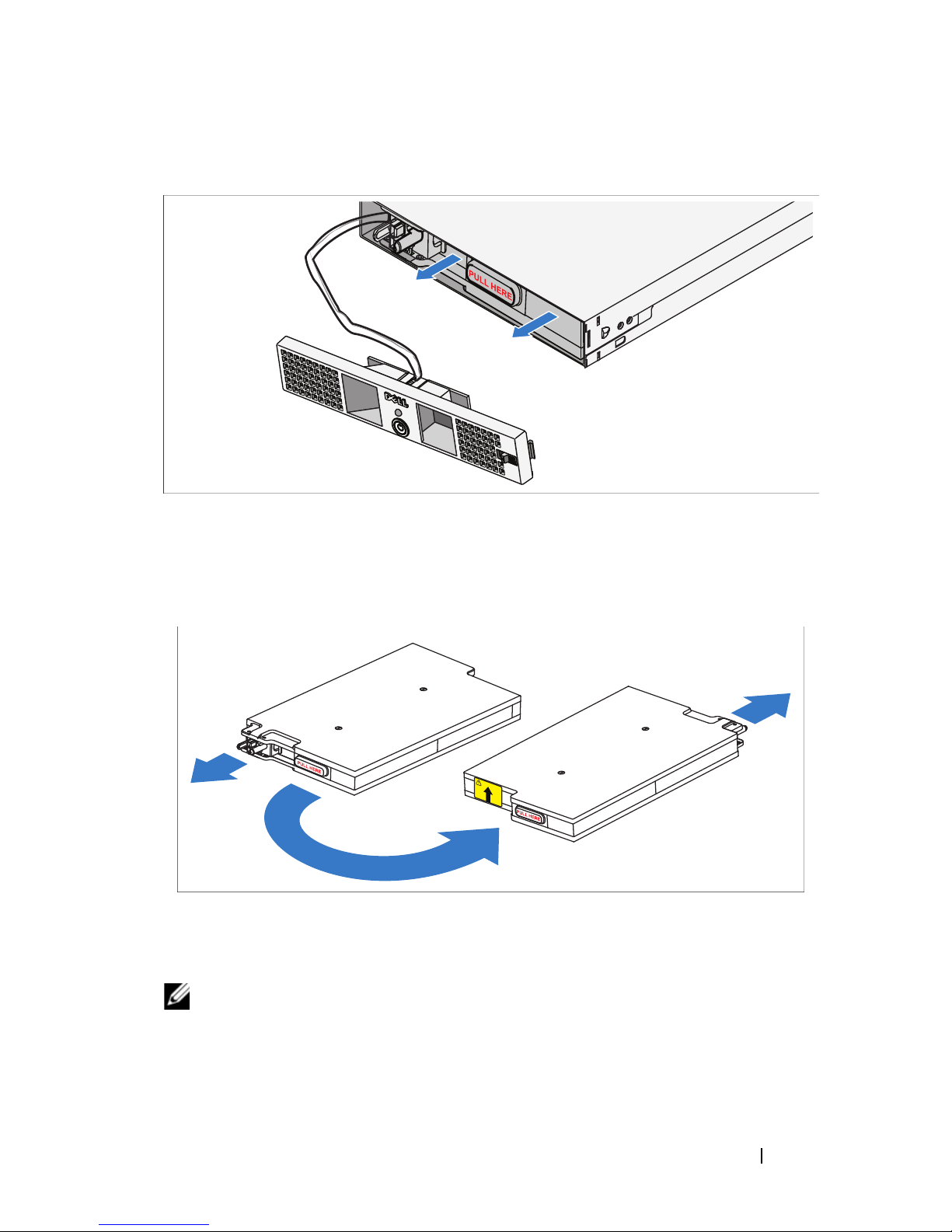

Removing the Power Module Front Cover

On the right side of the front cover, slide the latch to the left to retract the latch

hook. This hook secures the front cover to the right side of the chassis. Pull the

right side of the front cover from the chassis. Slide the front cover to the right to

disengage the hook. This hook secures the front cover to the left side of the chassis.

Getting Started With Your System

Removing the Battery

Pull the battery out of the power module.

Rotating the Battery

Rotate the battery 180° so the blind mate connector faces toward the back of

the power module chassis.

NOTE:

Ensure that the arrow on the yellow label is pointing up.

Getting Started With Your System

Reinserting the Battery

Align the battery with the power module and reinsert the battery. Ensure that

the battery is fully seated in the power module. If the battery is not fully

inserted into the power module, the battery front cover will not close properly.

NOTE:

Always connect the battery pack before connecting the power cable.

NOTE:

You will not observe the blind mate connectors as they plug into the

receptacle in the back of the power module, but a small amount of arcing may

occur when connecting the battery pack. This is normal and does not damage the

unit or present any safety concern.

Getting Started With Your System

Securing the Power Module Front Cover

WARNING:

For safety, always attach the power module front cover as soon as the

battery pack is inserted and connected.

WARNING:

Align the front cover carefully before securing it to the power

module. For safety, do not allow the power module front cover to come in contact

with the battery pack.

On the left side of the first front cover, insert the hook into the open slot on the

left side of the chassis. On the right side of the front cover, slide the latch to the

left to retract the latch hook. Push the right side of the front cover forward to

the chassis. Release the latch to set the hook into the open slot on the right side

of the chassis.

Getting Started With Your System

Inserting the Power Modules

Insert the power modules into the chassis module bay with the back panels

toward the back of the chassis.
