Dell PowerVault DL2100 Manuel utilisateur

Dell™ PowerVault™

DL2100 Systems

Getting Started

With Your System

Guide de mise en route

Introdução ao uso do sistema

Procedimientos iniciales con el sistema

Dell™ PowerVault™

DL2100 Systems

Getting Started

With Your System

Regulatory Model E02S

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Dell, the DELL logo, and PowerVault are trademarks of Dell Inc.; Intel and Xeon are registered

trademarks of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model E02S

August 2009 P/N T3T1X Rev. A00

Getting Started With Your System 3

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Rails and System in a Rack

Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructions provided with your system.

4Getting Started With Your System

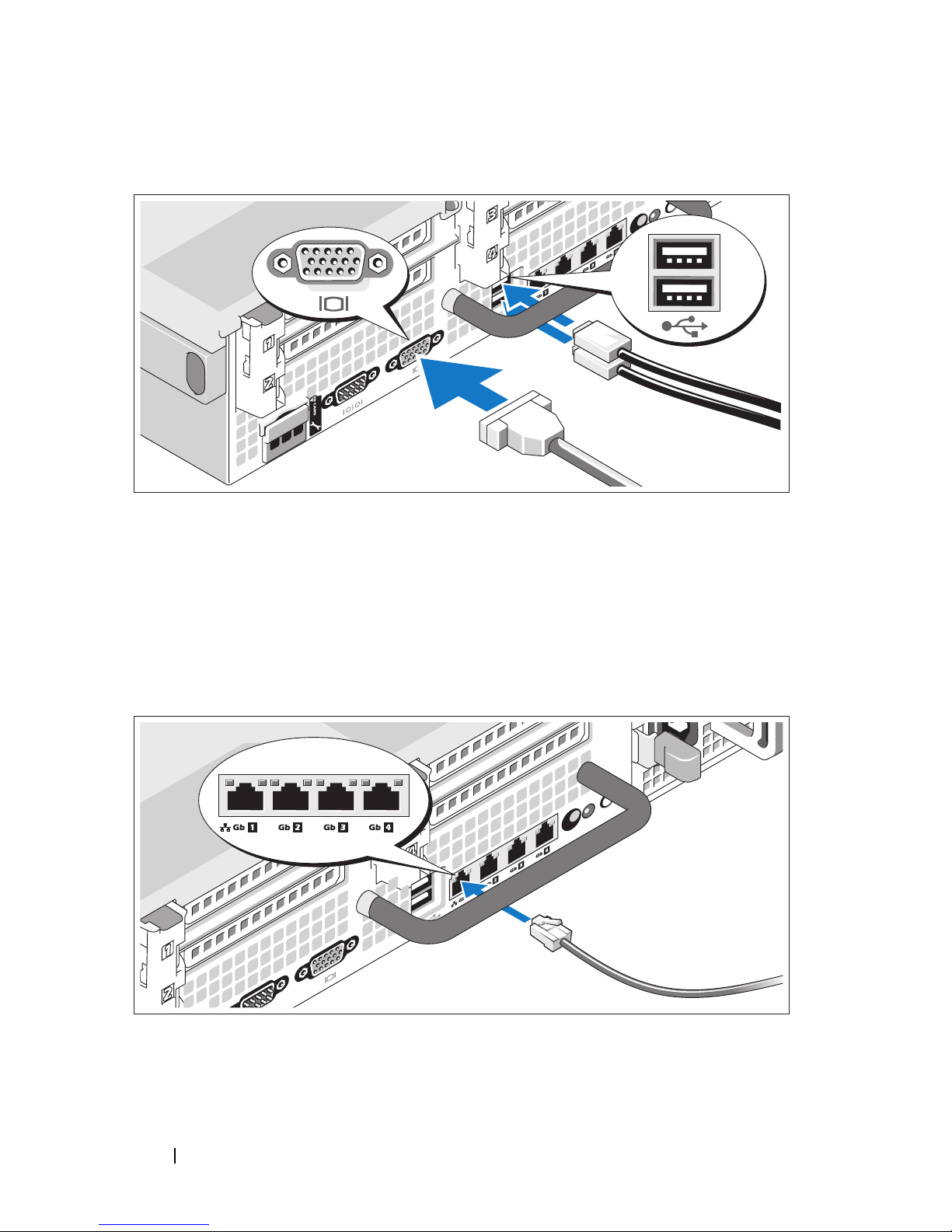

Optional — Connecting the Keyboard, Video, and Mouse

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.

Connecting the Ethernet Cable

Connect an Ethernet cable to one of the Ethernet connectors at the back

of the system.

Getting Started With Your System 5

Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system.

Securing the Power Cable(s)

Bend the system power cable(s) into a loop as shown in the illustration and

secure the cable(s) to the bracket using the provided strap.

Plug the other end of the power cable(s) into a grounded electrical outlet

or a separate power source such as an uninterruptible power supply (UPS) or

a power distribution unit (PDU).

6Getting Started With Your System

Turning on the System

Press the power button on the system and the monitor. The power indicator

should light.

Installing the Optional Bezel

Install the bezel (optional).

Getting Started With Your System 7

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with

your system. Warranty information may be included within this document or

as a separate document.

• The rack documentation included with your rack solution describes how to

install your system into a rack.

• The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components. This document is available online at

support.dell.com/manuals.

• Any media that ships with your system that provides documentation and

tools for configuring and managing your system, including those

pertaining to the operating system, system management software,

system updates, and system components that you purchased

with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the

updates first because they often supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not

perform as expected, see your Hardware Owner’s Manual. Dell

™

offers

comprehensive hardware training and certification. See www.dell.com/training

for more information. This service may not be offered in all locations.

8Getting Started With Your System

NOM Information (Mexico Only)

The following information is provided on the device described in this

document in compliance with the requirements of the official Mexican

standards (NOM):

Technical Specifications

Importer:

Model number: E02S

Supply voltage: 100–240 VAC

Frequency: 50/60 Hz

Current consumption: 7.0–3.5A

Processor

Processor type One or two quad-core Intel

Xeon

processors

Expansion Bus

Bus type PCI Express Generation 2

Expansion slots using

riser cards:

Riser 1 (Center Riser)

One full-height, 9.5-inch length, x4 link (slot 1)

NOTE: This slot can be upgraded to 12.2 inches.

One low-profile, 9.5-inch length, x4 link (slot 2)

Riser 2 (Left Riser)

Two full-height, 9.5-inch length, x8 link (slot 3 and 4)

One full-height, 9.5-inch length, x16 link (slot 3)

NOTE: Support for up to 25 W is available only on the first

two cards installed in the system; any additional cards

installed in the system must be 15 W or under.
