Dell PowerVault 35F Manuel utilisateur



ZZZGHOOFRP

'HOO3RZHU9DXOW))LEUH&KDQQHO%ULGJH5DFN,QVWDOODWLRQ*XLGH

3RQW)LEUH&KDQQHO'HOO3RZHU9DXOW)*XLGHG·LQVWDOODWLRQHQUDFN

'HOO3RZHU9DXOW)*ODVIDVHUNDQDO%UFNH5DFN,QVWDOODWLRQVKDQGEXFK

3XHQWHGHFDQDOGHILEUD'HOO3RZHU9DXOW)*XtDGHLQVWDODFLyQHQHVWDQWH

ZZZGHOOFRP



'HOO3RZHU9DXOW)

)LEUH&KDQQHO%ULGJH

5$&.,167$//$7,21

*8,'(

1RWHV&DXWLRQVDQG:DUQLQJV

Throughout this guide, blocks of text may be accompanied by an icon and printed in

bold type or in italic type. These blocks are notes, cautions, and warnings, and they

are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of

your computer system.

&$87,21$&$87,21LQGLFDWHVHLWKHUSRWHQWLDOGDPDJHWRKDUGZDUHRU

ORVVRIGDWDDQGWHOOV\RXKRZWRDYRLGWKHSUREOHP

:$51,1*$:$51,1*LQGLFDWHVWKHSRWHQWLDOIRUERGLO\KDUPDQGWHOOV

\RXKRZWRDYRLGWKHSUREOHP

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Computer

Corporation is strictly forbidden.

Trademarksusedinthistext:

Dell

,the

DELL

logo,and

PowerVault

aretrademarksofDellComputer

Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Computer Corporation disclaims any

proprietary interest in trademarks and trade names other than its own.

March 1999 P/N 9165P Rev. A01

Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide 1-1

'HOO3RZHU9DXOW)

)LEUH&KDQQHO%ULGJH

5DFN,QVWDOODWLRQ*XLGH

This document provides instructions for trained service technicians installing one or

more Dell PowerVault 35F Fibre Channel bridges in a Dell rack. The bridge rack-

mounting hardware includes:

One manifold with an attached bezel and two inner-slide rails

Two outer slides, each with a stationary and an adjustable bracket

Four 6-32 x 1/4-inch panhead screws

Eight 10-32 x 1/2-inch screws

Eight tapered washers

The following sections describe the tasks required to mount the PowerVault 35F

bridge in a Dell rack.

%HIRUH<RX%HJLQ

Before you install your PowerVault 35F bridge in the rack, read the safety information

and tool requirement in the following subsections.

,PSRUWDQW6DIHW\,QIRUPDWLRQ

Follow these safety precautions when installing the PowerVault 35F bridge.

.LW,QVWDOODWLRQ5HVWULFWLRQV

:$51,1*'HOOV\VWHPVDUHFHUWLILHGDVFRPSRQHQWVIRUXVHLQ'HOOVUDFN

FDELQHWXVLQJWKH'HOOFXVWRPHUUDFNNLW7KHLQVWDOODWLRQRI'HOOV\VWHPV

DQGUDFNNLWVLQDQ\RWKHUEUDQGRIUDFNFDELQHWKDVQRWEHHQDSSURYHGE\

DQ\VDIHW\DJHQFLHV,WLVWKHFXVWRPHUVUHVSRQVLELOLW\WRKDYHWKHILQDO

FRPELQDWLRQRI'HOOV\VWHPVDQGUDFNNLWVXVHGLQRWKHUEUDQGVRIUDFN

FDELQHWVHYDOXDWHGIRUVXLWDELOLW\E\DFHUWLILHGVDIHW\DJHQF\

1-2 Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide

This rack kit is intended to be installed in a Dell rack by trained service technicians. If

you install the kit in any other rack, be sure that the rack meets the specifications of

the Dell rack.

5DFN6WDELOL]HU)HHW

:$51,1*,QVWDOOLQJ'HOOV\VWHPVLQD'HOOUDFNZLWKRXWWKHIURQWDQG

VLGHVWDELOL]HUIHHWLQVWDOOHGFRXOGFDXVHWKHUDFNWRWLSRYHUSRWHQWLDOO\

UHVXOWLQJLQERGLO\LQMXU\XQGHUFHUWDLQFLUFXPVWDQFHV7KHUHIRUHDOZD\V

LQVWDOOWKHVWDELOL]HUIHHWEHIRUHLQVWDOOLQJFRPSRQHQWVLQWKHUDFN

The stabilizer feet help to prevent the possibility of the rack tipping over when a Dell

system or other components are pulled out of the rack so that the slide assemblies

are fully extended. Refer to the Dell rack's installation guide for instructions on

installing the stabilizer feet.

5DFN0RXQW6DIHW\*XLGHOLQHV

In a rack-mount installation, follow these safety guidelines.

:$51,1*$IWHULQVWDOOLQJ'HOOV\VWHPVLQDUDFNQHYHUSXOOPRUHWKDQRQH

V\VWHPRXWRIWKHUDFNRQLWVVOLGHDVVHPEOLHVDWRQHWLPH7KHZHLJKWRI

PRUHWKDQRQHH[WHQGHGV\VWHPFRXOGFDXVHWKHUDFNWRWLSRYHUDQGLQMXUH

VRPHRQH

&$87,218VHFDXWLRQZKHQSUHVVLQJWKHFRPSRQHQWVOLGHUHOHDVHODWFKHV

DQGVOLGLQJDFRPSRQHQWLQWRRURXWRIDUDFNWKHVOLGHVFDQSLQFK\RXU

ILQJHUV

When installing a bridge in a closed or multirack assembly, ensure that the air

temperature, measured at the front panel, does not exceed 35°C during

operation.

Ensure that the airflow to the bridge is unobstructed.

Verify that the bridge installation, both with the slides closed and fully extended,

does not unbalance the rack or exceed the rack’s mechanical limits.

Verify that the supply circuit, line fusing, and wire size are adequate. Refer to the

bridge’s nameplate for its power requirements.

Verify that all equipment installed in the rack has a reliable ground connection. Do

not rely on a connection to a branch circuit, such as a power strip.

Route and support all cabling and the power cord to ensure that the bridge

moves freely on its slide assemblies without crimping or damaging the power

cord or interfering with other equipment and cabling installed in the rack.

Always load the rack from the bottom up, and load the heaviest item in the rack

first.

Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide 1-3

Ensure that the rack is level and stable before extending a component from the

rack.

After a component is inserted into the rack, carefully extend the slide into a

locking position, and then slide the component into the rack.

5HFRPPHQGHG7RRO

To install the PowerVault 35F bridge, use a #2 Phillips-head screwdriver.

,QVWDOOLQJWKH%ULGJH

Use the following procedure to install the bridge in the rack. The subsections that

follow include instructions for performing these tasks.

1. Remove the doors from the rack.

2. Mount the bridge onto the manifold.

3. Install the outer slides.

4. Install the bridge in the rack.

5. Replace the doors.

5HPRYLQJWKH'RRUV)URPWKH5DFN

You must remove the front and back doors from the rack to provide access to the

interior of the rack and to prevent damage to the doors while installing the kit. Use

the following procedure to remove the doors.

:$51,1*7RSUHYHQWSHUVRQDOLQMXU\GXHWRWKHVL]HDQGZHLJKWRIWKH

GRRUVQHYHUDWWHPSWWRUHPRYHWKHGRRUVE\\RXUVHOI

1. Open the latch on the front door (see Figure 1-1).

Slide the latch’s push-button cover up as far as it will go, press the push button,

rotate the handle clockwise until the latch releases, and then pull the door open.

1-4 Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide



)LJXUH2SHQLQJWKH/DWFKRQWKH'RRU

2. Remove the front door as shown in Figure 1-2:

a. One person should grasp the top of the door to stabilize it. The other person

should grasp the bottom of the door.

b. The person holding the bottom of the door should press the hinge release

lever on the bottom hinge and then pull the bottom of the door away from

the rack a few inches.

c. The person holding the top of the door should press the hinge release lever

on the top hinge and then pull the door away from the rack.

push button

push-button

cover

handle

Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide 1-5

)LJXUH5HPRYLQJWKH5DFN'RRUV

3. Perform steps 1 and 2 to remove the back door from the rack.

Store the two doors where they will not injure someone if they accidentally fall over.

0RXQWLQJWKH%ULGJH2QWRWKH0DQLIROG

The manifold comes with attached inner-slide rails. The bridge is attached to these

inner-slide rails using the four 6-32 x 1/4-inch panhead screws.

To mount the bridge, perform the following steps:

1. Place the manifold on a clean, flat surface.

The word “top” is stamped on the manifold. Ensure that “top” is facing up.

2. Place the bridge behind the manifold and between the two inner-slide rails.

Ensure that the bridge is upright and the end with the power and cable

connectors is facing away from the manifold.

hinge

release

lever

1-6 Dell PowerVault 35F Fibre Channel Bridge Rack Installation Guide

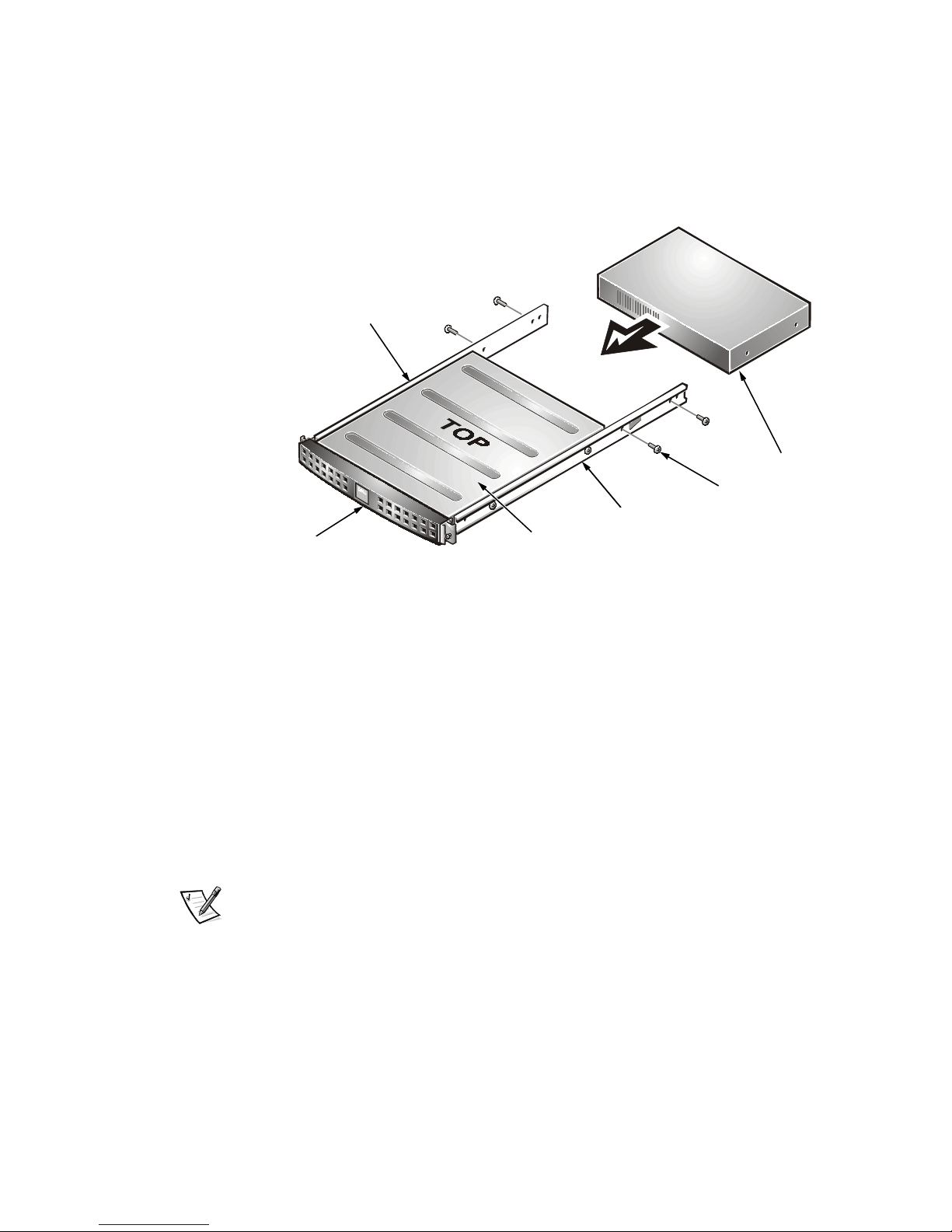

3. Align the holes of the inner-slide rails with the holes on the side of the bridge

(see Figure 1-3).

You must press the manifold and bridge together, compressing the gasket, to get

the holes in the inner-slide rails and bridge to align.

)LJXUH0RXQWLQJWKH%ULGJHWRWKH0DQLIROG

4. Use four 6-32 x 1/4-inch screws to mount the inner-slide rails to the bridge.

,QVWDOOLQJWKH2XWHU6OLGHV

To install the outer slide in the rack, perform the following steps:

1. Align the holes of the stationary and adjustable brackets with the holes in the

rack.

The stationary brackets attach to the front of the rack. The adjustable brackets

attach to the rear. The top hole of each bracket must align with top hole of an

Electronic Industry Association (EIA) unit in the rack. The top hole of an EIA unit

has a dot next to it (see Figure 1-4).

NOTE: The slides must be mounted within 1 EIA unit. The height of the bridge

takes up 1 EIA unit.

inner-slide

rail

inner-slide

rail

bezel

bridge

manifold

6-32 x 1/4-inch

screws (4)
