Dell PowerVault MD3260/3260i/3660i/3660f/3060e

Storage Arrays

Getting Started Guide

Regulatory Model: E08J Series

Regulatory Type: E08J001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Trademarks used in this text: Dell™, the Dell logo, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,

PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™and Vostro™are trademarks of Dell

Inc. Intel®, Pentium®, Xeon®, Core®and Celeron®are registered trademarks of Intel Corporation in the U.S. and other countries. AMD®

is a registered trademark and AMD Opteron™, AMD Phenom™and AMD Sempron™are trademarks of Advanced Micro Devices, Inc.

Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®and Active Directory®are either trademarks

or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat®and Red Hat®

Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®are

registered trademarks of Novell Inc. in the United States and other countries. Oracle®is a registered trademark of Oracle Corporation

and/or its affiliates. Citrix®, Xen®, XenServer®and XenMotion®are either registered trademarks or trademarks of Citrix Systems, Inc. in

the United States and/or other countries. VMware®, Virtual SMP®, vMotion®, vCenter®and vSphere®are registered trademarks or

trademarks of VMware, Inc. in the United States or other countries. IBM®is a registered trademark of International Business Machines

Corporation.

2012 - 06

Rev. A00

Installation and Configuration

WARNING: Before performing the following procedure, review the safety instructions that came with the system.

Unpacking A Rack System

WARNING: The weight of your system without the physical disks installed (empty weight) is 19.50 kg (43.0 lb) and

when fully populated with all the physical disks is 105.20 kg (232.0 lb).

WARNING: Your system must be installed by Dell certified service technicians. For safe installation of an empty

system, a minimum of three service technicians are required. To install a fully populated system, a mechanized

lifting tool is required to position the system in a rack.

WARNING: Install the physical disks into the system only after installing the system in the rack. Installing the

system in the rack with the physical disks installed can damage the disks or cause injury.

CAUTION: Before installing your system in the rack, ensure that the weight of the system does not exceed the

rack's weight limit. For more information, see the Rack Installation Instructions that shipped with your system.

NOTE: For weight stability, always load the rack from the bottom up.

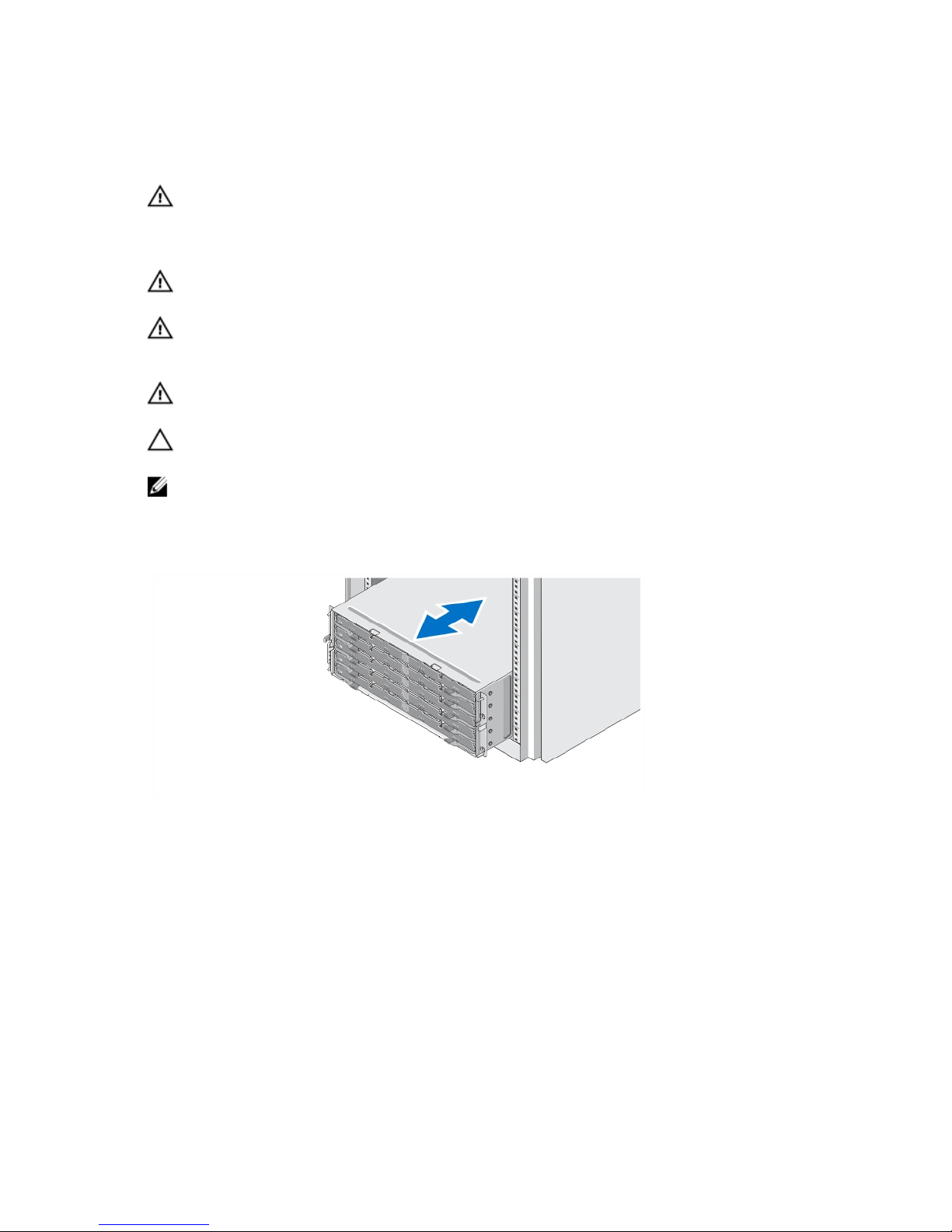

Figure 1. Installing the System in a Rack

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety instructions and the rack installation

instructions provided with your system.

Opening And Closing The Disk Drawer

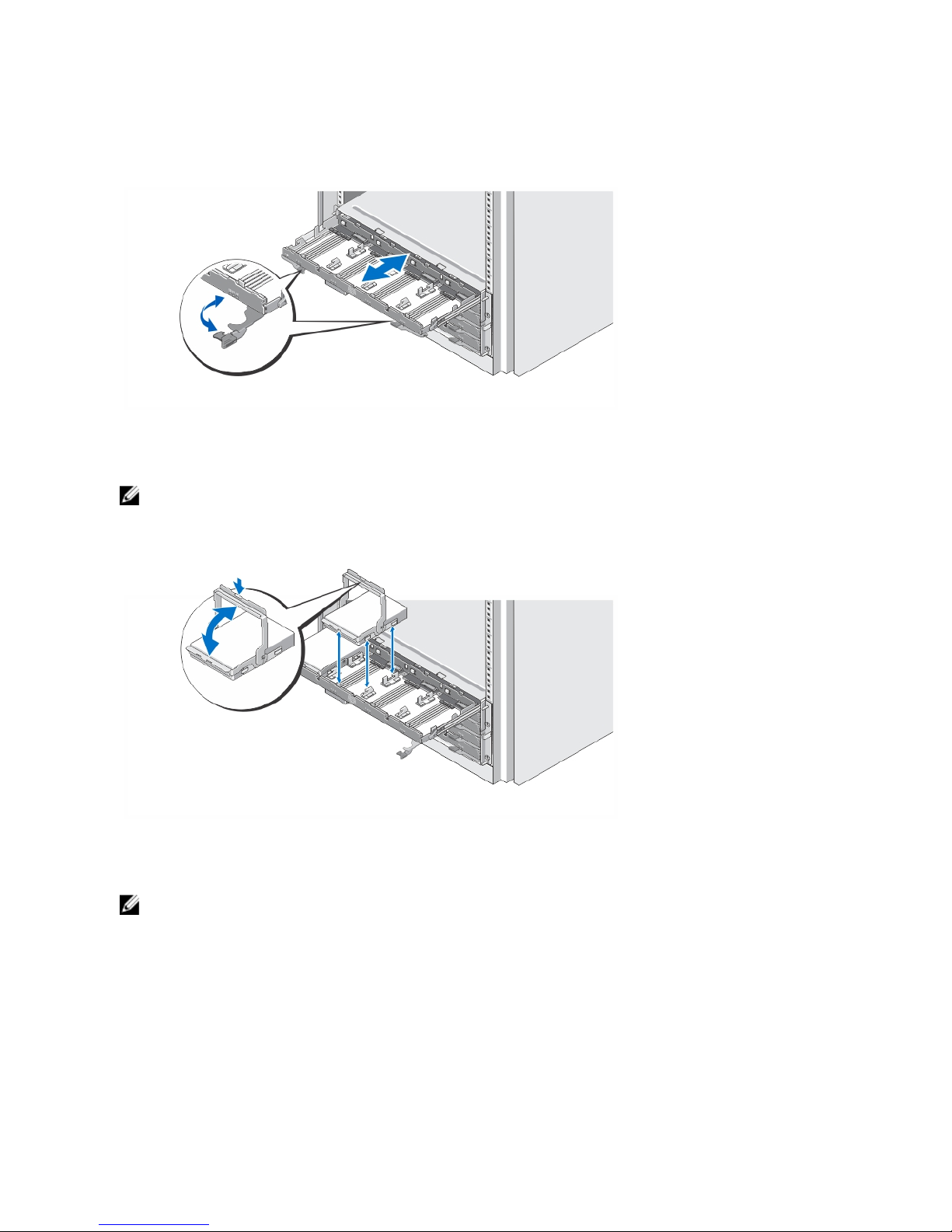

Figure 2. Opening and Closing the Disk Drawer

Open the disk drawer to install or remove the physical disk carrier(s).

NOTE: You can open only one disk drawer at a time.

Installing The Physical Disks

Figure 3. Installing the Physical Disk(s)

Install physical disk(s) in the disk drawer.

NOTE: Each disk drawer must have a minimum of four physical disks installed. Always install the physical disks

starting from the front row (slots 0, 3, 6, and 9) in each disk drawer.

Connecting The Power Cable(s)

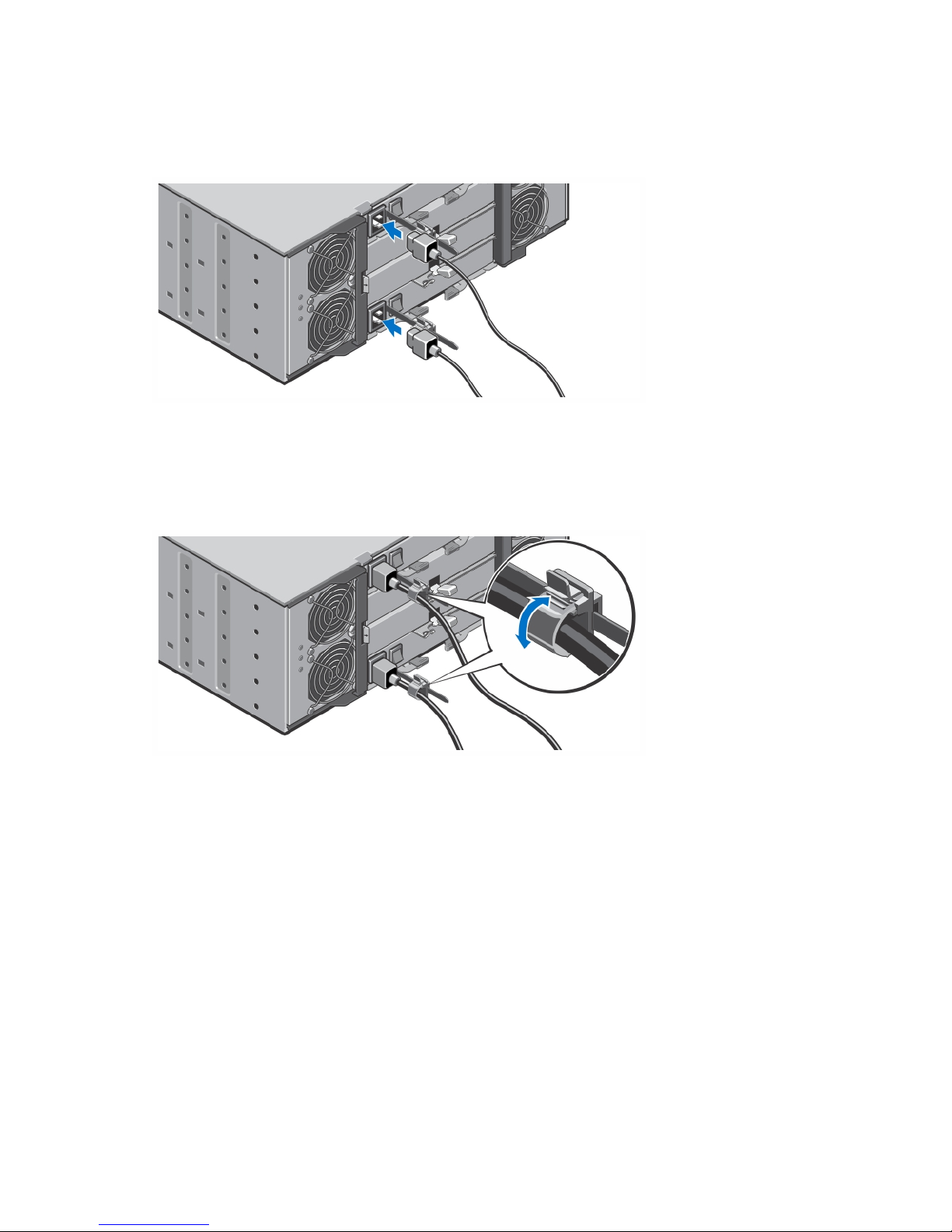

Figure 4. Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system.

Securing The Power Cable(s)

Figure 5. Securing the Power Cable(s)

Open the cable retention bracket by pulling the tabs on its sides, insert the cable, and secure the system power cable,

as shown in the illustration.

Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source such as an

uninterruptible power supply (UPS) or a power distribution unit (PDU).

Turning On The System

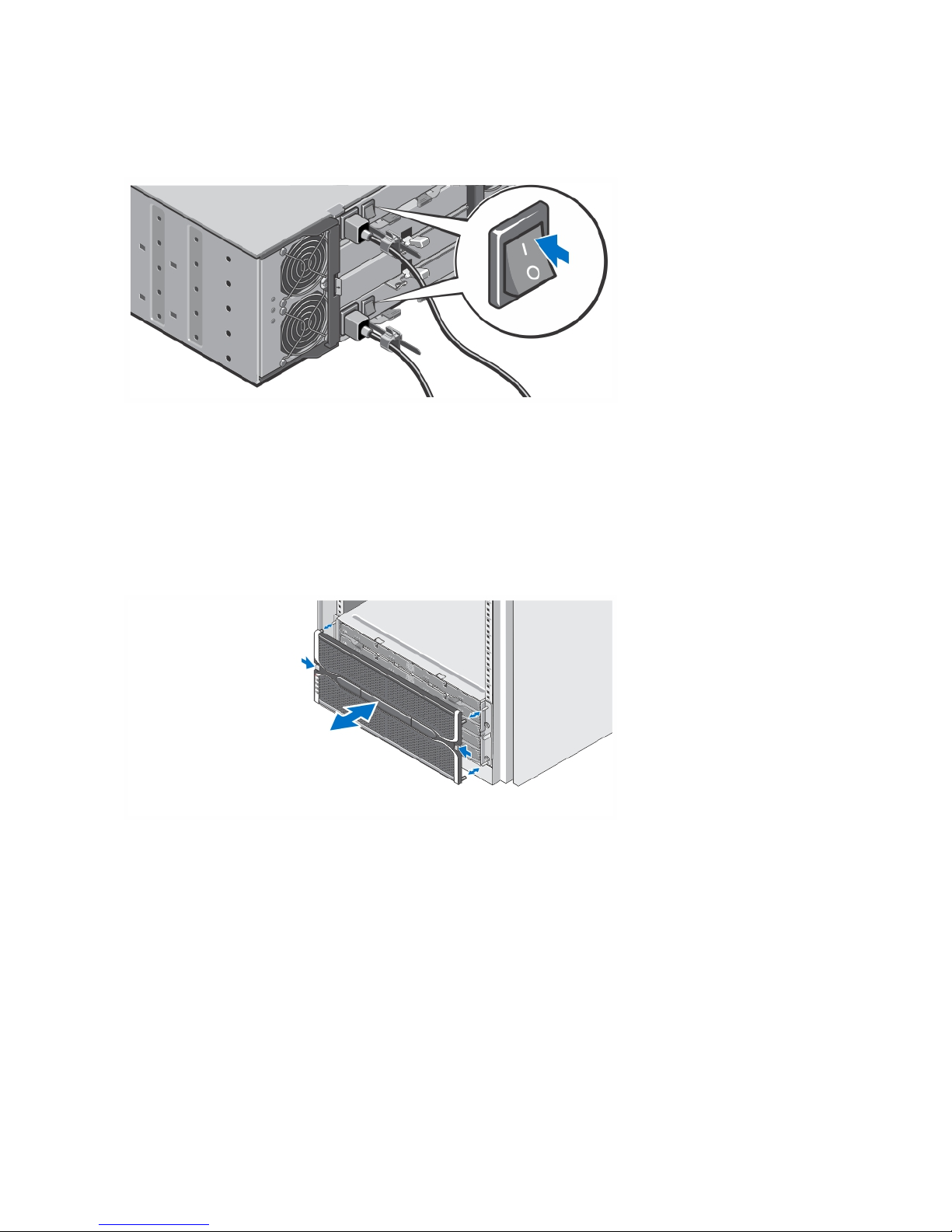

Figure 6. Turning on the System

Turn the power switch on the back of the system to the On position. The power indicator should light.

Installing The Bezel

Figure 7. Installing the Bezel

Install the bezel.

Dell Software License Agreement

Before using your system, read the Dell Software License Agreement that came with your system. You must consider

any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do

not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United

States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit support.dell.com and select

your country or region from the bottom of the page.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be

included within this document or as a separate document.

• The

Owner’s Manual

provides information about system hardware features and describes how to troubleshoot

the system and install or replace system components. This document is available online at support.dell.com/

manuals.

• The

Administrator's Guide

provides information about Modular Disk Storage Manager software features and

describes how to configure and manage your modular disk system. This document is available online at

support.dell.com/manuals.

• The

Deployment Guide

provides information about cabling your system and the installation and initial

configuration of the Modular Disk Storage Manager software. This document is available online at

support.dell.com/manuals.

• The rack documentation included with your rack solution describes how to install your system into a rack, if

required.

• Any media that ships with your system that provides documentation and tools for configuring and managing your

system, including those pertaining to the operating system, system management software, system updates, and

system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often

supersede information in other documents.

NOTE: When upgrading your system, it is recommended that you download and install the systems management

firmware on your system from support.dell.com.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your

Owner’s

Manual

. Dell offers comprehensive hardware training and certification. See dell.com/training for more information. This

service may not be offered in all locations.

NOM Information

The following information is provided on the device described in this document in compliance with the requirements of

the official Mexican standards (NOM):

Importer: Dell Inc. de México, S.A. de C.V.

Paseo de la Reforma 2620 -11º Piso

Col. Lomas Altas

11950 México, D.F.

Model number: E08J

Supply voltage: 200 – 240 V CA

Frequency: 50/60 Hz

Current consumption: 7.56 A

Technical Specifications

NOTE: The following specifications are only those required by law to ship with your system. For a complete and

current listing of the specifications for your system, go to support.dell.com.

Power

AC power supply (per power supply)

Wattage 1,755 W

Heat dissipation (maximum)

NOTE: Heat dissipation is calculated using the

power supply wattage rating. The heat

dissipation values are for the entire system

which includes chassis and two controllers.

5988 BTU/hr

Voltage

NOTE: This system is also designed to be

connected to IT power systems with a phase

to phase voltage not exceeding 230 V.

220 V AC, autoranging, 50 Hz/60 Hz

Battery 6.6 V DC, 1100 mAh, 7.26 W Lithium Ion Battery

Physical

Height 177.80 mm (7.0 inch)

Width 482.60 mm (19.0 inch) with rack latches

Depth 825.50 mm (32.5 inch) without bezel and handle

Weight (maximum configuration) 105.20 kg (232.0 lb)

Weight (empty) 19.50 kg (43.0 lb)

Environmental

NOTE: For additional information about environmental measurements for specific system configurations, see

dell.com/environmental_datasheets.

Temperature

Operating Continuous operation: 10 °C to 35 °C (50 °F to 95 °F) at 20% to

80% relative humidity (RH), with 26 °C maximum dew point. De-

rate maximum allowable dry bulb temperature at 1 °C/300 m (1

°F per 550 ft) above 900 m (2952.75 ft).

NOTE: For information on supported expanded operating

temperature range and configurations, see the Owner's

Manual at support.dell.com/manuals.

Storage –40 °C to 65 °C (–40 °F to 149 °F) with a maximum temperature

gradation of 20 °C per hour

Environmental

Relative humidity

Operating 20% to 80% (noncondensing) with maximum humidity gradation

of 10% per hour

Storage 5% to 95% at a maximum wet bulb temperature of 38 °C (100.4

°F)

Maximum vibration

Operating 0.26 Grms at 5 Hz to 350 Hz in operational orientation

Storage 1.88 Grms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)

Maximum shock

Operating One shock pulse in the positive z axis of the system at 31 G for

2.6 ms in the operational orientation

Storage Six consecutively executed shock pulses in the positive and

negative x, y, and z axes (one pulse on each side of the system)

at 71 G for up to 2 ms

Six consecutively executed shock pulses in the positive and

negative x, y, and z axes (one pulse on each side of the system)

of 22 G faired square wave pulse with velocity change at 200

inches/second (508 centimeters/second)

Altitude

Operating –30.5 m to 3000 m (–100 ft to 9,842 ft)

NOTE: For altitudes above 2950 ft, the maximum operating

temperature is derated 1.8 ºF/1000 ft.

Storage –30.5 m to 12192 m (–100 ft to 40,000 ft)

Airborne contaminant level

Class G1 as defined by ISA-S71.04-1985
