Dell™ Ink-Free Printer PZ310

With ZINK™ Zero Ink™ Printing Technology

User’s Guide

Model PZ310

Notes and Notices

NOTE: A NOTE indicates important information that helps you make better use

of your mobile printer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text:

Dell

and the

DELL

logo are trademarks of Dell Inc.;

Microsoft

and

Windows

are registered trademarks of Microsoft Corporation;

Bluetooth

is a

registered trademark owned by Bluetooth SIG, Inc. and used by Dell Inc. under license;

ZINK

and

Zero Ink

are trademarks of Zink Imaging, LLC.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

Model PZ310

August 2008 Rev. A00

Contents 3

Contents

1 Your Dell™ Mobile Printer

About Your Mobile Printer - - - - - - - - - - - - - - - - - - - - - - - - - 5

2 Inserting and Charging the Battery

Inserting the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6

Charging the Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7

3 Loading the ZINK Photo Paper

Important Information: ZINK Photo Paper - - - - - - - - - - - - - - 9

4 Printing Photos

Turning On Your Printer - - - - - - - - - - - - - - - - - - - - - - - - - - 10

Sending and Printing Photos

Using Bluetooth®Technology - - - - - - - - - - - - - - - - - - - - - 11

Sending and Printing Photos Using PictBridge - - - - - - - - - 14

Reprinting a Photo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15

5 Status Indicator Information,

Troubleshooting, and Specifications

Status Indicators Information - - - - - - - - - - - - - - - - - - - - - - 13

Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15

Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16

6 Contacting Dell

www.dell.com | support.dell.com

4Your Dell™ Mobile Printer

Your Dell™Mobile Printer

Unpack your printer and verify the contents of the package. If any of the items

shown below are missing, contact Dell ("Contacting Dell" on page 20).

Package Contents

Dell Ink-Free Mobile Printer PZ310

Battery

AC adapter and power cord

NOTE: The power cord that shipped

with your printer may be different

depending on your country/region.

Quick Setup Guide and CD Media Pack

Contains 12 ZINK™ Photo Papers and

1 ZINK™ Smart Sheet

NOTE: It is recommended that you use

original Dell branded Zink media for

optimal print quality. Print quality cannot

be guaranteed if non-Dell branded Zink

media is used.

Your Dell™ Mobile Printer 5

About Your Mobile Printer

1Media cover

2PictBridge & power

connector cover

3Battery cover

4Paper exit

1Media tray

2Battery indicator

3Lanyard hook

4Media cover latch

5Reprint button

6Power button

7Error indicator

8Ready indicator

www.dell.com | support.dell.com

6Inserting and Charging the Battery

Inserting and Charging the Battery

Inserting the Battery

CAUTION: Use only the battery that shipped with your printer. Using any other

batteries may result in product damage or malfunction.

Remove the battery cover.

Insert the battery. Ensure that the battery is inserted in the correct orientation as

shown above.

NOTICE: If the battery is inserted incorrectly, the printer does not turn on.

Replace the battery cover.

Inserting and Charging the Battery 7

Charging the Battery

Connect the AC adapter to the printer and a power source.

NOTICE: Charge the battery for 1.5 hours in order to ensure that the battery is

fully charged before you use the printer. If the battery has not been fully

charged, potential damage to hardware or loss of data might happen.

1.5

hours

www.dell.com | support.dell.com

8Loading the ZINK™ Photo Paper

Loading the ZINK™ Photo Paper

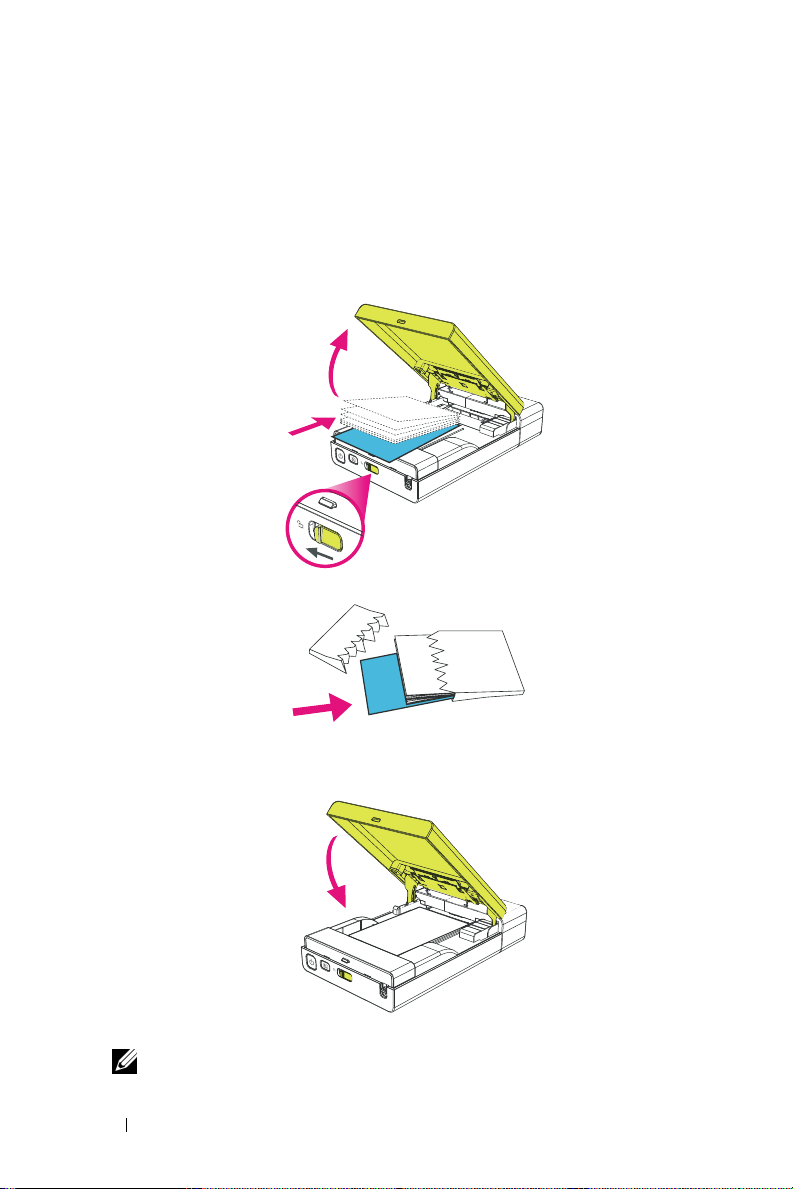

Slide the media cover latch to open the Media cover.

Load the Dell supplied

ZINK Photo Paper into the media tray. Ensure that

ZINK Smart Sheet is at the bottom of pack with the barcode facing down when

3Close the media cover. The Smart Sheet is ejected automatically.

NOTE: The ZINK Smart Sheet cleans and calibrates the print head, ensuring

optimal print quality.

Loading the ZINK™ Photo Paper 9

NOTICE: Only use the Dell supplied ZINK Photo Paper for this mobile printer.

NOTICE: The media tray must be empty before you reload the photo paper. Do

not load the printer with more than 1 pack of ZINK Photo Paper (maximum tray

capacity is 12 photo papers and 1 Smart Sheet).

NOTICE: Retain the ZINK Smart Sheet for calibrating and cleaning the print

head.

Important Information: ZINK Photo Paper

• Do not bend the

ZINK Photo Paper.

•Holdthe

ZINK Photo Paper only by its edges. Do not touch the printing

surface.

• Store the

ZINK Photo Paper in a cool and dry place. Do not expose the photo

paper to direct sunlight for prolonged periods.

• The ZINK Photo Paper should be stored in environments where temperature

ranges between 5

C to 32

C (90

F to 41

F) and humidity ranges between

20% to 80% RH.

• Ensure to use the media pack within its valid date.

• Avoid strong X-ray illumination (such as airport luggage inspection). This might

cause damage to the unused photo papers. It is recommended that you carry the

printer and photo papers as carry-on luggage.

www.dell.com | support.dell.com

10 Printing Photos

Printing Photos

Turning On Your Printer

Press the power button to turn on the printer.

The Ready indicator

lights up immediately once the power is on and indicates

that the printer is ready for printing.

Autres manuels pour PZ310
