Dell FluidFS NAS Solutions

Getting Started Guide

Regulatory Model: E02T and C11M Series

Regulatory Type: E02T001 and C11M001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the Dell logo, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,

PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™and Vostro™are trademarks of Dell

Inc. Intel®, Pentium®, Xeon®, Core®and Celeron®are registered trademarks of Intel Corporation in the U.S. and other countries. AMD®

is a registered trademark and AMD Opteron™, AMD Phenom™and AMD Sempron™are trademarks of Advanced Micro Devices, Inc.

Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®and Active Directory®are either trademarks

or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat®and Red Hat®

Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®are

registered trademarks of Novell Inc. in the United States and other countries. Oracle®is a registered trademark of Oracle Corporation

and/or its affiliates. Citrix®, Xen®, XenServer®and XenMotion®are either registered trademarks or trademarks of Citrix Systems, Inc. in

the United States and/or other countries. VMware®, Virtual SMP®, vMotion®, vCenter®and vSphere®are registered trademarks or

trademarks of VMware, Inc. in the United States or other countries. IBM®is a registered trademark of International Business Machines

Corporation.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their

products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

2012 – 04

Rev. A01

Installation And Configuration

WARNING: Before performing the following procedure, review the safety instructions that came with the system.

Unpacking A Rack System

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety instructions and the rack installation

instructions provided with your system.

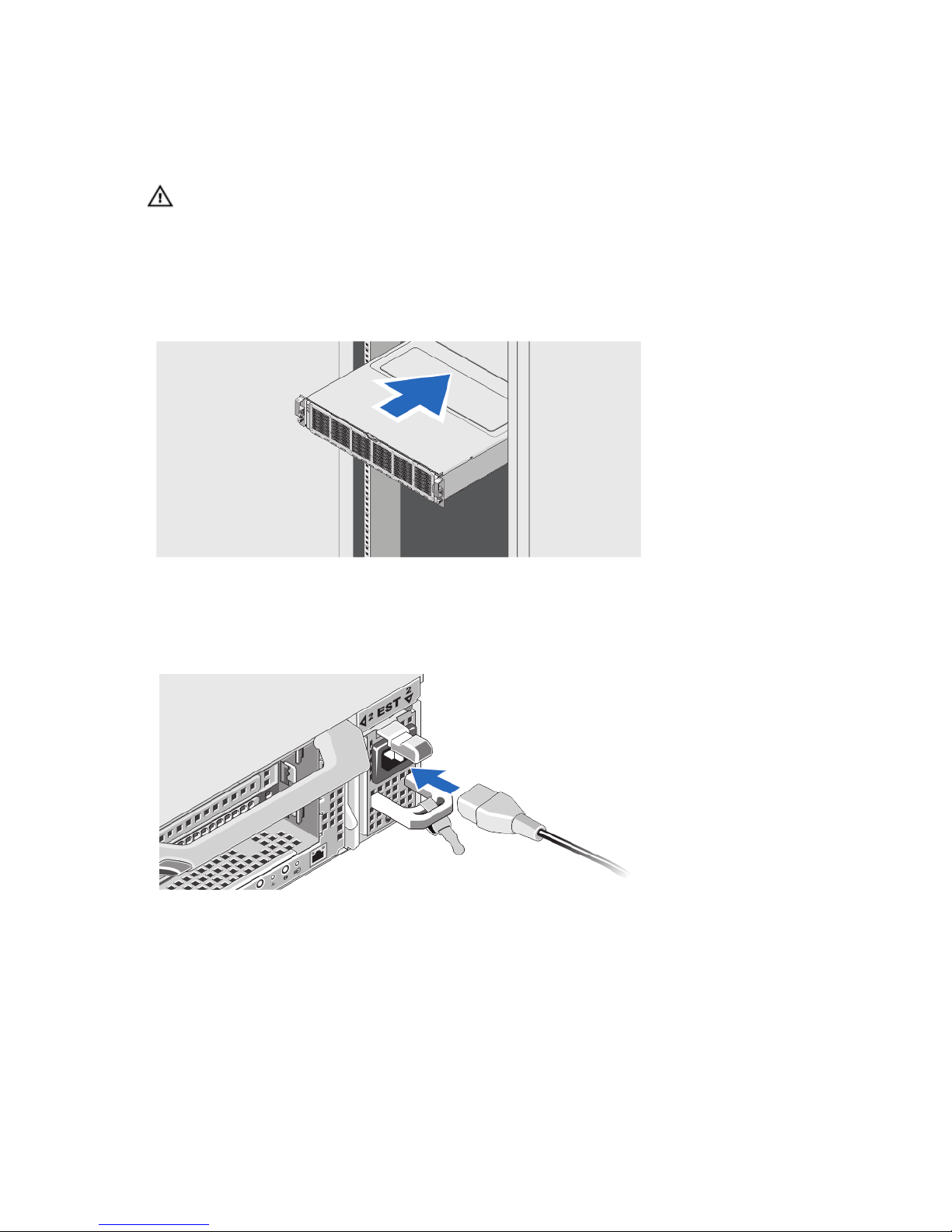

Figure 1. Installing the System in a Rack

Connecting The Power Cable(s)

Figure 2. Connecting Power Cable(s)

Connect the system’s power cable(s) to the system.

Securing The Power Cable(s)

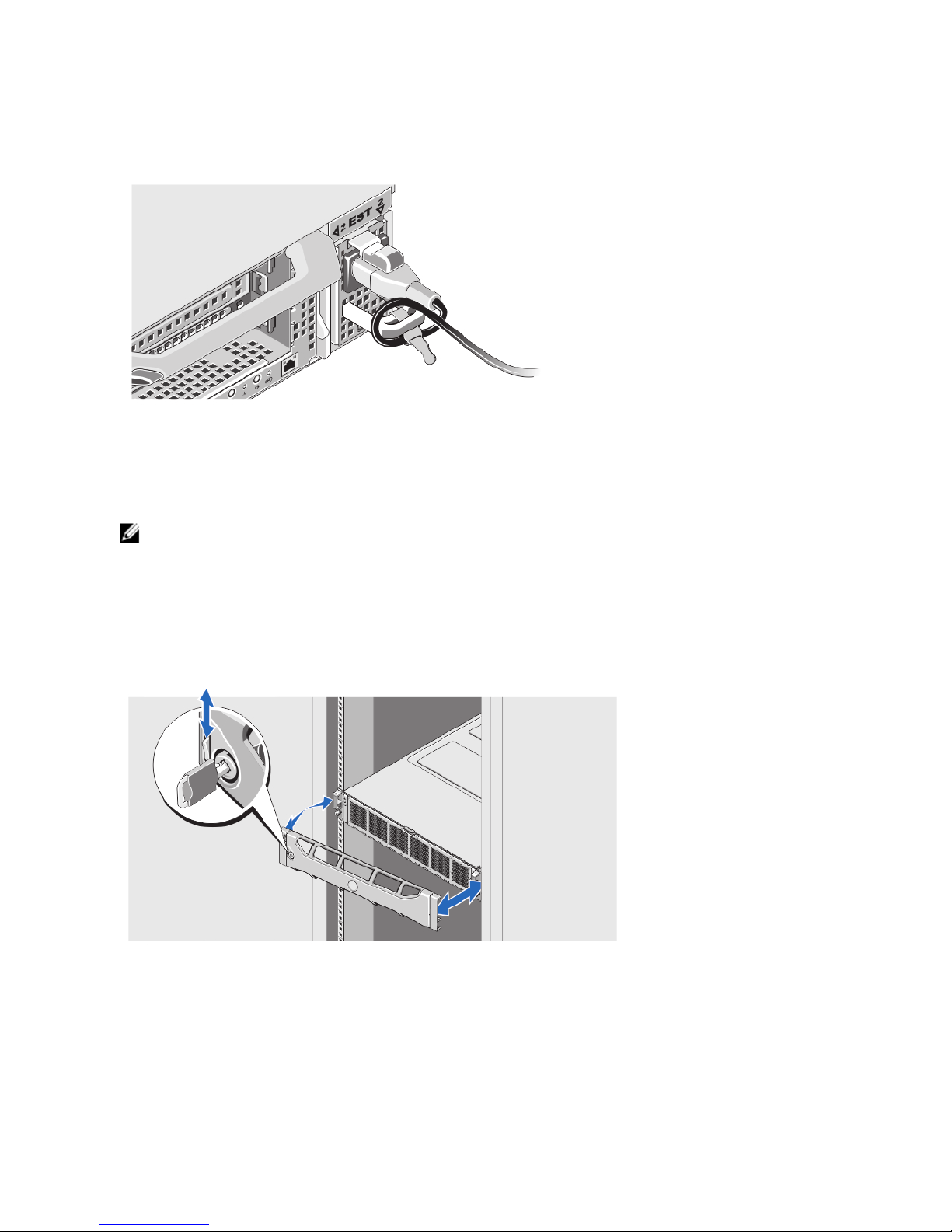

Figure 3. Securing Power Cable(s)

Bend the system power cable(s), as shown in the illustration, and attach to the cable strap.

Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source such as an

uninterruptible power supply (UPS) or a power distribution unit (PDU).

NOTE: Connect each of the two power cables to independent power sources for maximum redundancy.

Turning On The System

The system turns on automatically when you connect the power supply to a power source.

Installing The Optional Bezel

Figure 4. Installing the Bezel

Install the bezel (optional).

Dell Software License Agreement

Before using your system, read the Dell Software License Agreement that came with your system. You must consider

any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do

not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United

States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, visit support.dell.com and select

your country or region from the top of the page.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be

included within this document or as a separate document.

• The

Owner’s Manual

provides information about system features and describes how to troubleshoot the system

and install or replace system components. This document is available online at support.dell.com/manuals.

• The rack documentation included with your rack solution describes how to install your system into a rack, if

required.

• Any media that ships with your system that provides documentation and tools for configuring and managing your

system, including those pertaining to the operating system, system management software, system updates, and

system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com/manuals and read the updates first because they often

supersede information in other documents.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your

Owner’s

Manual

. Dell offers comprehensive hardware training and certification. See dell.com/training for more information. This

service may not be offered in all locations.

NOM Information

The following information is provided on the device described in this document in compliance with the requirements of

the official Mexican standards (NOM):

Importer: Dell Inc. de México, S.A. de C.V.

Paseo de la Reforma 2620 -11º Piso

Col. Lomas Altas

11950 México, D.F.

Model number: E02T

Supply voltage: 100–240 V CA

Frequency: 50/60 Hz

Current consumption: 10 - 6.5 A X2

NOTE: (X#), # = max number of power supplies per system

Technical Specifications

NOTE: The following specifications are only those required by law to ship with your system. For a complete and

current listing of the specifications for your system, go to support.dell.com.

Power

AC Power Supply (per power supply)

Wattage 717 W

Heat dissipation

NOTE: Heat dissipation is calculated using the

power supply wattage rating. The heat

dissipation values are for the entire system

which includes (chassis and two controllers).

2446.8 BTU/hr

Voltage

NOTE: This system is also designed to be

connected to IT power systems with a phase to

phase voltage not exceeding 230 V.

90 V AC to 264 V AC, autoranging, 47 Hz/63 Hz

Battery

Storage controller backup power supply 12.8 V to 13.2 V, 4.8 Ah to 6 Ah, 63 Wh to 77 Wh

Physical

Height 86.40 mm (3.40 inch)

Width 481.50 mm (18.96 inch) with rack latches

446.30 mm (17.57 inch) without rack latches

Depth 741.0 mm (29.21 inch) without bezel and handle

813.10 mm (32.01 inch) with bezel and handle

Weight (maximum configuration) 30.50 kg (67.0 lb)

Weight (empty) 12.86 kg (28.36 lb)

Environmental

NOTE: For additional information about environmental measurements for specific system configurations, see

dell.com/environmental_datasheets.

Temperature

Operating Continuous operation: 5 °C to 40 °C (41 °F to 104 °F) with a

maximum temperature gradation of 20 °C per hour

Storage –40 °C to 60 °C (–40 °F to 140 °F) with a maximum temperature

gradation of 20 °C per hour

Relative humidity

Environmental

Operating 20% to 80% (noncondensing) with a maximum humidity

gradation of 10% per hour at maximum wet bulb temperature of

29 °C (89.2 °F)

Storage 5% to 95% with a maximum humidity gradation of 10% per hour

at a maximum wet bulb temperature of 38 °C (100.4 °F)

Maximum vibration

Operating 0.26 Grms (5 Hz to 350 Hz at 0.0002 G2/Hz) in operational

orientation for 5 min (maximum)

Storage 1.88 Grms with the following PSD profile (all 6 sides tested for 15

minutes each side)

Frequency (Hz) G2/Hz

10 0.13

20 0.13

70 0.004

130 0.004

165 0.0018

500 0.0018

Maximum shock

Operating 31 G half-sine shock +/-5% with pulse duration of 2.6 ms +/-10%

in the operational orientation (Maximum)

Storage Square wave shock of 27 G, at 235 inches/second (596.90 cm/

second) velocity change (all six sides tested)

Altitude

Operating –16 m to 3048 m (–50 ft to 10,000 ft)

NOTE: For altitudes above 2950 ft, the maximum operating

temperature is derated 1 ºF/550 ft.

Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne Contaminant Level

Class G1 as defined by ISA-S71.04-1985
