Dell XC720xd

Getting Started Guide

Regulatory Model: E14S Series

Regulatory Type: E14S001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other

jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2014–11

Rev. A00

Installation and configuration

WARNING: Before performing the following procedure, review the safety instructions that came

with the system.

Unpacking a rack system

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety instructions and the rack

installation instructions provided with your system.

Figure 1. Installing the Rails and System in a Rack

Connecting the optional keyboard, mouse, and monitor

Figure 2. Connecting keyboard, mouse, and monitor

Connect the keyboard, mouse device, and monitor (optional).

The connectors at the back of your system have icons indicating which cable to plug into each

connector. Be sure to tighten the screws (if any) on the monitor's cable connector.

Connecting the power cable(s)

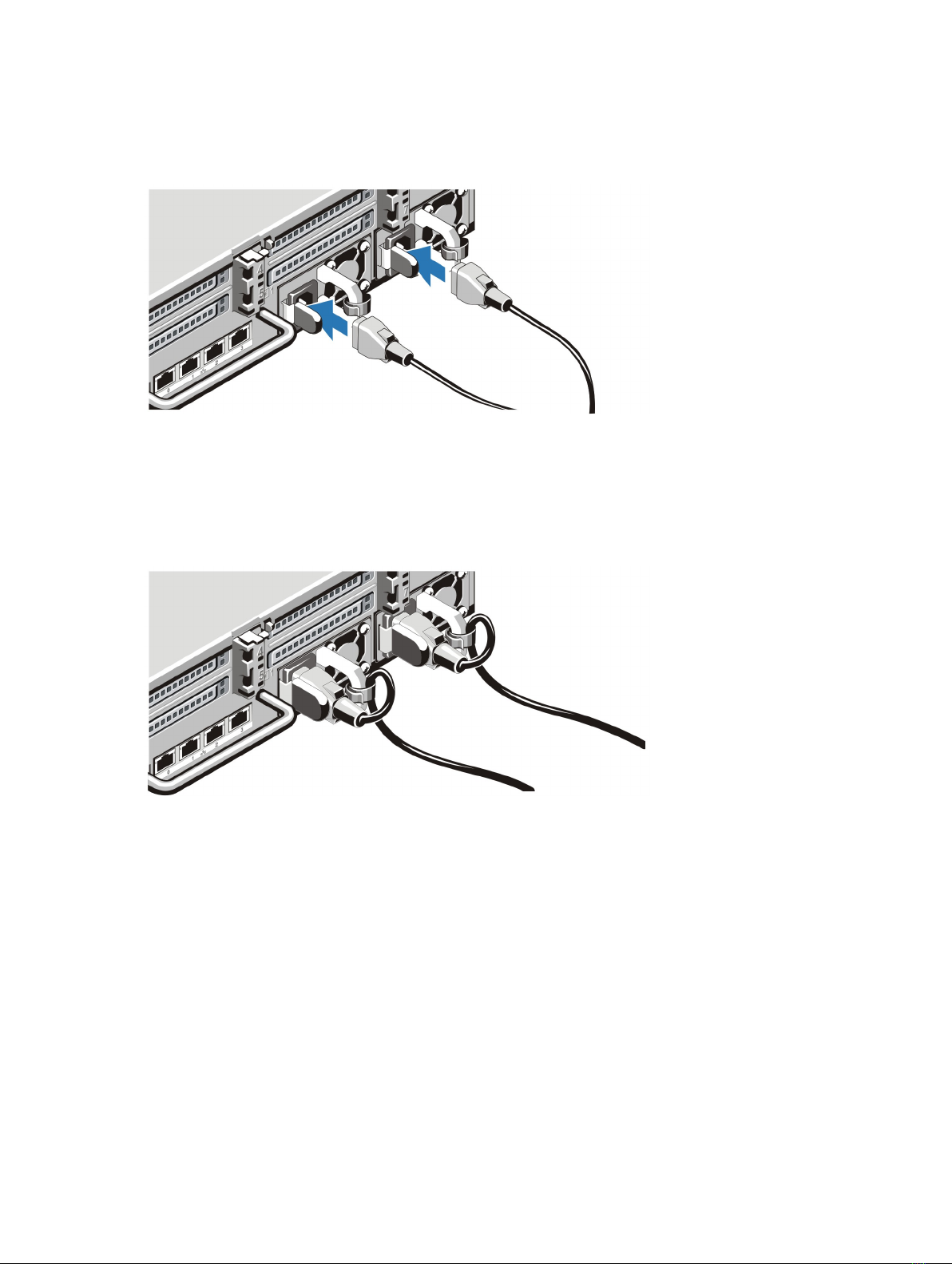

Figure 3. Connecting Power Cable(s)

Connect the system’s power cable(s) to the system and, if a monitor is used, connect the monitor’s

power cable to the monitor.

Securing the power cable(s)

Figure 4. Securing power cable(s)

Bend the system power cable(s), as shown in the illustration, and attach to the cable strap.

Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source

such as an uninterruptible power supply (UPS) or a power distribution unit (PDU).

Turning on the system

Figure 5. Turning on the system

Press the power button on the system. The power indicator LED must start glowing.

Installing the Bezel

Figure 6. Installing the Bezel

Install the bezel.

Setting up the system

For information about setting up your system, see the Dell See the XC720xd Solutions Guide available at

support.dell.com. The Solutions Guide also provides information about Nutanix Account setup, license

activation and management, deployment and recovery of the system, documentation access, and

managing the XC720xd.

Dell software license agreement

Before using your system, read the Dell and Nutanix Software License Agreements that came with your

system. You must consider any media of Dell-installed software as BACKUP copies of the software

installed on your system’s hard drive. If you do not accept the terms of the agreements, call the customer

assistance telephone number. For customers in the United States, call 800-WWW-DELL (800-999-3355).

For customers outside the United States, see support.dell.com and select your country or region from

the upper-left corner of the page.

Other information you may need

WARNING: See the safety and regulatory information that shipped with your system. Warranty

information may be included within this document or as a separate document.

• The Solutions Guide provides procedures about Nutanix account setup, license activation and

management, deployment and recovery, documentation access, and XC720xd management. This

document is available online at support.dell.com.

• The Owner’s Manual provides information about system features and describes how to troubleshoot

the system and install or replace system components. This document is available online at

support.dell.com.

• The rack documentation included with your rack solution describes how to install your system into a

rack, if required.

• Any media that ships with your system that provides documentation and tools for configuring and

managing your system, including those pertaining to the operating system, system management

software, system updates, and system components that you purchased with your system.

NOTE: Always check for updates on support.dell.com and read the updates first because they often

supersede information in other documents.

NOTE: When upgrading your system, it is recommended that you download and install the latest

BIOS, driver, and systems management firmware on your system from support.dell.com.

Obtaining technical assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see

your system Owner’s Manual. Dell offers comprehensive hardware training and certification. See

dell.com/training for more information. This service may not be offered in all locations.

Technical specifications

NOTE: The following specifications are only those required by law to ship with your system. For a

complete and current listing of the specifications for your system, refer to XC720xd Owner’s Manual

available at support.dell.com.

Power

AC Power Supply (per power supply)

Wattage 750 W or 1100 W

Power

Heat dissipation

NOTE: Heat dissipation is calculated using

the power supply wattage rating.

2891 BTU/hr maximum (750 W)

4100 BTU/hr maximum (1100 W)

Voltage

NOTE: This system is also designed to be

connected to IT power systems with a

phase to phase voltage not exceeding 230

100–240 V AC, autoranging, 50/60 Hz

Battery

Coin-cell battery 3 V CR2032 Lithium coin cell

Physical

Height 87.3 mm (3.44 inch)

Width

With rack latches 482.4 mm (18.98 inch)

Without rack latches 444 mm (17.48 inch)

Depth (includes bezel) 755.8 mm (29.75 inch)

Weight (maximum)

3.5-inch hard disk drive systems 32.5 kg (71.5 lbs)

Weight (empty)

3.5-inch hard disk drive systems 10.3 kg (22.7 lbs)

Environmental

NOTE: For additional information about environmental measurements for specific system

configurations, see dell.com/environmental_datasheets.

Temperature

Operating Continuous operation: 10 °C to 35 °C at 10% to 80%

relative humidity (RH), with 26 °C max dew point.

De-rate maximum allowable dry bulb temperature

at 1 °C/300 m above 900 m (1 °F per 550 ft).

NOTE: For information abput supported

expanded operating temperature range and

configurations, see support.dell.com.

Storage –40 °C to 65 °C (–40 °F to 149 °F) with a maximum

temperature gradation of 20 °C per hour.

Relative Humidity

Environmental

Operating 20% to 80% (noncondensing) at a maximum wet

bulb temperature of 29 °C (84.2 °F)

Storage 5% to 95% at a maximum wet bulb temperature of

38 °C (100.4 °F)

Maximum Vibration

Operating 0.26 Grms at 5 Hz to 350 Hz (all operation

orientations)

Storage 1.87 Grms at 10 Hz to 500 Hz for 15 min (all six sides

tested)

Maximum Shock

Operating One shock pulse in the positive z-axis (one pulse on

each side of the system) of 31 G for 2.6 ms in all

operational orientations.

Storage Six consecutively executed shock pulses in the

positive and negative x, y, and z axes (one pulse on

each side of the system) of 71 G for up to 2 ms.

Six consecutively executed shock pulses in the

positive and negative x, y, and z axes (one pulse on

each side of the system) of 32 G faired square wave

pulse with velocity change at 270 inches/second

(685 centimeters/second)

Altitude

Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)

NOTE: For altitudes above 2950 ft, the

maximum operating temperature is derated

1ºF/550 ft.

Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne Contaminant Level

Class G1 as defined by ISA-S71.04-1985
