Dell™P2010HFlatPanelMonitorUser'sGuide

Notes, Notices, and Cautions



Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

the United States and/or other countries.ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has

determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model P2010Ht

May2009Rev.A00

About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix



NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page



About Your Monitor

Dell™P2010HFlatPanelMonitorUser'sGuide

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Universal Serial Bus (USB) Interface

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not

be available in certain countries.

lMonitor

lStand

lPower Cable

lVGA Cable (attached to the monitor)



Product Features

The P2010H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■20-inch (508 mm) viewable area display (Measured diagonally) .

■1600 x 900 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt, swivel, vertical extension and rotate adjustment capability.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■Retractable label card allows convenient access to monitor serial number for technical support and easily hidden away providing label-free clean look.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■Asset Management Capability.

■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■EPEAT Gold Rating.

■Halogen Reduced.

Identifying Parts and Controls

Front View

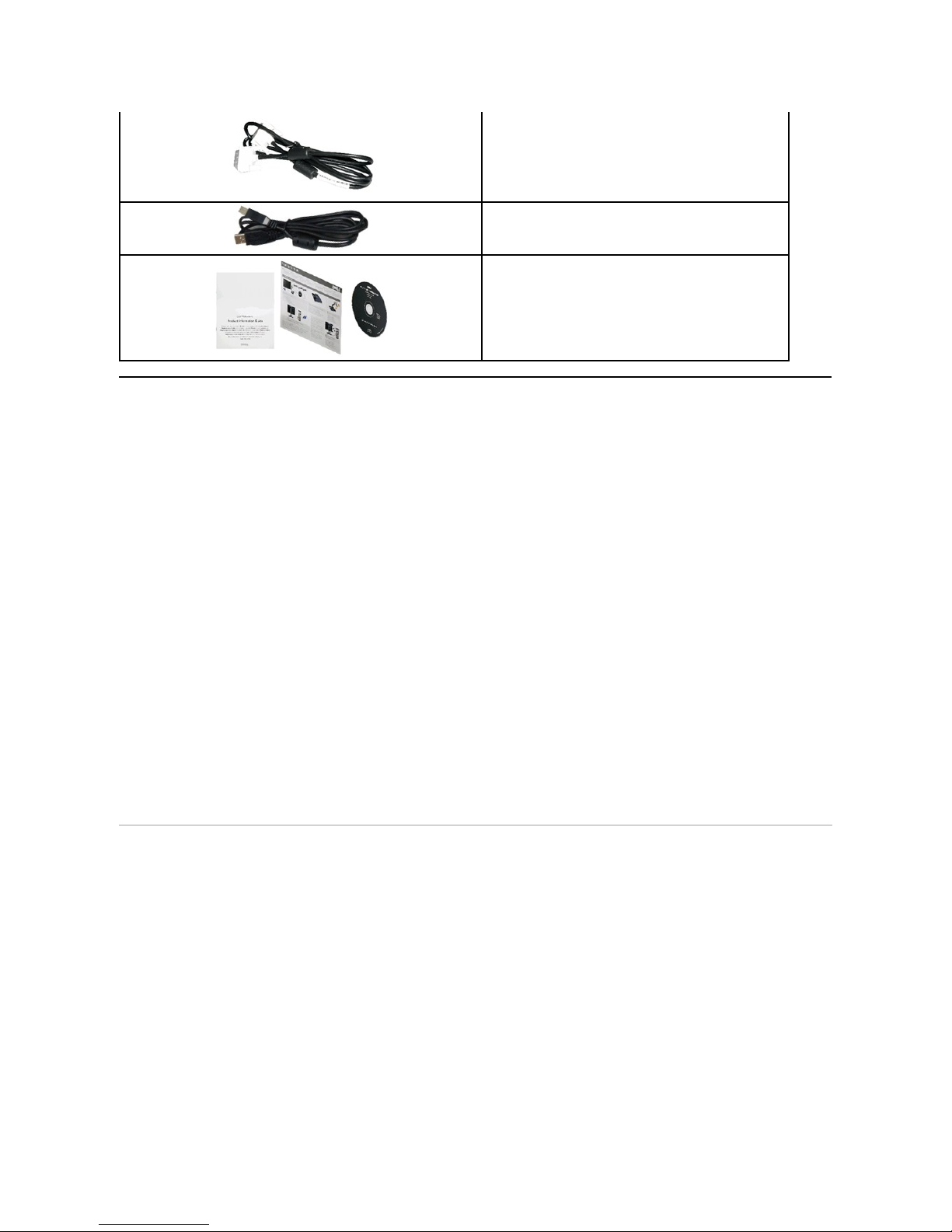

lDVI Cable

lUSB up stream cable (enables the USB ports on the monitor)

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information



Back View



Front View

Front panel controls

Label

Description

Preset Modes (default, but configurable)

Brightness & Contrast (default, but configurable)

Exit

Power (with power light indicator)

Back view

Back view with monitor stand

Label

Description

Use

VESA mounting holes (100 mm x 100 mm -

behind attached base plate)

Wall mount monitor using VESA compatible wall mount kit (100 mm x 100 mm)

Stand removal button

Release stand from monitor.

Security lock slot

Secures monitor with security cable lock

Dell Soundbar mounting brackets

Attaches the optional Dell Soundbar.

Information mark

Help locating regulatory and barcode labels

Cable management slot

Organizes cables by placing them through the slot.

Label Card View



Side View

NOTE:

Monitor shipped with label card fully inserted in USB compartment. Pull out the label card to access the barcode serial number label and regulatory rating label.

Back View with label card pulled out

Front View with label card pulled out

Label

Description

Use

Regulatory label

Lists the regulatory approvals.

Barcode serial number label

To contact Dell for technical support.



Bottom View



Monitor Specifications

Flat Panel Specifications

Left view

Right view

Label

Description

Use

USB downstream ports

Connect your USB devices.

Label card

Provide clean monitor back view when reference to labels is not required.

Bottom view

Bottom view with monitor stand

Label

Description

Use

AC power cord connector

Connect the power cable

DC power connector for Dell Soundbar.

Connect the power cord for the soundbar (optional)

DisplayPort connector

Connect your computer DP cable

DVI connector

Connect your computer DVI cable

VGA connector

Connect your computer VGA cable

USB upstream port

Connect the USB cable that came with your monitor to the monitor and the

computer. Once this cable is connected you can use the USB connectors on

the side and bottom of the monitor.

USB downstream ports

Connect your USB devices. You can only use this connector after you have

connected the USB cable to the computer and USB upstream connector on

the monitor.

Screen type

Active matrix - TFT LCD

Panel type

*[P2010H] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.

Resolution Specifications

Supported Video Modes

Preset Display Modes

Electrical Specifications

Physical Characteristics

Screen dimensions

20 inches (20-inch viewable image size)

Preset display area:

442.8(H) X 249.1(V)

Horizontal

442.8(H) mm (17.4 inches)

Vertical

249.1(V) mm (9.8 inches)

Pixel pitch

0.277 mm

Viewing angle

160°(vertical)typical,170°(horizontal)typical

Luminance output

250 CD/m²(typical)

Contrast ratio

1000 to 1 (typical), 10000 to 1 (typical Dynamic Contrast On)

Faceplate coating

Antiglare with hard-coating 3H

Backlight

2-CCFL edgelight system

Response Time

5ms panel typical

Color depth

16.7 million colors

Color Gamut

83%*

Horizontal scan range

30 kHz to 83 kHz (automatic)

Vertical scan range

56Hzto76Hz(automatic)

Maximum preset resolution

1600 X 900 at 60 Hz

Video display capabilities (DVI & DP playback)

480p, 576p, 720p, 1080p

Display Mode

Horizontal Frequency (kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity (Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.3

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1600 x 900

60.0

108.0

+/+

Video input signals

Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input

impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at

50 ohm input impedance

DP 1.1a signal input support

Synchronization input signals

TTL levels required and separate syncs (including Trigger points), SOG

(Composite SYNC on green)

AC input

voltage/frequency/current

100 to 240 VAC/50 or 60 Hz +3 Hz/1.5A (Typical)

Inrush current

120 V: 30 A (Max.)

240 V: 60 A (Max.)

Connector type

15-pin D-subminiature, blue connector; DVI-D, white

connector;DP,black connector.

Environmental Characteristics

Power Management Modes

IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin

use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes

functioning. The following table shows the power consumption and signaling of this automatic power saving feature:

The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:

Signal cable type

Digital: Detachable, DVI-D/DisplayPort, Solid pins, shipped

detached from the monitor

Analog:attachable, D-Sub, 15pins, shipped attached to the

monitor

Dimensions (with stand)

Height (extended)

17.14 inches (435.4 mm )

Height (compressed)

12.42 inches (315.4 mm)

Width

18.95 inches (481.4 mm)

Depth

6.77 inches (171.9 mm)

Dimensions (without stand)

Height

11.32 inches (287.5 mm)

Width

19.07 inches (484.4 mm)

Depth

2.50 inches (63.5 mm)

Stand dimensions

Height (extended)

14.20 inches (360.80 mm)

Height (compressed)

9.48 inches (240.80 mm)

Width

9.84 inches (249.90 mm)

Depth

6.77 inches (171.90 mm)

Weight

Weight with packaging

14.76 lbs (6.71 kg)

Weight with stand assembly and cables

12.87 lbs (5.85 kg)

Weight without stand assembly

(For wall mount or VESA mount

considerations - no cables)

8.47 lbs (3.85 kg)

Weight of stand assembly

3.39 lbs (1.54 kg)

Temperature



Operating

0°to40°C

Non-operating

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Humidity

Operating

10% to 80% (non-condensing)

Non-operating

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90% (non-condensing)

Altitude

Operating

3,657.60 m (12,000 ft) max

Non-operating

12,192 m (40,000 ft) max

Thermal dissipation

244.08 BTU/hour (maximum)

107.50 BTU/hour (typical)

VESA Modes

Horizontal

Sync

Vertical Sync

Video

Power

Indicator

Power

Consumption

Normal

operation

Active

Blue

21 W (typical)

Active-off

mode

Inactive

Blanked

Amber

Less than 0.5 W

Switch off

-

-

-

Off

Less than 0.5 W

Activate the computer and the monitor to gain access to the OSD.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

Pin Assignments

VGA Connector

DVIConnector



NOTE: This monitor is ENERGY STAR®-compliant as well as TCO '03 power management compatible.

Number

15-pin Side of the Connected Signal Cable

Video-Red

Video-Green

Video-Blue

GND

Self-test

GND-R

GND-G

GND-B

Computer 5V/3.3V

GND-sync

GND

DDC data

H-sync

V-sync

DDC clock

DisplayPort Connector

Number

24-pin Side of the Connected Signal Cable

TMDS RX2-

TMDS RX2+

TMDS Ground

Floating

DDC Clock

DDC Data

Floating

TMDS RX1-

TMDS RX1+

TMDS Ground

Floating

+5V/+3.3V power

Selftest

Hot Plug Detect

TMDS RX0-

TMDS RX0+

TMDS Ground

Floating

TMDS Ground

TMDS Clock+

TMDS Clock-

Number

20-pin Side of the Connected Signal Cable

ML0(p)

GND

ML0(n)

ML1(p)

GND

ML1(n)

ML2(p)

GND

ML2(n)

ML3(p)

GND

ML3(n)

GND

AUX(p)

GND

AUX(n)

HPD

Autres manuels pour P2010H

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Moniteur

Dell

Dell UltraSharp U2413 Manuel utilisateur

Dell

Dell P2422HB Instructions d'utilisation

Dell

Dell 320-7459 - S1909WXF - 19" LCD Monitor Manuel utilisateur

Dell

Dell E773s Manuel utilisateur

Dell

Dell UltraSharp U3415W Manuel utilisateur

Dell

Dell S2230MX Mode d’emploi

Dell

Dell IN2020M Manuel utilisateur

Dell

Dell E2722H Manuel utilisateur

Dell

Dell P1911 Manuel utilisateur

Dell

Dell P3424WEB Manuel utilisateur

Dell

Dell S2722DGM Instructions d'utilisation

Dell

Dell P2217 Manuel utilisateur

Dell

Dell C5519Q Manuel utilisateur

Dell

Dell U4323QE Manuel utilisateur

Dell

Dell SE2416HM Manuel utilisateur

Dell

Dell 2408WFP - UltraSharp - 24" LCD Monitor Manuel utilisateur

Dell

Dell P170ST Manuel utilisateur

Dell

Dell ST2010 - 20" LCD Monitor Manuel utilisateur

Dell

Dell Professional P2210 AIO Instructions d'utilisation

Dell

Dell SP2008WFP - 20" LCD Monitor Manuel utilisateur

Dell

Dell UltraSharp 25 Series Manuel utilisateur

Dell

Dell S1909WX Manuel utilisateur

Dell

Dell TORINITRON P1130 Manuel utilisateur

Dell

Dell UltraSharp UP2718Q Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Philips

Philips 107C64 Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation

LG M1950D-PZ Manuel utilisateur

Sceptre

Sceptre D40 Manuel utilisateur

Hunt Electronic

Hunt Electronic HCD-15AH Manuel utilisateur
