Dell S2317HJ Manuel utilisateur

Model No.: S2317HJ

Regulatory model: S2317HJb

User’s Guide

Dell S2317HJ

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better

use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of

data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury or death.

_________________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft

and Windows are either trademarks or registered trademarks of Microsoft. Corporation in

the United States and/or other countries, Intel is a registered trademark of Intel Corporation

in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.

Other trademarks and trade names may be used in this document to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary

interest in trademarks and trade names other than its own.

2016 - 07 Rev. A01

Contents | 3

Contents

About Your Monitor ................................................................ 5

Package Contents......................................................................................5

Product Features ........................................................................................6

Identifying Parts and Controls.................................................................8

Plug and Play Capability.......................................................................... 12

LCD Monitor Quality and Pixel Policy..................................................12

Maintenance Guidelines .........................................................................12

Setting Up the Monitor......................................................... 13

Connecting the Stand .............................................................................13

Connecting Your Monitor ......................................................................14

Organizing Cables....................................................................................15

Removing the Monitor Stand.................................................................16

Operating Your Monitor....................................................... 17

Power On the Monitor ............................................................................ 17

Using the Front Panel Controls............................................................. 17

Using the On-Screen Display (OSD) Menu.........................................19

4| Contents

Setting the Maximum Resolution..........................................................32

Using the Tilt .............................................................................................33

Using the Wireless Charging Base........................................................34

Troubleshooting.................................................................... 37

Self-Test .....................................................................................................37

Built-in Diagnostics..................................................................................38

Common Problems .................................................................................39

Product-Specific Problems....................................................................41

Wireless Charging Specific Problems ..................................................41

Appendix ....................................................................................................42

FCC Notices (U.S. Only) and Other Regulatory Information ..........42

Contact Dell ..............................................................................................42

Setting Up Your Monitor.........................................................................43

Monitor Specifications .........................................................45

About Your Monitor | 5

About Your Monitor

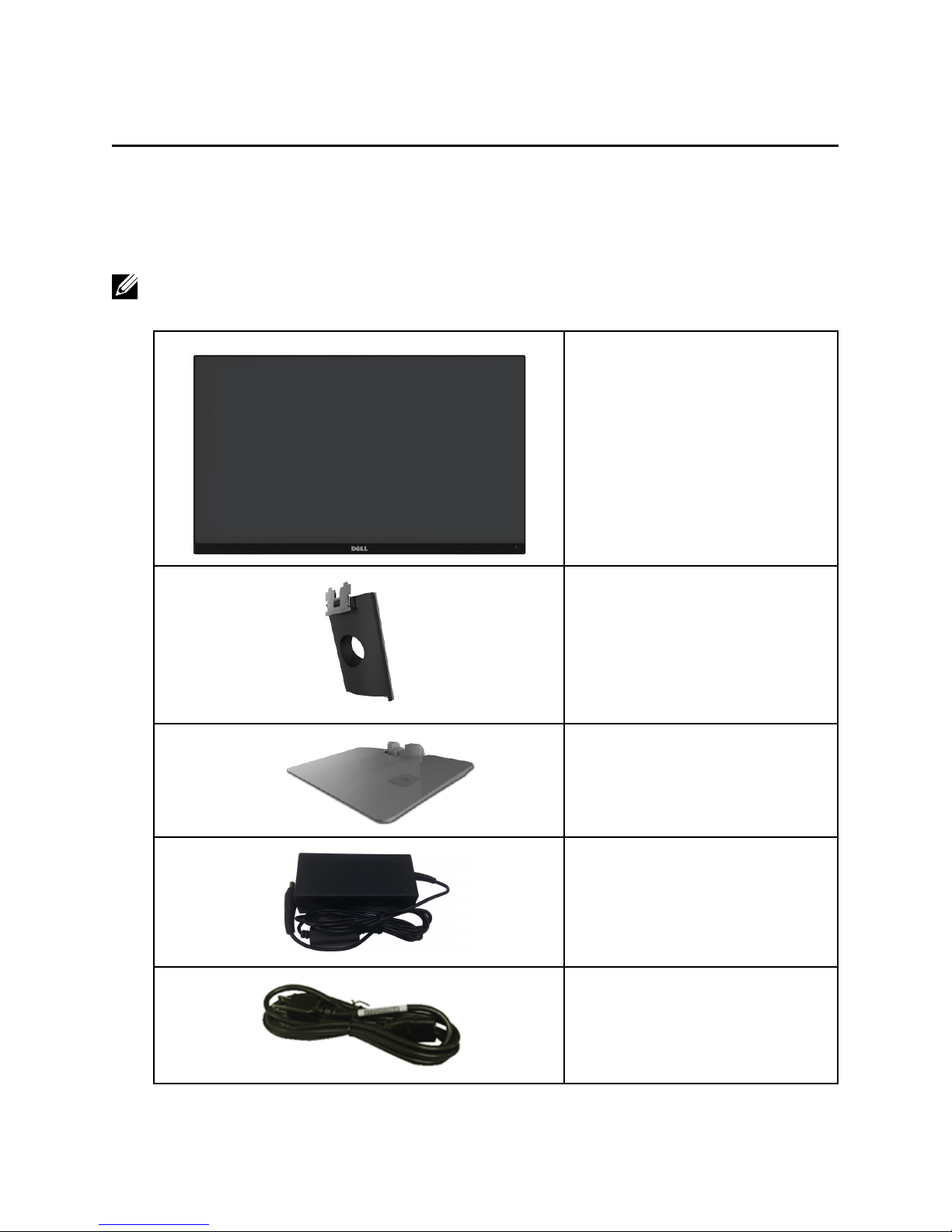

Package Contents

Your monitor ships with the components shown below. Ensure that you have

received all the components and Contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

Monitor

∞

Stand Riser

∞

Wireless Charging Base

∞

Power Adapter

∞

Power Cable (varies by

∞ country)

6| About Your Monitor

HDMI Cable

∞

Drivers and

∞ Documentation Media

Quick Setup Guide

∞

Safety and Regulatory

∞ Information

Wireless Safety and

∞ Regulatory Information

Product Features

The Dell S2317HJ flat panel display has an active matrix, Thin-Film Transistor (TFT),

Liquid Crystal Display (LCD), and LED backlight. The monitor features include:

58.42 cm (23 inch) viewable area display (measured diagonally). 1920 x 1080

∞ resolution, plus full-screen support for lower resolutions.

Wide viewing angle to allow viewing from a sitting or standing position, or while

∞ moving from side-to-side.

Wireless charging stand base, designed for Qi/PMA compliance*, makes wireless

∞ charging possible for your smartphones or mobile devices.

Plug and play capability if supported by your system.

∞

VGA and HDMI connectivity makes it simple and easy to connect with legacy

∞ and new systems.

Built-in Speaker (3W) x 2.

∞

On-Screen Display (OSD) adjustments for ease of set-up and screen

∞ optimization.

Software and documentation media includes an Information File (INF), Image

∞ Color Matching File (ICM), and product documentation.

Dell Display Manager Software included (in the CD shipped with the monitor).

∞

Security-lock slot.

∞

Capability to switch from wide aspect to standard aspect ratio while maintaining

∞ the image quality.

TCO-Certified Displays.

∞

BFR/PVC- Reduced.

∞

High Dynamic Contrast Ratio (8,000,000:1).

∞

0.3 W standby power when in the sleep mode.

∞

Energy Gauge shows the energy level being consumed by the monitor in real

∞ time (consumption from the wireless charging base is not included).

About Your Monitor | 7

* The “Qi” symbol is a trademark of the Wireless Power Consortium; the PMA logo is a

property of Power Matters Alliance, Inc.

8| About Your Monitor

Identifying Parts and Controls

Front View

Front panel controls

Label Description

1Function buttons (For more information, see Operating Your Monitor)

2Power On/Off button (with LED indicator)

NOTE: For displays with glossy bezels the user should consider the placement of

the display as the bezel may cause disturbing reflections from surrounding light

and bright surfaces.

About Your Monitor | 9

Back View

Back View with monitor stand

Back View without monitor stand

Label Description Use

1Stand release button Releases stand from monitor.

2Security-lock slot Secures monitor with security lock

(security lock not included).

3Barcode serial number label Refer to this label if you need to

contact Dell for technical support.

4Wireless charging power switch Turns on the switch for the readiness

of wireless charging.

5Cable management slot Uses to organize cables by placing

them through the slot.

6DC out cable Plugs to the power-adapter port on

the monitor, with a 12V DC power

supply.

7Power-adapter port Connects the power cable using a

19V DC adapter for transition.

10 | About Your Monitor

Side View

Label Description Use

1Wireless charging LED Indicates the wireless charging status.

2Wireless charging pad Charge your Qi (WPC) or PMA compliance

•devices.

Align your device to the pad to get max•

charging.

Bottom View

546

1 2 3

Bottom view without monitor stand

Label Description Use

1Power-adapter port Connects the DC out cable of the wireless charging

base.

2Audio Line Out port Connects external speakers (Optional Purchase) *

3Audio Line In port Connects the audio cable (Optional Purchase) from

the source device to the monitor.

4Regulatory label Lists the regulatory approvals.

5HDMI port Connects your computer to the monitor using an

HDMI cable.
