DELL UP3218K

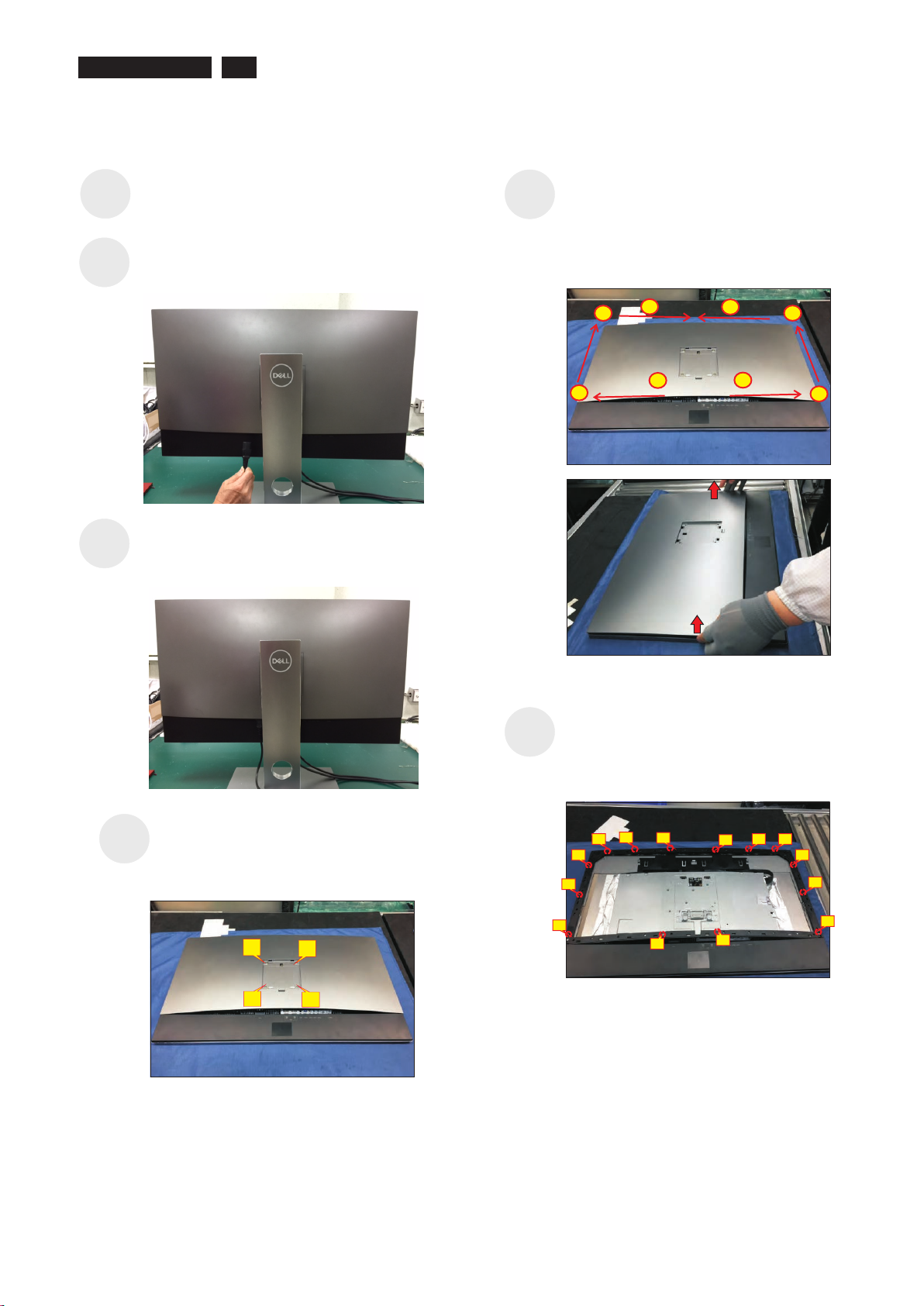

Wedge your fingers between the rear cover and the

middle bezel on the corners of the top side of the

monitor to release the rear cover, then use one hand

to press the middle bezel, the other hand to pull up

carefully the rear cover in order of arrow preference

for unlocking mechanisms of rear cover.

Use a Philips-head screwdriver to remove four

screws for unlocking mechanisms.

(No.1~4 screw size=M4x8; Torque=10~11kgfxcm)

1 Disassembly Procedures:

Remove the rear cover and put it on a protective

cushion. Use a Philips-head screwdriver to remove

14 screws for unlocking the middle plastic bezel with

the whole unit, and then remove the middle plastic

bezel carefully.

(No.1~14 screw size=M3x5.5, Torque=4±0.5kgfxcm)

112

Turn off power

Unplug external cables from product

Remove stand from product

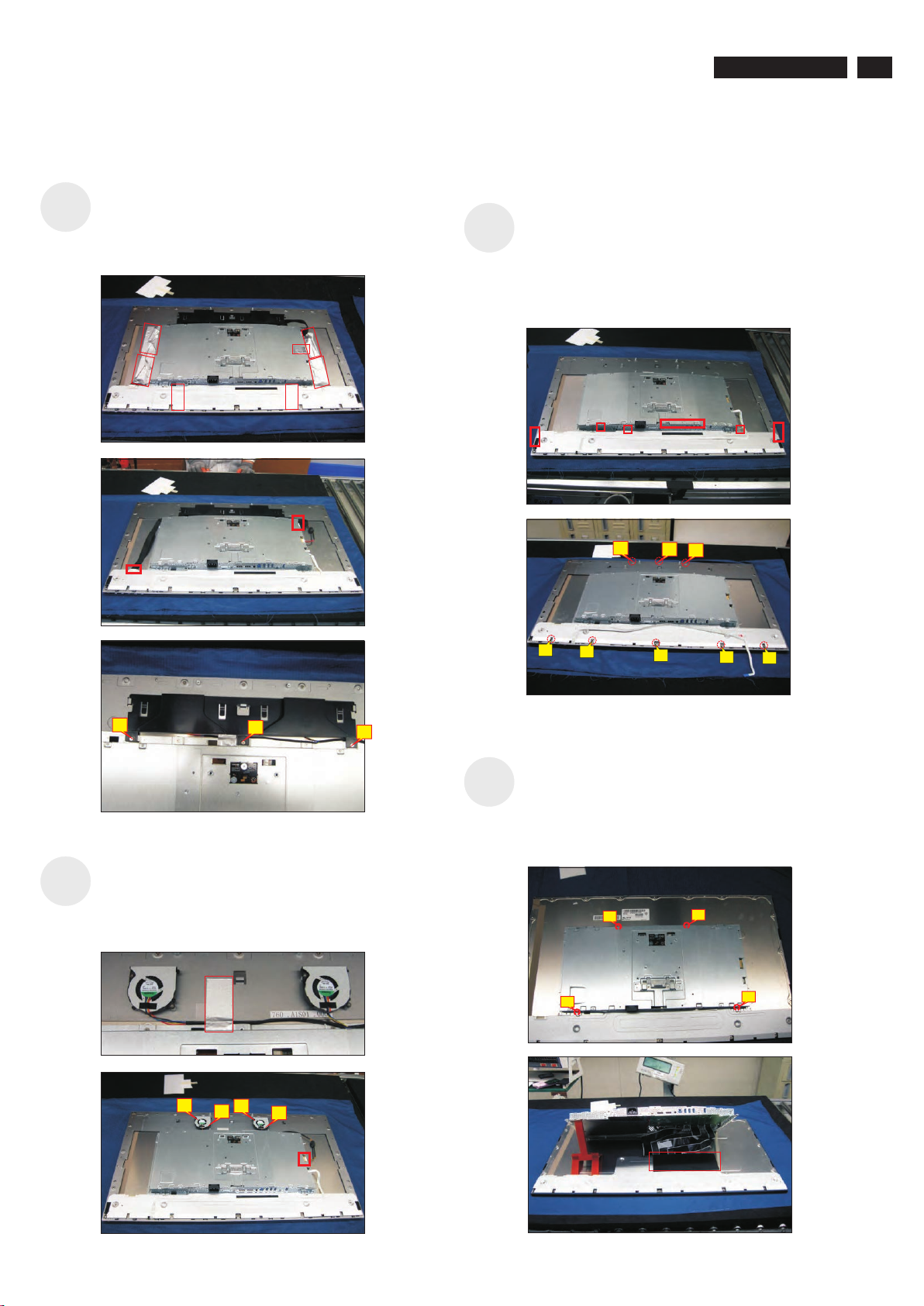

Tear off 7 pieces of aluminum foil. Disconnect the

lamp cable from the connectors of the power board

and panel module. Use a Philips-head screwdriver to

remove 3 screws for unlocking the cooling fans’

protective cover with the middle iron bezel.

(No.1~3 Screw size=M3x4, Torque=3.5~4.5kgfxcm)

Tear off three pieces of VBH tape on the specific

position as the picture below shown. Disconnect the

function key cable from the connector of the

interface board. Use a Philips-head screwdriver to

remove eight screws for unlocking the middle iron

bezel with the panel module. Remove the middle

iron bezel.

(No.1~8 Screw size=M3x0.5xL4, Torque=4±0.5kgfxcm)

S

VBH tape

aluminum foil

Tear off the

cable, then disconnect the cable from the connector.

Use a Philips-head screwdriver to remove four

screws for unlocking the cooling fans. Remove the

cooling fans from the probers.

aluminum foil for releasing the cooling fans’

(No.1~4 Screw size=M2x6, Torque=3.5~4kgfxcm)

Use a Philips-head screwdriver to remove four

screws for unlocking the bracket with the panel

module. Use a Jip to lift up the bracket, then tear off

the black mylar tape for releasing the LVDS

connectors. Disconnect the LVDS cables from the

connectors of the panel module.

(No.1~4 screw size=M3x0.5xL4, Torque=4±0.5kgfxcm)

S1

DELL UP3218K

Remove the Mylar from the hooks of the bracket

chassis module.

S13

Remove the middle iron bezel. Tear off the mylar tape

for releasing the function key cable from the hooks of

the middle iron bezel.

S11

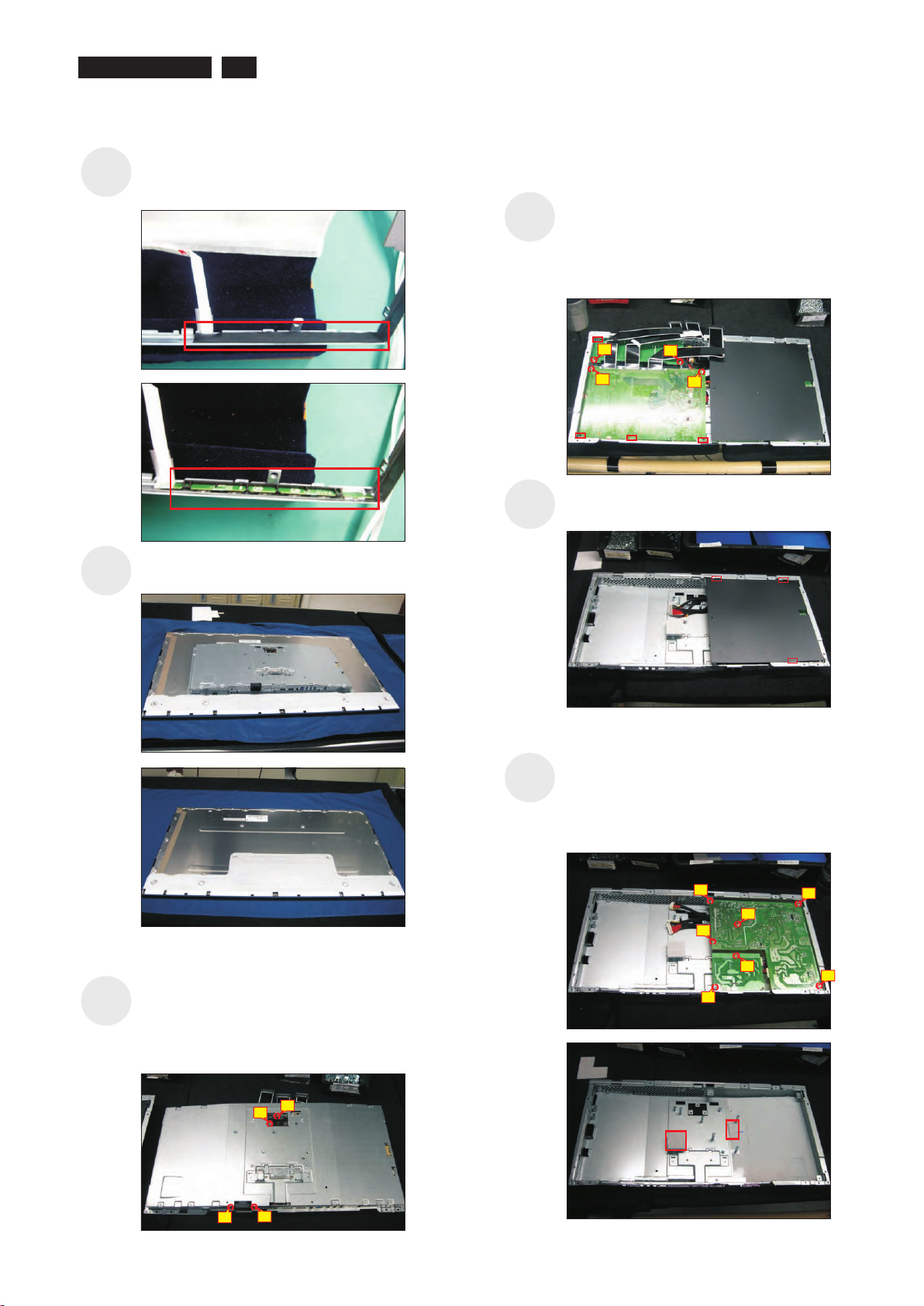

Lift up the bracket chassis module and put it on a

protector cushion.

S12

S15

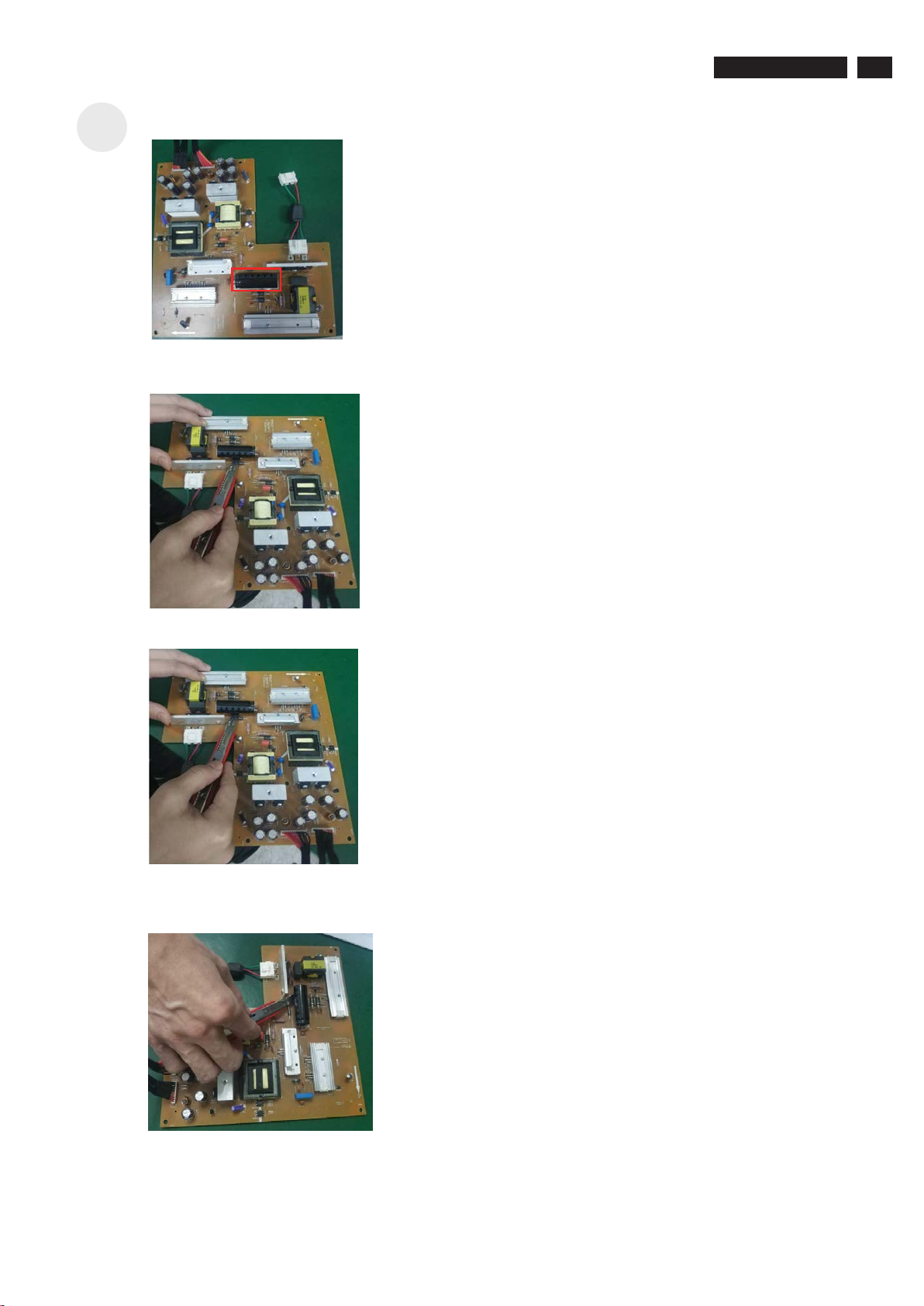

Use a Philips-head screwdriver to remove 7 screws for

unlocking the power board and AC board, then remove

the two boards from the hooks of the bracket chassis.

isconnect all of the cables.D

(No.1 screw size=M4x8, Torque=7~8kgfxcm;

No.2~7 screw size=M3x7.5, Torque=7~8kgfxcm;

Use a 2 screws

for locking the AC power outlet, to remove 2 screws

for unlocking the stand LED board. Remove the

Stand LED board by disconnecting the cable.

Philips-head screwdriver to remove

(No.1~2 screw size=M3x4.5, Torque=7~8kgfxcm,

No.3~4 screw size=M3x10, Torque=6~8kgfxcm)

Turn over the bracket chassis. Use a Philips-head

screwdriver to remove 4 screws for unlocking the

interface board and LED driver board. Disconnect

the cables of the interface board and LED driver

board away from the power board, then remove the

two board from the hooks of the bracket.

(No.8~11 screw size=M3x7.5, Torque=7~8kgfxcm)

S14

S16

DELL UP3218K

Remove electrolyte capacitors (red mark) from printed circuit boards

S1ϳ-1 Cut the glue between bulk cap. and PCB with a knife

S1ϳ-2 Ensure cutting path within the glue, don’t touch bulk cap. or PCB

S1ϳ-3 Cut into the bottom of bulk cap. and pull it up carefully

DELL UP3218K

S17

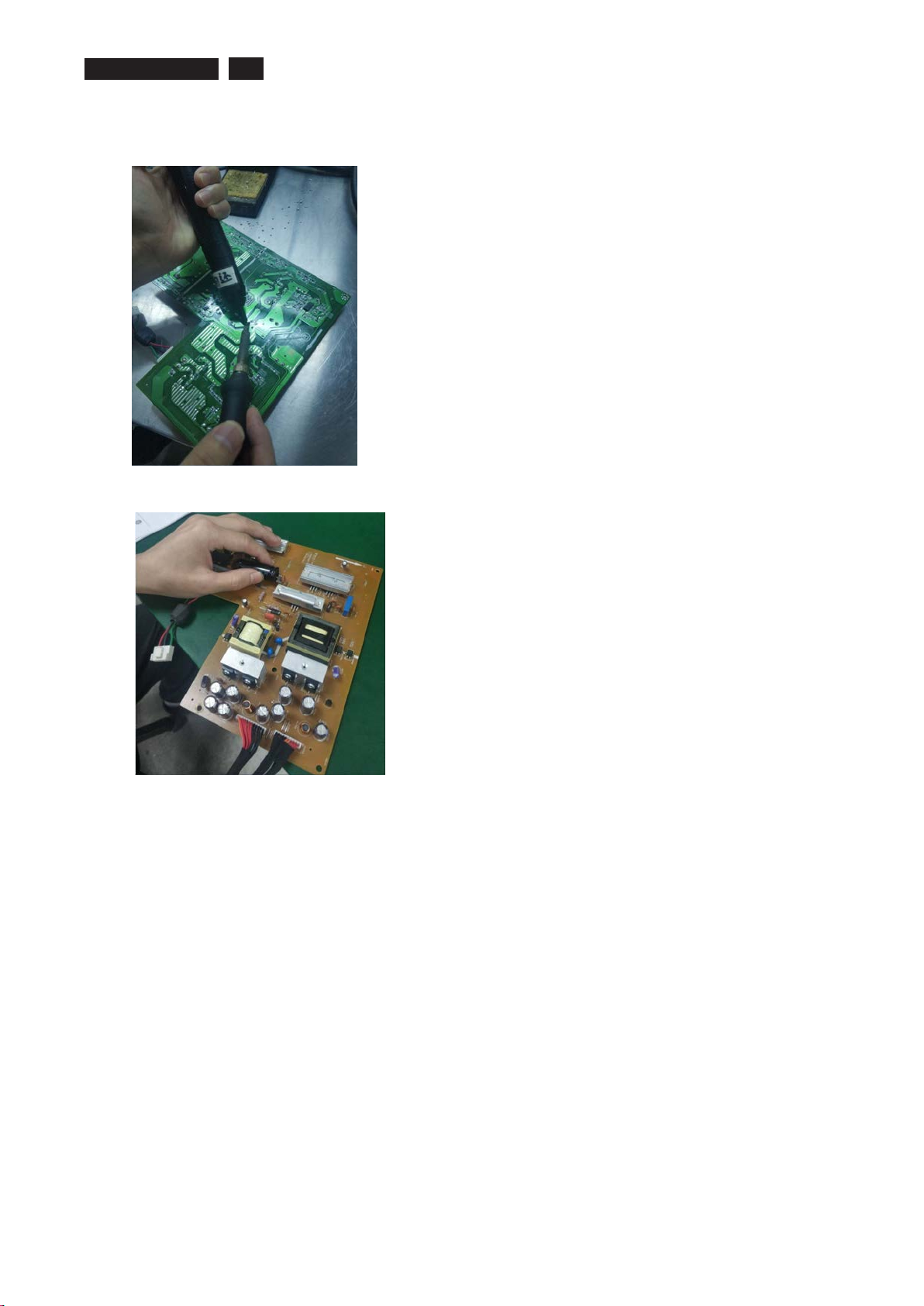

S1ϳ-4 Take out bulk cap. pin solder with soldering iron and absorber

S1ϳ-5 Lift the bulk cap. up and away from the PCB

DELL UP3218K

The following substances, preparations, or components should be disposed of or

recovered separately from other WEEE in compliance with Article 4 of EU Council

Directive 75/442/EEC.

Capacitors / condensers (containing

PCB/PCT)

No used

Mercury containing components

No used

Batteries

No used

Printed circuit boards (with a surface

greater than 10 square cm)

Product has printed circuit boards (with a

surface greater than 10 square cm)

Component contain toner, ink and

liquids

No used

Plastic containing BFR

No used

Component and waste contain

asbestos

No used

CRT

No used

Component contain CFC, HCFC, HFC

and HC

No used

Gas discharge lamps

No used

LCD display > 100 cm2

Product has an LCD greater than 100 cm2

External electric cable

Product has external cables

Component contain refractory

ceramic fibers

No used

Component contain radio-active

substances

No used

Electrolyte capacitors (height

> 25mm, diameter > 25mm)

Product has electrolyte capacitors (height >

25mm, diameter > 25mm)

ϯ. Tools Required

List the type and size of the tools that would typically can be used to disassemble the

product to a point where components and materials requiring selective treatment

can be removed.

Tool Description:

- Screwdriver (Phillip head) #1

- Screwdriver (Phillip head) #2

- Penknife

- Soldering iron and absorber

Ϯ. Product material information

DELL UP3218K
