Dell P2314T Manuel utilisateur

Regulatory model: P2314Tt / P2714Tt

User’s Guide

Dell P2314T

Dell P2714T

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

Information in this document is subject to change without notice. Reproduction of these materials

in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.; Microsoft®,

Windows®, and the Windows start button logo are either trademarks or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. DellInc. disclaims any proprietary interest in

trademarks and trade names other than its own.

2015 – 08 Rev. A07

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Plug-and-Play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

LCD Monitor Quality and Pixel Policy . . . . . . . . . . . . . . . . . . . 17

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting Up the Monitor.................................. 18

Preparing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Organizing Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Wall Mounting (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Operating the Monitor .................................. 21

Side-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Front-Panel Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . 23

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . 34

Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Troubleshooting ....................................... 35

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Touchscreen Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Appendix .............................................. 41

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

FCC Notices (U.S. only) and Other Regulatory Information . . . . . . 41

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Setting Display Resolution to 1920x1080 (maximum) . . . . . . . . . 42

Downloading Latest Video Drivers . . . . . . . . . . . . . . . . . . . . . 42

About Your Monitor 5

About Your Monitor

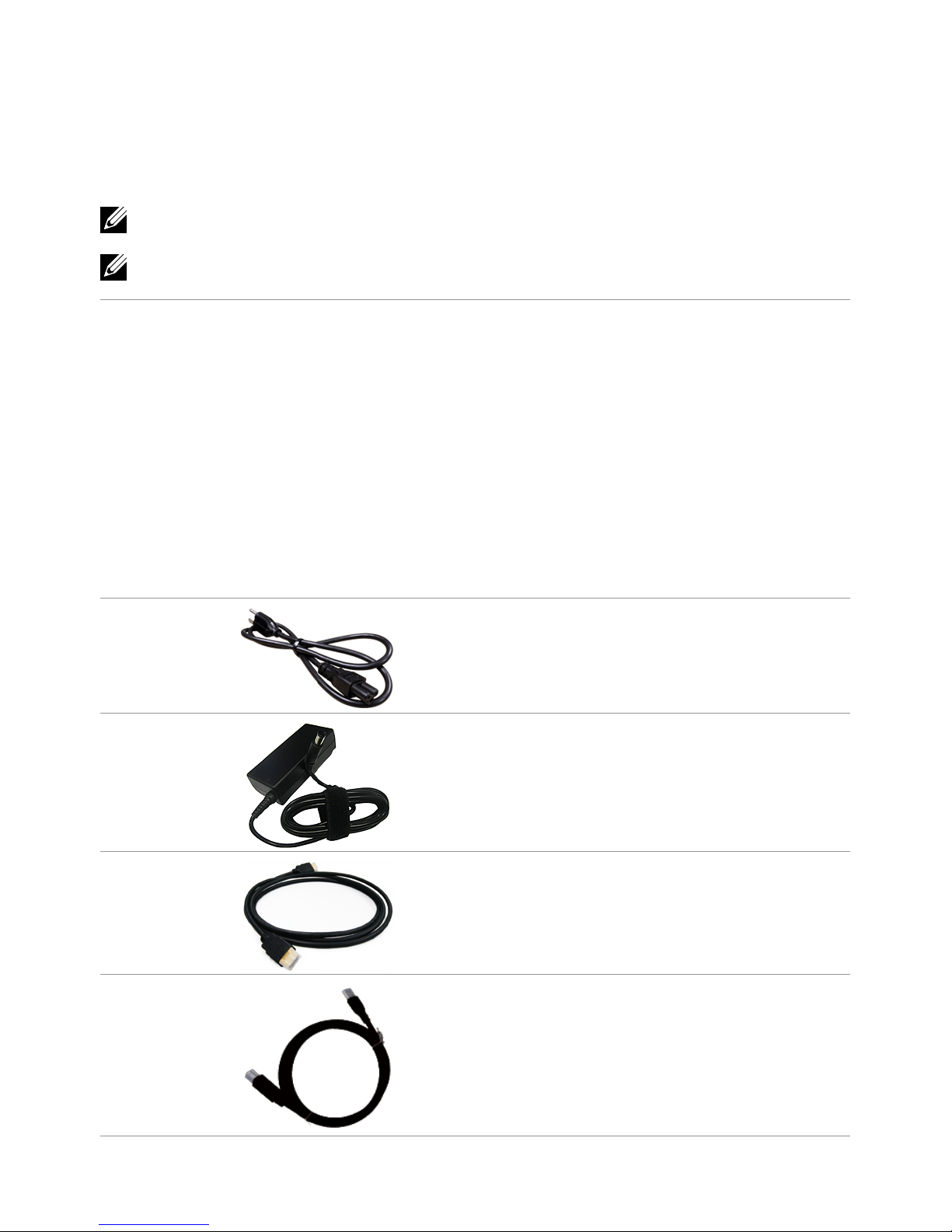

Package Contents

Your monitor ships with the components shown below. Make sure that you have

received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Somefeatures or media may not be available in certain countries.

NOTE: To set up with any other stand, see the documentation for the stand.

Monitor with stand

Power cable (varies by country)

Power adapter

HDMI cable

USB 3.0 upstream cable

(enables touch screen function on

the monitor)

6About Your Monitor

Screen cleaning cloth

Velcro strap

•Quick Setup Guide

•Drivers and Documentation media

•Safety and Regulatory Information

Features

The Dell P2314T and P2714T flat panel displays have an active matrix, thin-film transistor

(TFT), liquid crystal display (LCD), and LED backlight. The monitor features include:

• P2314T: 58.42cm (23-inch) active area display (measured diagonally) 1920X1080

resolution (with full-screen support for lower resolutions).

• P2714T: 68.58cm (27-inch) active area display (measured diagonally) 1920X1080

resolution (with full-screen support for lower resolutions).

• Tilt adjustment capability (10°-60°, typical).

• Removable pedestal and Video Electronics Standards Association (VESA) 100mm

mounting holes for flexible mounting solutions.

• Plug and play capability if supported by your computer.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Software and documentation media includes an information file (INF), Image-Color

Matching file (ICM), Dell Display Manager software application and product

documentation. Dell Display Manager included (comes in the media shipped with

the monitor).

• Security lock slot.

• Asset management capability.

• Energy Star compliant.

• EPEAT Gold compliant.

• BFR/PVC- reduced.

• Arsenic-Free glass. Mercury-free panel.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

• TCO-certified displays.

About Your Monitor 7

Parts and Controls

Front view Side-panel controls

Label Description

1 Function buttons (For more information, see Operating the Monitor)

2 Power On/Off button (with indicator light)

Back View

Label Description Use

1 100mmx100mm VESA mounting

holes (under VESA cover)

Wall mount monitor using

100mmx100mm VESA‑compatible

wall‑mount kit.

2 Regulatory label Lists the regulatory approvals.

3 Service Tag label (P2714T only) Refer to this label if you need to contact

Dell for technical support.

4 Barcode serial number label Refer to this label if you need to contact

Dell for technical support.

5 Cable‑management slot Use to organize cables by placing them

through the slot.

8About Your Monitor

Bottom View

Label Description Use

1 Power‑cable connector Connect the power cable.

2 DisplayPort connector Connect the DisplayPort cable.

3 HDMI (MHL) 1 port Connect your computer with HDMI cable or

portable device with MHL cable (optional).

4 HDMI (MHL) 2 port Connect your computer with HDMI cable or

portable device with MHL cable (optional).

5 VGA port To connect your computer to the monitor using a

VGA cable (optional).

6 Audio line‑out port Connect speakers to playback audio coming

through HDMI or DisplayPort audio channels.

Only supports 2‑channel audio.

NOTE: The audio line-out port does not support

headphones.

7 USB upstream port Connect the USB cable from the monitor to the

computer to allow you to use the USB ports and

touch screen function on the monitor.

8 USB 2.0 downstream

ports

Connect your USB device.

You can only use this port after you connect

the USB cable from your computer to the USB

upstream port on the monitor.

9 Security‑cable slot Use a security cable to prevent unauthorized

movement of your monitor.

10 USB 3.0 downstream

ports

Connect your USB device.

You can only use this port after you connect

the USB cable from your computer to the USB

upstream port on the monitor.

12 5 6 79

About Your Monitor 9

Specifications

Panel

P2314T P2714T

Screen type Active matrix - TFT LCD

Panel type In-Plane Switching / Plane

to Line Switching

Plane to Line Switching

Viewable image:

Diagonal 58.42 cm (23 inches) 68.58 cm (27inches)

Horizontal (active area) 509.18 mm (20.05 inches) 597.89 mm (23.54inches)

Vertical (active area) 286.42 mm (11.28 inches) 336.31 mm (13.24inches)

Area 145839.34 mm2

(226.05inch2)

201076.39 mm2

(311.67inch2)

Pixel pitch 0.265 mm 0.311 mm

Viewing angle:

Horizontal 178 degrees typical

Vertical 178 degrees typical

Luminance:

Panel 300 cd/m² (typical)

Monitor 270 cd/m² (typical)

Contrast ratio 1000:1 (typical)

Dynamic contrast ratio 8,000,000:1 (typical)

Faceplate coating Antiglare with hard-coating 3H

Glass gloss >30 gloss units.

NOTE: For displays with edge-to-edge design, consider

the placement of the display as the reflection of

surrounding light and bright surfaces from the glass may

cause disturbances.

Backlight LED edgelight system

Response Time 8 ms gray-to-gray (typical) 8 ms gray-to-gray (typical)

Color depth 16.77 million colors

Color gamut (Typical) 83% (CIE1976)

NOTE: Color gamut (typical) is based on CIE1976 (83%) and

CIE1931 (72%) test standards.

10 About Your Monitor

Touch

P2314T P2714T

Type Projected Capacitive System

Panel Diagonal 23.1 inch 27.1 inch

Panel Thickness 2.4 mm 3.1 mm

Active Area Extended beyond Viewing Area

Sensor Stack thickness 0.5 mm

Cover Glass Thickness 1.1 mm 1.8 mm

Input Method Bare finger, thin gloves, conductive stylus

Touch point 10 touch-points

Response time <10 ms

Output position resolution 32767 x 32767

Touch method Fingers and thin gloves

Operating system Windows 8/Windows 8.1 certified

Resolution

Horizontal scan range 30 kHz – 83 kHz (automatic)

Vertical scan range 56 Hz – 75 Hz (automatic)

Maximum resolution 1920X1080 at 60 Hz

Supported video modes 480p, 576p, 720p, 1080p, and 1080i

Electrical

Video input signals DisplayPort 1.2/HDMI/MHL 2.0/VGA

Synchronization input

signals

•Separate horizontal and vertical synchronization.

•Polarity-free TTL level

•SOG (composite SYNC on green)

AC/DC adapter input:

Voltage 100 VAC–240 VAC

Frequency 50 Hz/60 Hz + 3 Hz

Current 1.5 A (maximum)

For use only with power supply DELL DA65NM111-00.

Inrush current 150 A at 115/230 VAC

Input voltage 19.5 VDC, 3.34 A
