Dell 1909Wb Manuel utilisateur

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/index.htm[11/8/2012 2:52:57 PM]

Dell™ 1909W Flat Panel Monitor User's Guide

About Your Monitor

Setting Up the Monitor

Operating the Monitor

Troubleshooting

Appendix

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc; Microsoft and Windows are either trademarks or registered

trademarks of Microsoft Corporation in the United States and/or other countries; Adobe is a trademark of Adobe Systems Incorporated, which may

be registered in certain jurisdictions. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR

partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model 1909Wf 1909Wb

January 2010 Rev. A02

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Back to Contents Page

About Your Monitor

Dell™ 1909W Flat Panel Monitor User's Guide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Universal Serial Bus (USB) Interface

Maintenance Guidelines

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

NOTE: Stand and cables are not included when purchased with OptiPlexTM USFF 780/ OptiPlexTM SFF 980 AIO Stands.

NOTE: To set up with the respective AIO stand, please refer to the respective AIO stand guide for setup instructions.

Monitor

Stand

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Power Cable

VGA Cable (attached to the monitor)

DVI Cable

USB up stream cable (enables the USB ports on the monitor)

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Drivers and Documentation media

Quick Setup Guide

Safety Information

Product Features

The 1909W flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■19-inch (482.6 mm) viewable area display (Measured diagonally) .

■1440x900 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt, Swivel, Vertical Extension and rotate adjustment capabilities.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media which includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■Asset Management Capable.

■EPEAT™ GOLD compliant.

Identifying Parts and Controls

Front View

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Front View Front panel controls

Label Description

1Brightness & Contrast

2Automatic adjust

3Input source Select

4 Menu

5Power (with power light indicator)

Back View

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Back view Back View with monitor stand

Label Description Use

1VESA mounting holes (100mm)

(Behind attached base plate) To mount the monitor.

2Security lock slot To help secure your monitor.

3Dell Soundbar mounting brackets To attach the optional Dell Soundbar.

4Stand Release Button To press to release the stand.

5Cable management slot To organize cables by placing them through the slot.

6label compartment To pull out to view labels

Note: The regulatory rating label and barcode serial number label is revealed when plate is pulled out from USB compartment.

Label View

Monitor front view with pull-out card extended to reveal barcode serial number marks.

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Monitor rear view with pull-out card extended to reveal regulatory marks.

Monitor rear view with pull-out card inserted back to provide a clean back view.

Label Description Use

1Barcode serial number label To contact Dell for technical support.

2Regulatory label Lists the regulatory approvals.

Note: The regulatory rating label and barcode serial number label is revealed when plate is pulled out from USB compartment.

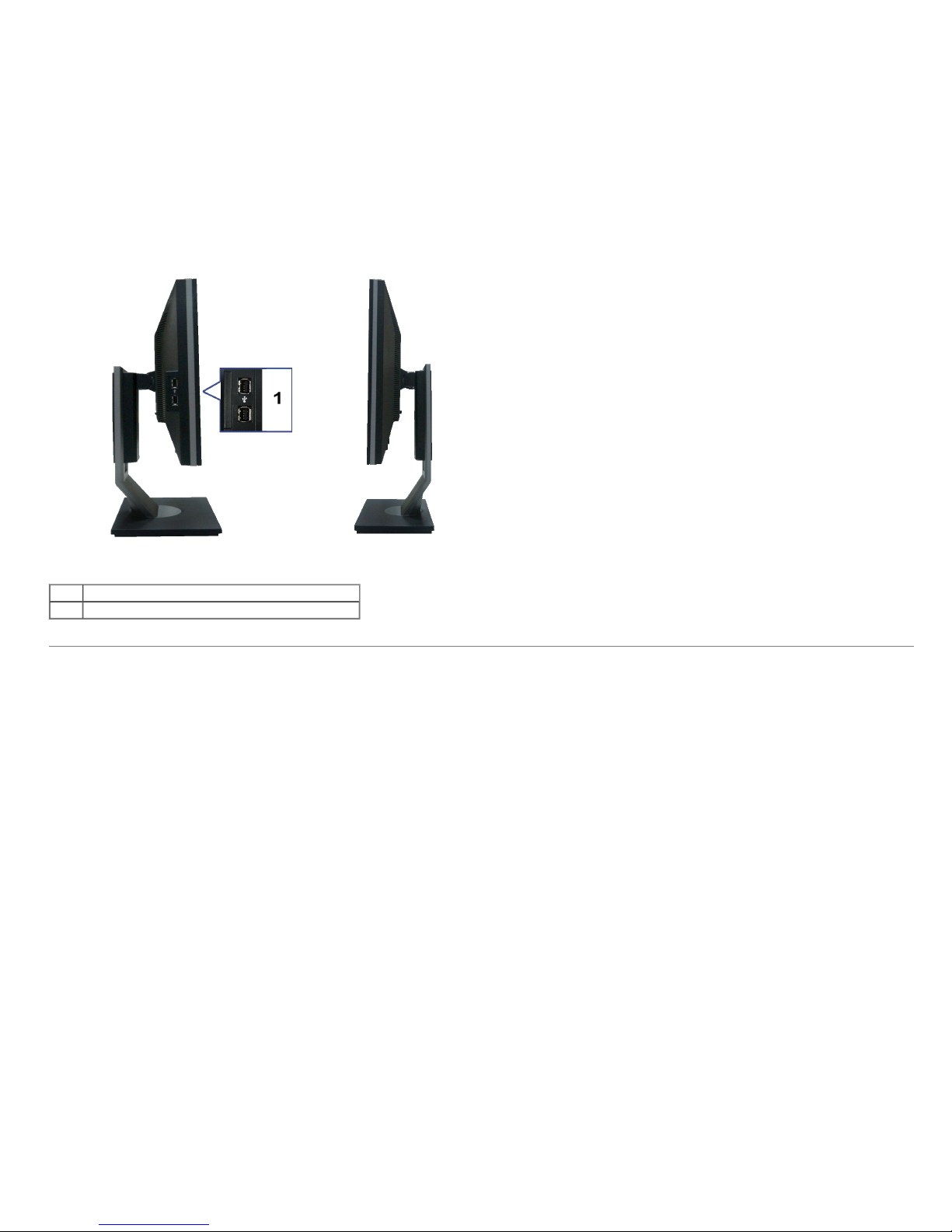

Side View

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Left view Right view

Label Description

1USB downstream ports

Bottom View

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Bottom view

Label Description

1AC power cord connector

2Dell Soundbar power connector

3DVI connector

4VGA connector

5USB upstream port

6USB downstream ports

Monitor Specifications

Flat Panel Specifications

Screen type Active matrix - TFT LCD

Panel type TN

Screen dimensions 19 inches (19-inch viewable image size)

Preset display area: 408.24(H)X255.15(V)

Horizontal 408.24 mm (16.08 inches)

Vertical 255.15 mm (10.05 inches)

Pixel pitch 0.2835 mm

Dell 1909W Flat Panel Monitor User's Guide

file:///T|/htdocs/monitors/1909W/en/ug/about.htm[11/8/2012 2:53:29 PM]

Viewing angle 160° (vertical) typical, 160° (horizontal) typical

Luminance output 300 CD/m²(typical)

Contrast ratio 1000 to 1 (typical)

Faceplate coating Antiglare with hard-coating 3H

Backlight CCFL (2) edgelight system

Response Time 5 ms typical

Color Gamut 83%*

*[1909W] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.
