Setting Up Your Monitor

Dell™ U2312HM Flat Panel Monitor

Setting the display resolution to 1920 x 1080 (maximum)

For maximum display performance with Microsoft®Windows®operating systems, set the display resolution to 1920 x

1080 pixels by performing the following steps:

In Windows XP:

1. Right-click on the desktop and click Properties.

2. Select the Settings tab.

3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to

1920 x 1080.

4. Click OK.

In Windows Vista®or Windows®7:

1. Right-click on the desktop and click Personalization.

2. Click Change Display Settings.

3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to

1920 x 1080.

4. Click OK.

If you do not see 1920 x 1080 as an option, you may need to update your graphics driver. Please choose the scenario

below that best describes the computer system you are using, and follow the provided directions:

1: If you have a Dell™ desktop or a Dell™ portable computer with internet access.

2: If you have a non Dell™ desktop, portable computer, or graphics card.

Back to Contents Page

About Your Monitor

Dell™ U2312HM Flat Panel Monitor User's Guide

Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Universal Serial Bus (USB) Interface

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

NOTE: To set up with anyother stand, please refer to the respective stand setup guide for setup instructions.

Monitor

Stand

Power Cable

VGA Cable

DVI Cable

USB up stream cable (enables the USB ports on the monitor)

Drivers and Documentation media

Quick Setup Guide

Product and Safety Information Guide

Product Features

The U2312HM flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD). The monitor features include:

■23-inch (58.42 cm) viewable area display (Measured diagonally). 1920 x 1080 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt, swivel, vertical extension and rotate adjustment capability. (with Enhanced Menu Rotation).

■Removable pedestal and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an information file (INF), Image color Matching File (ICM), PowerNap software application and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■Asset Management Capability.

■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■EPEAT Gold Rating.

■Halogen Reduced.

■Arsenic-Free glass and Mercury Free for Panel only.

■Energy Gauge shows the energy level being consumed by the monitor in real time.

■High Dynamic Contrast Ratio (DCR).

■PowerNap and Dynamic Dimming Software included (comes in the CD attached with the monitor).

■TCO Certified Displays.

Identifying Parts and Controls

Front View

Front View Front panel controls

Label Description

1Preset Modes (default, but configurable)

2Brightness & Contrast (default, but configurable)

3Menu

4Exit

5Power (with power light indicator)

Back View

Back view Back view with monitor stand

Label Description Use

1VESA mounting holes (100 mm x 100 mm

- behind attached VESA Plate)Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm) .

2Regulatory label Lists the regulatory approvals.

3Stand release button Release stand from monitor.

4Security lock slot Secures monitor with security cable lock.

5Dell Soundbar mounting brackets Attaches the optional Dell Soundbar.

6Barcode serial number label Refer to this label if you need to contact Dell for technical support.

7USB downstream ports Connect your USB devices.

8Cable management slot Use to organize cables by placing them through the slot.

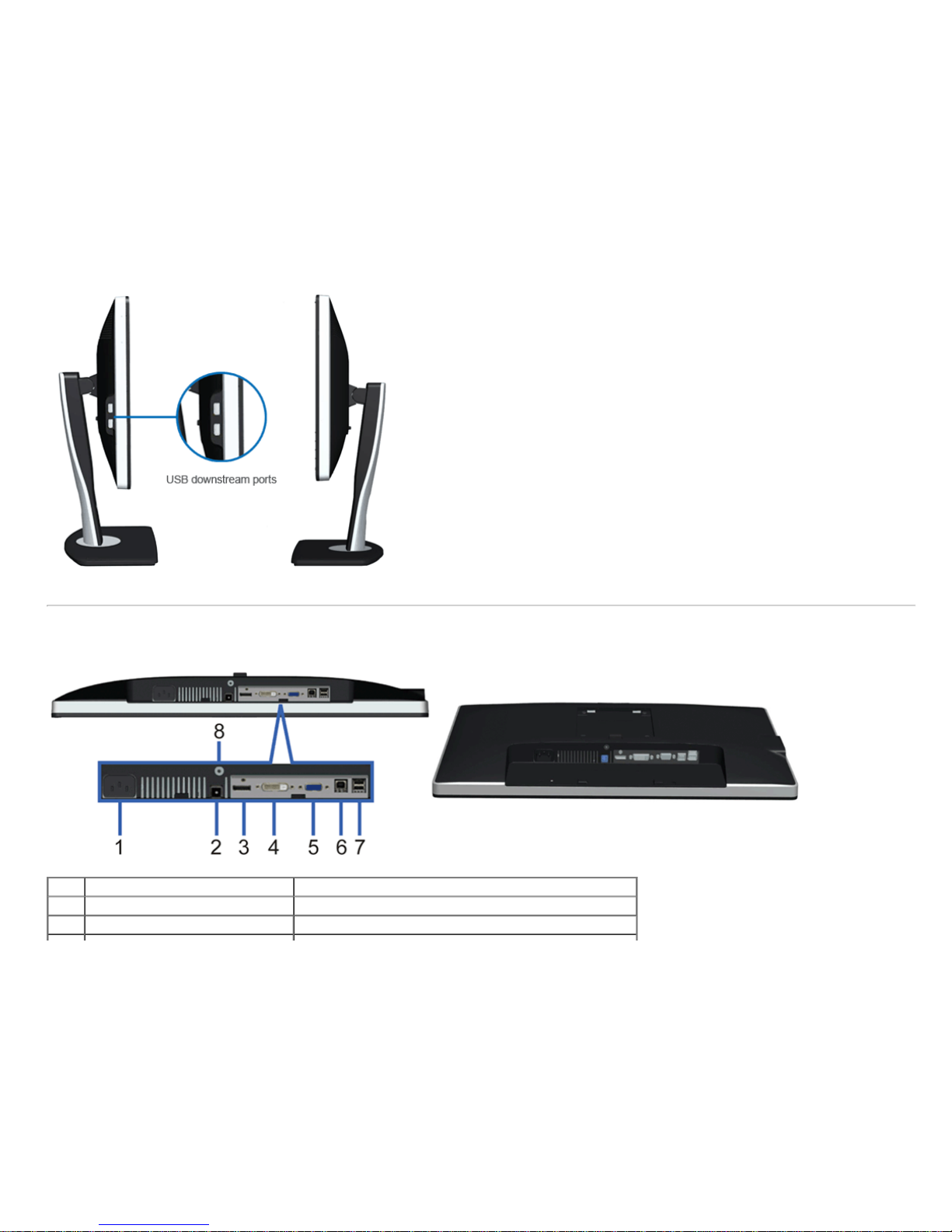

Side View

Left view Right view

Bottom View

Bottom view Bottom view with monitor stand

Label Description Use

1AC power cord connector Connect the power cable

2DC power connector for Dell Soundbar. Connect the power cord for the soundbar (optional)

3DisplayPort connector Connect your computer DP cable

4DVI connector Connect your computer DVI cable

5VGA connector Connect your computer VGA cable

6USB upstream port Connect the USB cable that came with your monitor to the monitor

and the computer. Once this cable is connected,you can use the USB

connectors on the side and bottom of the monitor

7USB downstream ports Connect your USB devices. You can only use this connector after you

have connected the USB cable to the computer and USB upstream

connector on the monitor.

8Stand lock feature To lock the stand to the monitor using M3x6 mm machine screw

(screw not provided)

Monitor Specifications

Flat Panel Specifications

Screen type Active matrix - TFT LCD

Panel type IPS

Screen dimensions 23 inches (23-inches viewable image size)

Preset display area: 509.2 (H) X 286.4 (V) mm

Horizontal 509.2 mm (20.05 inches)

Vertical 286.4 mm (11.28 inches)

Pixel pitch 0.265 mm

Viewing angle 178° (vertical) typical

178° (horizontal) typical

Luminance output 300 cd/m²(typical)

Contrast ratio 1000 to 1 (typical), 2M : 1 (typical Dynamic Contrast On)

Faceplate coating Antiglare with hard-coating 3H

Backlight LED edgelight system

Response Time 8 ms gray-to-gray (typical)

Color depth 16.7 million colors

Color Gamut 82%*

*[U2312HM] color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.
