Dell Storage Center

SCv300 and SCv320 Expansion Enclosure

Getting Started Guide

Regulatory Model: E03J/E04J

Regulatory Type: E03J001/E04J001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

subsidiaries. Other trademarks may be trademarks of their respective owners.

2017 - 08

Rev. A00

Setting Up the Expansion Enclosure

Before setting up your SCv300/SCv320 expansion enclosure, consider the following best practices.

• Before connecting any cables between the storage system and expansion enclosure, physically label each port and connector.

• Always follow proper power-up and power-down procedures when cycling power across the network. Verify that critical network

components are on separate power circuits.

NOTE: This product is intended for restricted access locations, such as a dedicated equipment room or equipment closet.

WARNING: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient temperature. Therefore, consideration should be given to installing the

equipment in an environment compatible with the maximum ambient temperature (Tma) specied by the manufacturer.

Other Information You May Need

To install the expansion enclosure, you may need the following additional information.

NOTE: See the safety and regulatory information that shipped with your Storage Center components. Warranty

information is included as a separate document.

• The Dell Storage Center SCv3020 Storage System Deployment Guide provides information about cabling storage system

hardware components and conguring a new storage system using the Dell Storage Client.

• The Dell Storage Manager Administrator’s Guide describes how to use Dell Storage Manager to manage Storage Center

systems.

Installation and Conguration

Before you begin the installation, make sure that the site where you plan to install the expansion enclosure has standard power from

an independent source or a rack power distribution unit with a UPS.

Unpacking Storage Center Equipment

Unpack the expansion enclosure and identify the items in your shipment.

Figure 1. SCv300/SCv320 Expansion Enclosure Components

1. Power cables 2. SAS cables

3. Front bezel 4. Documentation

5. Expansion enclosure 6. Rack rails (2)

Installing the Expansion Enclosure in a Rack

Install the SCv300/SCv320 expansion enclosure in a rack.

NOTE: Mount the expansion enclosure in a manner that allows for expansion in the rack and prevents the rack from

becoming top‐heavy.

1. Assemble the rails, following the safety instructions and the rack installation instructions that were provided with your expansion

enclosure.

2. Determine where to mount the expansion enclosure in the rack and mark the location.

3. Install the rack rails at the marked location.

4. Mount the expansion enclosure chassis on the rails.

Figure 2. Mount the Expansion Enclosure Chassis in the Rack

5. Secure the expansion enclosure chassis to the rack using the mounting bolts.

For more information about installing the expansion enclosure, contact Dell Technical Support Services.

Install the Front Bezel

Install the bezel on the front of the expansion enclosure.

1. Hook the right end of the bezel onto the expansion enclosure.

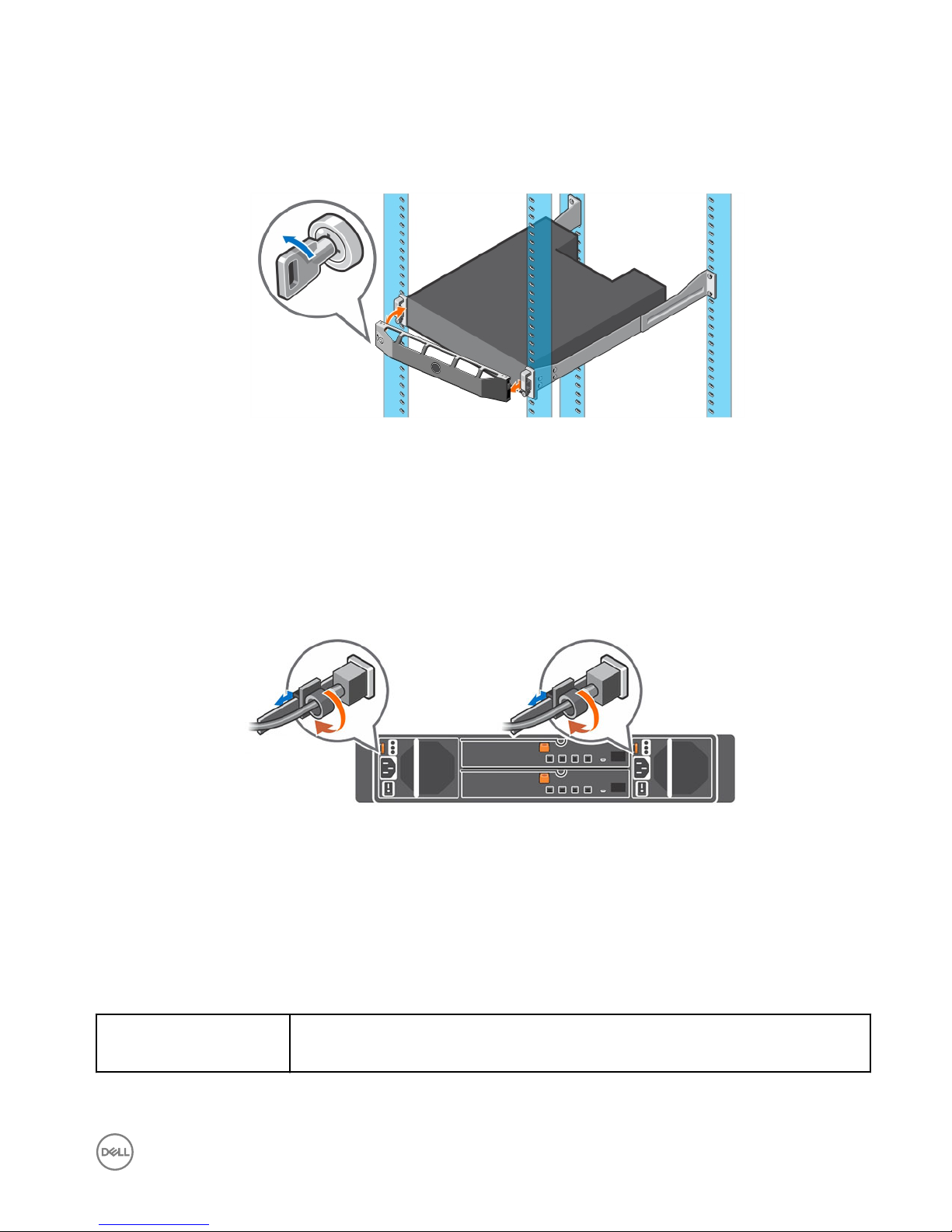

Figure 3. Front Bezel

2. Insert the left end of the bezel into the securing slot until the release latch snaps into place.

3. Secure the bezel with the keylock.

Connecting the Power Cables

Connect the power cables to the expansion enclosure.

1. Before connecting the power cables, make sure that the power switches on the expansion enclosure are in the OFF position.

2. Connect the power cables to the power supplies in the expansion enclosure chassis.

Figure 4. Power Cables

3. Secure each power cable to the expansion enclosure chassis using the strain relief fasteners.

4. Plug the other end of the power cables into a grounded electrical outlet or a separate power source such as an uninterrupted

power supply (UPS) or a power distribution unit (PDU).

NOM Information (Mexico Only)

The following information is provided on the device described in this document in compliance with the requirements of the ocial

Mexican standards (NOM):

Importer Dell Inc. de México, S.A. de C.V

Paseo de la Reforma 2620-11 ° Piso

Col. Lomas Atlas

11950 México, D.F.

Model number E03J and E04J

Supply voltage 100–240 VAC

Frequency 50/60 Hz

Current consumption 8.6–4.3 A

Technical Specications

The technical specications of the SCv300/SCv320 expansion enclosures are displayed in the following tables.

Drives

SAS hard drives SCv300: Up to 12 hot-swappable 3.5-inch 12 Gbps SAS hard drives or SAS solid state drives

(SSDs)

SCv320: Up to 24 hot-swappable 2.5-inch 12 Gbps SAS hard drives or SAS solid state drives

(SSDs)

NOTE: SCv300/SCv320 expansion enclosures support self-encrypting drives (SEDs).

Enclosure Management Modules (EMMs)

EMMs Two hot-swappable IO modules

Connectivity

Congurations Storage Center supports up to 960 drives in ve redundant-path SAS chains

An SCv3020 supports up to 16 SCv300 expansion enclosures or up to 8 SCv320 expansion

enclosures per chain

Redundant Array of Independent Disks (RAID)

Storage System SCv3020

Management RAID management using Dell Storage Client 2016 R3.10 and later

Back-Panel Connectors (per EMM)

SAS connectors Four mini-SAS HD connectors for connecting an expansion enclosure to a storage system.

NOTE: SAS connectors are SFF-8086/SFF-8088 compliant.

LED Indicators

Front panel • One two-color LED indicator for system status

• One single-color LED indicator for power status

Hard-drive carrier • One single-color activity LED

• One two-color LED status indicator per drive

Power supply/cooling fan Three LED status indicators for power supply status, power supply module status, and AC status

Power Supplies

AC power supply (per power supply)

Wattage 600 W

Voltage 100–240 VAC (8.6–4.3 A), autoranging, 50/60 Hz

Heat dissipation AC – 2047 BTU/hr

Available Hard Drive Power (per Slot)

Supported hard drive power

consumption (continuous)

Up to 1.2 A at +5 V, up to 0.5 A at +12 V

Physical

Height 8.7 cm (3.43 in.)

Width 48.2 cm (18.98 in.)

Depth SCv300: 59.4 cm (23.39 in.)

SCv320: 54.1 cm (21.3 in.)

Weight (maximum

conguration)

SCv300: 28.59 kg (63.03 lb)

SCv320: 24.2 kg (53.35 lb)

Weight without drives SCv300: 9.0 kg (19.84 lb)

SCv320: 8.8 kg (19.4 lb)

Environmental

NOTE: For additional information about environmental measurements for specic congurations, see the Product

Safety, EMC and Environmental Datasheets website.

Temperature

Operating SCv300: 5° to 35°C (41° to 95°F) with a maximum temperature gradation of 10°C (18°F) per

hour

SCv320: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C (18°F) per

hour

NOTE: For altitudes above 900 m (2950 ft), the maximum operating temperature is

derated 0.56°C (1°F) per 168 m (550 ft).

Storage –40° to 65°C (–40° to 149°F) with a maximum temperature gradation of 20°C (36°F) per hour

Relative humidity

Operating 8% to 85% (noncondensing) with a maximum humidity gradation of 10% per hour

Storage 5% to 95% (noncondensing)

Altitude

Operating –16 to 3048 m (–50 to 10,000 ft)

NOTE: For altitudes above 900 m (2950 ft), the maximum operating temperature is

derated 0.56°C (1°F) per 168 m (550 ft).

Environmental

Storage –16 to 10,600 m (–50 to 35,000 ft)
